44.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for the 44 mm racing cylinder for your Tomos S25/2, A38B and A35 moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

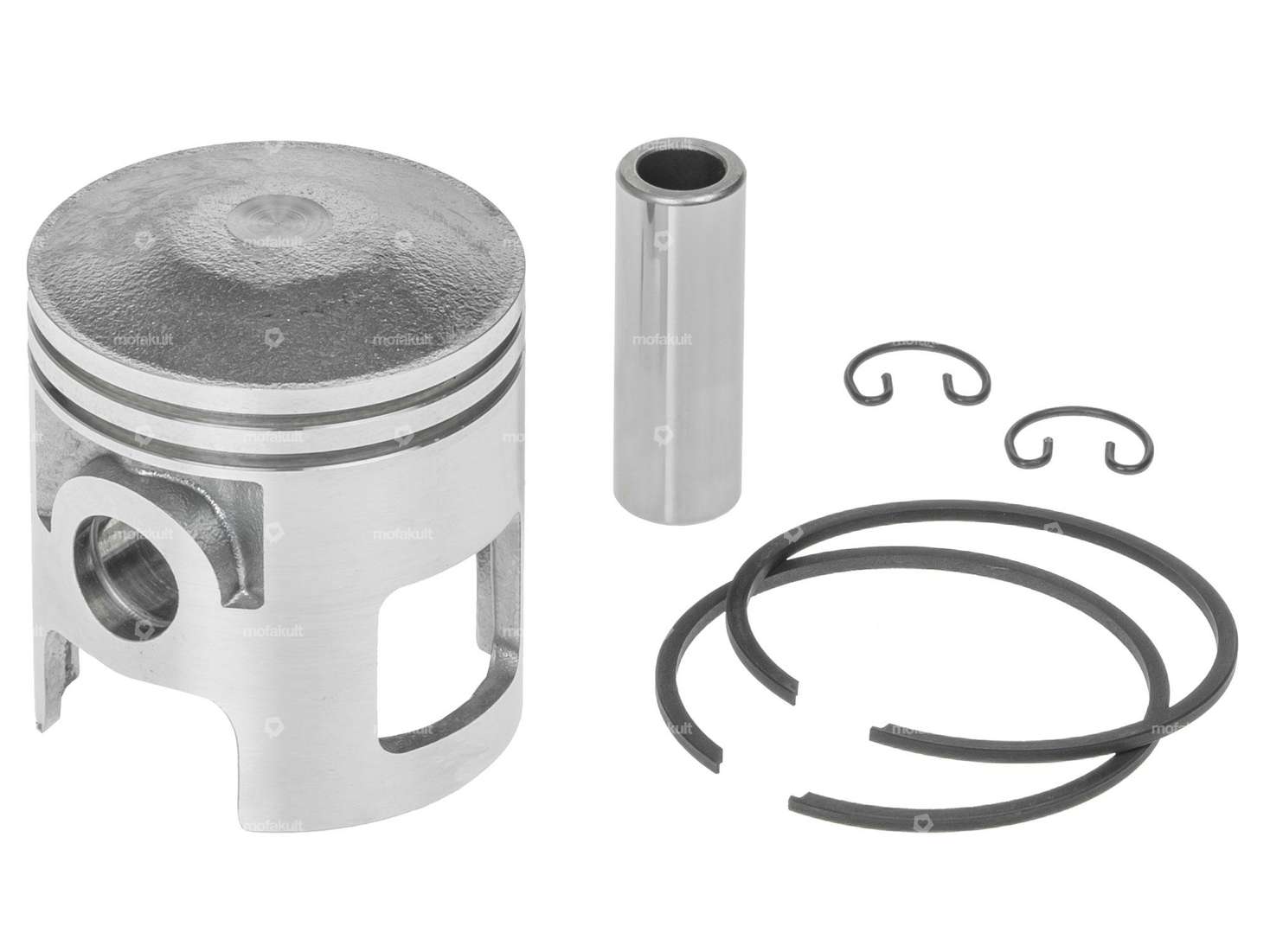

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Nominal diameter | 44 mm |
| Manufacturer | GPO |
| Ø outside piston (A) | 43.96 mm |
| Compression height (C) | 21.9 mm |
| Curvature (D) | 4.15 mm |
| Total piston height (E) | 49.55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tomos |
