For: Puch

33577

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 97.90

Incl. 25% VAT.

Description

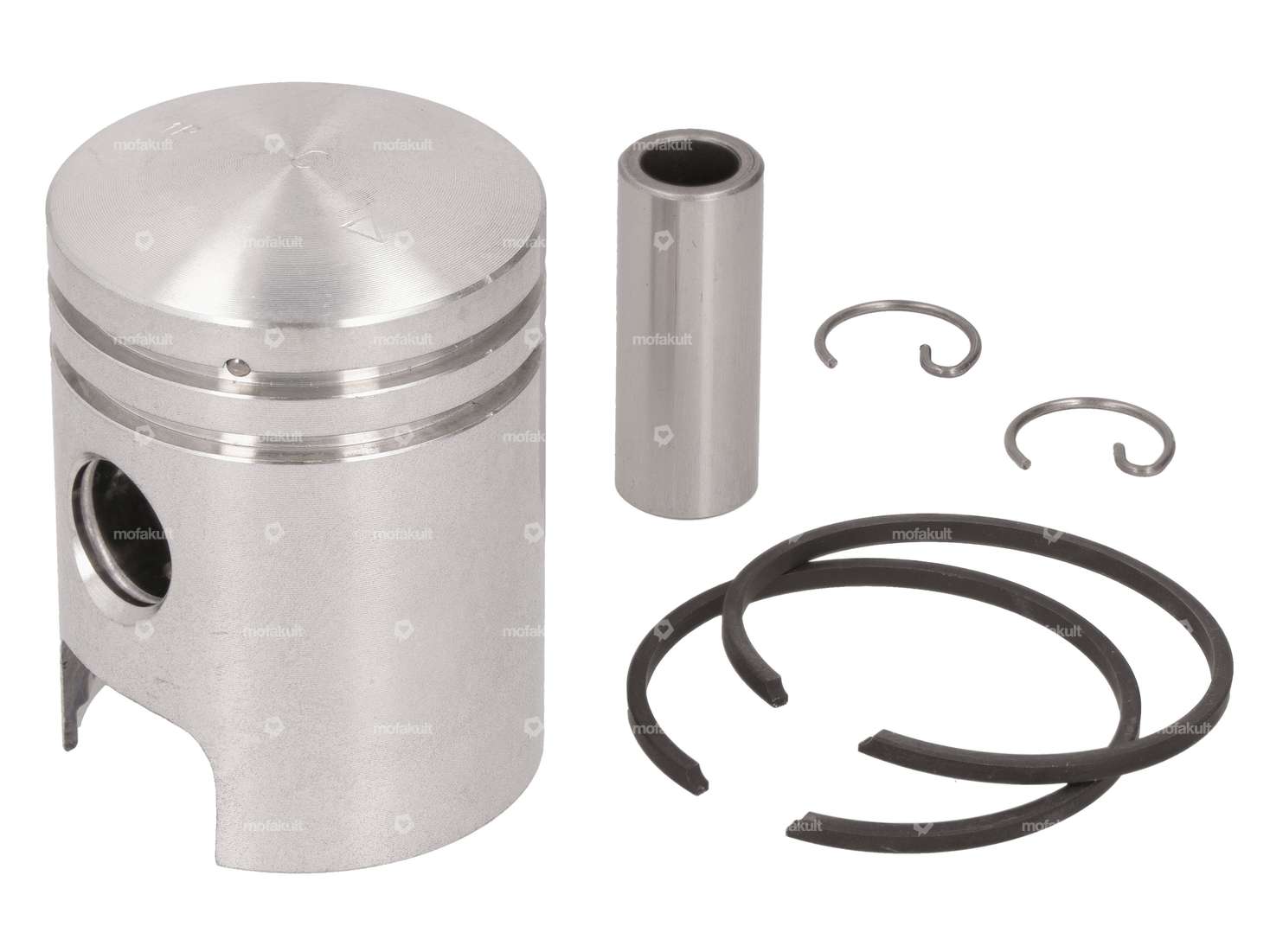

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch Maxi moped / moped.

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

The piston kit contains piston pins, piston clips and piston rings.

Corresponding installation tools, piston pin locks and alternative pistons can be found in the accessories section.

Quality product from the Italian manufacturer Gilardoni under the italkit brand.

ManufacturerGilardoni italkit
Ø outside piston (A)37.96 mm
Compression height (C)22.7 mm
Curvature (D)3.9 mm
Total piston height (E)52.6 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Weight piston kit81 g
Puch

E50

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Material: Spring steel · Manufacturer: Airsal · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

EUR 1.50

Meteor piston 38 mm #2 | Puch
undefined

For: Puch

10593

Meteor piston 38 mm #2 | Puch

Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2 · Weight piston kit: 79 g

EUR 61.20

Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.80

EUR 31.80/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.60

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

EUR 1.50

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Material: Steel · Surface: burnished · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs

EUR 24.40

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

18209

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Material: Sealing paper · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 32 - 38 mm · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Ø outlet inside: 20 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

EUR 9.10

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
undefined

For: Puch

33576

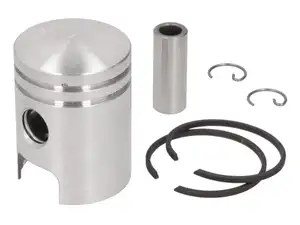

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
