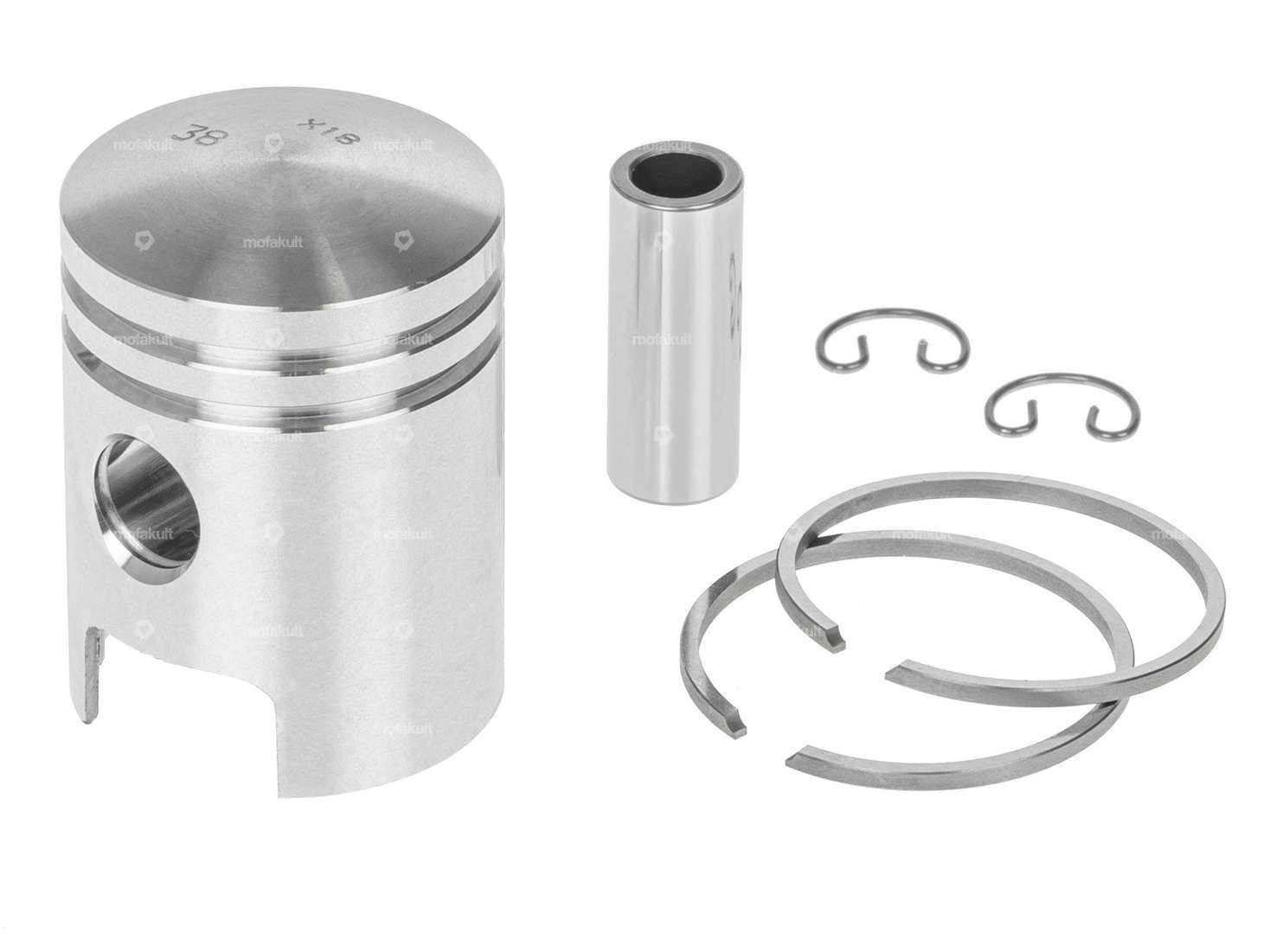

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) for original Puch Maxi, X30 Sport mopeds / mopeds. The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance no. 2
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.96 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piston ring height | 2 mm |
| Tolerance group | 2 |
| Weight piston kit | 79 g |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Material: Steel · Total length: 130 mm · Manufacturer: GPO · Number of components: 7 pcs · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.60
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Manufacturer: GPO · Number of components: 4 pcs · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Hole spacing inlet: 32 - 38 mm · Area of application: Standard · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes
EUR 9.15
Moped fans also bought
GPO gasket set | Puch E50
Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Manufacturer: GPO · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Area of application: Standard · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes
EUR 12.20
Meteor piston 38 mm #1 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Weight piston kit: 79 g · Puch OEM number: 349.1.10.106.0/21
EUR 61.60
Meteor piston 38 mm #3 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 3 · Weight piston kit: 79 g
EUR 61.60
swiing® revival stud bolt set M6 x 106 | Puch
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Width across flats: 10 mm · Drive: External hexagon · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 9.15
GPO gasket set carburetor Bing SRE
Manufacturer: GPO · Material: Sealing paper · Component group Carburetor: Sealing, revising · Carburetor type: SRE · Ø outside: 12.2 mm · Ø outside: 45 mm · Thickness: 0.5 mm · Thickness: 0.9 mm · Thickness: 1.5 mm · Ø inside: 7.8 mm · Ø inside: 41 mm · Camouflaged: No
EUR 6.05
Hot
swiing® revival 12 mm carburetor "Original" | Puch
Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 12 mm · Choke control: Hand choke · Color: gray · Width: 50 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Total length: 65 mm · Height: 108 mm · Nozzle size: 52 · Mounting type: Plug connection clamped · Ø Inside entrance: 12 mm · Ø Internal connection: 20 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Area of application: Standard · Nozzle block: 2.15 · Camouflaged: No · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0
EUR 86.30
