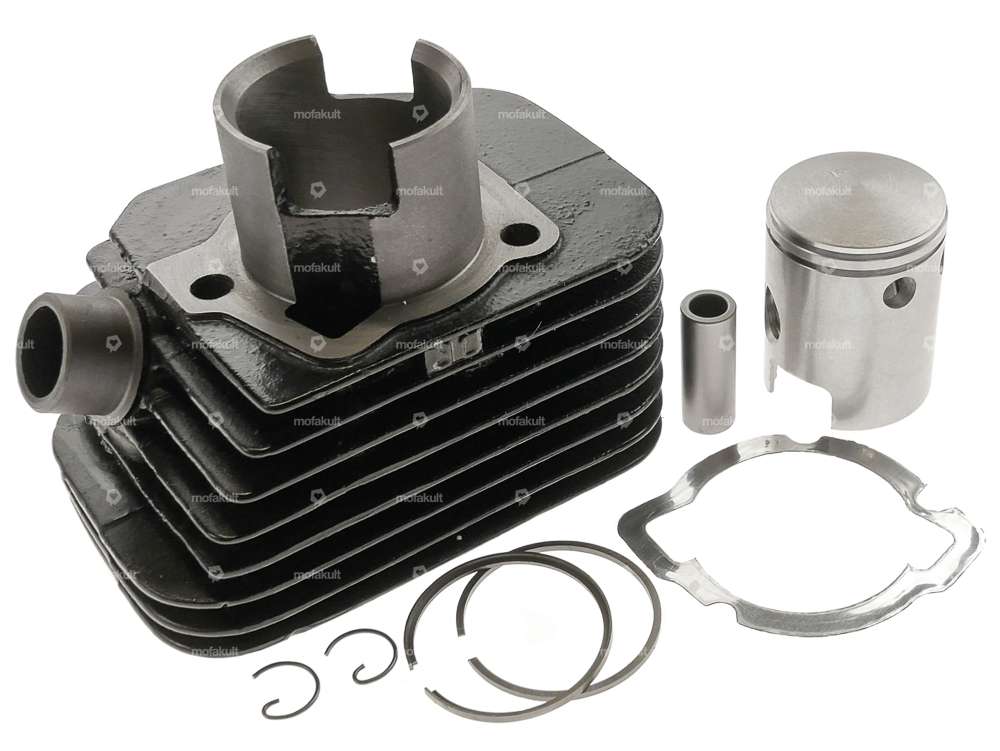

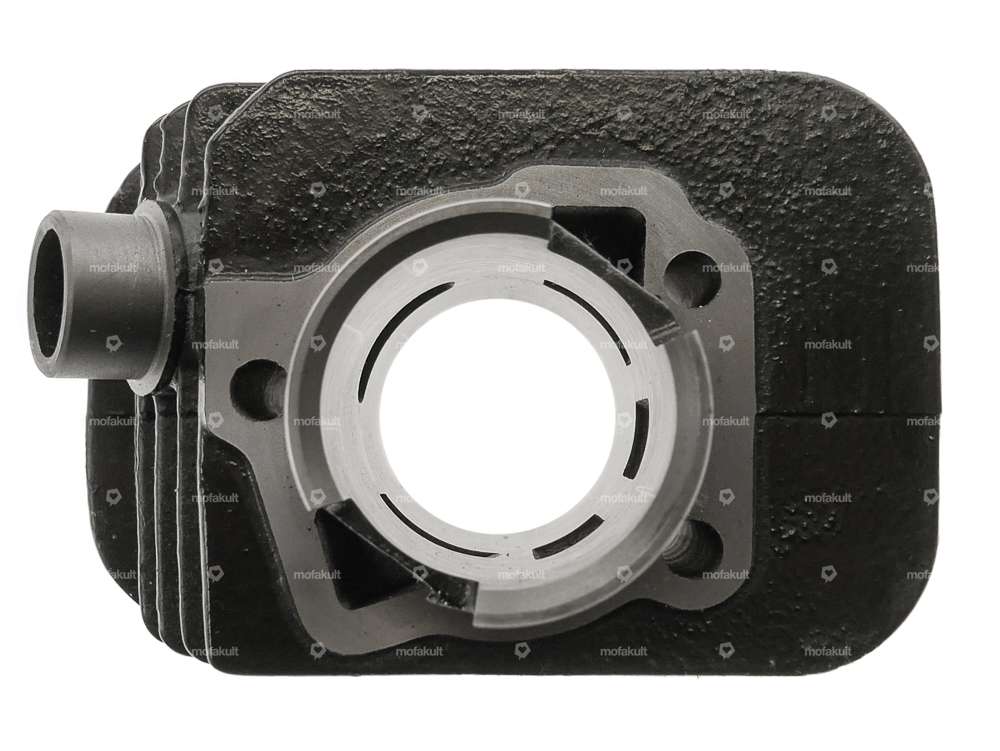

DR brand tuning cylinder kit, compatible with Piaggio Ciao, Si, Bravo, and Boxer.
The gray cast iron cylinder impresses with its suitability for everyday use and optimal power delivery.
No adjustment of the overflow channels to your housing is required.
What’s included:
- Cylinder
- Piston
- Piston pin
- Cylinder base gasket
- 2 x Piston clips
- 2 x Piston Ring
Note:
To achieve optimal performance, the intake port on the engine block should be modified. A tutorial on how to modify the intake port is linked below. Please pay attention to the installation direction during assembly. The piston should be installed with the arrow pointing toward the exhaust port on the exhaust side.
A quality product from the Italian manufacturer DR Racing Parts.
| Manufacturer | DR Racing Parts |
| Material | Gray cast iron |
| Camouflaged | No |
| Surface | varnished |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 45.6 mm |
| Nominal diameter | 38.4 mm |
| Ø Outlet outside | 22.5 mm |
| Number of fixing points | 3 pcs |
| Ø outlet inside | 17 mm |
| Ø piston pin (B) | 12 mm |
| Area of application | Tuning |
| Outlet type | clamped |
| Hole pattern [mm] | 35 x 55 |
| Decompressor | Yes |
| Piaggio |
Accessories & related products
Normio M7 Stainless Steel Nut
Height: 5.5 mm · Manufacturer: Normio · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Drive: External hexagon · Width across flats: 11 mm · Piaggio OEM number: 020107, 1107, 226745
EUR 2.95
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Total length: 130 mm · Number of components: 7 pcs
EUR 24.40

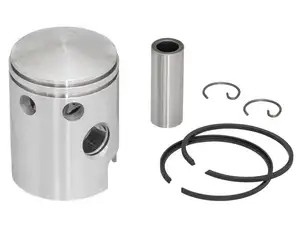

DR Piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
