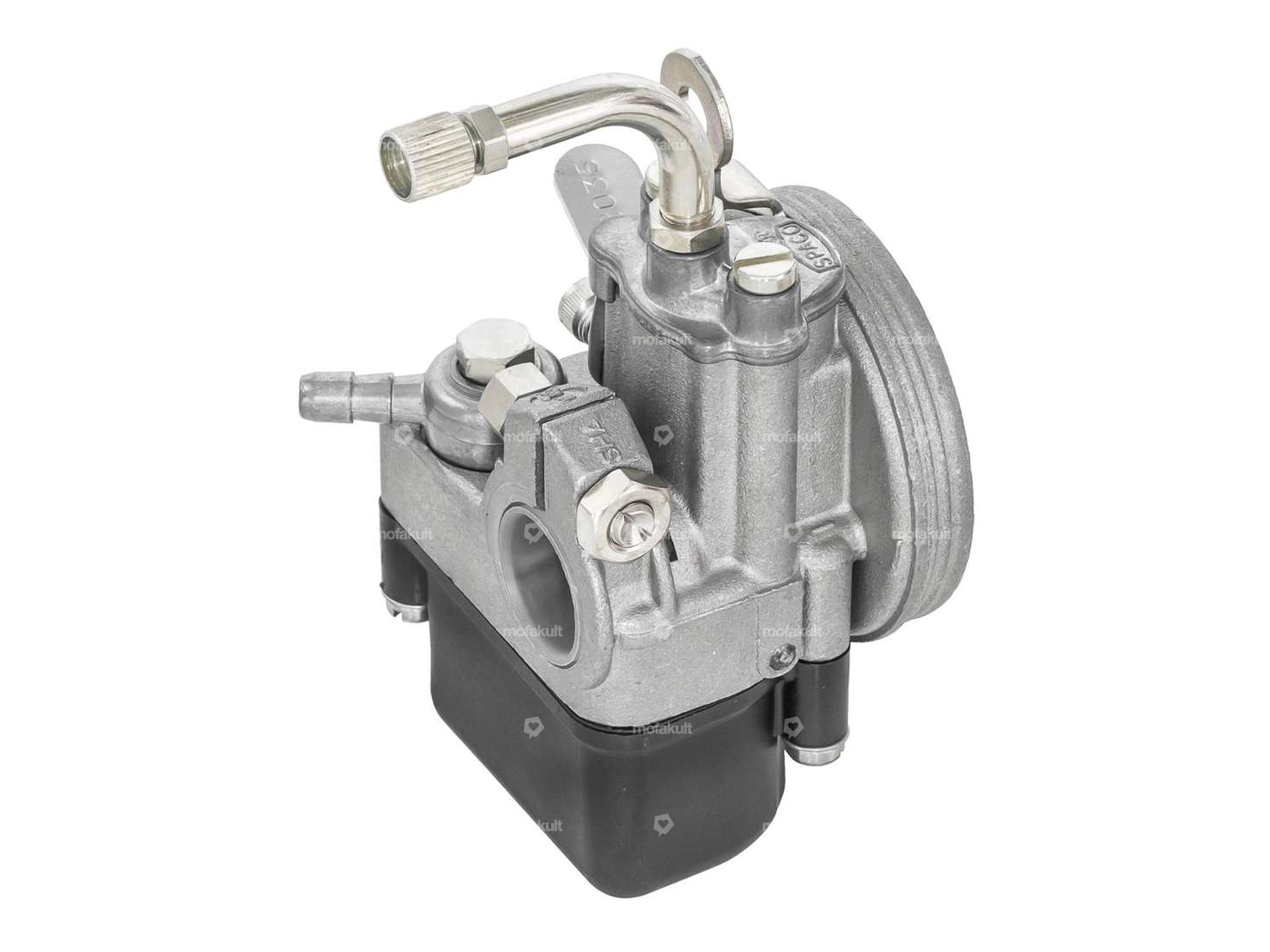

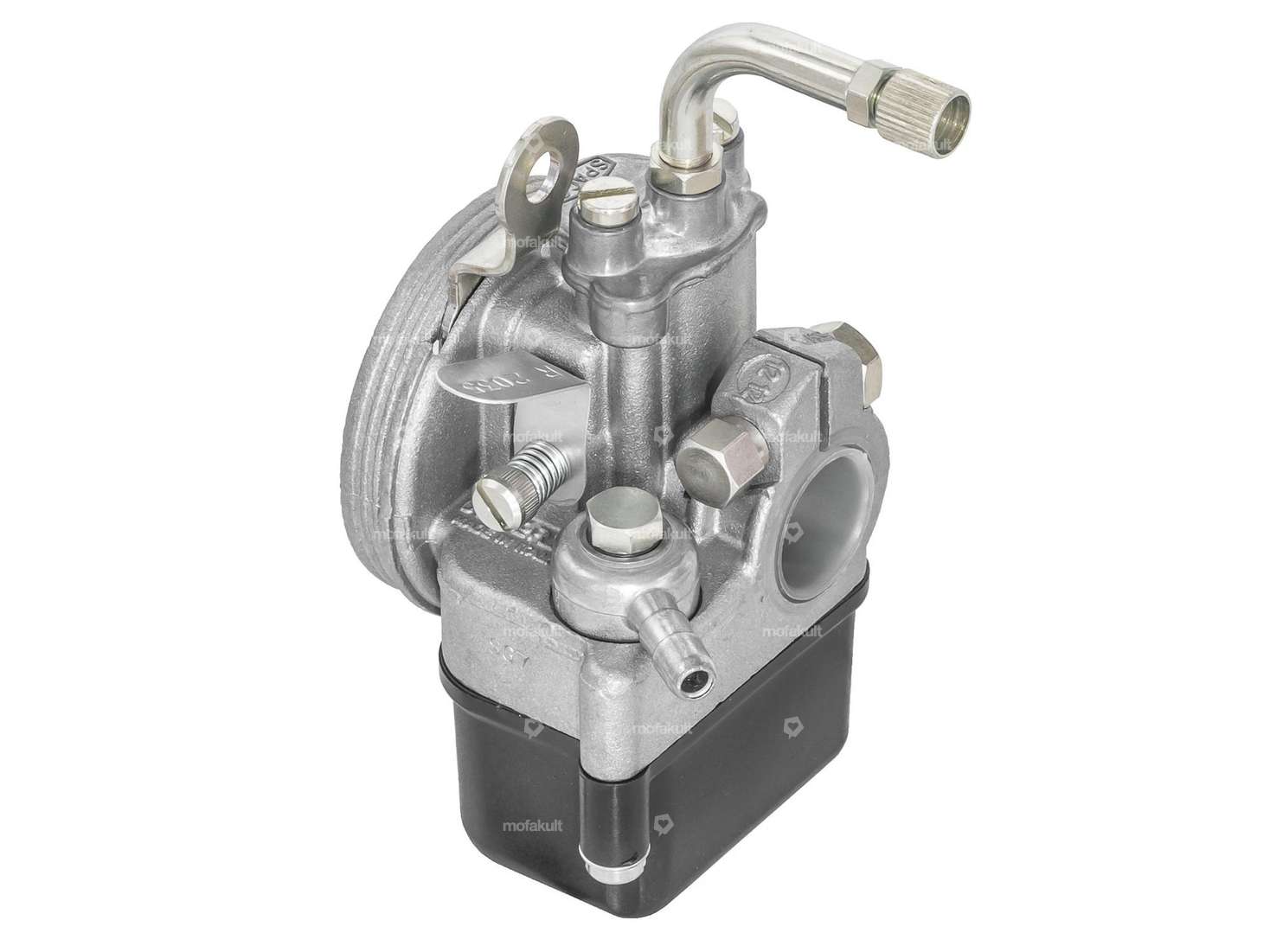

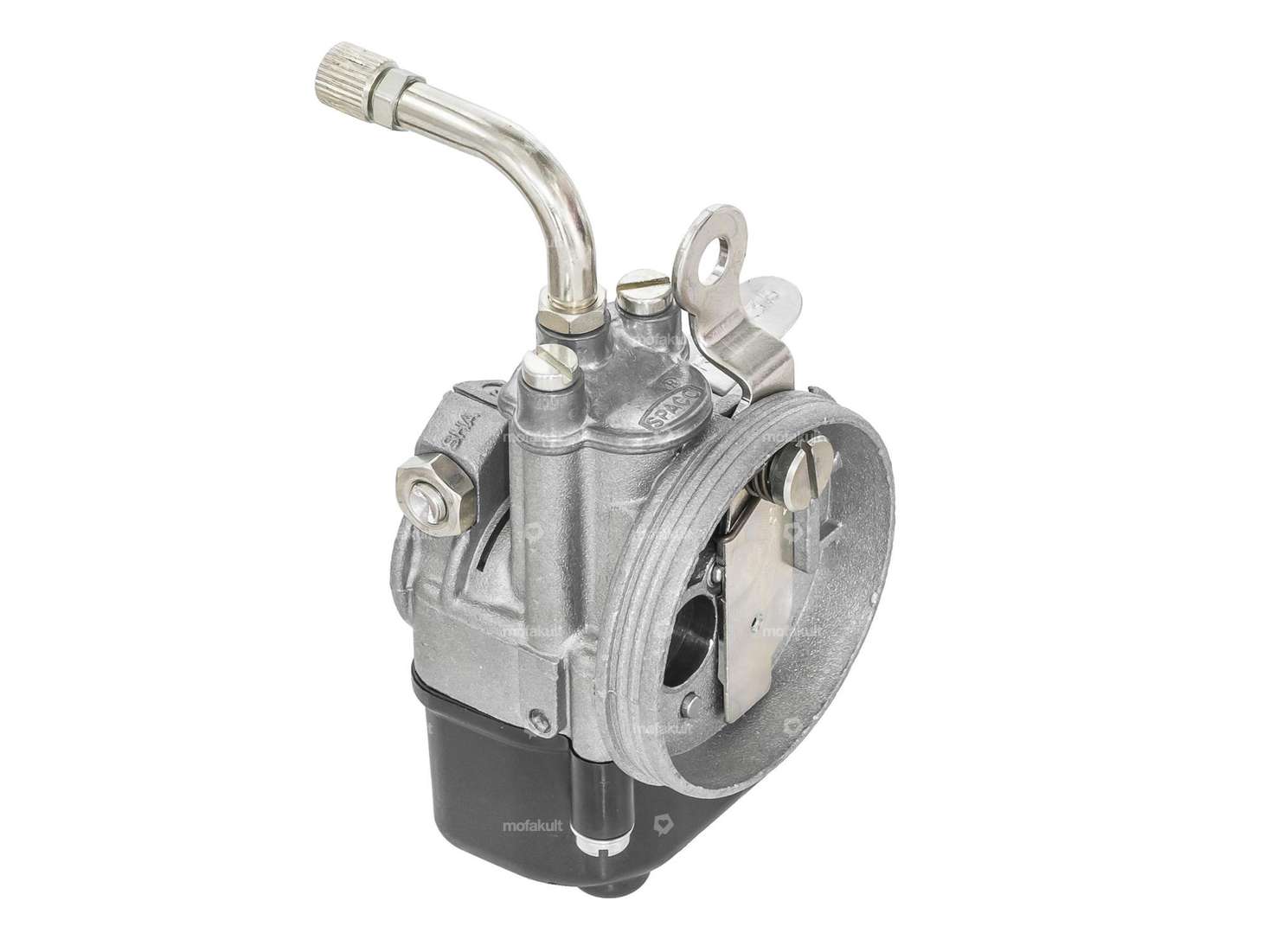

The Dell'Orto 12 / 12 SHA racing carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.6 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 95 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
You can find matching nozzles and air filters in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
| Material | Aluminum |
| Total length | 55 mm |
| Manufacturer | Dell'Orto |
| Camouflaged | No |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | SHA (Piaggio) |
| Mounting type | Plug connection clamped |
| Choke control | Hand choke |
| Nominal diameter | 12 mm |
| Ø fuel hose connection | 6 mm, 5.1 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Ø without reducing sleeve | 18 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.6 mm |
| Width | 60 mm |
| Height | 110 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Area of application | Tuning |
| Piaggio | Ciao - PX, C24 |
