swiing revival parts transparent

For: Cilo

17841

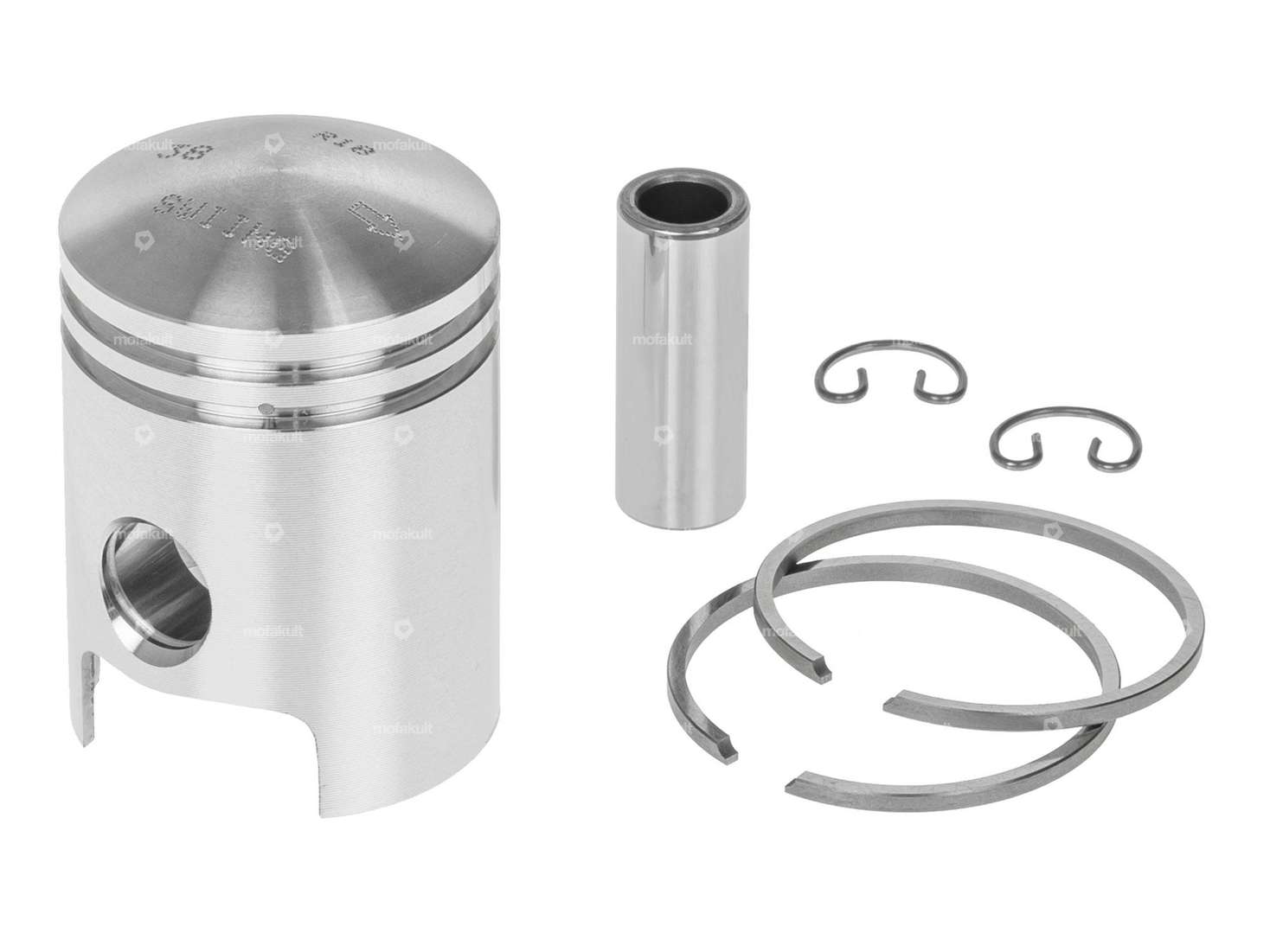

swiing® revival piston 38.5 mm | Cilo 502

EUR 67.30

Incl. 25% VAT.

Description

38.5 mm ¨oum dimension piston with two 2 mm rectangular piston rings with flange lock (FS), suitable for the old Cilo 502 mopeds / mopeds.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
Manufacturerswiing® revival parts
Ø outside piston (A)38.44 mm
Compression height (C)28 mm
Curvature (D)5.05 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit80 g
Cilo

502 / 502t
