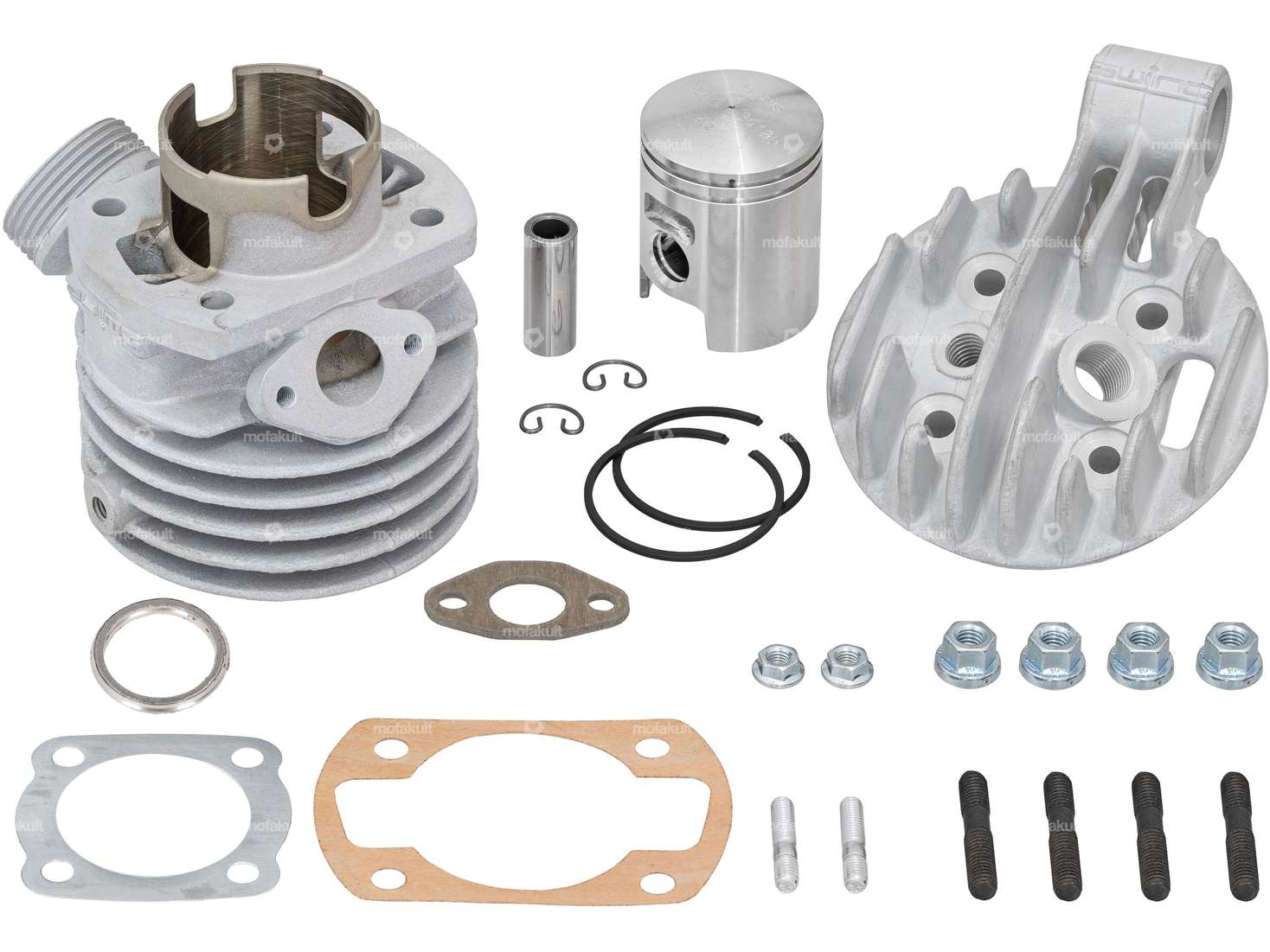

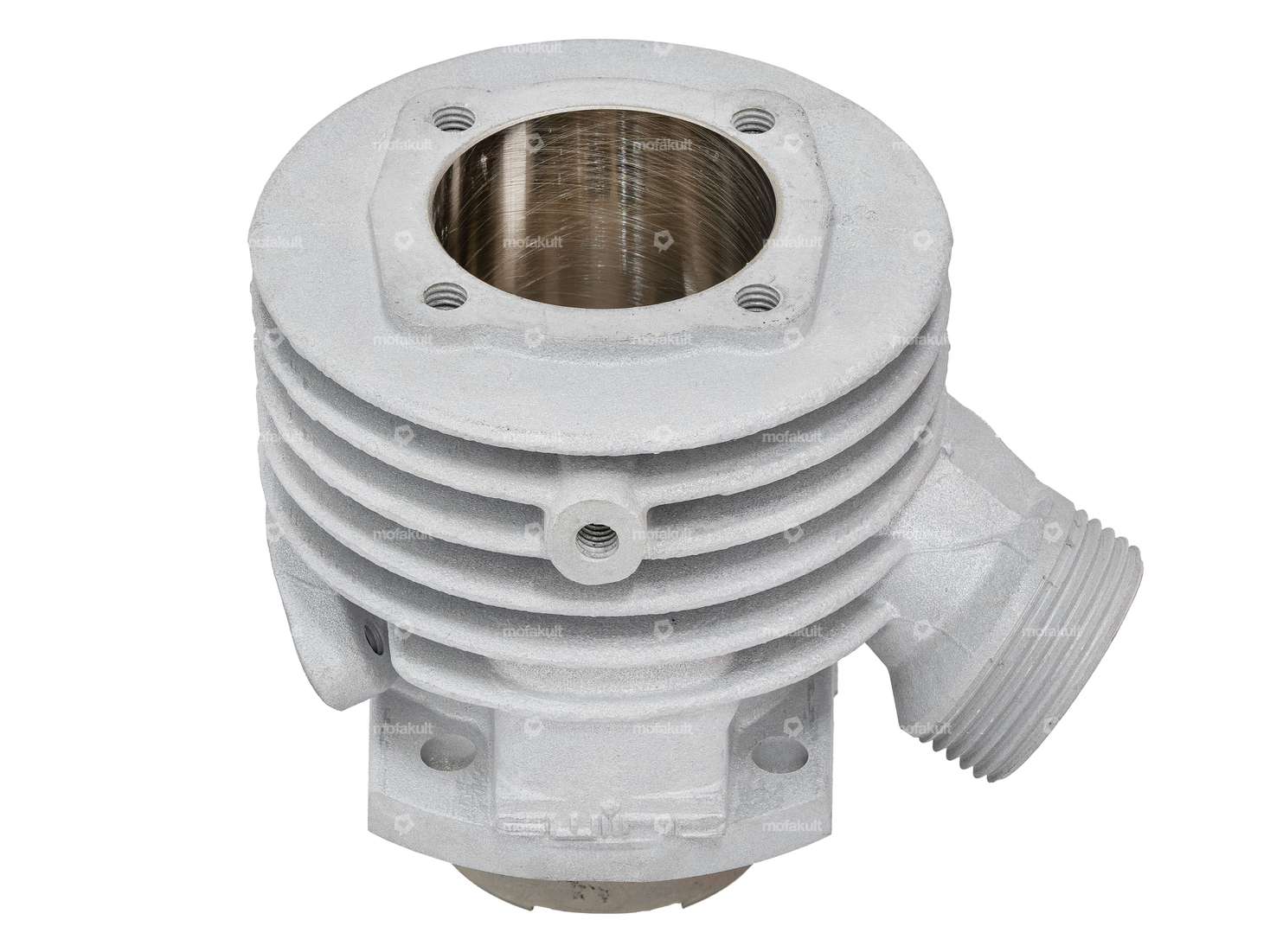

41 mm aluminum racing cylinder with round slotted intake for Sachs 2-, 3- and 4-speed engines with blower clutch, which were installed on Hercules 50/ALS, 50/2 S, 50/KS, 50/2 DK, 50/3 LS, 50/4 LKS, Gritzner mopeds etc.
The high-quality aluminum cylinder delivers uncompromising torque thanks to larger displacement, optimized timing and larger intake and exhaust ports.

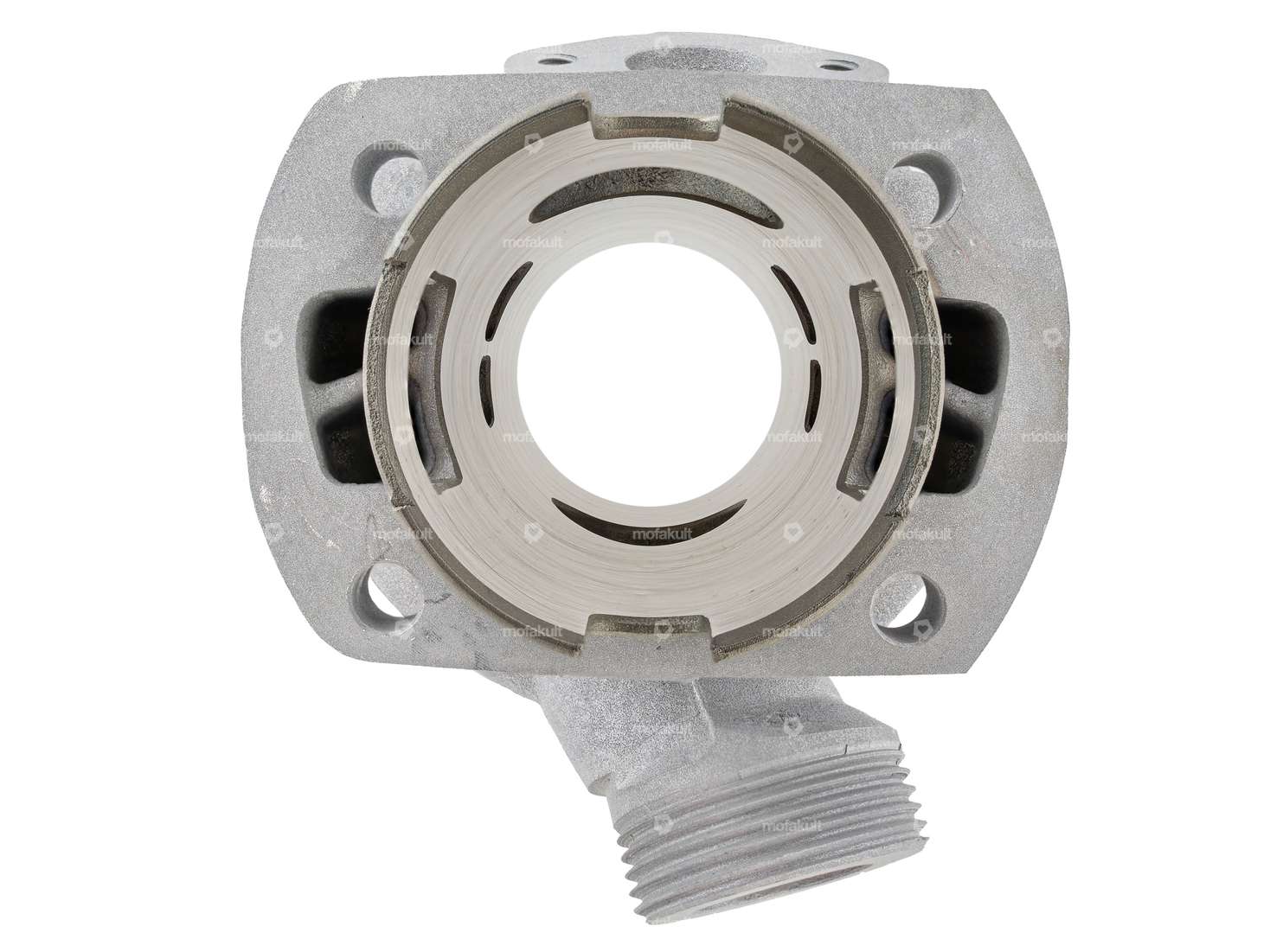

The high-quality aluminium cylinder delivers uncompromising torque and becomes a high-flyer for your oldie thanks to its larger displacement, optimized timing, larger intake and exhaust as well as enlarged transfer ports.

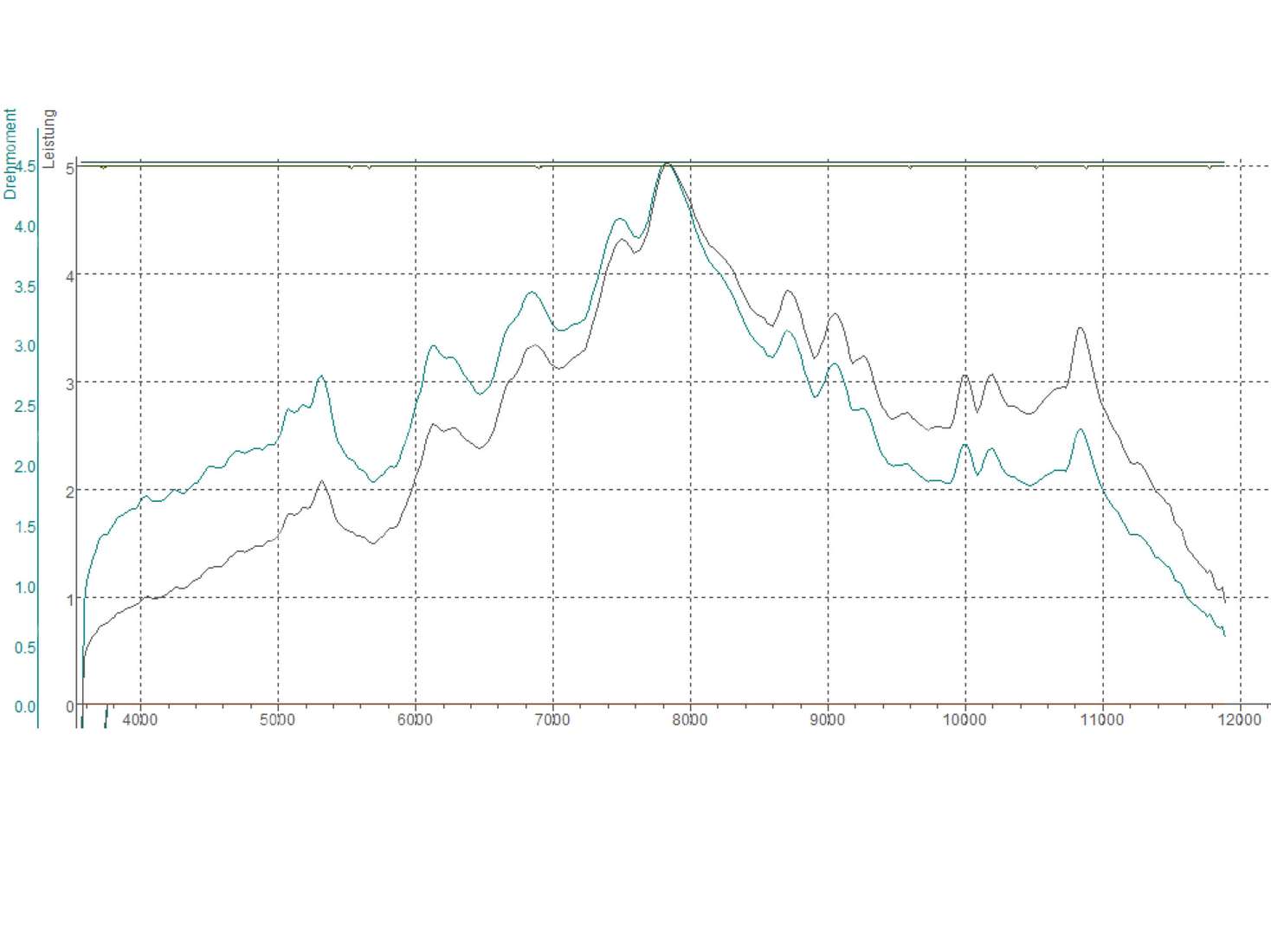

In conjunction with the corresponding 13 mm SSB or 16 mm SHA carburetor with intake flange and resonance exhaust, this racing kit delivers a whopping 4.51 Nm and 5.0 hp at the rear wheel.
The racing kit has its highest power increase in the mid and upper rev range.
A selection of performance-enhancing and supplementary add-on parts can be found in the accessories section.
Manufacturer: swiing® ingenious parts · Material: Aluminum · Nominal diameter: 41 mm
Hole pattern [mm]: 37 x 37 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 95 mm · Camouflaged: No · Number of fixing points: 4 pcs · Ø screw holder: 6.7 mm · Candle thread: short · Decompressor: M10x1.5 · Total length: 126.6 mm · Width: 95 mm · Height: 44.8 mm · Area of application: Tuning
| Nominal diameter | 41 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 55 ccm |
| Crankshaft stroke | 42 mm |
| Hole spacing inlet | 31 mm |
| Hole pattern [mm] | 51 x 40 |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | M35x2 (standard thread) |
| Area of application | Racing |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
