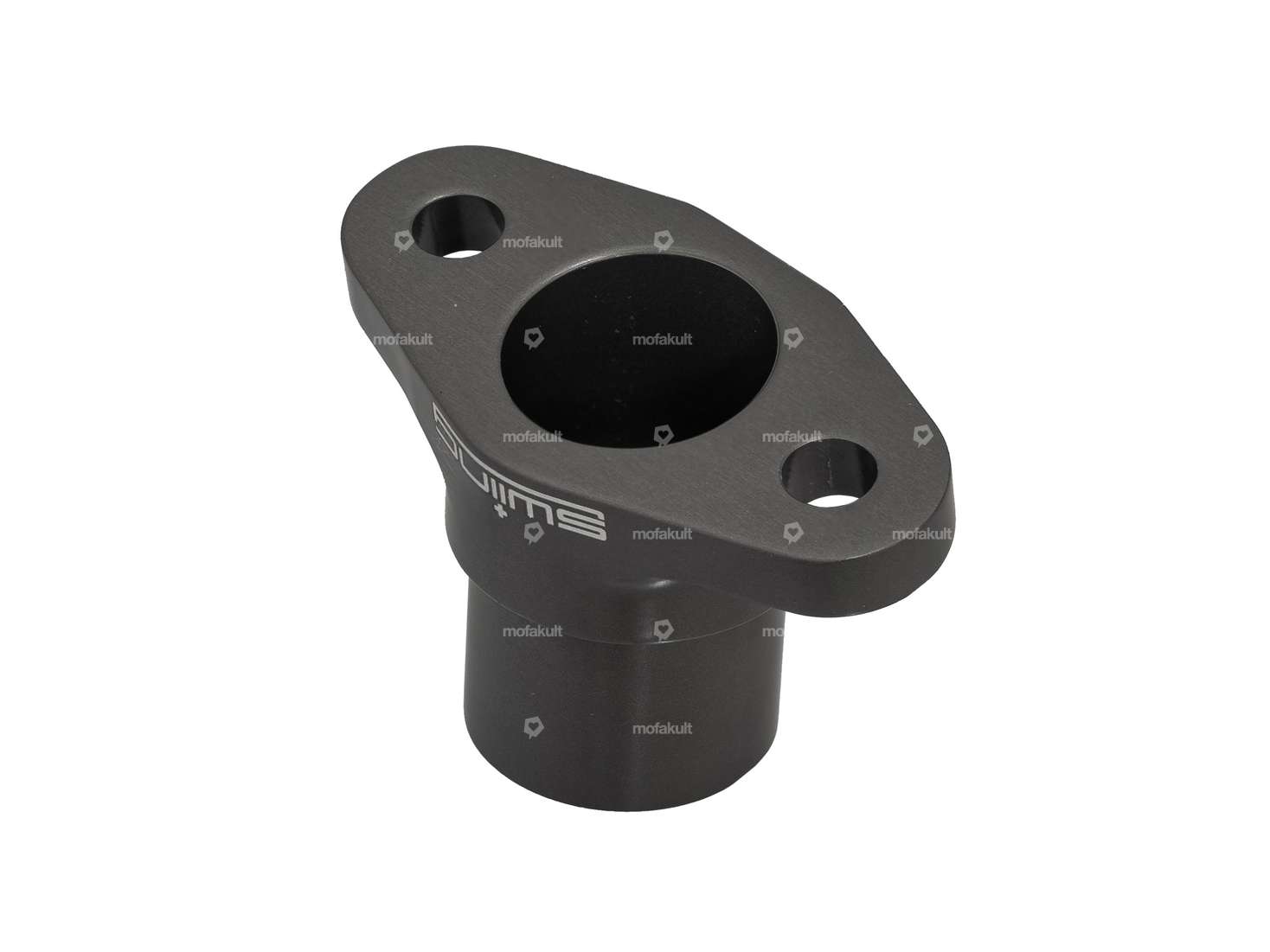

16 mm tuning intake manifold, silver anodized, suitable for the slotted 38 mm / 41 mm swiing aluminium cylinders for Sachs 502, 50/2, 50/3 and 50/4 mopeds, mopeds and small motorcycles.
The CNC-milled aluminium intake flange, in conjunction with a Dell'Orto SHA carburettor, provides a decent increase in performance.
Depending on the frame type, a 90° pipe bend should be used on the SHA carburetor for the throttle cable so that the racing carburetor can be mounted cleanly and straight.
Ø inside: 16 mm
Ø carburetor connection: 19 mm
Ø mounting hole: 5.5 mm
Hole spacing: 31 mm

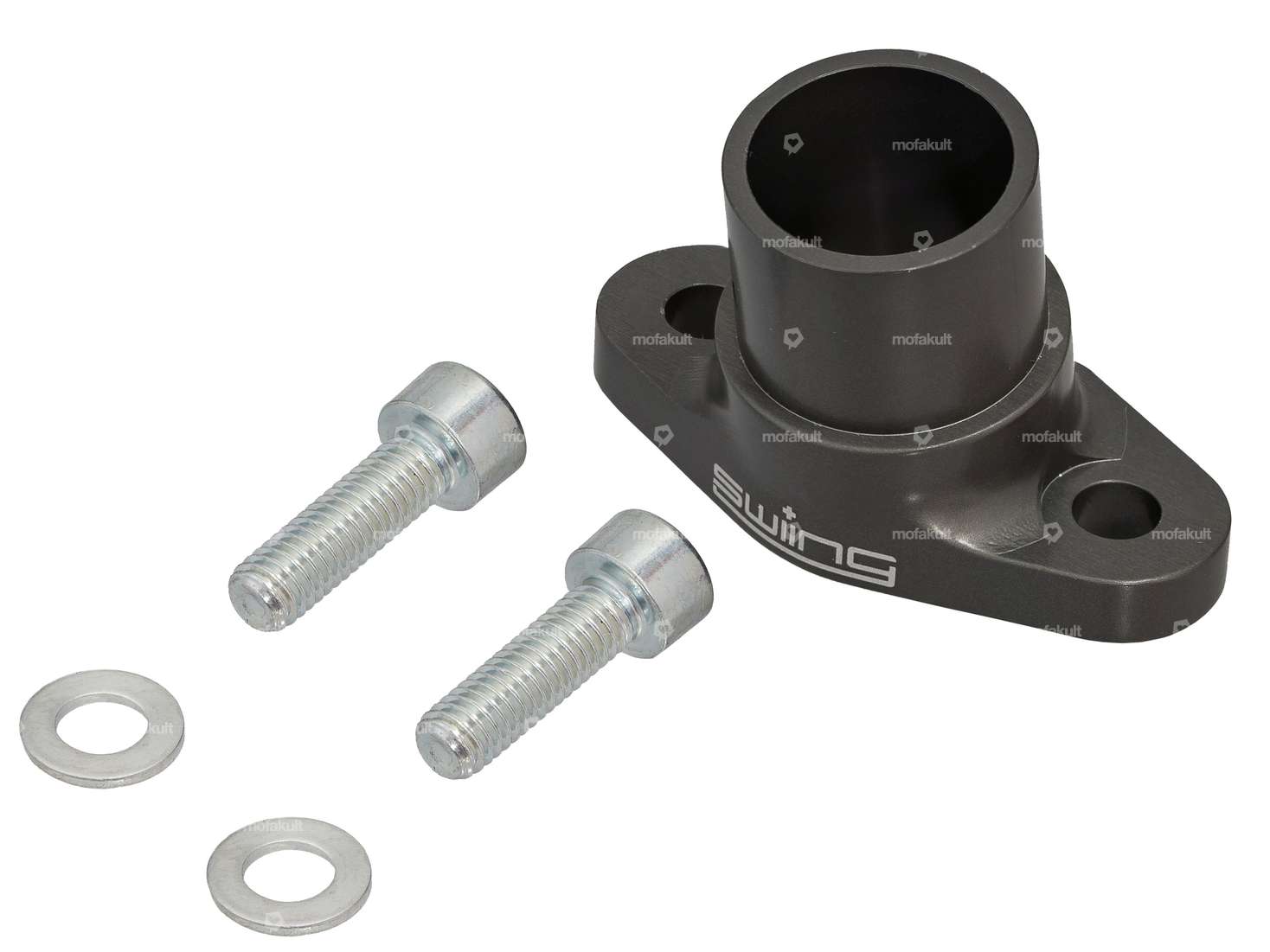

The mounting screws are included in the scope of delivery.
Matching attachments such as gaskets, carburettors, pipe bends etc. can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Ø inside | 16 mm |
| Color | graphite colors |
| Area of application | Tuning |
| Ø External connection | 19 mm |
| Mounting type | Screws |
| Hole spacing inlet | 31 mm |
| Number of fixing points | 2 pcs |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL |
