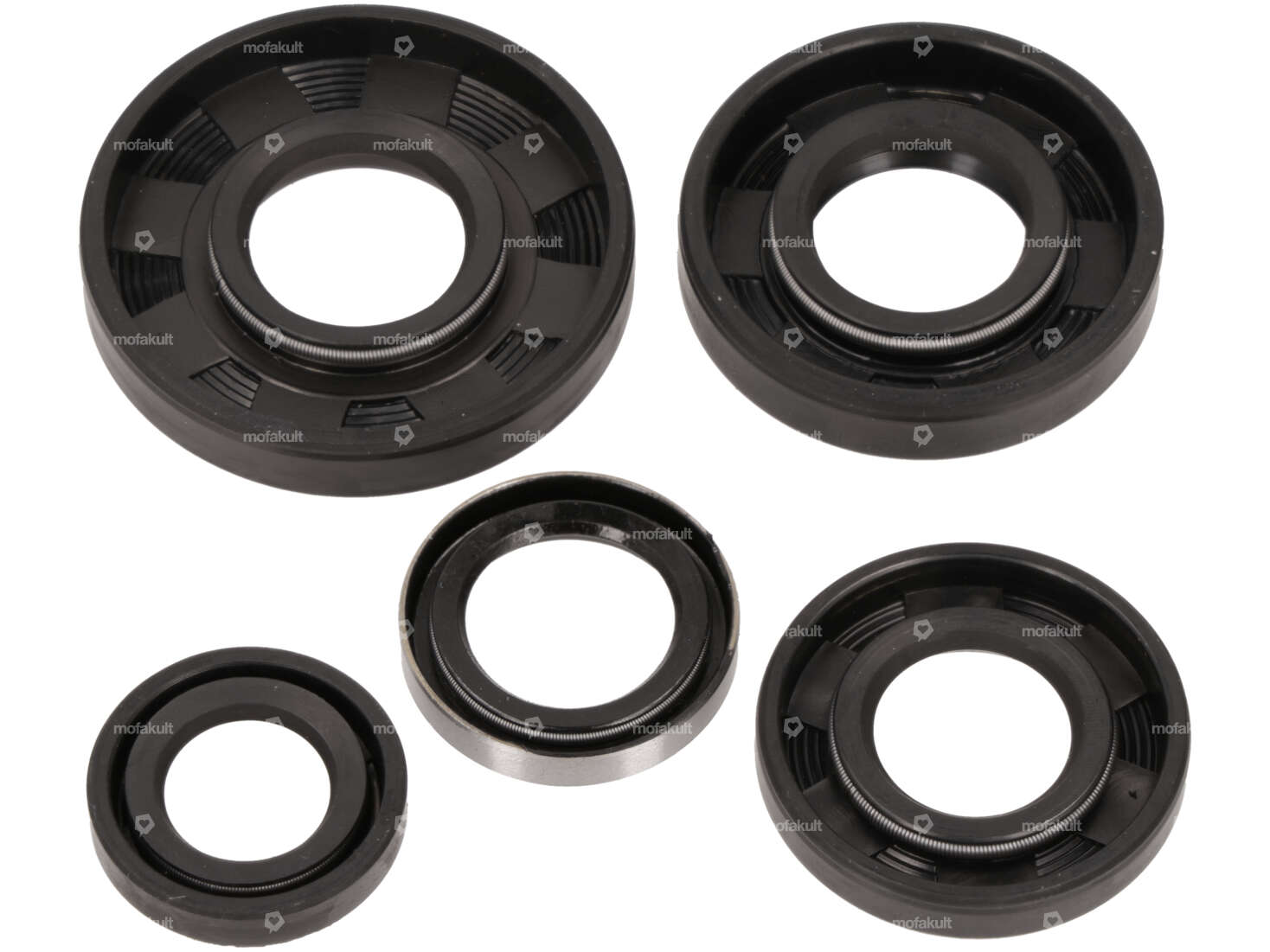

Shaft seal ring set for your moped or small motorcycle with Sachs 506 engine such as the Hercules Prima GT and GX (506/3B), Presto and Pronto (Sachs 506/3B), Supra 4GP, Supra Enduro (Sachs 506/4).
The following radial shaft seals (colloquially referred to as "oil seals" (not a branded product)) are included:
1x shaft seal 17/40/7 NBR
1x shaft seal 17/35/7 NBR
1x shaft seal 15/30/5.5 NBR
1x shaft seal 15/24/4 B NBR
1x shaft seal 13/22/5 NBR
| Shaft seal type | A - With rubberized outer part / one sealing lip., B - With sheet metal outer casing / one sealing lip. |
| Material | NBR |
| Surface | rubberized |
| Place of use | Motor housing |
| Sachs |
| Hercules |
