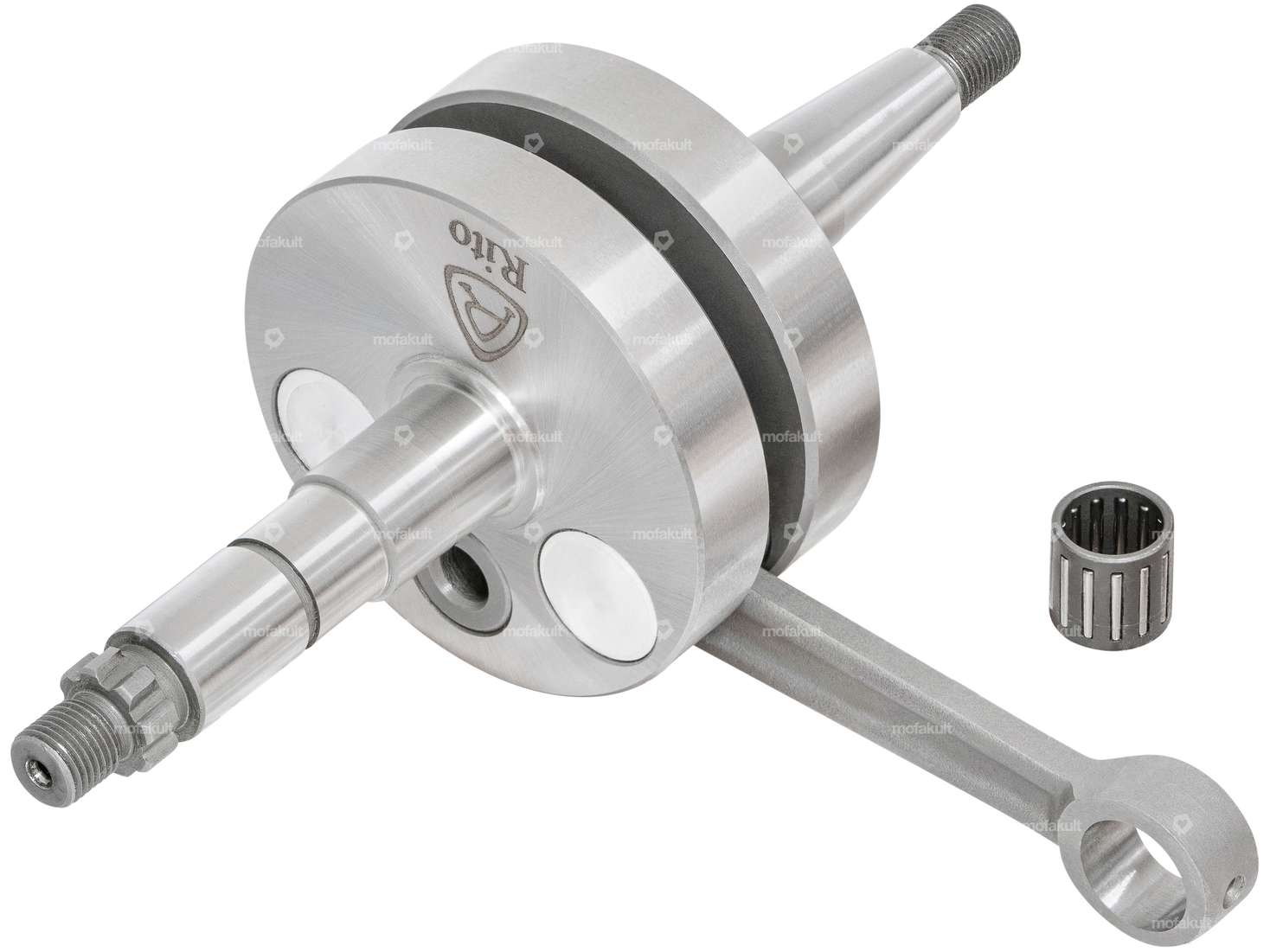

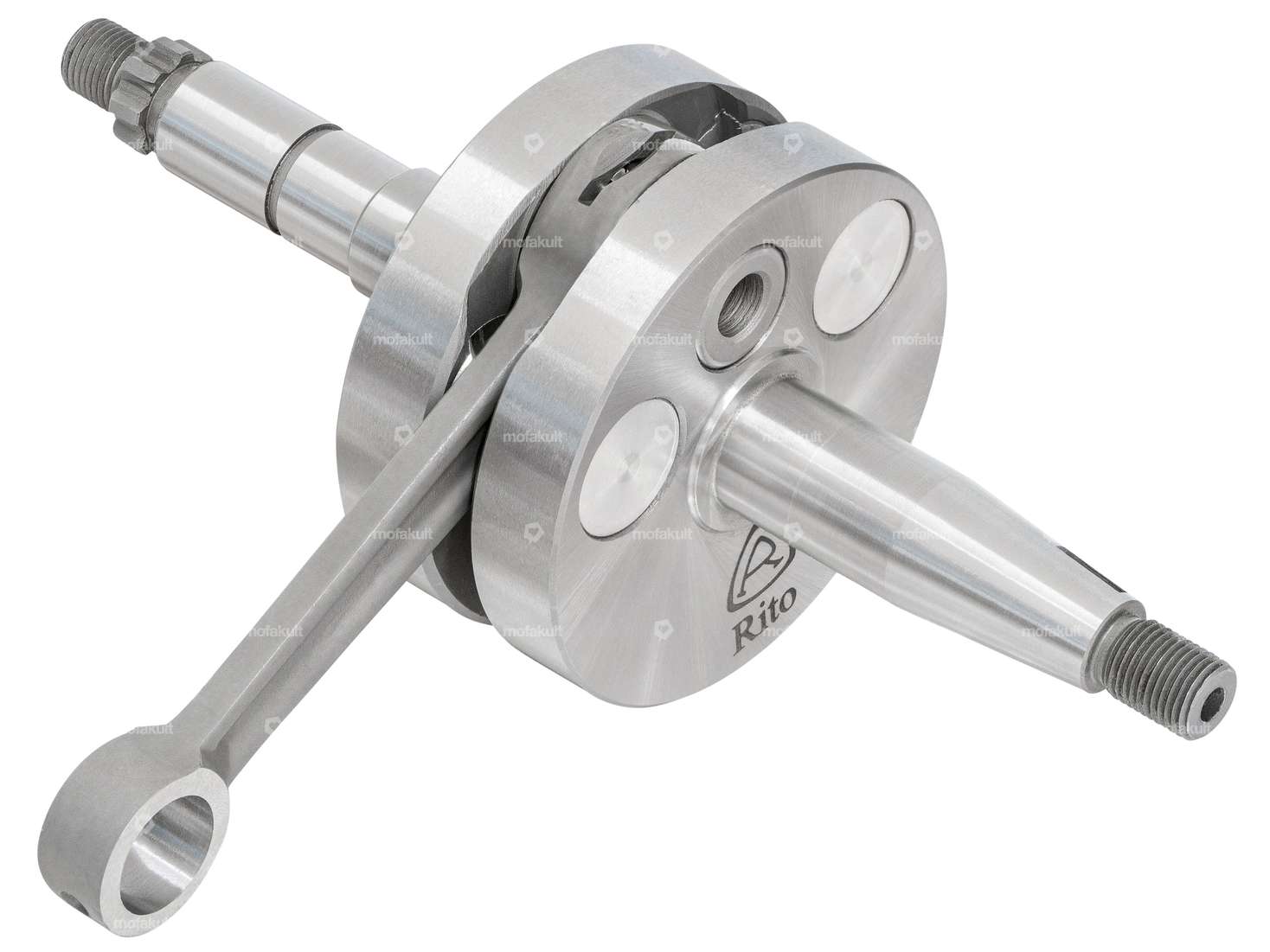

Full-flange crankshaft for Puch three- and four-speed engines, which was installed on various Puch mopeds and small engines.
The balancing holes are sealed with aluminum plugs for perfect balancing and pre-compression of the crankshaft.
This racing crankshaft is designed for speeds of up to 19,000 revolutions per minute.
Total length of clutch-side journals: 73.0 mm
Total length of clutch-side journals: 66.4 mm
Ø 1st shoulder (clutch side): 17 mm
Ø 2nd shoulder (clutch side): 15 mm
Ø 3rd shoulder (clutch side): 10 mm
Ø Heel (clutch side): 17 mm
Ratio cone: 1:5
Ø crank webs: 70 mm
Width of crank webs: 34.2 mm
Width of crank webs (bearing seat): 35.8 mm
Ø connecting rod eye: 15 mm
Piston pin: 12 mm
Ø pin connecting rod bearing bottom: 16 mm
Pleuellänge: 90 mm
Stroke: 43 mm
The needle bearing (12/15x14.7 mm) is included in the scope of delivery.
Note: The crankshaft is not suitable for normal Z50 engines such as Velux etc., as the crankpin on the clutch side is longer.
The fit for the clutch hub is very precise. You may need to apply a little pressure to insert the hub. The clutch hub with item number 32380 is not compatible with this crankshaft.
Quality product from the Portuguese manufacturer Rito.
| Manufacturer | Rito |
| Puch | 3-speed VSD, DS, VZ, MC |
Accessories & related products
swiing® revival stud bolt set | Puch X30 Velux
Manufacturer: swiing® revival parts · Material: Steel · Diameter: 7 mm · Nominal diameter (thread): 7 mm · Total length: 106 mm · Drive: External hexagon · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Width across flats: 11 mm · Thread length: 25 mm
EUR 20.70

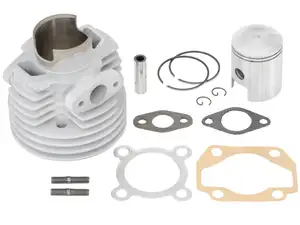

Airsal 40 mm cylinder kit 10 mm KoBo | Puch X30 Velux, NG-2AH
Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 40 mm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: straight · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No
EUR 204.60
Rito crankshaft full cheeks (KoBo 10 mm) | Puch MS50
Manufacturer: Rito · Area of application: Racing · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57.6 mm · Total length crankpin ignition side: 62 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 14 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 10 / 14 x 14.2 mm (axe 10) · Wide crank webs: 34 mm
EUR 281.80
Explore categories from Engine block
Moped fans also bought
GPO screw set for galvanized engine mounting | Puch
Storage method: Sack · Manufacturer: GPO · Material: Steel · Color: silver · Number of components: 12 pcs · Drive: External hexagon · Surface: galvanized (blue) · Screw head: Hexagon · Thread type: M8x1.25 (standard thread) · Width across flats: 13 mm · Shank: Yes · Area of application: Standard · Storage box dimension [mm]: 100 x 90 x 10 · Thread length: 23.5 mm · Strength class: 8.8
EUR 10.90
swiing® revival spacer set crankshaft L17 | Puch Z50
Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter inside: 17 mm · Surface: blank / oiled · Ø outside: 23.8 mm · Ø inside: 17.1 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm
EUR 10.90

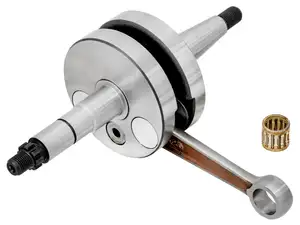

Crankshaft full cheeks | Puch MV, VS, MS, DS, Monza, X50 (3 & 4 speed)
