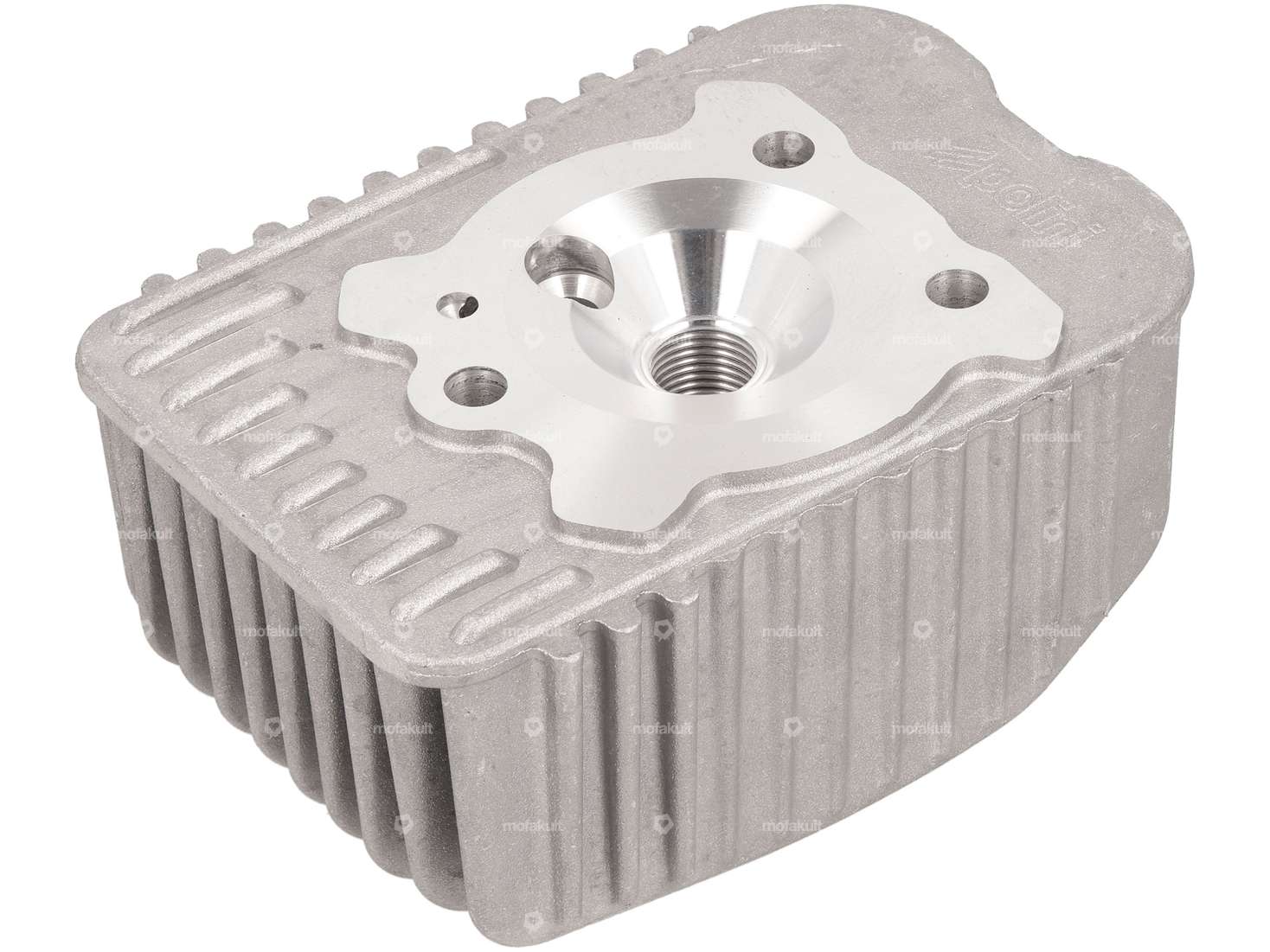

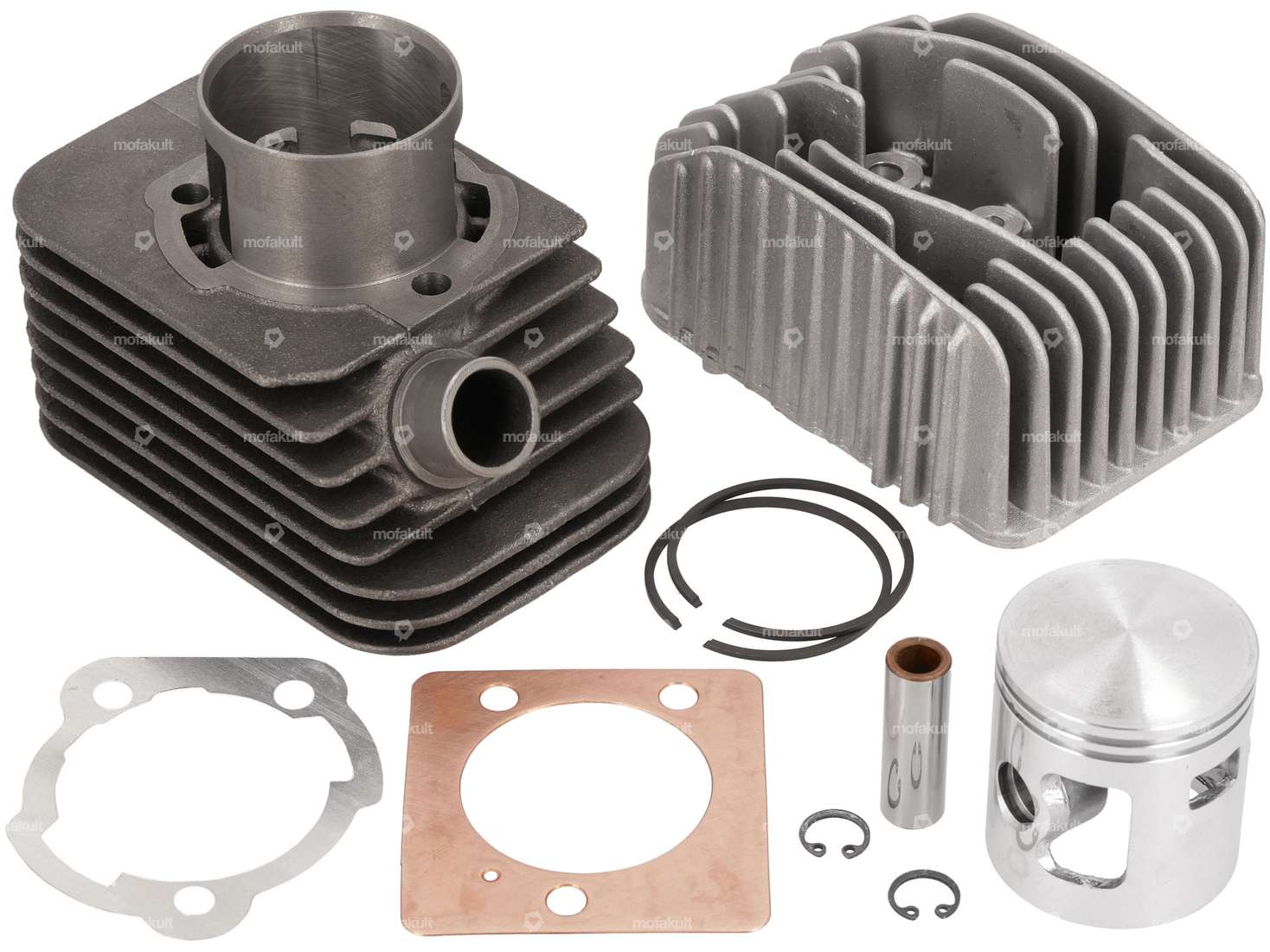

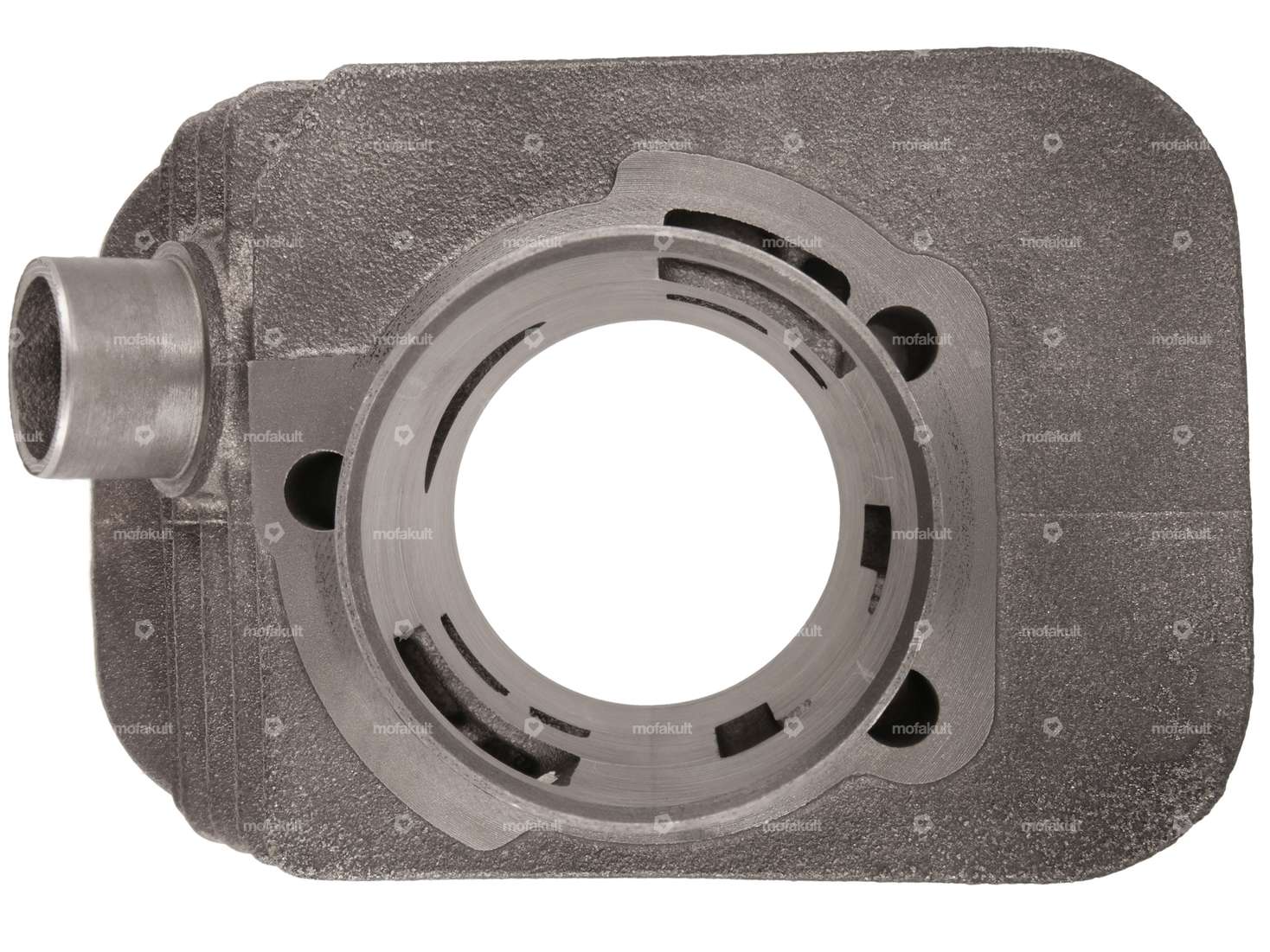

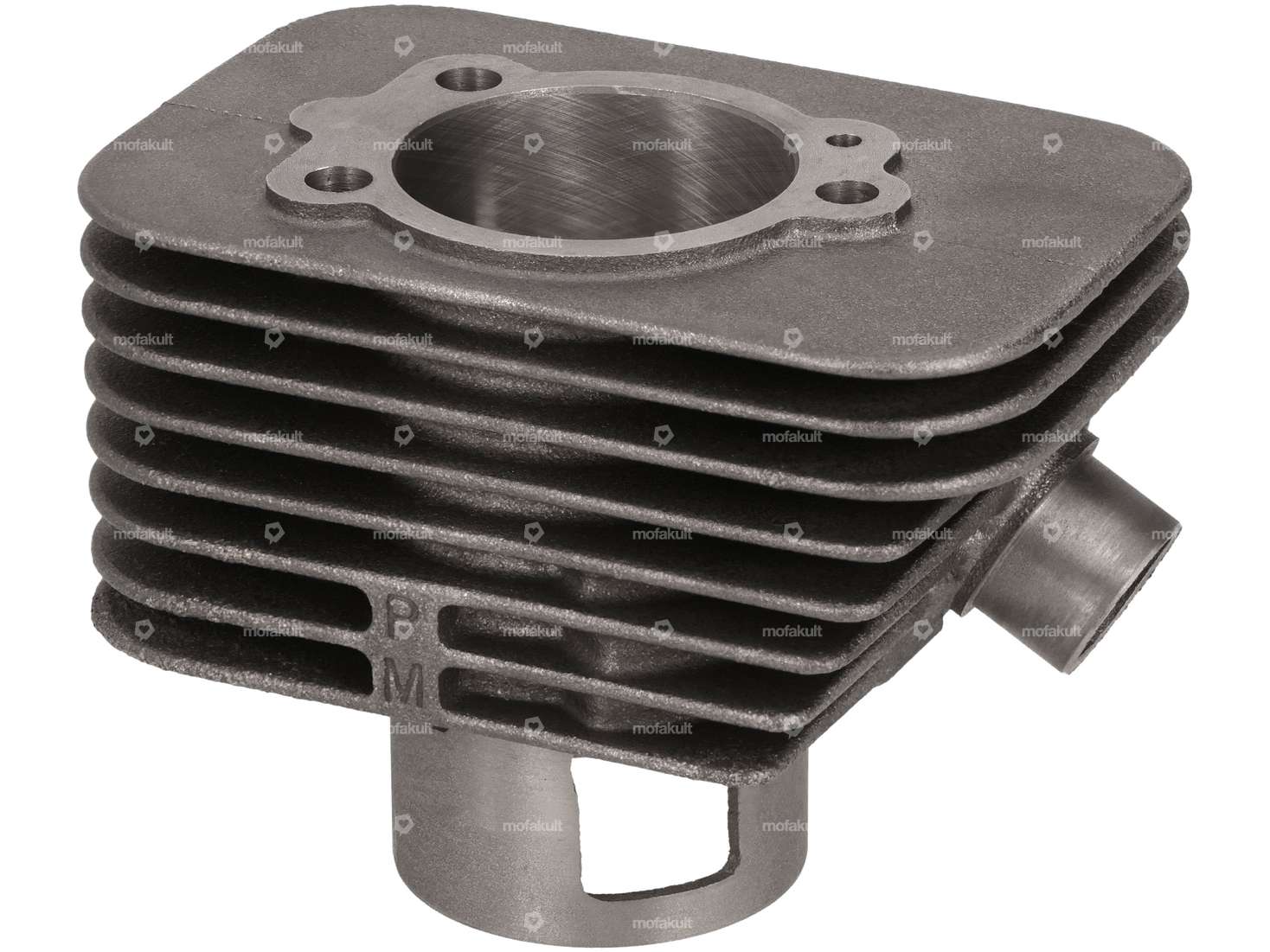

Polini 46 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Thread type: M7x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 7 mm · Height: 5.5 mm · Width across flats: 11 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool

M7x120 stud bolt | Tomos / Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Total length: 120 mm · Thread length: 25 mm

Polini gasket set 46 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Number of components: 2 pcs · Ø cylinder: 46 mm · Decompressor: Yes · Area of application: Tuning

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Ø outside: 15 mm · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK (B5HS - B10HS) spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Suppressed: No · Spark plug socket: SAE · Width across flats: 21 mm

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9

swiing® ingenious Cylinder Head Gasket 46 mm Copper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Copper · Place of use: Cylinder head · Thickness: 0.5 mm · Nominal diameter: 46 mm · Ø inside: 47 mm · Ø cylinder: 46 - 47 mm · Ø cylinder: 46.5 - 47 mm · Ø cylinder: 47 mm

NGK BR9HIX Spark plug short thread suppressed Iridium

Manufacturer: NGK · Candle designation: BR9HIX · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Electrode material: Iridium · Suppressed: Yes · Area of application: High End · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66 · Mounting type: Plug connection clamped · Total length: 46 mm · Width: 60 mm · Height: 96 mm · Area of application: Tuning

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Plastic · Color: black · Ø outside: 53.2 mm · Width: 95 mm · Total length: 31.2 mm · Filter type: Foam · Height: 88.7 mm · Mounting type: Plug connection clamped · Ø Internal connection: 51 mm · Area of application: Tuning · Camouflaged: No

Collar nut M7 without serration

Material: Steel · Surface: galvanized (yellow) · Nut type: Flange nut · Thread type: M7x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 7 mm · Ø outside: 16 mm

Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Crankshaft stroke: 43 mm · Ignition type: Electronic · Stock number: 6202 · Total length: 215 mm · Width: 175 mm · Height: 104 mm

Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer

Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Width: 175 mm · Total length: 215 mm · Color: silver · Height: 104 mm · Ignition type: Breaker

Emblem "Piaggio" Ø 30 mm steering head | Piaggio Ciao

Manufacturer: Made in Italy · Material: Aluminum · Diameter: 30 mm · Rear side texture: Adhesive · Mounting type: glue · Piaggio OEM number: 574771

Giannelli New Power exhaust Ø 25 mm | Piaggio Ciao, Bravo

Manufacturer: Giannelli · Material: Steel · Surface: varnished · Total length: 665 mm · Color: black · Ø Silencer: 74 mm · Ø Internal connection: 22 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Mounting type: Welded lug · Number of fixing points: 1 pcs · Flame tube attachment: Plug connection clamped

Footboard black original | Piaggio Ciao PX, C24

Manufacturer: Piaggio · Material: Plastic · Color: black · Number of fixing points: 2 pcs

Polini Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Gearbox type: Vario · Number of weights: 6 pcs · Number of weights: 12 pcs · Weight Standard weights: 4.4 g · Weight Standard weights: 5.6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm
