MIKUNI float chamber carburetor TM24-9

MIKUNI 24 mm flat slide carburetor TM24-9 hand choke

Manufacturer: MIKUNI · Component group Carburetor: Carburetor complete · Carburetor type: Flat slide valve · Nominal diameter: 24 mm · Ø Air filter connection: 44 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Choke control: Hand choke · Nozzle thread: M5.3x0.9 (standard thread) · Nozzle size: 130 · Size of secondary nozzle: 51 · Width: 75 mm · Height: 130 mm · Area of application: Tuning

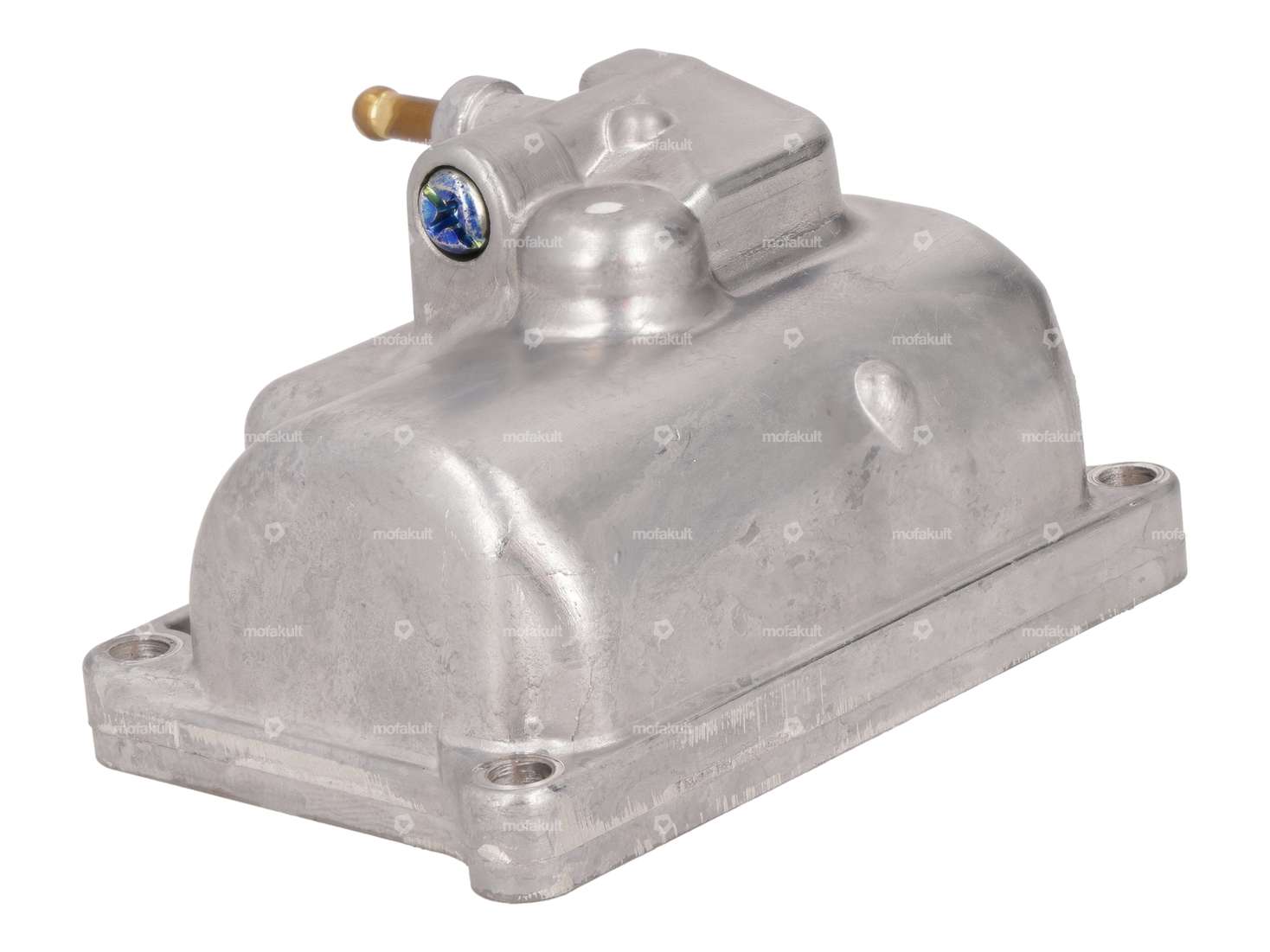

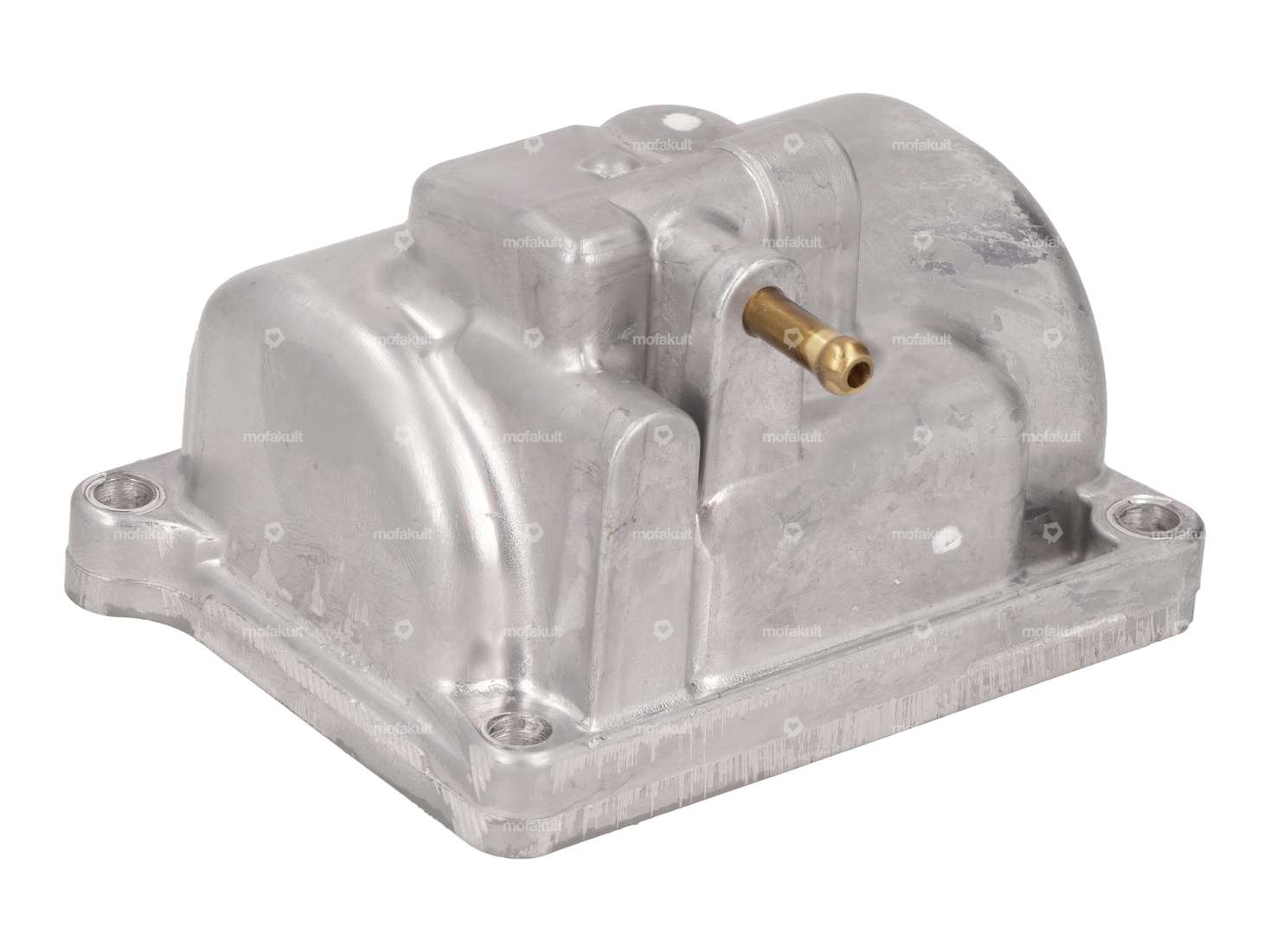

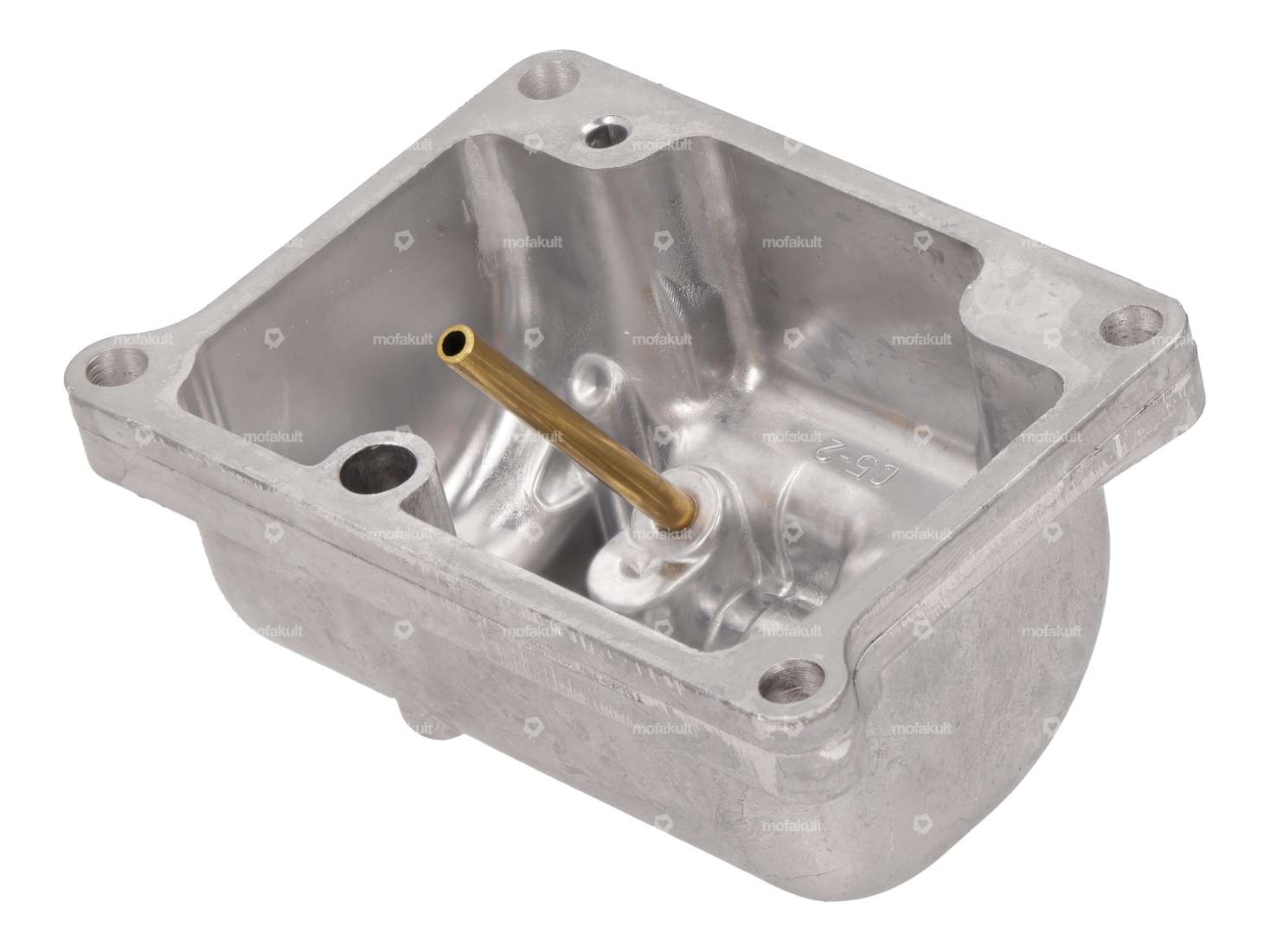

MIKUNI float chamber with adjusting nozzle

Manufacturer: MIKUNI · Material: Aluminum · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: Mikuni (VM, TM, TMX) · Thread type: M4x0.7 (standard thread) · Number of fixing points: 4 pcs

MIKUNI choke knob carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Material: Plastic · Material: Spring steel · Component group Carburetor: Choke control · Ø inside: 8 mm · Ø outside: 13 mm · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 49.8 mm · Choke control: Hand choke

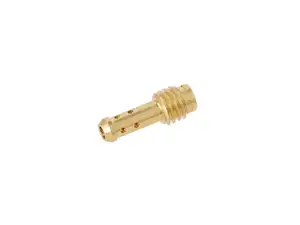

MIKUNI idle jet size 15 carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Component group Carburetor: Spraying · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Idle nozzle · Drive: Slot · Total length: 13.5 mm · Thread length: 4 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 15

MIKUNI gasket float carburetor TM24-9

Thickness: 0.9 mm · Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 73 mm · Width: 48 mm

MIKUNI sealing ring screw float chamber carburetor TM24-9

Thickness: 0.4 mm · Manufacturer: MIKUNI · Material: Fiber · Component group Carburetor: Sealing, revising · Ø inside: 6 mm · Ø outside: 8 mm · Carburetor type: Mikuni (VM, TM, TMX)

MIKUNI gasket cover carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Ø inside: 15 mm · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 49.5 mm · Cord thickness: 1 mm · Width: 25 mm

MIKUNI needle jet Q-0 (454) Carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Component group Carburetor: Spraying · Carburetor type: Mikuni (VM, TM, TMX) · Nozzle type: Needle nozzle · Total length: 34.5 mm · Thread length: 5.5 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 454

MIKUNI needle valve size 2.5 carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Material: Rubber · Component group Carburetor: Sealing, revising · Ø outside: 9 mm · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 16.5 mm

MIKUNI gasket carburetor halves carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Ø inside: 0.6 mm · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 68.3 mm · Width: 59.5 mm

GPO racing handlebar fork plate 7 cm aluminum black matt

Manufacturer: GPO · Material: Aluminum · Surface: anodized · Color: black · Ø outside: 22.15 mm · Fork plate holder length: 70 mm · Clamping diameter: 22.15 mm · Length handlebar ends: 170 mm · Crossbar: Yes · Mounting type: Fork plate · Ø inside (C): 12.5 mm · Total length over ends: 160 mm · Width: 650 mm · Height: 70 mm

MIKUNI gasket float carburetor TM24-9

Thickness: 0.9 mm · Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 73 mm · Width: 48 mm
