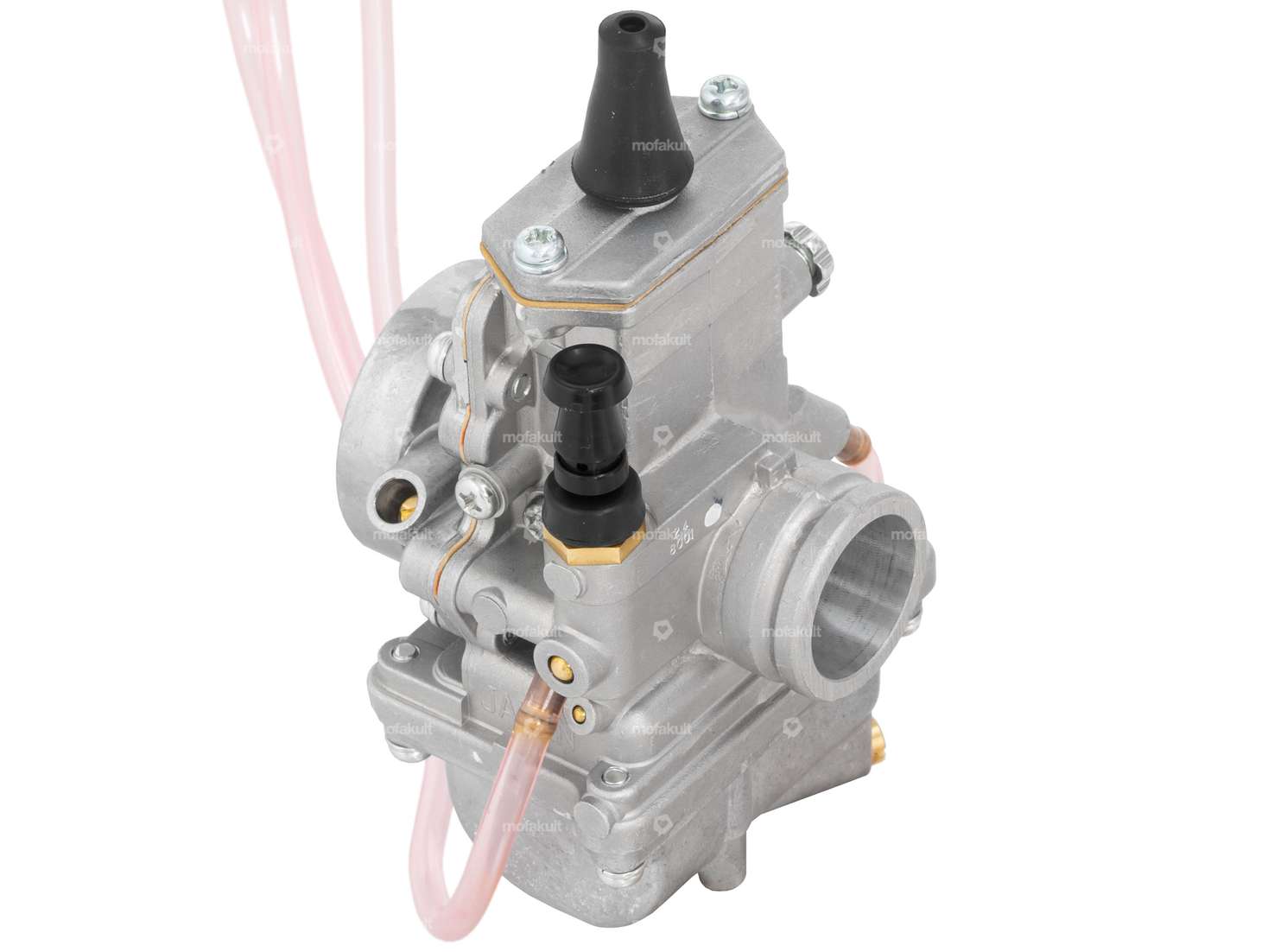

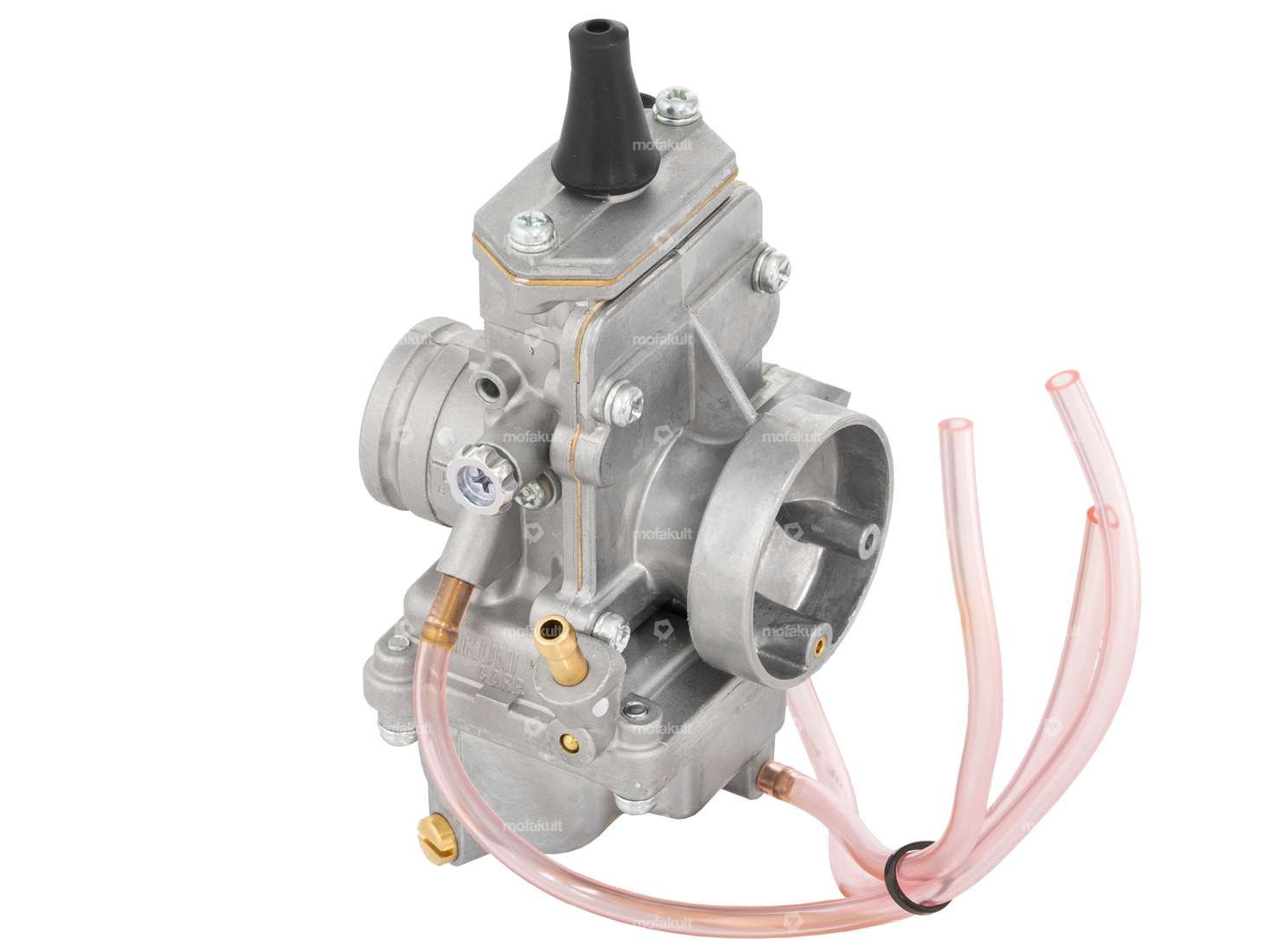

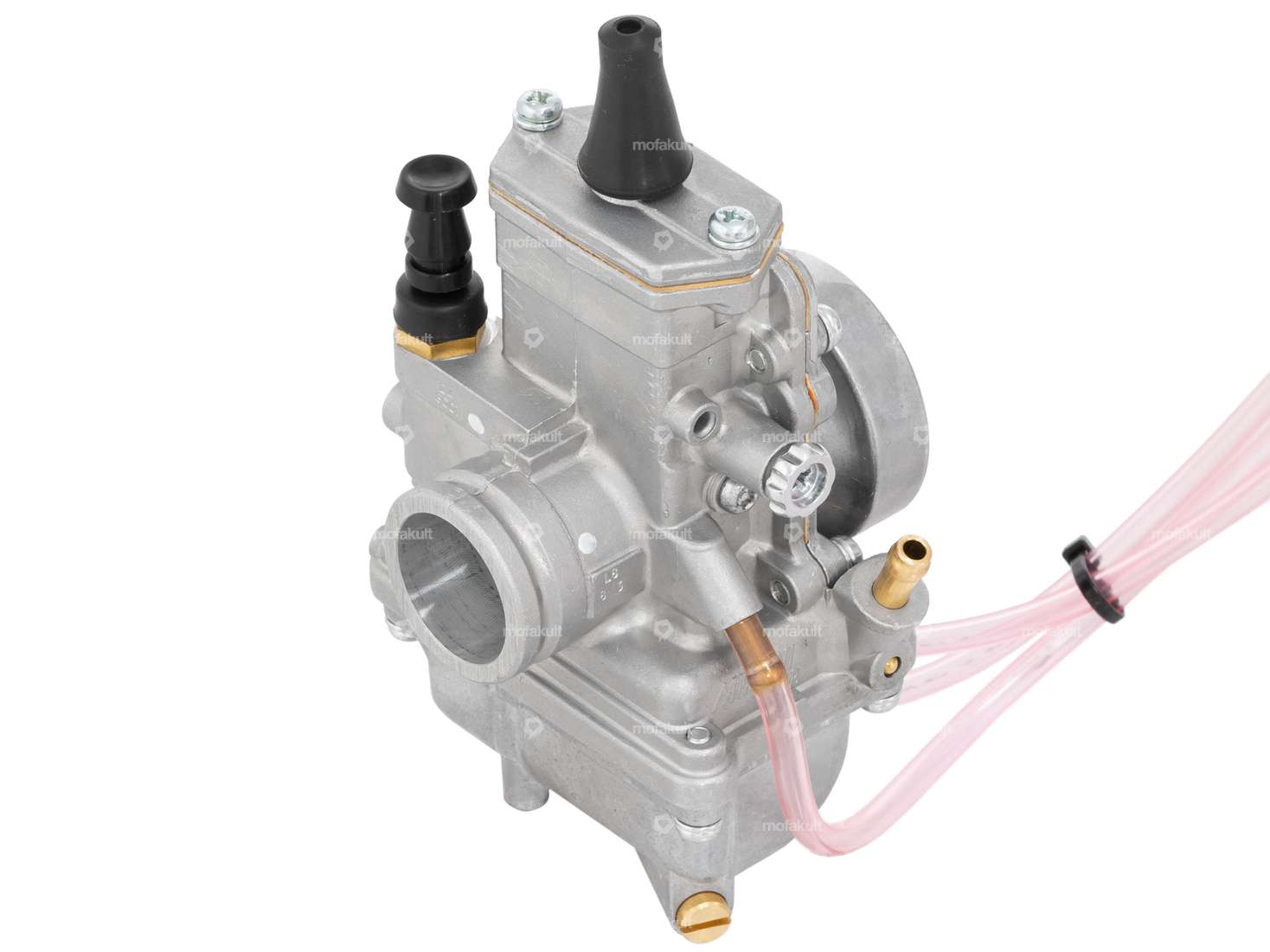

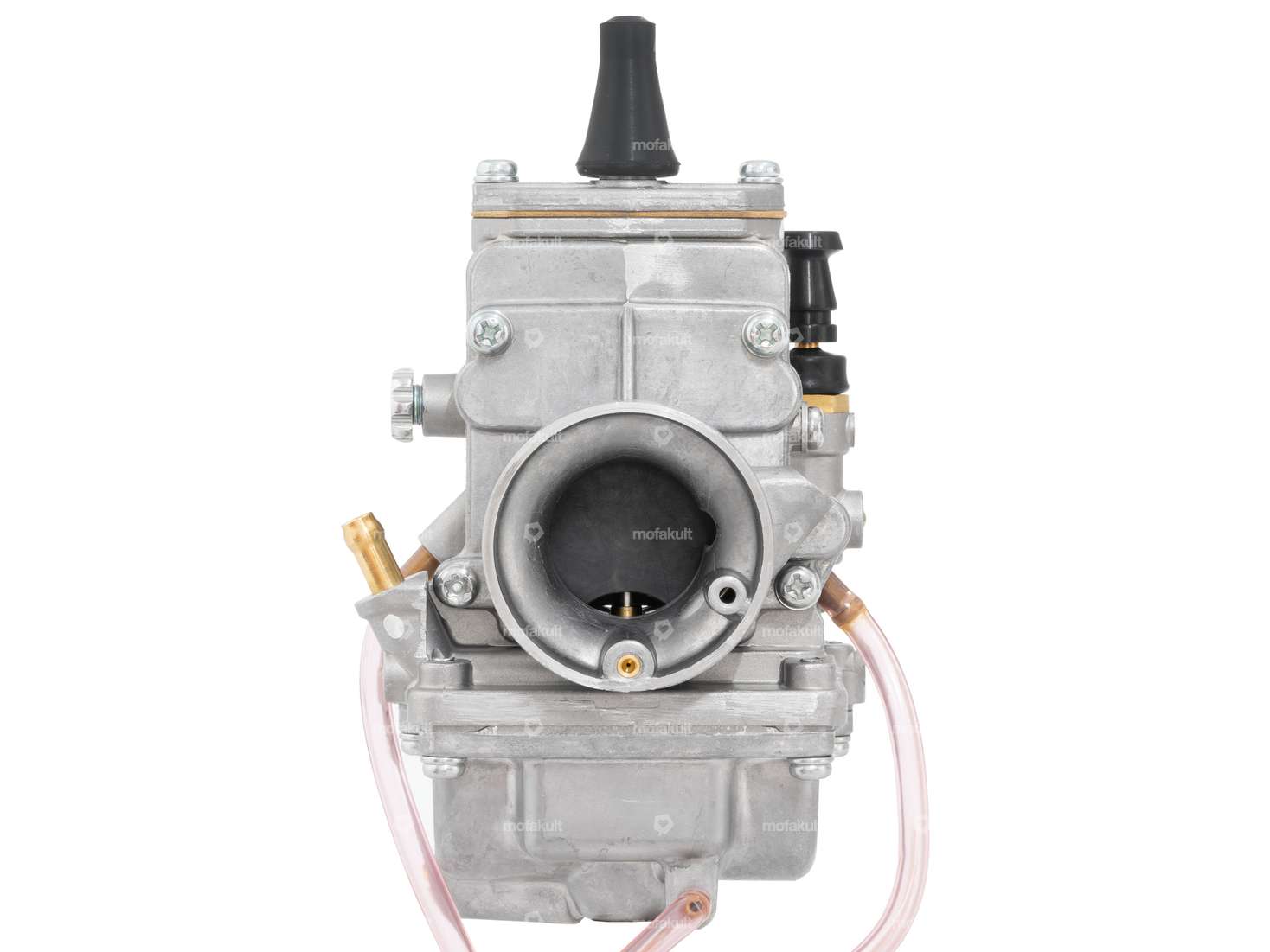

24 mm MIKUNI flat-slide racing carburetor for your moped.
This high-quality racing carburetor is suitable for large racing kits starting at 70 cc in the high-end tuning sector.
To mount this carburetor on a Puch cylinder, an intake flange must be fabricated. To perfectly adjust the fuel-air mixture, an optional different float chamber with an integrated adjustment jet can be installed.
The tuning carburetor features a manually operated starter valve.
Main jet size: 130
Main jet thread: M5.3x0.9 mm
Secondary jet size: 15
Air filter connection diameter: 44 mm
Intake flange connection diameter: 31 mm
Total height: 130 mm
Total width: 75 mm
You can find additional carburetors, compatible air filters, and the float chamber among the accessories.
A quality product from the Japanese manufacturer MIKUNI.
| Nominal diameter | 24 mm |
| Manufacturer | MIKUNI |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Width | 75 mm |
| Carburetor type | Flat slide valve |
| Height | 130 mm |
| Choke control | Hand choke |
| Nozzle size | 130 |
| Mounting type | Plug connection |
| Ø Air filter connection | 44 mm |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5.3x0.9 (standard thread) |
| Size of secondary nozzle | 51 |
