Piaggio engine & housing
Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Piaggio · Material: FPM / FKM (colloquially known as Viton)
EUR 11.20
Polini oil seal FPM / PTFE crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Polini · Material: FPM / FKM (colloquially known as Viton)
EUR 17.80
Oil seal FPM 13/22/4 A Gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer
Place of use: Housing cover · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Material: FPM / FKM (colloquially known as Viton) · Ø inside: 13 mm · Ø outside: 22 mm · Width: 4 mm · Piaggio OEM number: 240222
EUR 10.40
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Crankshaft stroke: 43 mm · Ignition type: Breaker · Total length: 215 mm · Width: 175 mm · Height: 104 mm
EUR 257.30
Mazzucchelli crankshaft "original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Weight: 698 g · Ø crank webs: 69.7 mm · Thread length: 16 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Area of application: Original · Area of application: Standard
EUR 177.60
SKF 6202 Ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Stock number: 6202 · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Piaggio OEM number: 102258
EUR 15.80
Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Malossi · Material: Steel · Cheek type: Full cheeks · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 813 g · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Thread type: M10x1.5 (standard thread) · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Thread length: 15 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Racing · Wide crank webs: 32.4 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Number of gears: 1 pcs
EUR 330.80
Not so nice
Pinasco crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Manufacturer: Pinasco · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 708 g · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.7 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Thread length: 13.5 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Racing · Wide crank webs: 32.5 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 146 ° · Control time before O.T: 88 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs
EUR 269.50
Mazzucchelli connecting rod with bronze bushing axe 12 mm | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø lower bearing inside: 16 mm · Total length: 113 mm · Ø inside upper bearing: 12 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 12 / 15.2 x 12.2 mm (axe 12) · Ø piston pin (B): 12 mm · Connecting rod pin length: 33 mm · Area of application: Original · Area of application: Standard
EUR 85.70
EUR 73.40
Mazzucchelli Connecting Rod, 10 mm | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø lower bearing inside: 16 mm · Total length: 111 mm · Ø inside upper bearing: 10 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 10 / 13 x 14.2 mm (axe 10) · Ø piston pin (B): 10 mm · Connecting rod pin length: 33 mm · Area of application: Original · Area of application: Standard
EUR 85.70
EUR 73.40
swiing® ingenious ignition cams +/- 2° Athena / Jasil crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: swiing® ingenious parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: electropolished · Ø inside: 14.4 mm · Total length: 9.5 mm · Alternative version of the Piaggio OEM number: 103137
EUR 28.10
Athena crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Athena · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.6 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing
EUR 192.30

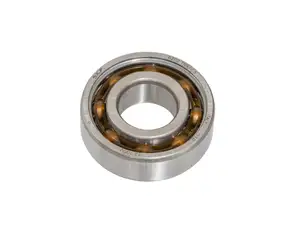

SKF 6202 TN9/C3 Ball bearing with polyamide cage 15/35/11
Stock number: 6202 · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: Plastic cage ball-guided · Material: Steel · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: No · Width: 11 mm · Area of application: Standard
EUR 23.90
Mazzucchelli connecting rod "Racing" axe 10 mm | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Surface: polished · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø lower bearing inside: 16 mm · Total length: 110 mm · Ø inside upper bearing: 10 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 10 / 13 x 14.2 mm (axe 10) · Ø piston pin (B): 10 mm · Connecting rod pin length: 33 mm · Area of application: Racing
EUR 104.10
Mazzucchelli connecting rod "Racing" axe 12 mm | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Connecting rod length center-center: 87 mm · Ø Connecting rod bolt: 16 mm · Thickness: 9.8 mm · Ø lower bearing inside: 16 mm · Total length: 112 mm · Ø inside upper bearing: 12 mm · Dimension lower bearing: Ø 16 / 21 x 9.6 mm (axe 16) · Dimension upper bearing: Ø 12 / 15 x 14.6 mm (axe 12) · Ø piston pin (B): 12 mm · Connecting rod pin length: 33 mm · Area of application: Racing
EUR 104.10
Pinasco crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Pinasco · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Weight: 712 g · Ø crank webs: 69.7 mm · Thread length: 13.5 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 32.5 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 146 ° · Control time before O.T: 88 ° · Control time according to O.T: 58 ° · Area of application: Racing
EUR 287.90
EUR 257.30
Mazzucchelli crankshaft "original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Weight: 695 g · Ø crank webs: 69.7 mm · Thread length: 16 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Area of application: Original · Area of application: Standard
EUR 183.70
swiing® ingenious bearing press-on plunger Ø 15/35 mm (type 6202)
Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Ø inside: 15 mm · Ø outside: 35 mm · Number of components: 2 pcs · Ø Pin: 15 mm · Total length: 52.5 mm · Area of application: Special tool
EUR 32.50
Shaft seal FPM 15/28/5 A Kickstarter housing original | Piaggio SUPERbravo, Grillo, Boss
Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: FPM / FKM (colloquially known as Viton) · Place of use: Motor housing · Ø inside: 15 mm · Ø outside: 28 mm · Temperature resistance (min.): -30 - 200 °C · Width: 5 mm · Piaggio OEM number: 235829
EUR 15.30
Pinasco 6202 T9 C4 ball bearing 15/35/11 polyamide cage pair
Stock number: 6202 · Manufacturer: Pinasco · Bearing clearance: C4 · Bearing cage: Plastic cage ball-guided · Material: Polyamide (PA) · Material: Steel · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: No · Width: 11 mm · Area of application: Tuning
EUR 73.40
Malossi crankshaft "RHQ Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 12 / 15 x 14.7 (axe 12) · Manufacturer: Malossi · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Weight: 724 g · Ø crank webs: 70 mm · Thread length: 14 mm · Thread type: MF10x1.25 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 32.5 mm · Length 1st paragraph: 21.7 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.4 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Area of application: Tuning
EUR 306.30
Malossi crankshaft "RHQ Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 10 / 13 x 14 (axe 10) · Manufacturer: Malossi · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Weight: 730 g · Ø crank webs: 70 mm · Thread length: 14 mm · Thread type: MF10x1.25 (fine pitch thread) · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 32.5 mm · Length 1st paragraph: 21.7 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.4 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Area of application: Tuning
EUR 306.30
swiing® revival screw set ignition coil (frame) galvanized | Piaggio Ciao, SI
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Screw head: Hexagon · Thread length: 22 mm · Drive: External hexagon · Thread type: M5x0.8 (standard thread) · Shank: No · Number of components: 8 pcs · Width across flats: 8 mm · Strength class: 8.8 · Piaggio OEM number: 012532 · Piaggio OEM number: 020105 · Piaggio OEM number: 031061
EUR 5.40
GPO screw set gearbox | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Screw head: Hexagon · Thread length: 22 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Shank: No · Number of components: 8 pcs · Width across flats: 10 mm · Strength class: 8.8
EUR 8.45
Page 1 of 4
Buy Piaggio engine & housing spare parts
Spare parts for the engine and complete housings for your Piaggio moped
The heart of your Piaggio moped is the engine. That's why you should ensure that the drive unit of your Italo moped is always in top condition with careful care and regular maintenance. To keep the engine of your Piaggio Ciao, Piaggio Si or Piaggio Bravo moped in top condition at all times, you will find all the spare parts and suitable connecting and fastening elements you need for your next engine overhaul or repair of your drive unit in our range. From the complete housing set, screws and bolts to precisely fitting brackets, we have everything you need to get the engine of your Piaggio moped up to scratch.
The ideal equipment for your engine overhaul
Despite the best care, the engine of your Piaggio moped needs a routine overhaul after a certain mileage. You will find complete overhaul kits in our range especially for this maintenance work. These kits contain suitable ball bearings, oil seals and gaskets - in short, all the parts that are particularly susceptible to wear. You probably know it from your own painful experience: when working on the engine, especially when tightening the screws, the unit tilts because you have only fixed it in place with an improvised fastening. You can avoid this in future. Equip your workshop with an optimised engine mounting stand. With this stand, you can work effectively and don't have to resort to makeshift solutions.
The right housing for electric or contact breaker ignitions
Finding the right housing is not always so easy. You also need to consider the type of ignition when making your choice. In the past, some manufacturers made it difficult to fit the ignition. In the past, special racing housings from top manufacturer Malossi often required laborious grinding, sometimes even milling. This is now a thing of the past, because in our range you will find the latest housing sets in suitable versions for electric and breaker ignitions. By the way: You will also find the ideal parts and accessories for tuning your ignition in our range.
Small parts and fasteners to optimally equip your workshop
Screws, bolts, nuts, washers - if you don't have the right ones in your garage or have to spend ages looking for them, then screwing can quickly become a test of patience. To avoid this, you can make provisions with bolt sets for the engine and gearbox, so you always have the right ones to hand when you need them. By the way: You can also find corresponding sets for engine mountings and cylinder heads, so you can overhaul your engine effectively and professionally.
Order everything you need to overhaul your engine, complete housings and other accessories from mofakult
Discover spare parts, practical kits and other accessories for servicing or overhauling the engine of your Piaggio moped. Keep your Piaggio moped in top condition or customise your bike according to your wishes. If you like travelling faster, you will find fascinating high-end tuning parts in our range to get your engine ready for racing. Are you looking for a spare part that is out of stock? Do you need advice or do you have questions about our delivery modalities? Then give us a call or drop us an e-mail, we will be happy to help you.
