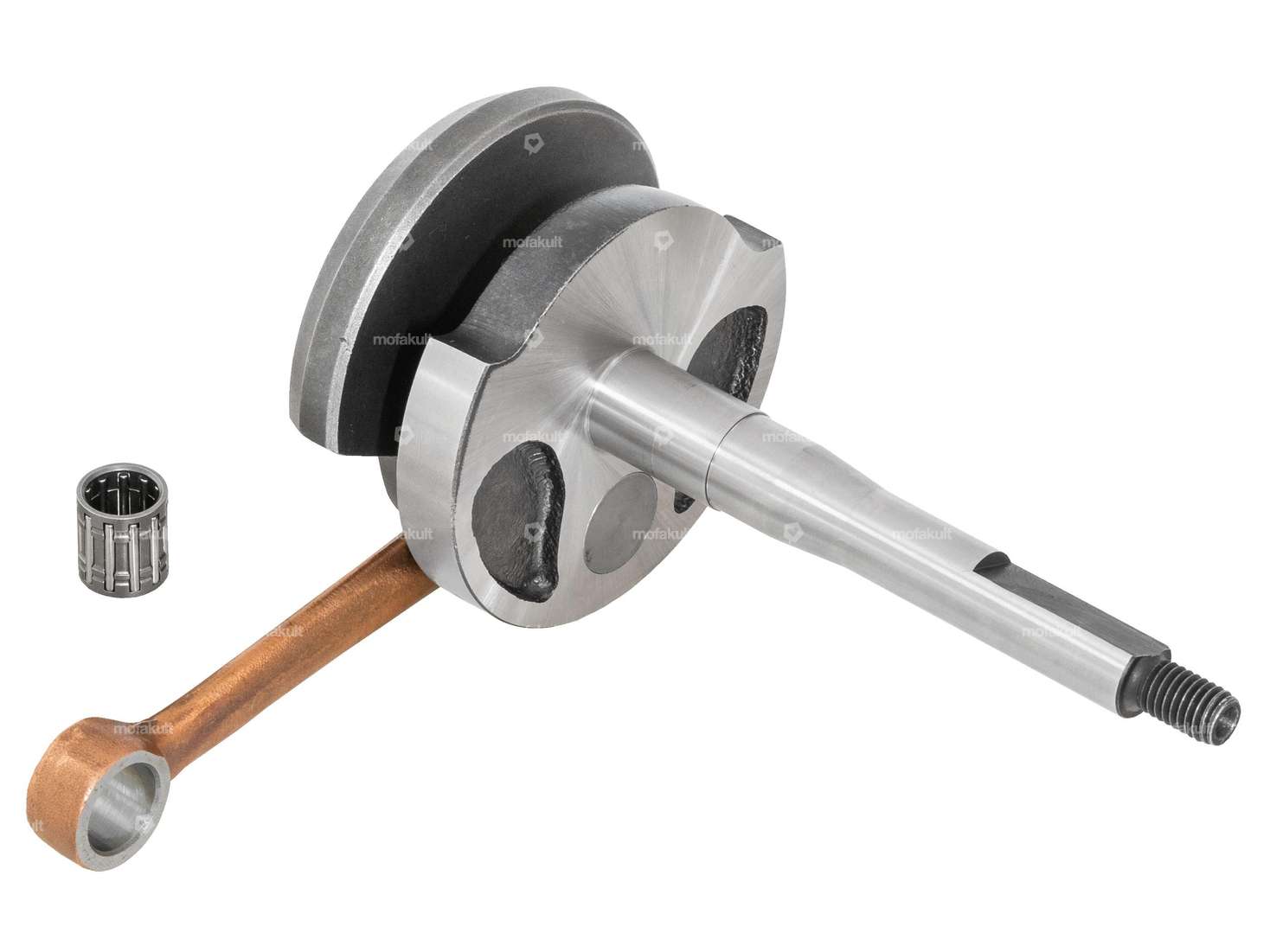

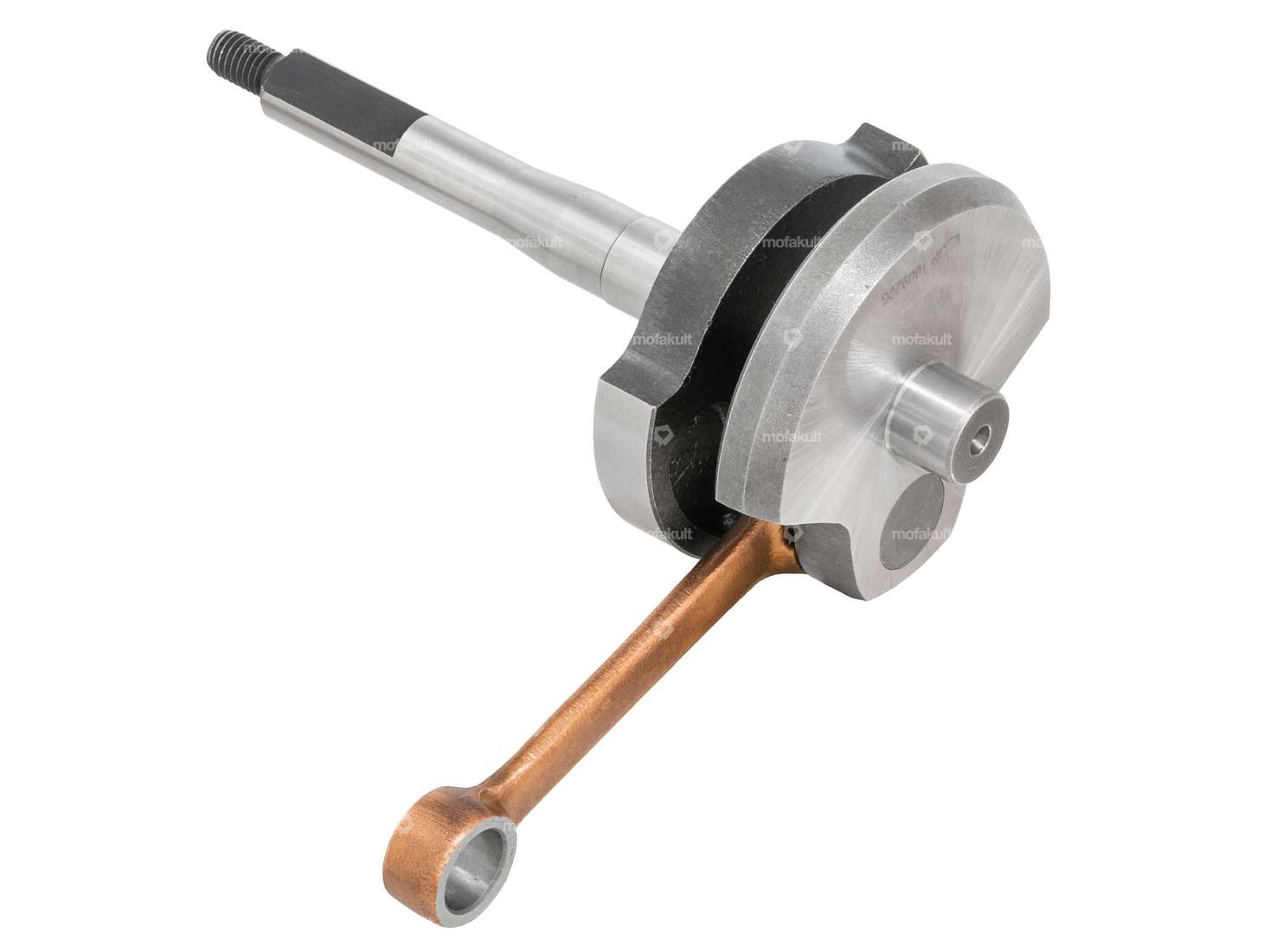

Crankshaft compatible with all Piaggio Ciao, Si, Bravo, and Boxer mopeds.
This precision-balanced crankshaft fits all cylinders with 12 mm piston pins.
For installation, a 16 x 0.5 mm shim must be inserted between the standard crankshaft and each of its main bearings.
Note: The crankshaft journal is 1 mm shorter than on the original crankshaft; therefore, the ignition cam must be shortened by 1 mm to ensure that the flywheel seats properly on the taper. Alternatively, you can use the pre-machined cam from the accessories.
Original Piaggio part number: 1841545
Brand-name product from the Portuguese manufacturer Jasil under the Top Racing brand.

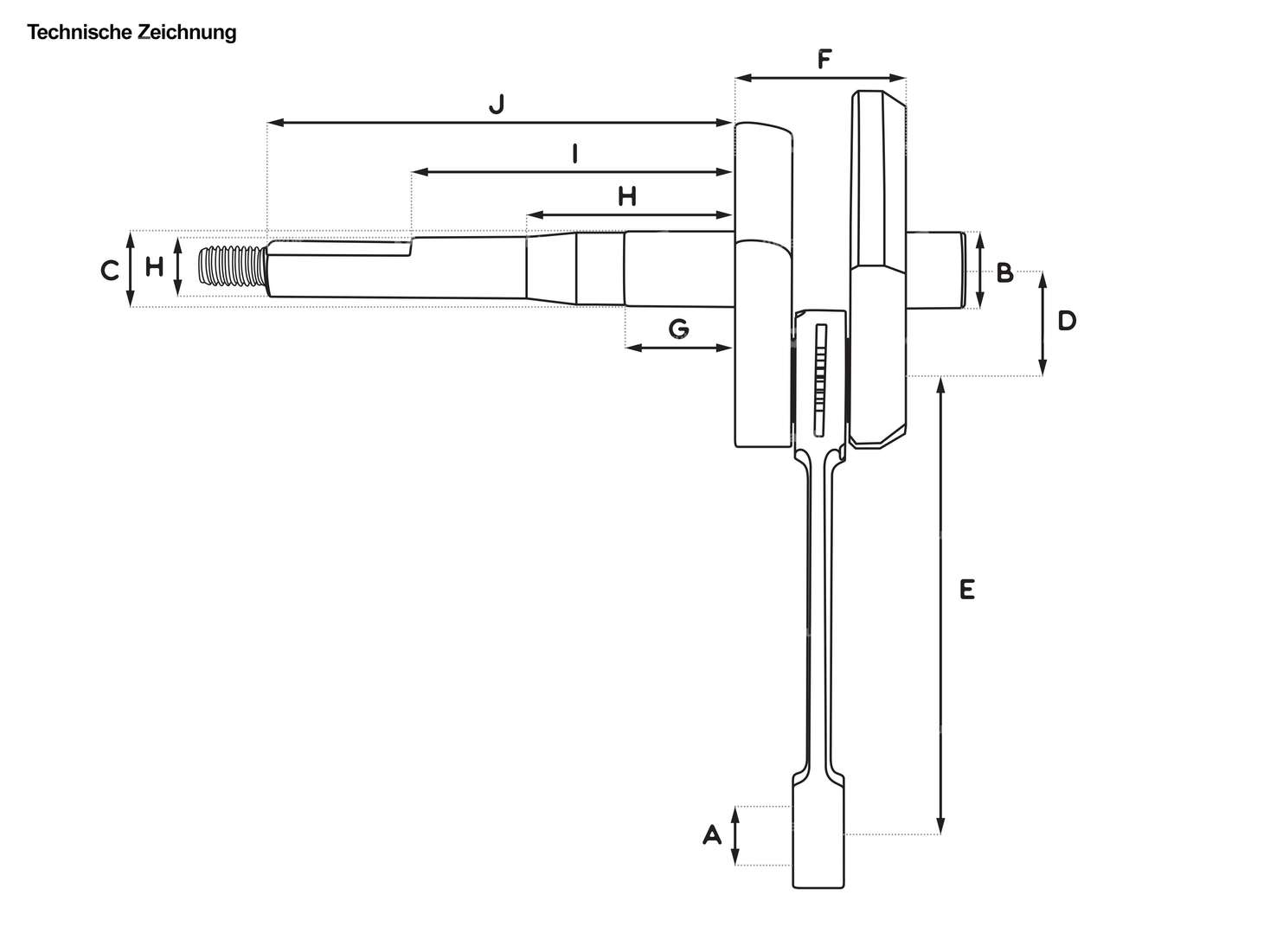

| Manufacturer | Jasil |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Thread type | M8x1.25 (standard thread) |
| Total length crankpin ignition side | 91.5 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 33 mm |
| Area of application | Standard |
| Length 1st paragraph | 21.5 mm |
| Length 2nd paragraph | 43.5 mm |
| Length 3rd paragraph | 64 mm |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
