Not so nice
Full cheek shaft suitable for Puch Maxi S / N, as well as Supermaxi LG1 mopeds with a 1-speed E50 engine.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The connecting rod bearing may exhibit excessive roughness, which can lead to the lubricating film breaking off. This in turn can cause the connecting rod bearing to run hot.
High-quality alternatives such as our swiing crankshaft can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
| Dimension needle bearing | 12 / 15 x 14.6 mm (axe 12) |
| Manufacturer | Jasil |
| Weight | 942 g |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 74 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 67 mm |
| Ø crank webs | 69.9 mm |
| Thread length | 11 mm, 15 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 23.3 mm |
| Length 2nd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Area of application | Standard |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Puch | E50 |
Ratings
Accessories & related products
Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50
Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized
EUR 7.25
Hot
swiing® ingenious 15 mm intake manifold camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Camouflaged: Yes · Material: Aluminum · Ø External connection: 20 mm · Ø inside: 15 mm · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 46 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Hole spacing inlet: 38 mm · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1
EUR 42.70

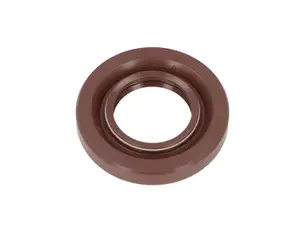

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: FPM - Fluororubber · Surface: rubberized
EUR 14.60

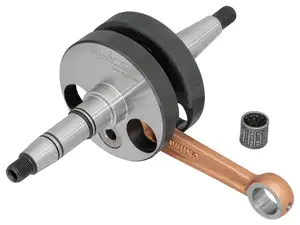

swiing® revival crankshaft "Original" | Puch E50
