For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables uniform load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, a gauge-containing internal thread that can be used on both sides is created.

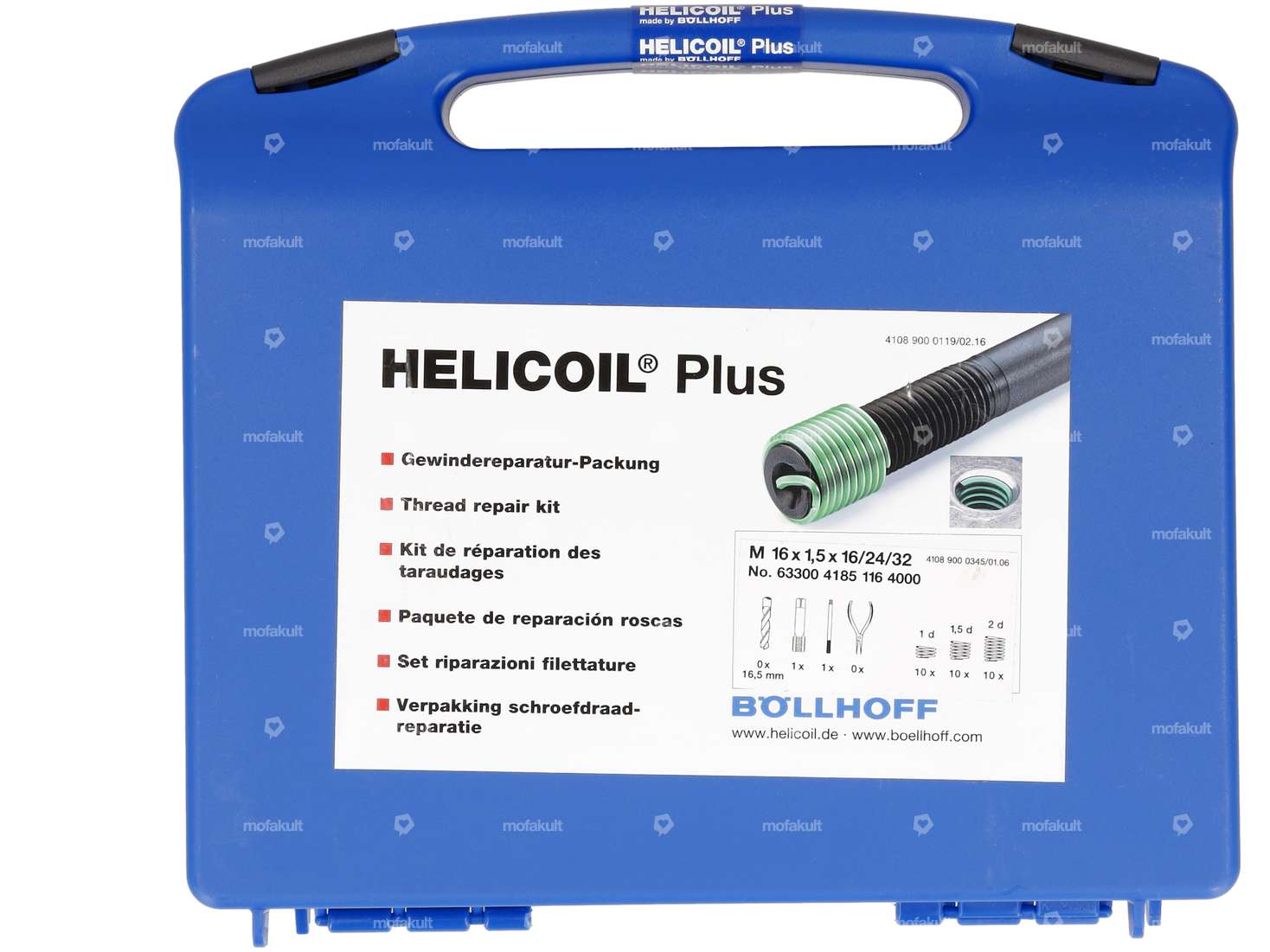

Complete repair kit for M16x1.50 thread sizes in plastic case.
Application:
1. Drill out defective thread with 16.5 mm drill (not included in scope of delivery).
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with a punch or needle-nose pliers.

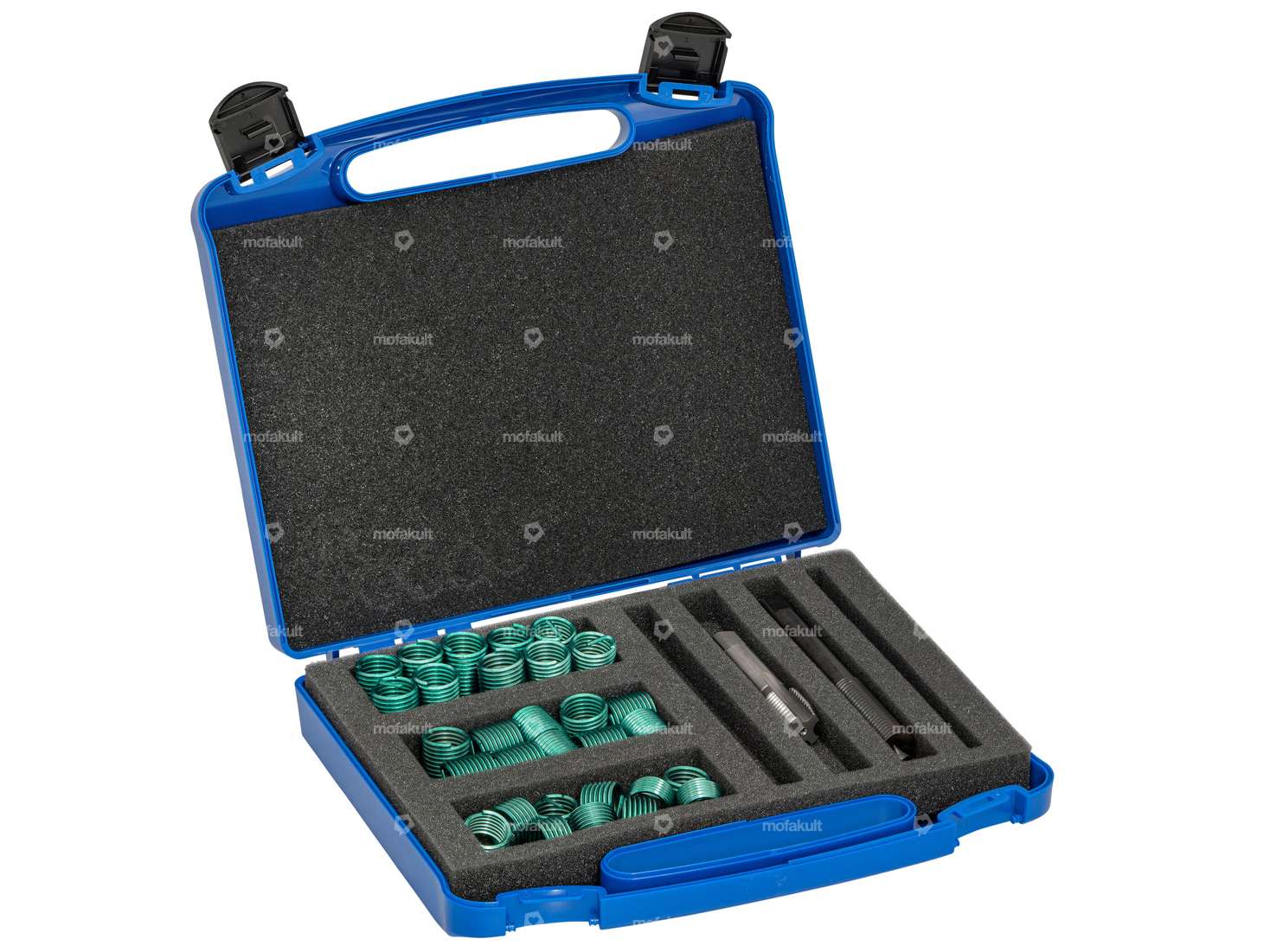

Scope of delivery

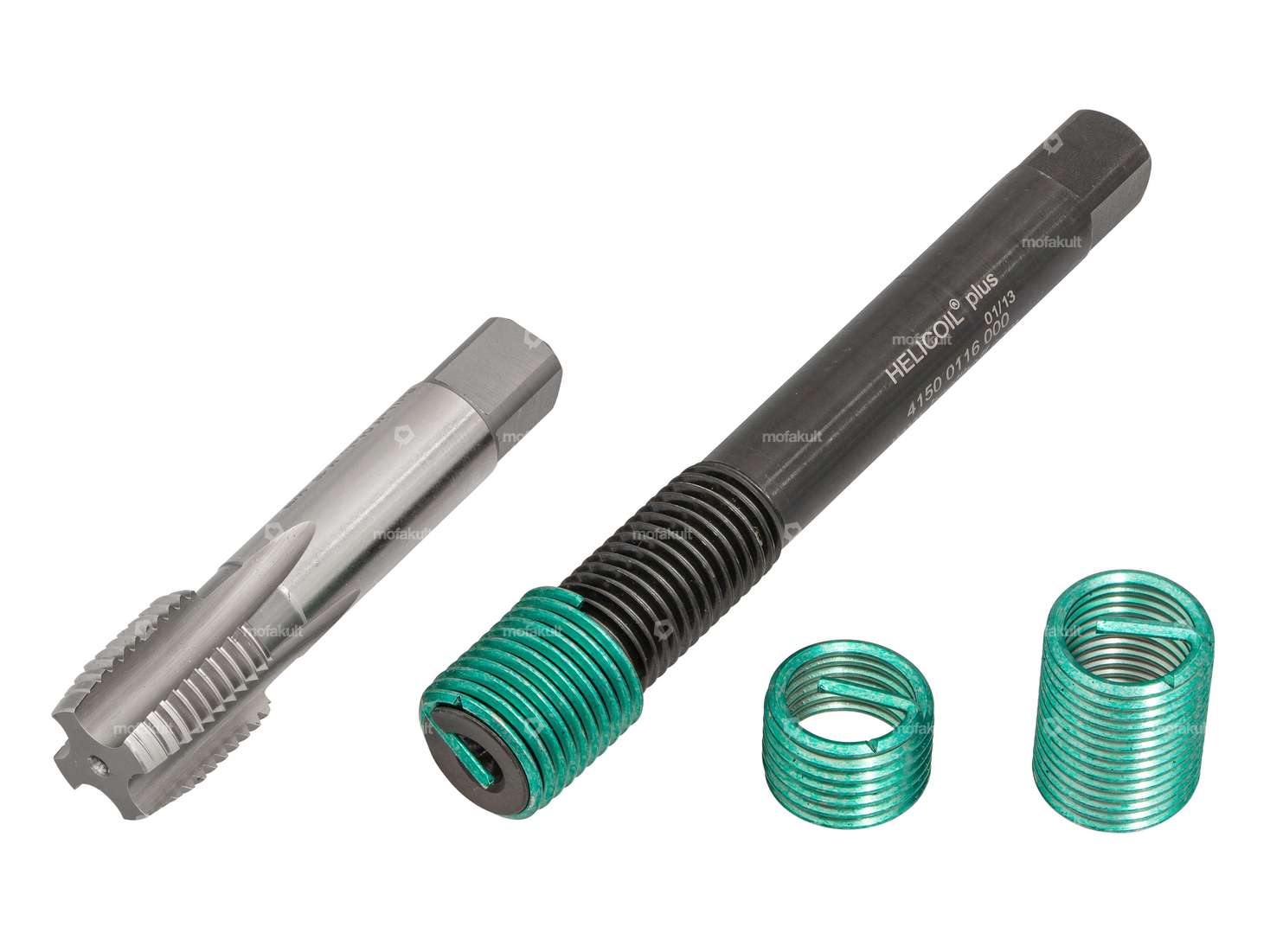

- 1 pc. Thread cutter
- 1 pc. Installation tool
- 10 pcs. HeliCoil thread insert (1D / 16 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 24 mm)
- 10 pcs. HeliCoil threaded insert (2D / 32 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Number of components | 32 pcs |
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Workshop accessories |
| Thread type | MF16x1.5 (fine pitch thread) |
| Ø bore | 16.5 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Nominal diameter (thread) | 16 mm |
| Total length | 16 mm, 24 mm, 32 mm |
Ratings
Accessories & related products
HeliCoil thread repair case M5 - M12 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Number of components: 300 pcs · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Storage box dimension [mm]: 420 x 345 x 120 mm
EUR 404.80
HeliCoil plug thread repair set M14x1.25 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: MF14x1.25 (fine pitch thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 0.5D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Storage box dimension [mm]: 250 x 50 x 220 mm · Number of components: 30 pcs
EUR 166.60

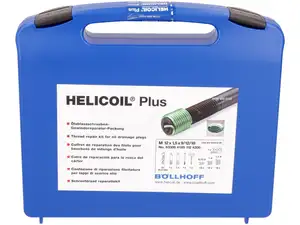

HeliCoil thread repair set M12x1.5 oil spigot hole (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: MF12x1.5 (fine pitch thread) · Total length: 9 mm · Total length: 12 mm · Total length: 16 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 0.75D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Number of components: 35 pcs
EUR 226.20

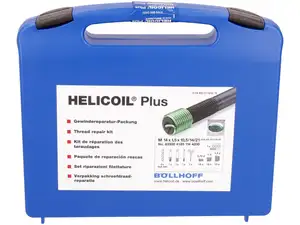

HeliCoil thread repair set M14x1.5 oil spigot hole (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: MF14x1.5 (fine pitch thread) · Total length: 10.5 mm · Total length: 14 mm · Total length: 21 mm · Nominal diameter (thread): 14 mm · Dimension thread insert: 0.75D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Number of components: 35 pcs
EUR 250.00
HeliCoil thread repair set M14 (professional tool)
Ø bore: 14.5 mm · Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: M14x2 (standard thread) · Total length: 14 mm · Total length: 21 mm · Total length: 28 mm · Nominal diameter (thread): 14 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Number of components: 32 pcs
EUR 142.80

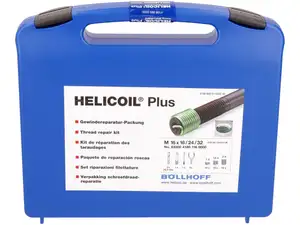

HeliCoil thread repair set M16
