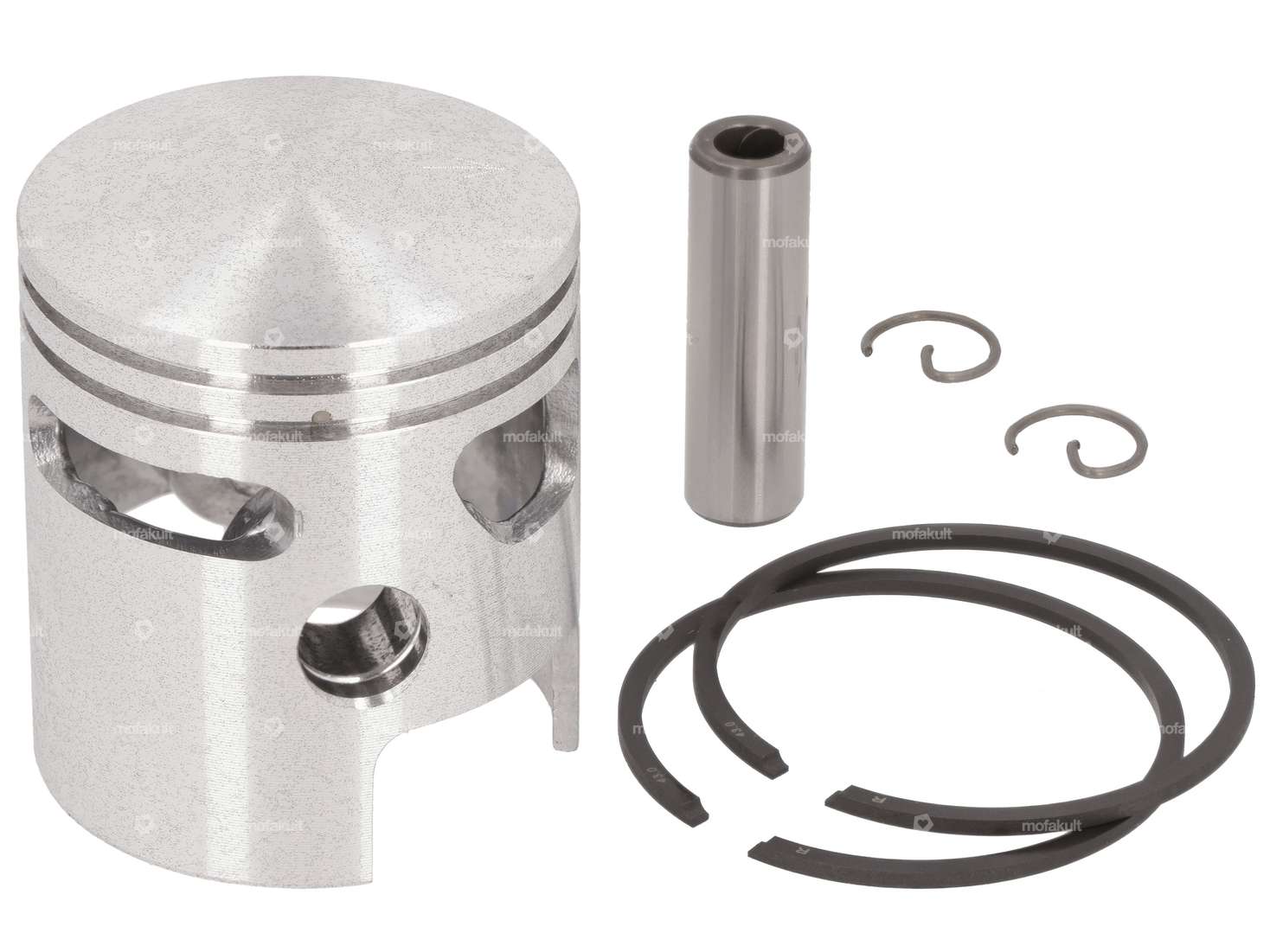

43 mm piston kit with two 1.5 mm rectangular piston rings with side protection (FS) for your Piaggio Ciao, Si, Bravo, Boxer and Grillo moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | GPO |
| Ø outside piston (A) | 42.94 mm |
| Compression height (C) | 26.5 mm |
| Curvature (D) | 2.5 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 43 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 10 mm |
| Piston weight | 82 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
