For: Sachs

15137

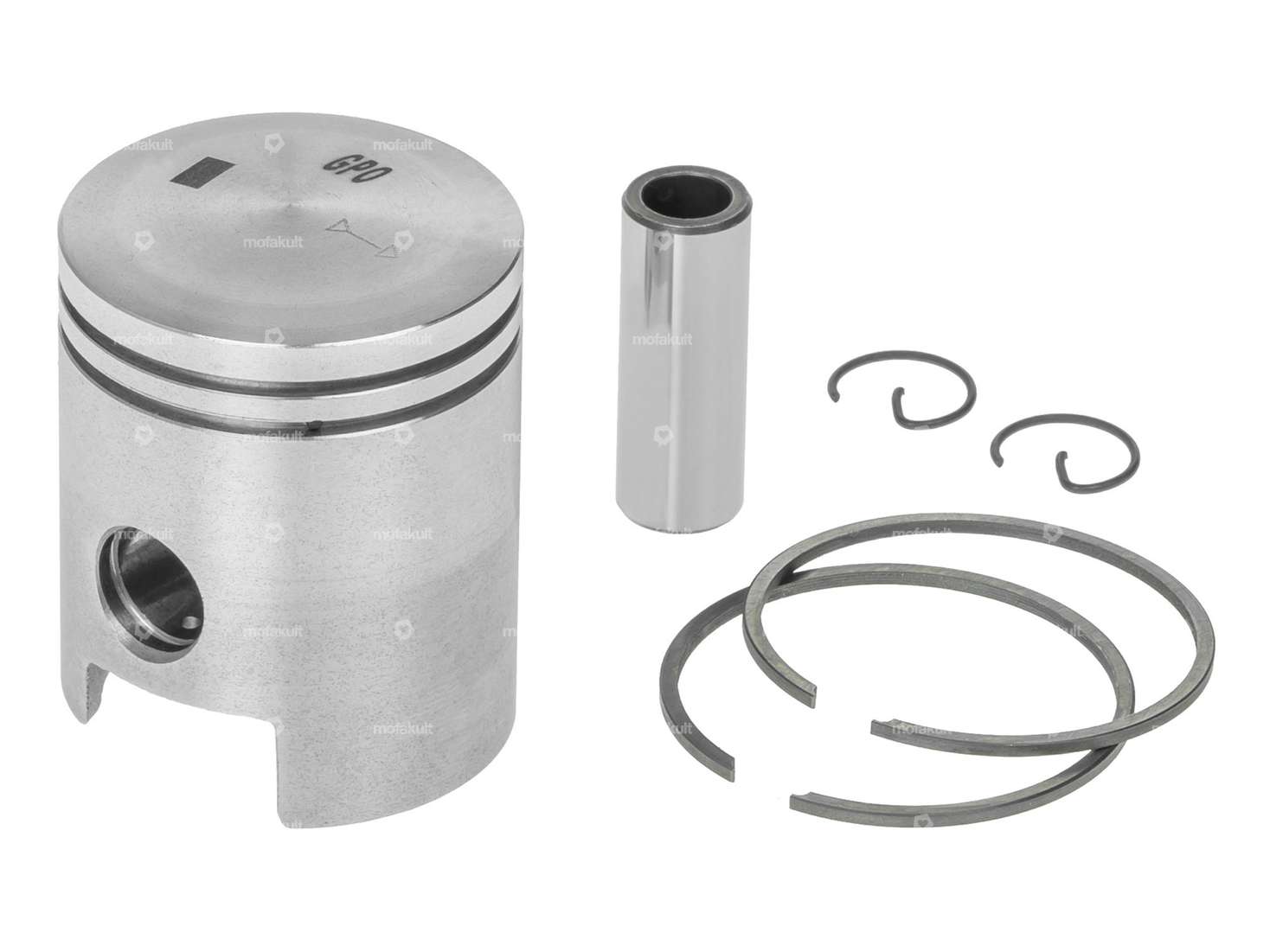

GPO piston 40.96 mm | Sachs 502, 50/2, 50/3, 50/4

EUR 41.60

Incl. 25% VAT.

Description

41 mm piston with two 1.5 mm rectangular piston rings with internal fuse (IS) to fit your moped / moped with Sachs 502, 50/2, 50/3 and 50/4 engine.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter41 mm
ManufacturerGPO
Ø outside piston (A)40.96 mm
Compression height (C)28 mm
Curvature (D)2.5 mm
Total piston height (E)52 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Weight piston kit90 g
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

503 - AAL , ABL , 2AL / 2BL
