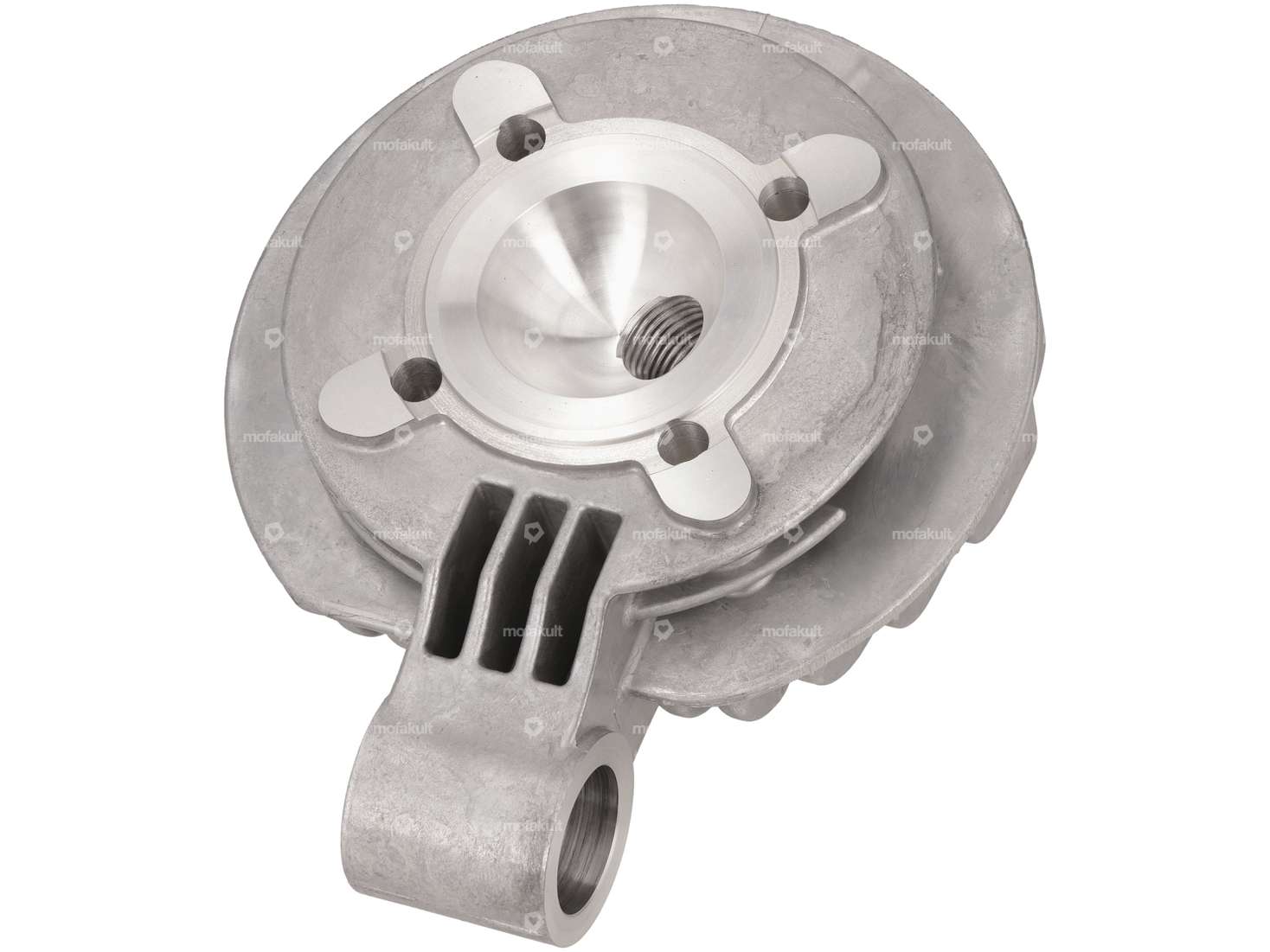

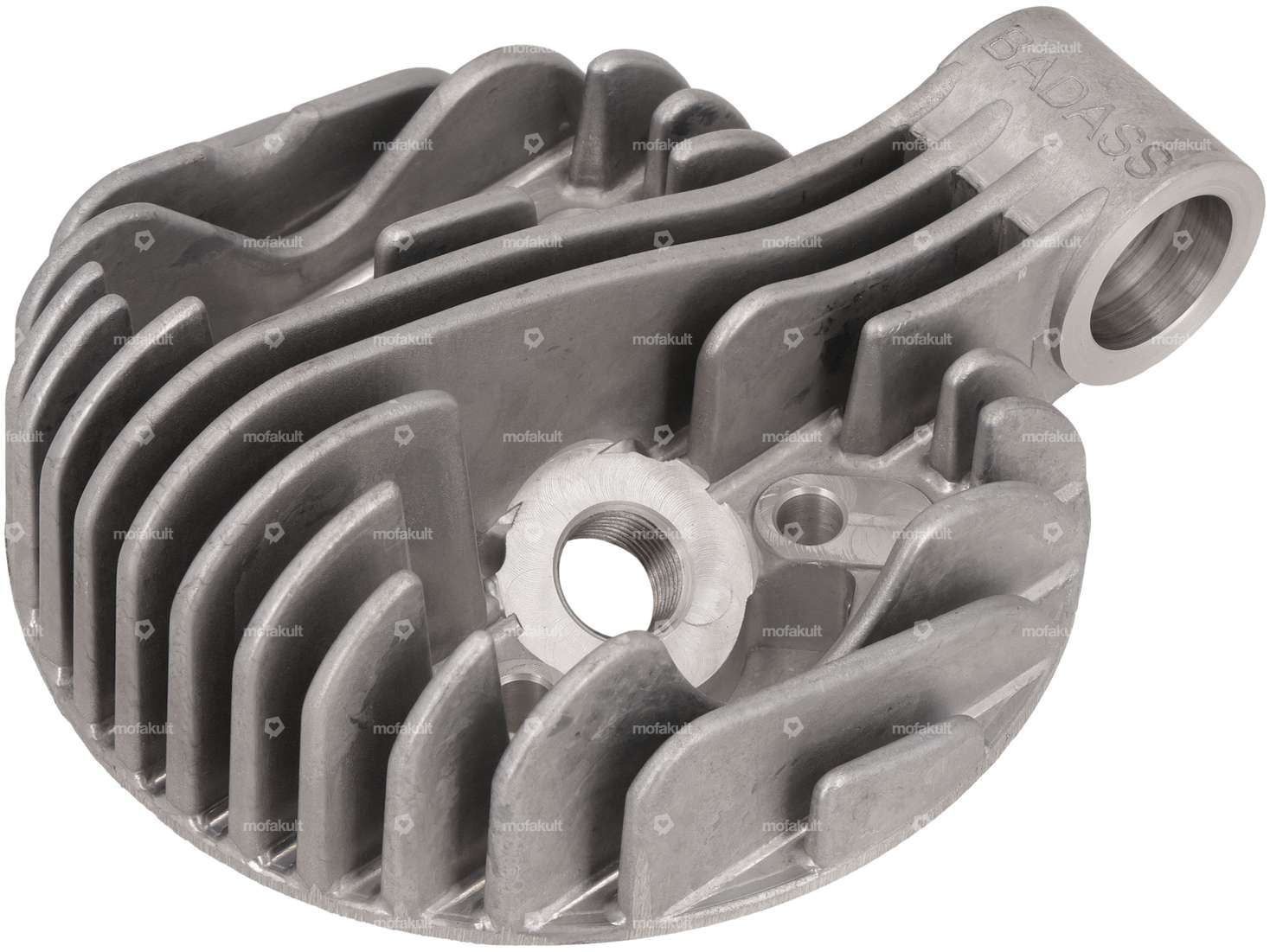

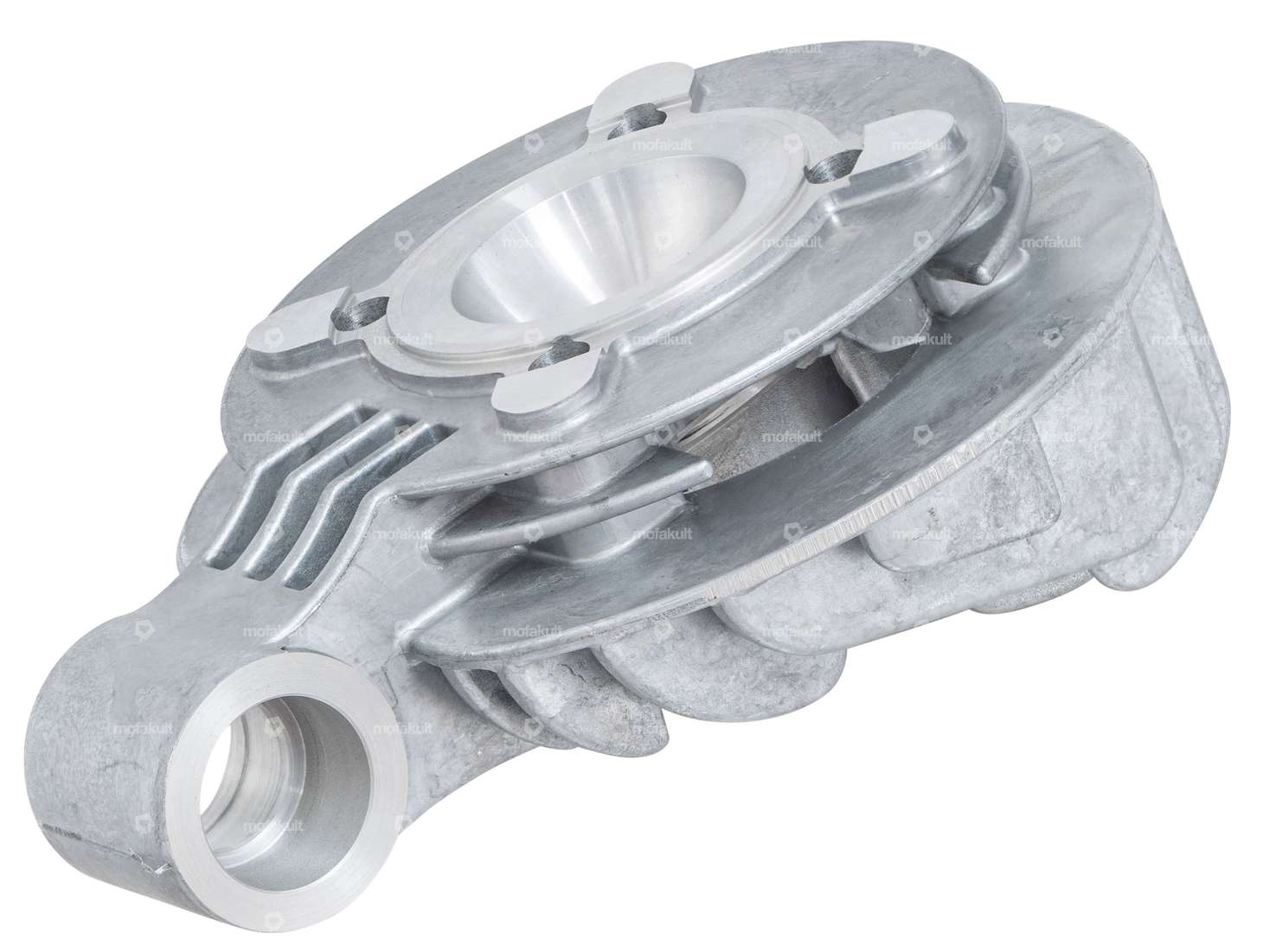

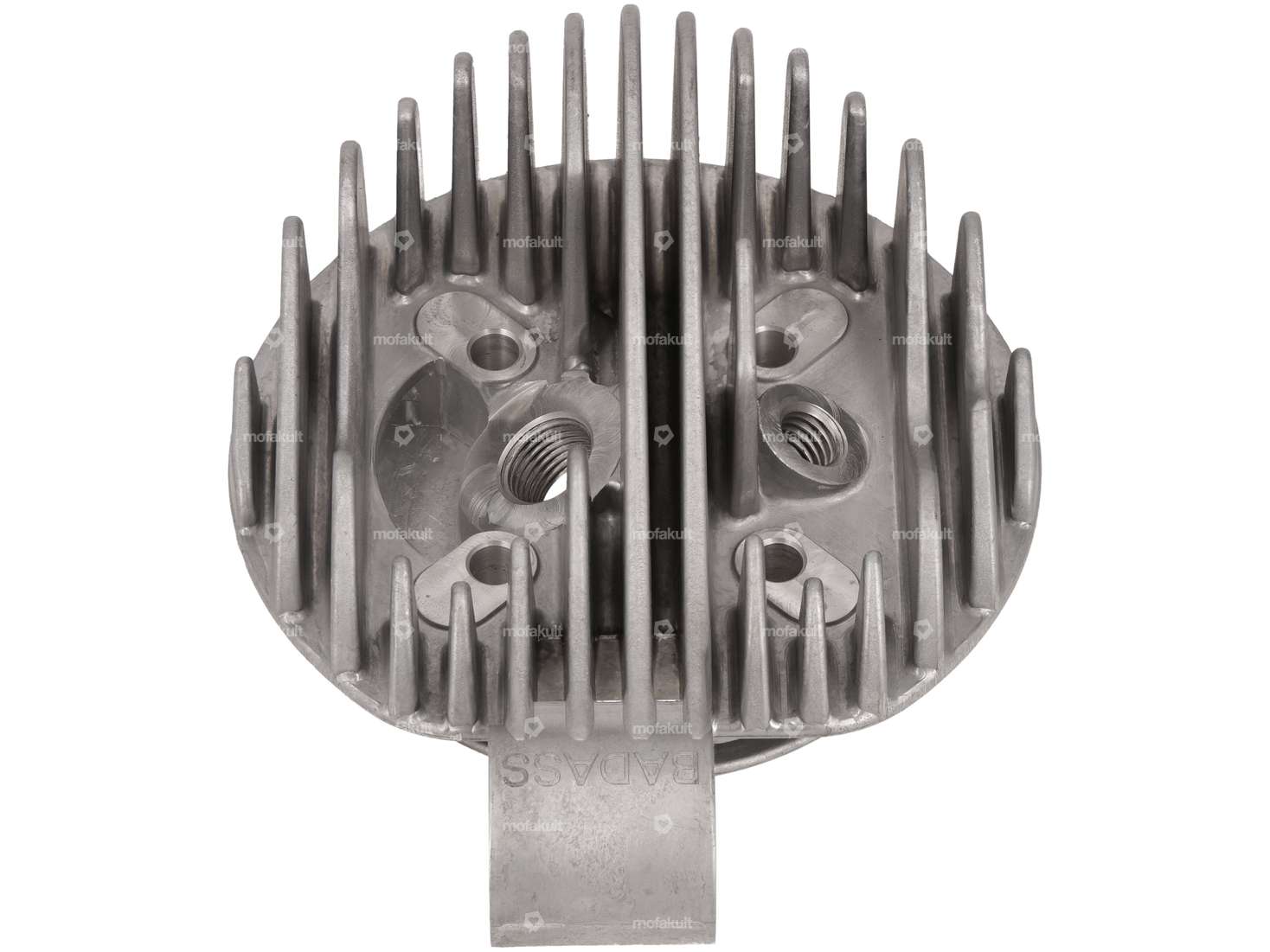

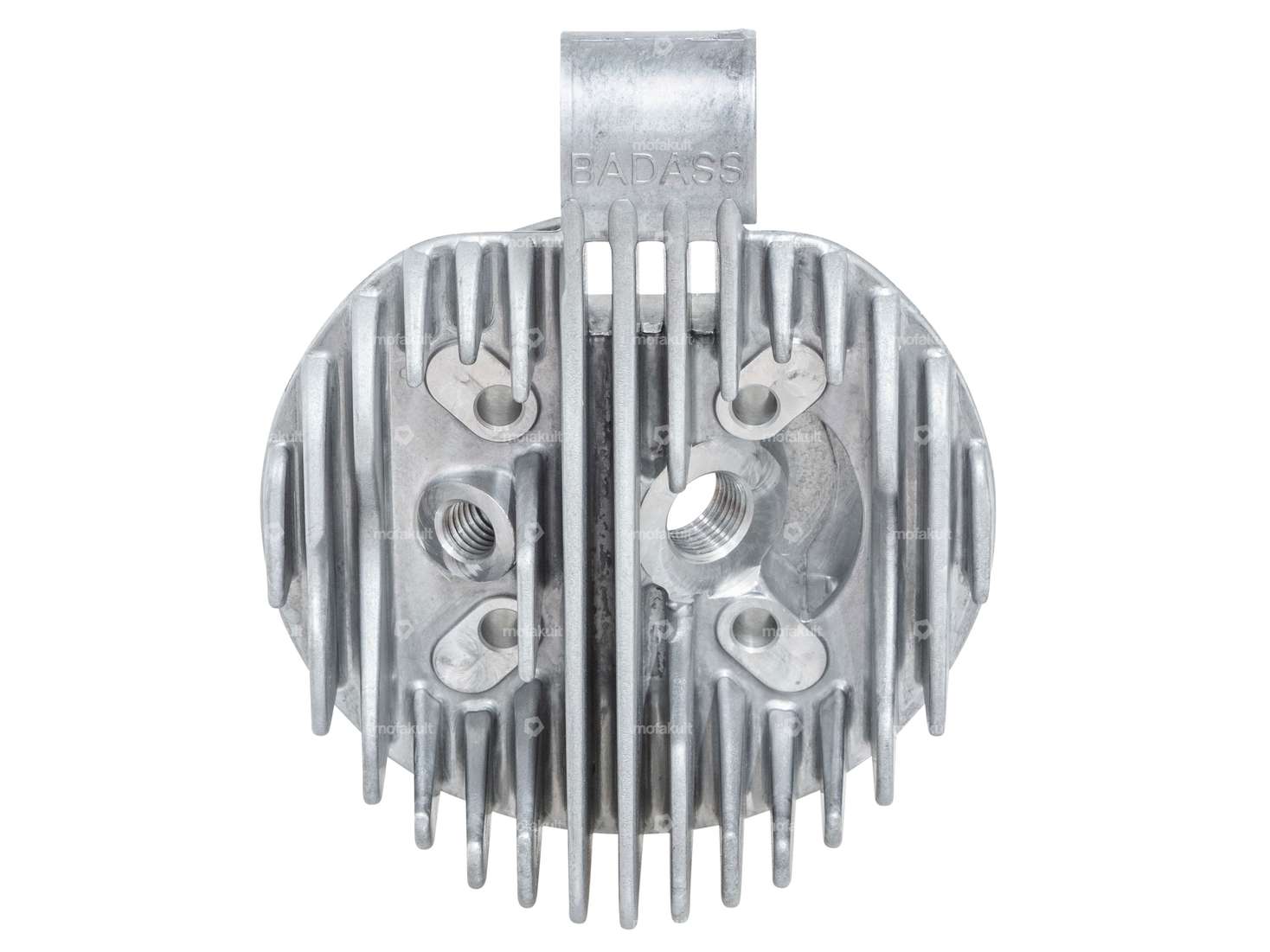

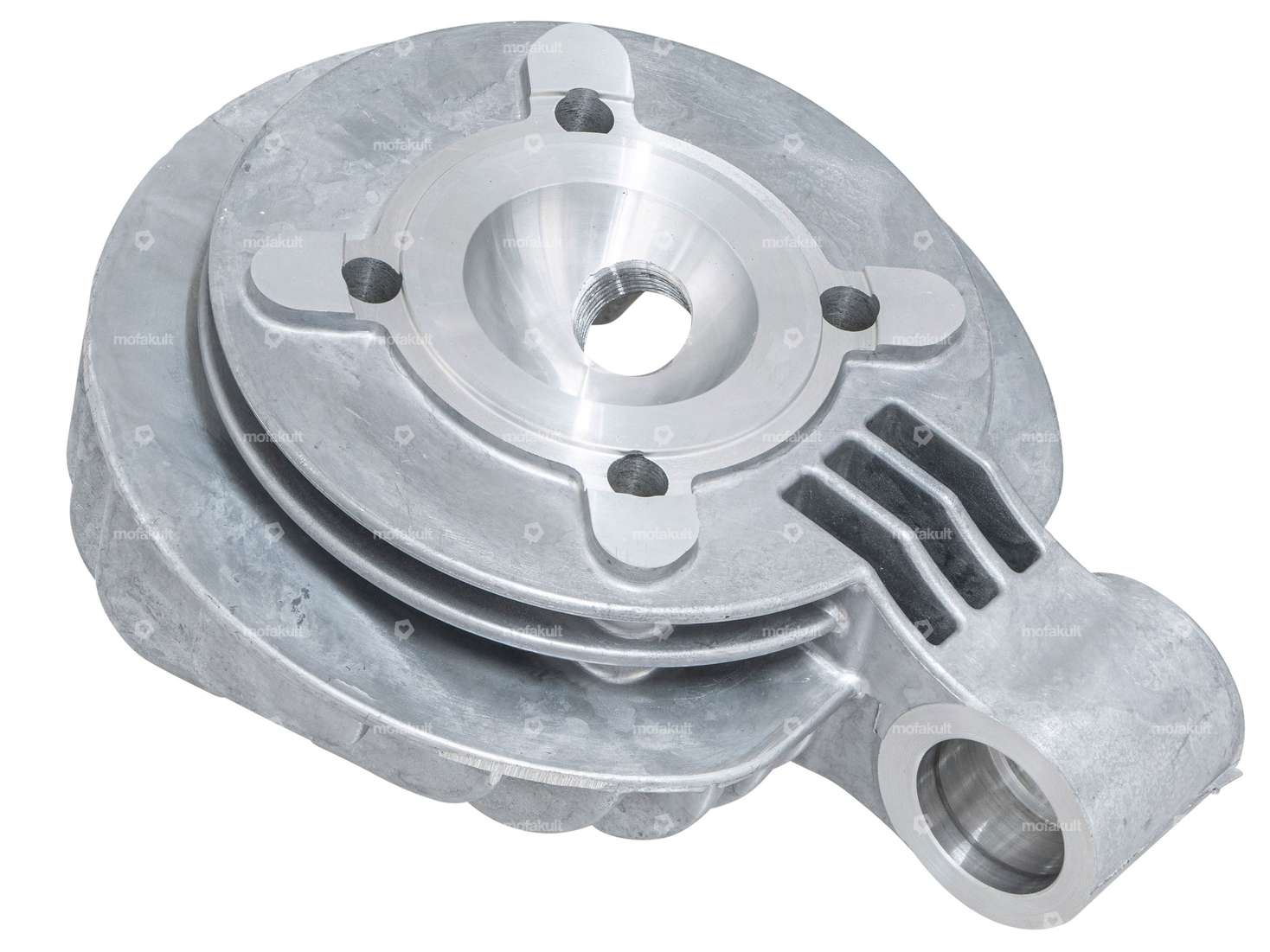

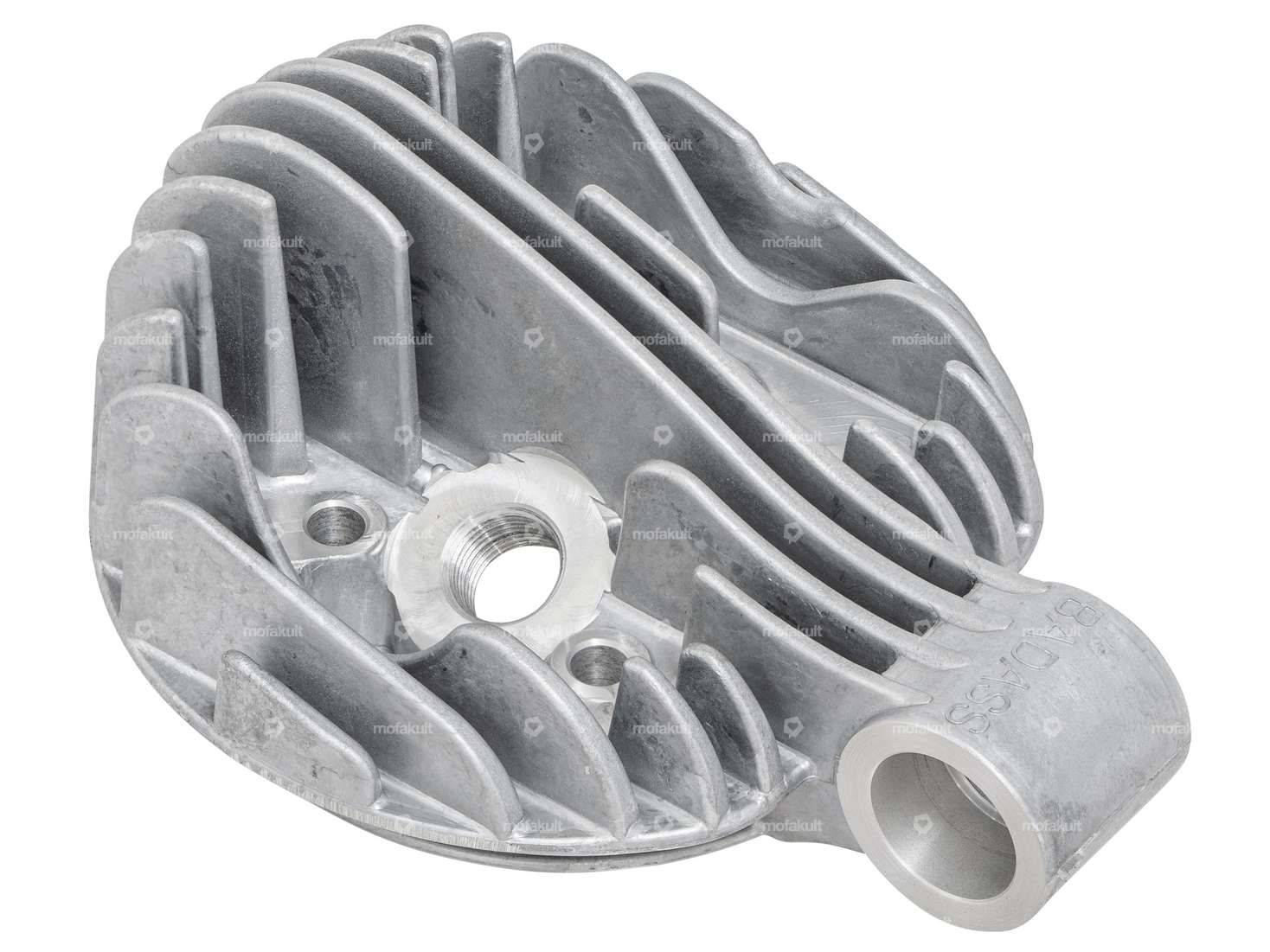

First 41 - 43 mm cylinder head in original look with enlarged fins, suitable for Sachs 502, 50/2, 50/3, 50/4 engines.
Thanks to the larger fin design, the cylinder head can optimally dissipate heat even at high temperatures and slow uphill rides.
The hole for the decompressor is prepared and threaded (M10 x 1.5 mm). If a decompressor is installed, it only needs to be drilled through with a 3 mm drill bit.
Ø Cylinder: 41.0 - 43.0 mm (type L)
Perforation pattern for cylinder head screws: 37 x 37 mm
Decompressor thread: M10 x 1.5 mm
Ø Silentblower mount: 19.3 mm
Ø outside: 108 mm
Ø outside under casing: 86 mm
The cylinder head is installed without gasket, the tightening torque of the cylinder head bolts (strength 10.9) is 11 - 13 Nm.
Matching add-on parts such as spark plugs, decompressors, silentblowers etc. can be found in the accessories section.
Made by the BADASS brand.
| Manufacturer | BAD ASS |
| Ø outside | 108 mm |
| Material | Aluminum |
| Ø cylinder | 41 - 43 mm |
| Area of application | Tuning |
| Ø screw holder | 19.3 mm |
| Number of fixing points | 4 pcs, 1 pcs |
| Hole pattern [mm] | 37 x 37 |
| Decompressor | M10x1.5 |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
Ratings
Accessories & related products
swiing® revival nozzle set M3.5 (58 - 68) Bing SRE, SRA, SRC, SRF
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Component group Carburetor: Spraying · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Total length: 6 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68
EUR 19.60
swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
Material: Steel · Color: silver · Total length: 34 mm · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Drive: External hexagon · Screw head: Hexagon · Thread length: 22 mm · Thread type: M6x1 (standard thread) · Shank: Yes · Width across flats: 10 mm · Ø shaft: 5.85 mm · Strength class: 10.9 · Area of application: Standard · Shank length: 8 mm · Number of components: 12 pcs
EUR 6.05
swiing® ingenious 41 mm cylinder head tuning | Sachs 50/2, 50/3, 50/4
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 41 mm · Total length: 127 mm · Width: 95 mm · Ø outside: 98 mm · Number of fixing points: 4 pcs · Ø screw holder: 19 mm · Height: 50 mm · Candle thread: long · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5
EUR 84.50
41 mm cylinder head tuning | Sachs 50/3, 50/4 LKH
Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 41 mm · Ø outside: 128 mm · Number of fixing points: 4 pcs · Candle thread: long · Hole pattern [mm]: 37 x 37 · Decompressor: No
EUR 119.60
Not in stock
Hot

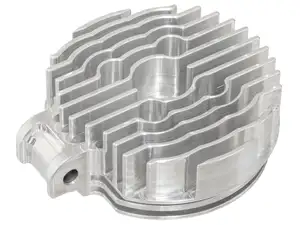

41 mm cylinder head CNC tuning | Sachs 50/3, 50/4 LKH
