For: Piaggio

20267

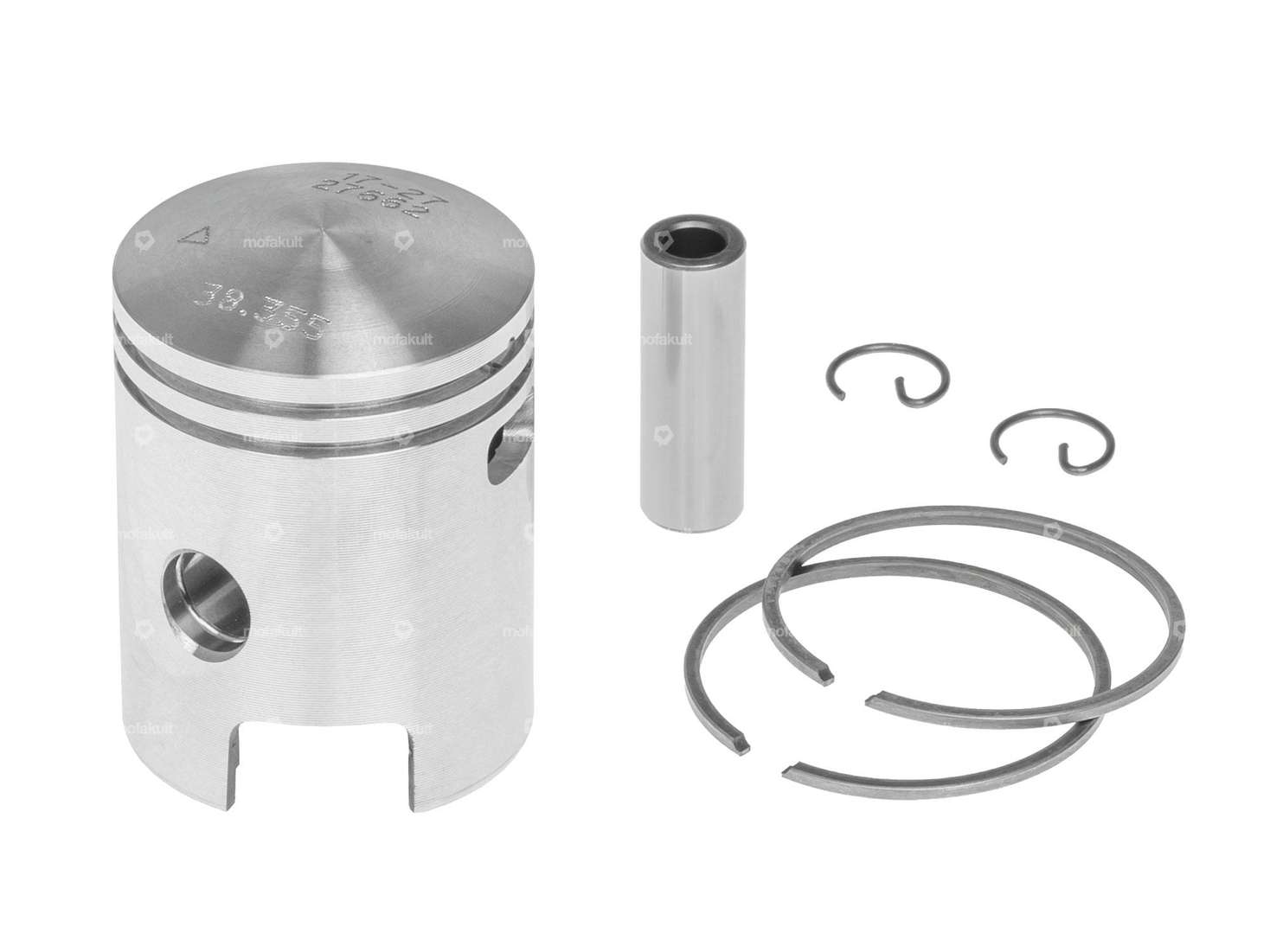

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 69.80

Incl. 25% VAT.

Description

38.4 mm ¨bermass piston with two pieces of 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio mopeds / mopeds with the Athena cylinder kits for Piaggio.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerAthena
Ø outside piston (A)38.355 mm
Compression height (C)26.3 mm
Curvature (D)3.9 mm
Total piston height (E)51.85 mm
Number of piston rings (F)2 pcs
Piston ring impactFlank safety device (FS)
Nominal diameter38.4 mm
Piston ring moldRectangular ring
Piston ring height1.5 mm
Ø piston pin (B)10 mm
Weight piston kit80 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
