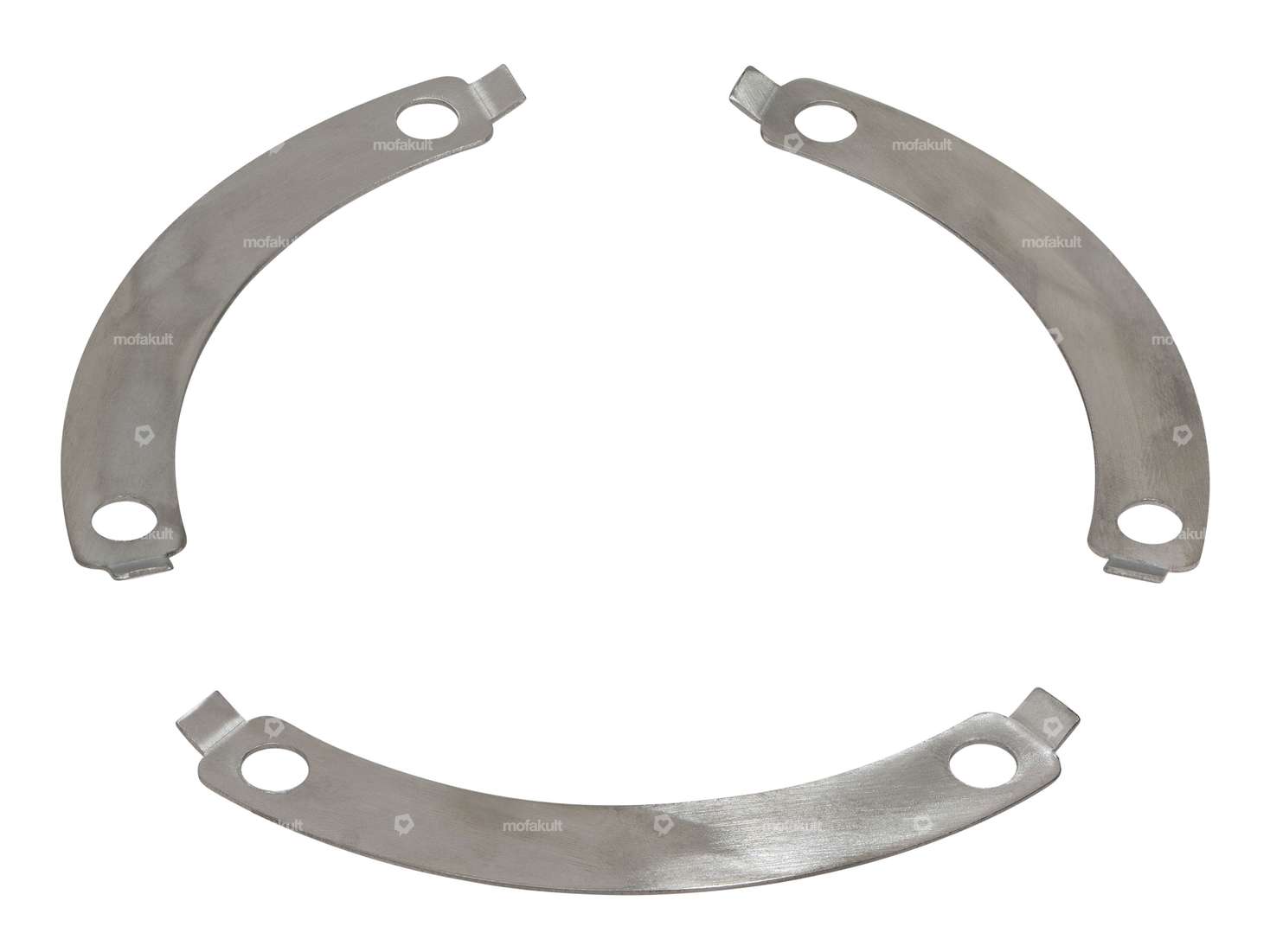

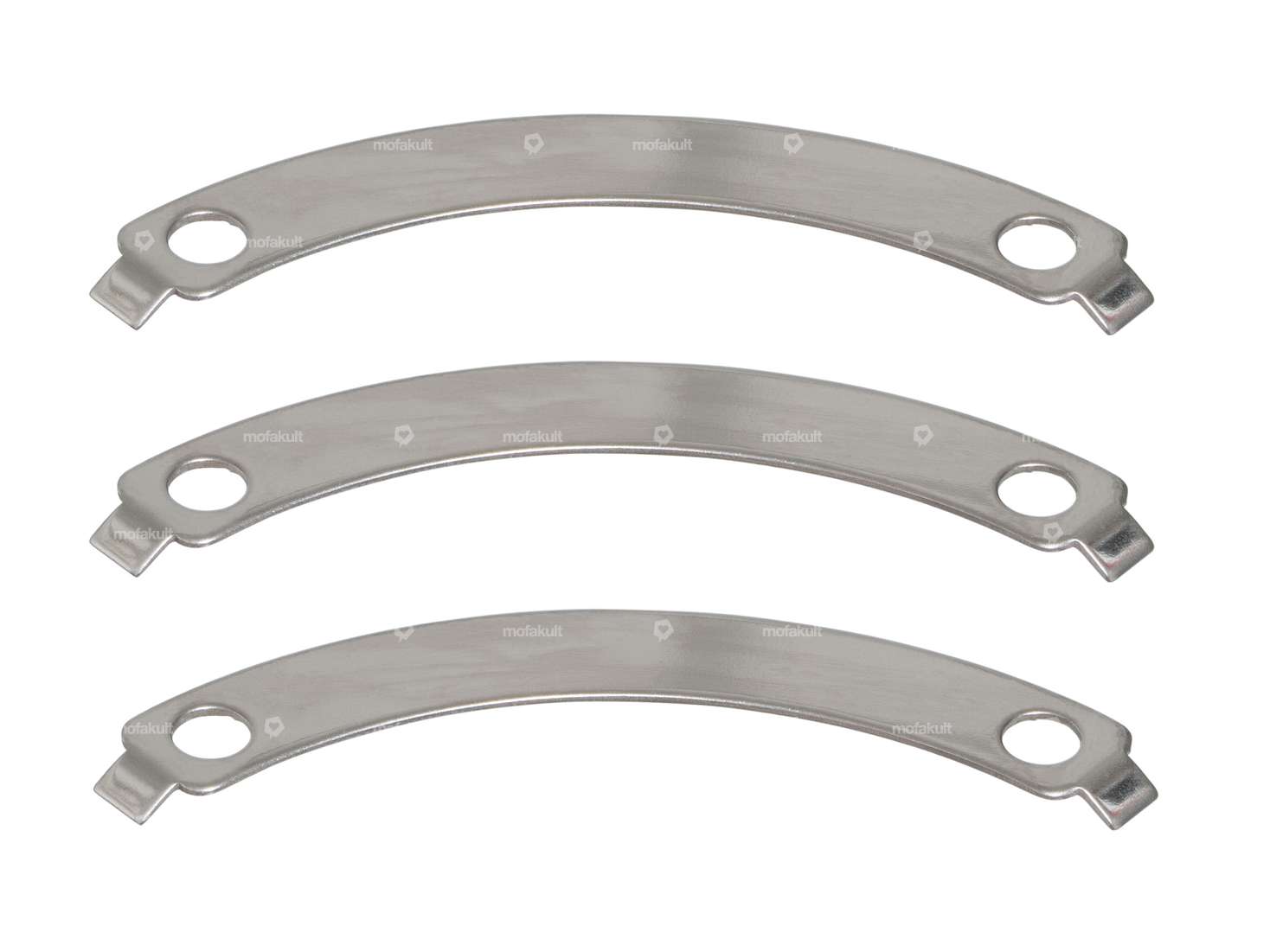

Stainless steel retaining plates for securing gear rings with a 5-hole mounting pattern and 72° pitch on your moped equipped with a Grimeca hub.
The pre-stressed plates are used to secure the bolts on the drive ring. During installation, two plates must be stacked on top of each other. To do this, the locking tab on the lower plate must be cut off or tapped straight.
Number of plates: 3 pcs.
Thickness: 1 mm
Pitch: 72°
Bolt circle diameter: 115 mm
Number of mounting points: 5 pcs.
Material: Chrome steel (commonly known as “Nirosta”)
You can find matching sprockets and screw sets in the accessories section.
A nostalgic product meeting the highest standards from the swiing® quality brand.
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Thickness | 1 mm |
| Number of lobes | 6 pcs |
| Ø bolt circle | 115 mm |
| Universal |
| Puch |
| Sachs |
Accessories & related products

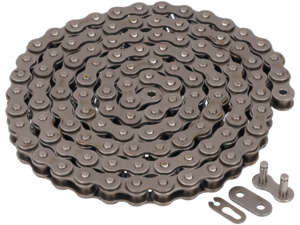

ESJOT drive chain 415H (reinforced) 114L (1A quality)
