swiing® revival 4 mm intake gasket 12 mm intake manifold | Puch E50, Z50, ZA50

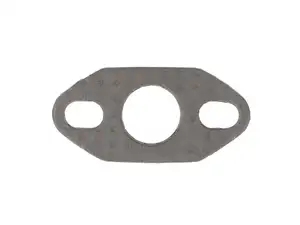

Inlet gasket 3.2 mm | Puch

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 - 38 mm

swiing® revival 12 mm carburetor set "Original" | Puch E50

Manufacturer: swiing® revival parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Standard · Carburetor type: SRE · Nominal diameter: 12 mm · Ø fuel hose connection: 6 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Hole spacing inlet: 38 mm · Choke control: Hand choke · Mounting type: Flange · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Nozzle size: 52 · Clamping screw torque (max.): 4 N/m

swiing® revival 12 mm intake manifold | Puch E50

Material: Aluminum · Number of fixing points: 2 pcs · Ø inside: 12 mm · Manufacturer: swiing® revival parts · Mounting type: Screws · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Total length: 45.5 mm · Area of application: Original · Height flange center hole: 43 mm · Total height: 53 mm · Camouflaged: No

swiing® ingenious 4 mm intake gasket 15 mm intake manifold square | Puch E50, Z50, ZA50

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Oiled paper · Material: Phenolic resin (colloquially known as Bakelite) · Place of use: Admission · Thickness: 4 mm · Ø inside: 15 mm · Ø screw holder: 6.2 mm · Hole spacing inlet: 38 mm

swiing® ingenious 4 mm intake gasket 17 mm intake manifold square | Puch E50, Z50

Nominal diameter: 17 mm · Manufacturer: swiing® ingenious parts · Material: Oiled paper · Material: Phenolic resin (colloquially known as Bakelite) · Thickness: 4 mm · Ø inside: 17 mm · Ø screw holder: 6.2 mm · Hole spacing inlet: 38 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Thread type: MF12x1 (fine pitch thread) · Spare tube shape: curved · Reserve level: 70 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival air filter screen Ø 52 mm original

Material: Steel · Color: silver · Height: 10 mm · Manufacturer: swiing® revival parts · Ø outside: 52 mm · Surface: galvanized (blue) · Area of application: Standard · Camouflaged: No

Petrol hose clamp (Ø 8 - 9.3 mm) Standard

Material: Spring steel · Color: silver · Ø inside: 7.5 mm · Ø outside: 9.5 mm · Outer width: 5.3 mm · Surface: galvanized (blue) · Mounting type: Plug connection clamped · Clamping range: 7.6 - 9.3 mm

swiing® revival 12 mm carburetor "Original" | Puch

Nominal diameter: 12 mm · Material: Aluminum · Color: gray · Total length: 65 mm · Height: 108 mm · Manufacturer: swiing® revival parts · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Width: 50 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Nozzle size: 52 · Ø Inside entrance: 12 mm · Ø Internal connection: 20 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Area of application: Standard · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.15 · Camouflaged: No · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0

swiing® revival 12 mm intake manifold | Puch E50

Material: Aluminum · Number of fixing points: 2 pcs · Ø inside: 12 mm · Manufacturer: swiing® revival parts · Mounting type: Screws · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Total length: 45.5 mm · Area of application: Original · Height flange center hole: 43 mm · Total height: 53 mm · Camouflaged: No

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom | Puch Maxi S, N

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm · Mounting type: Union nut · Puch OEM number: 349.3.22.030.0 · Puch OEM number: 349.4.22.030.0

swiing® revival 12 mm carburetor set "Original" | Puch E50

Manufacturer: swiing® revival parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Standard · Carburetor type: SRE · Nominal diameter: 12 mm · Ø fuel hose connection: 6 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Hole spacing inlet: 38 mm · Choke control: Hand choke · Mounting type: Flange · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Nozzle size: 52 · Clamping screw torque (max.): 4 N/m

Petrol hose Ø 5 / 7 mm transparent 30 cm

Manufacturer: Made in Italy · Color: transparent · Ø inside: 5 mm · Ø outside: 7 mm · Total length: 300 mm
