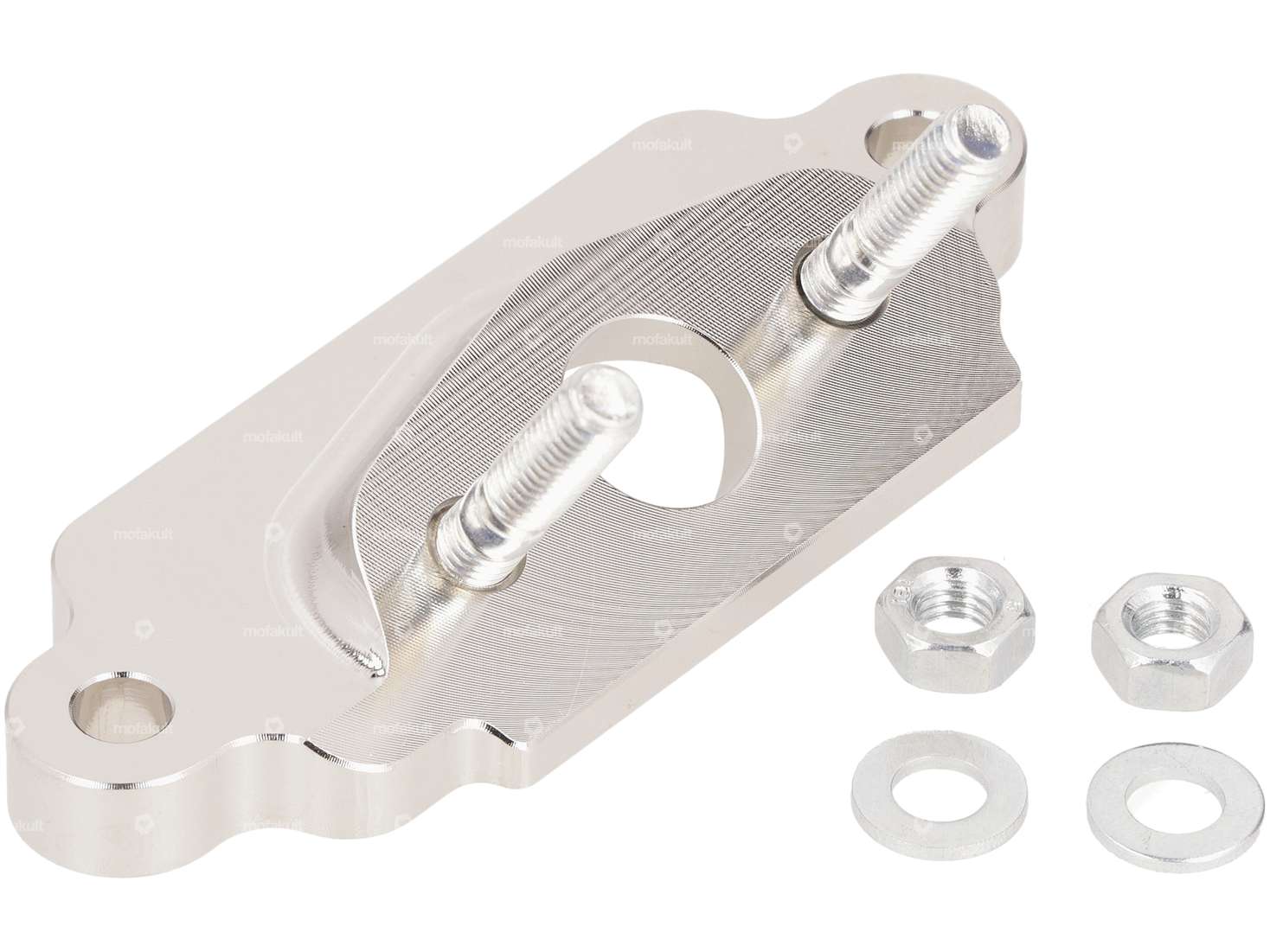

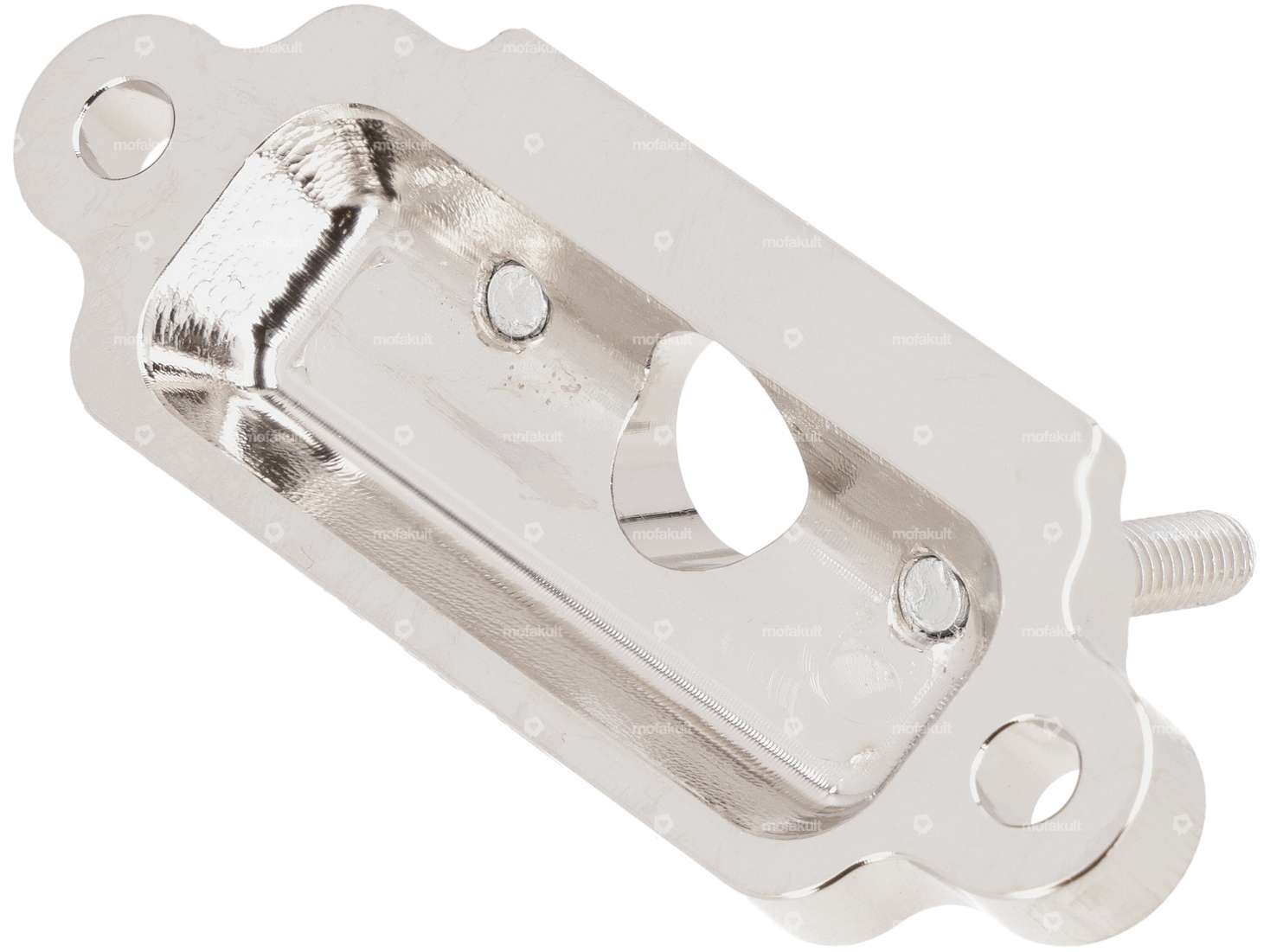

Membrane block made of CNC machined aluminum with 12 mm intake window. Ideal flange plate to mount the 12 mm SSB carburetor.
Fits Sachs 502, 50/2, 50/3, 50/4 mopeds / mopeds with diaphragm intake.
The stud bolts of the intake flange are already secured with Loctite.
Hole spacing to cylinder: 67 mm
Spacing of stud bolts: 31 mm
Thread: M5
Attention: It is possible that a slight adjustment must be made to the fan cover.
Gaskets and other intermediate flanges can be found in the accessories.
Exceptional product for the highest demands of the quality brand swiing®.
| Ø inside | 12 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Area of application | Standard |
| Number of flaps | 2 pcs |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Thread type | M5x0.8 (standard thread) |
| Hole spacing | 67 mm, 31 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
Accessories & related products
Diaphragm insert Sachs 50/2
Material: Brass · Area of application: Standard · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.2 mm · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010
EUR 35.40
Hot
swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4
Ø inside: 17 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Mounting type: Screws · Number of flaps: 2 pcs · Thickness: 6.9 mm · Width: 80 mm · Total length: 29 mm · Area of application: Tuning · Hole spacing: 31 mm · Hole spacing: 67 mm · Number of fixing points: 4 pcs · Thread type: M5x0.8 (standard thread)
EUR 61.20
swiing® ingenious intermediate flange 13 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Area of application: Standard · Area of application: Tuning · Number of flaps: 2 pcs · Ø inside: 13 mm · Mounting type: Screws · Thread type: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm
EUR 73.40
Explore categories from Carburetor & intake system
Moped fans also bought
Meteor piston 38 mm | Sachs 50/2, 503 (A2772)
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Weight piston kit: 79 g · Pony OEM number: A2772 · Pony OEM number: A4358 · Sachs OEM no.: 0286 377 010 · Sachs OEM no.: 0286 378 005
EUR 61.20
Diaphragm insert Sachs 50/2
Material: Brass · Area of application: Standard · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.2 mm · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010
EUR 35.40
Bing 12 mm SSB carburetor 1/12/168 replica
Nominal diameter: 12 mm · Material: Aluminum · Camouflaged: No · Material: Plastic · Component group Carburetor: Carburetor complete · Area of application: Standard · Carburetor type: SSB · Color: black · Width: 85 mm · Choke control: without choke · Height: 90 mm · Total length: 126 mm · Mounting type: Flange · Hole spacing inlet: 31 mm · Nozzle size: 63 · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No
EUR 85.70
swiing® revival Stud Bolt M5x23 Inlet (Diaphragm) 10.9 | Sachs 50/2 (A3700)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Total length: 23 mm · Thread type: M5x0.8 (standard thread) · Nominal diameter (thread): 5 mm · Thread length: 6 mm · Thread length: 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102
EUR 2.20
GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4
Manufacturer: GPO · Nominal diameter: 41 mm · Thick piston ring: 1.8 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Weight piston kit: 86 g
EUR 48.90
swiing® revival gasket set cylinder diaphragm version | Sachs 50/2
Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 5 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Hole pattern [mm]: 60 x 40 mm
EUR 16.30
swiing® ingenious 38 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)
Nominal diameter: 38 mm · Manufacturer: Meteor · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Hole spacing inlet: 31 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole pattern [mm]: 60 x 40 / 37 x 37
EUR 189.90
