High-quality disc brake system for spoke wheels, which can be fitted without adjustments!
The complete set can be fitted universally for various mopeds in conjunction with the corresponding hydraulic EBR telescopic fork.All mounting parts are of the highest quality and fit perfectly.
The brake calliper including brake lever are already provided with brake fluid and therefore only need to be screwed on. The steel flex brake cable is 90 cm long. Please bear this in mind when selecting the handlebars. All screw connections must be secured with Loctite. The CNC-machined aluminium wheel hub is black anodized. It has been subjected to various load tests and can withstand the increased forces of a disc brake without any problems.
The dimensions of the hub correspond to the original.
The two spacers are mounted in the direction of travel as follows: left: 21.25 mm long / right: 27.5 mm long.

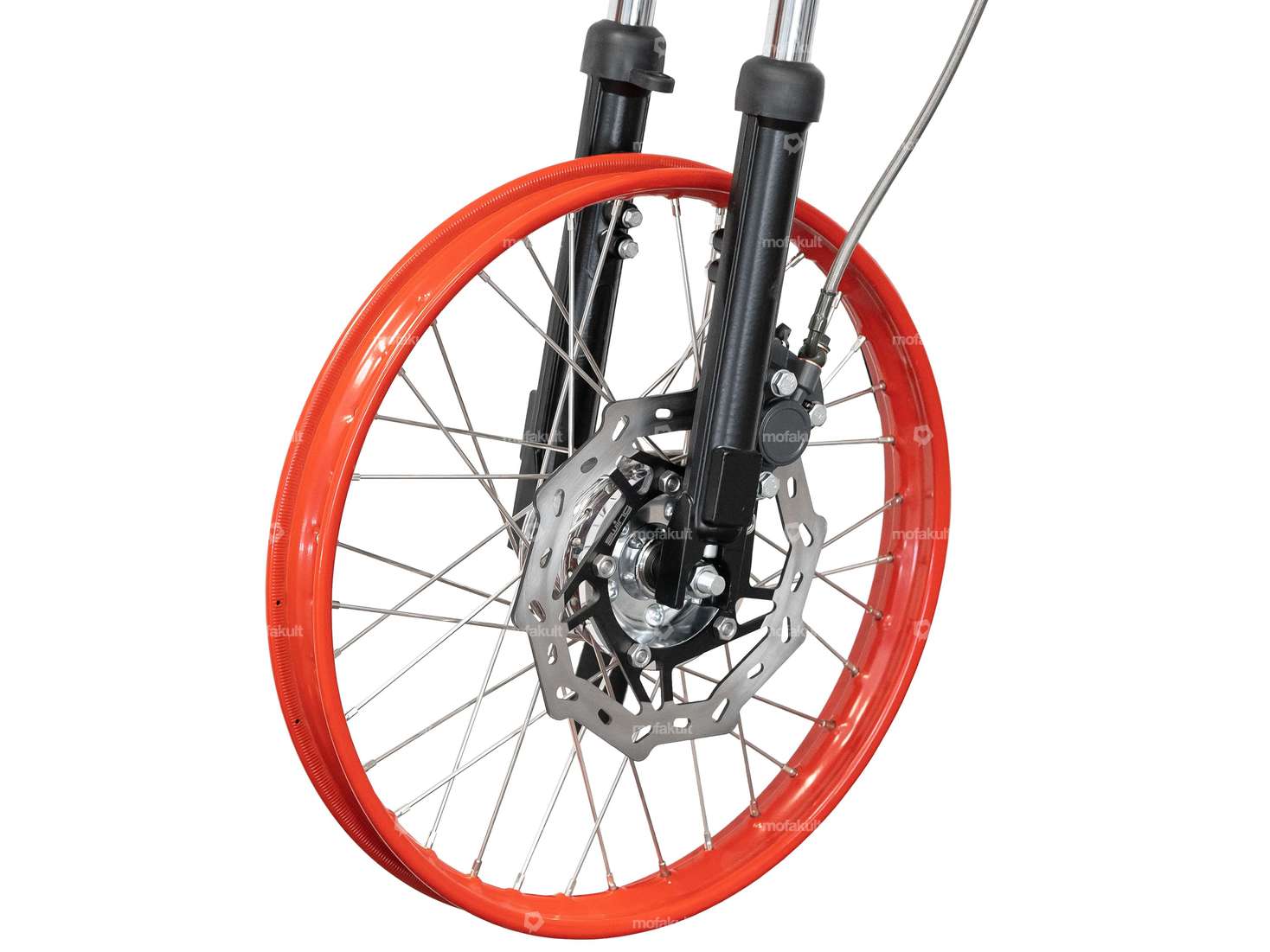

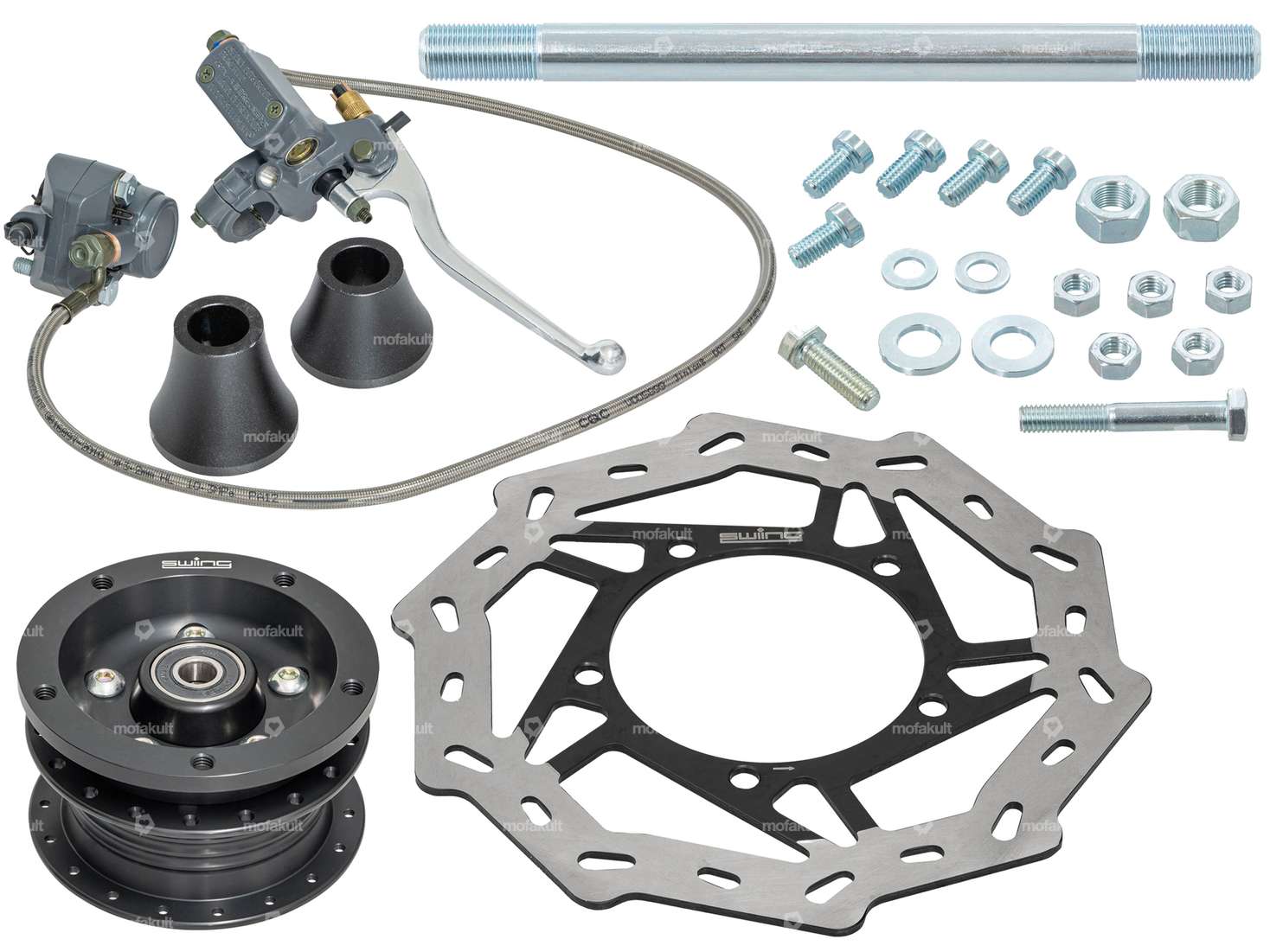

Scope of delivery corresponds to Figure 1. Figure 4 serves only to illustrate the installation.
Brake disc, wheel axle, wheel hub, spacers and mounting material were manufactured by the quality brand swiing - swiss ingenious.
When you buy this complete set, you will receive a substantial percentage off the retail price of the individual parts.
You can find all the individual parts for this disc brake system as well as other add-on parts in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.

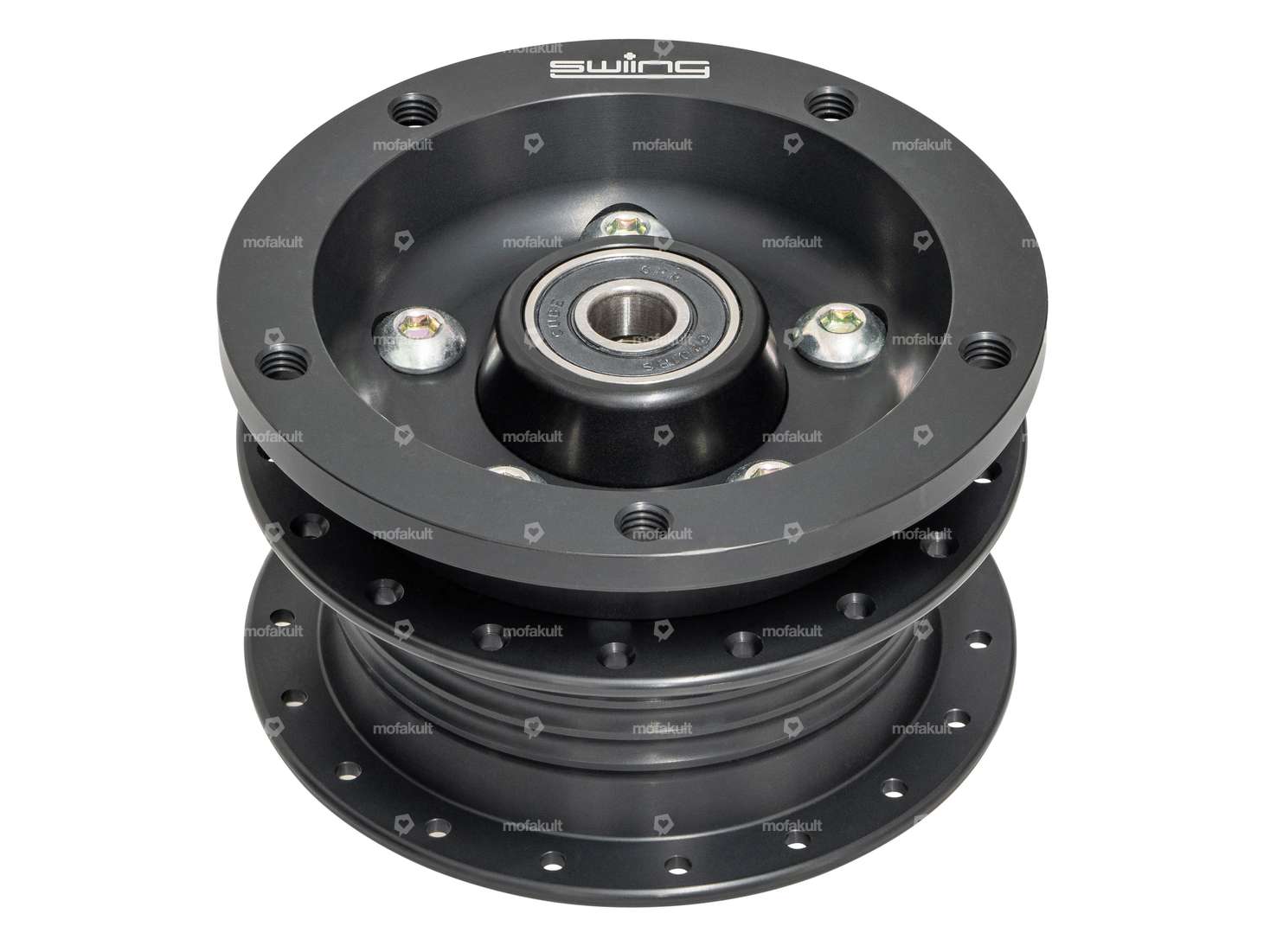

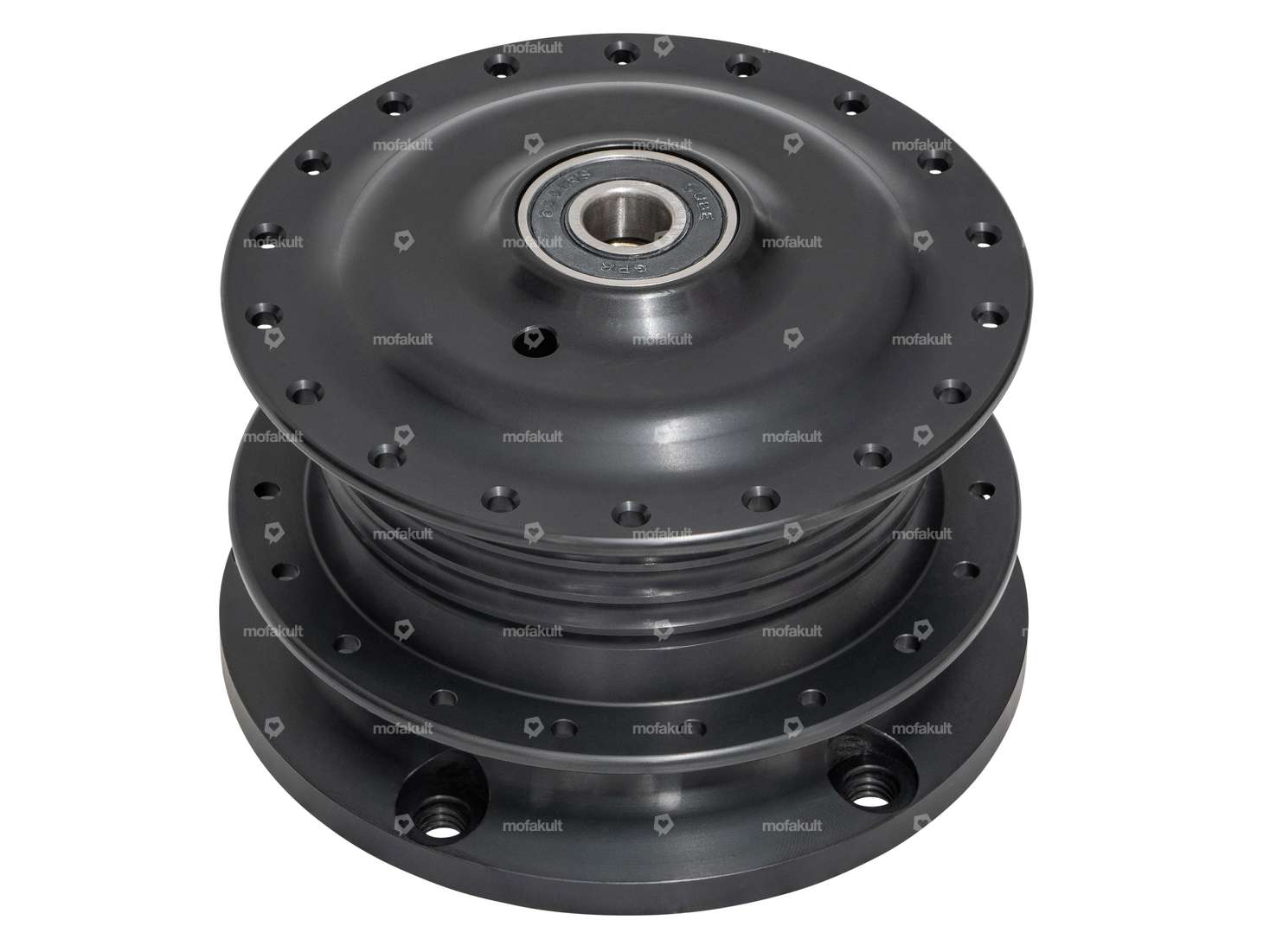

Manufacturer: swiing® ingenious parts · Color: black · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 32 mm · Ø bolt circle: 104.5 mm · Width: 77 mm · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 170 mm
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
| Manufacturer | swiing® ingenious parts |
| Color | black |
| Puch |
| Sachs |
| Pony / Cilo (Beta 521 & 512) |
| Piaggio |
Ratings
Accessories & related products
EBR telescopic fork hydraulic silver | Puch
Material: Aluminum · Material: Steel · Color: Chrome · Color: silver · Manufacturer: EWC · Surface: chrome-plated · Surface: varnished · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Ø spars: 28 mm · Thread length: 58 mm · Head tube length: 200 mm · Thread type: MF26x1 (fine pitch thread) · Fork bridge - center wheel axle: 410 mm · Total length: 635 mm · Distance brake cam to wheel axle center-center: 35 mm
EUR 388.60
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry
EUR 27.00
EUR 2’700.00/l

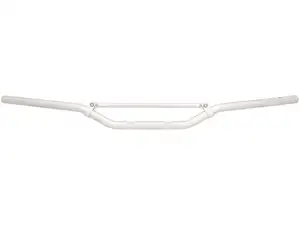

Racing handlebar fork plate 8 cm / wide aluminum silver
