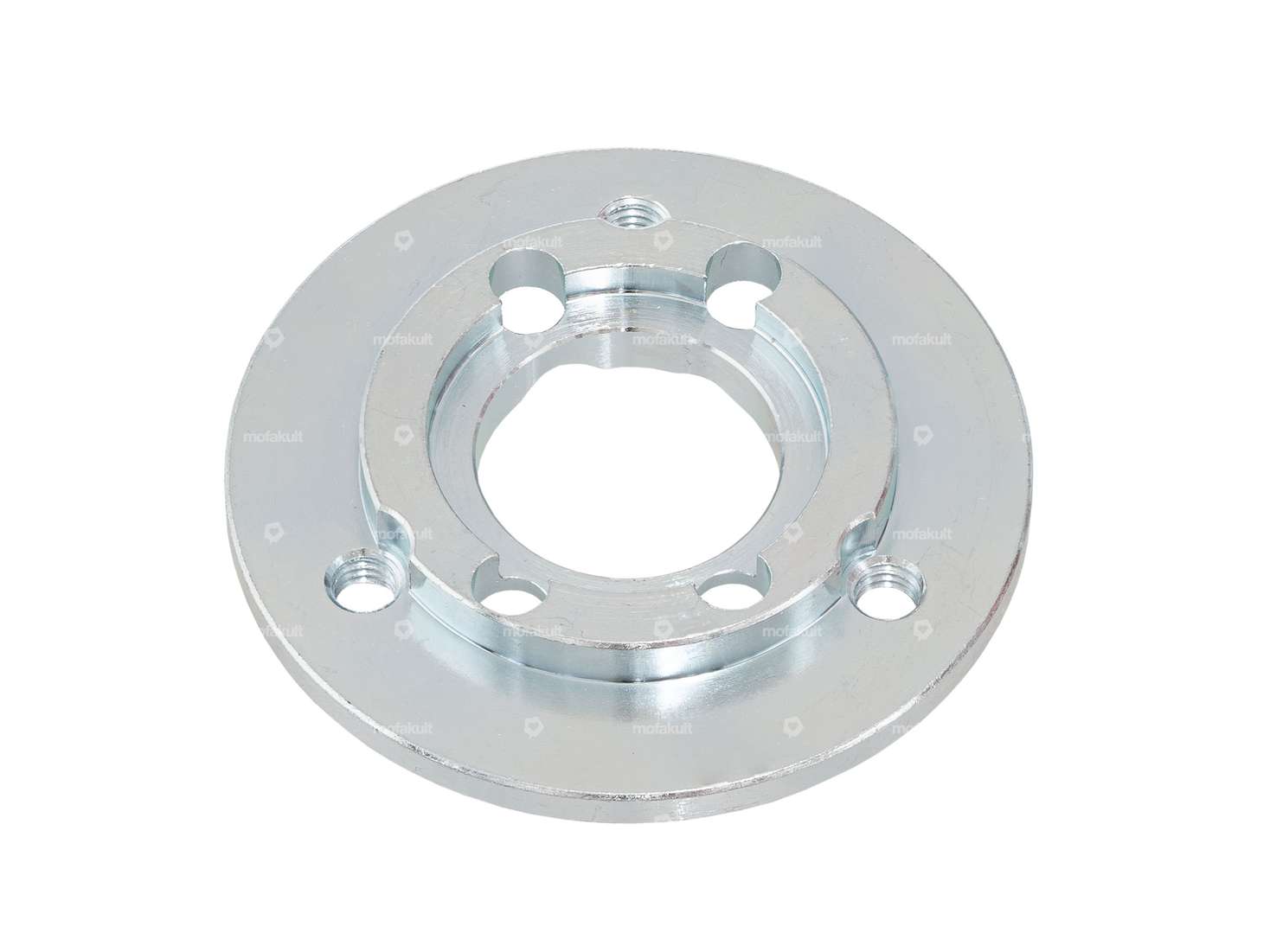

Adapter plate for MVT, Selettra, and PVL internal-rotor racing ignition systems compatible with various mopeds and small motorcycles (e.g., Puch Maxi, Puch X30 Sport, Puch X30 Velux, Sachs 503, Sachs 50/2, Zündapp Belmondo, Kreidler, etc.).
The adapter plate is secured to the rotor of the above-mentioned ignitions using the screws provided. We recommend securing the screws with Loctite.

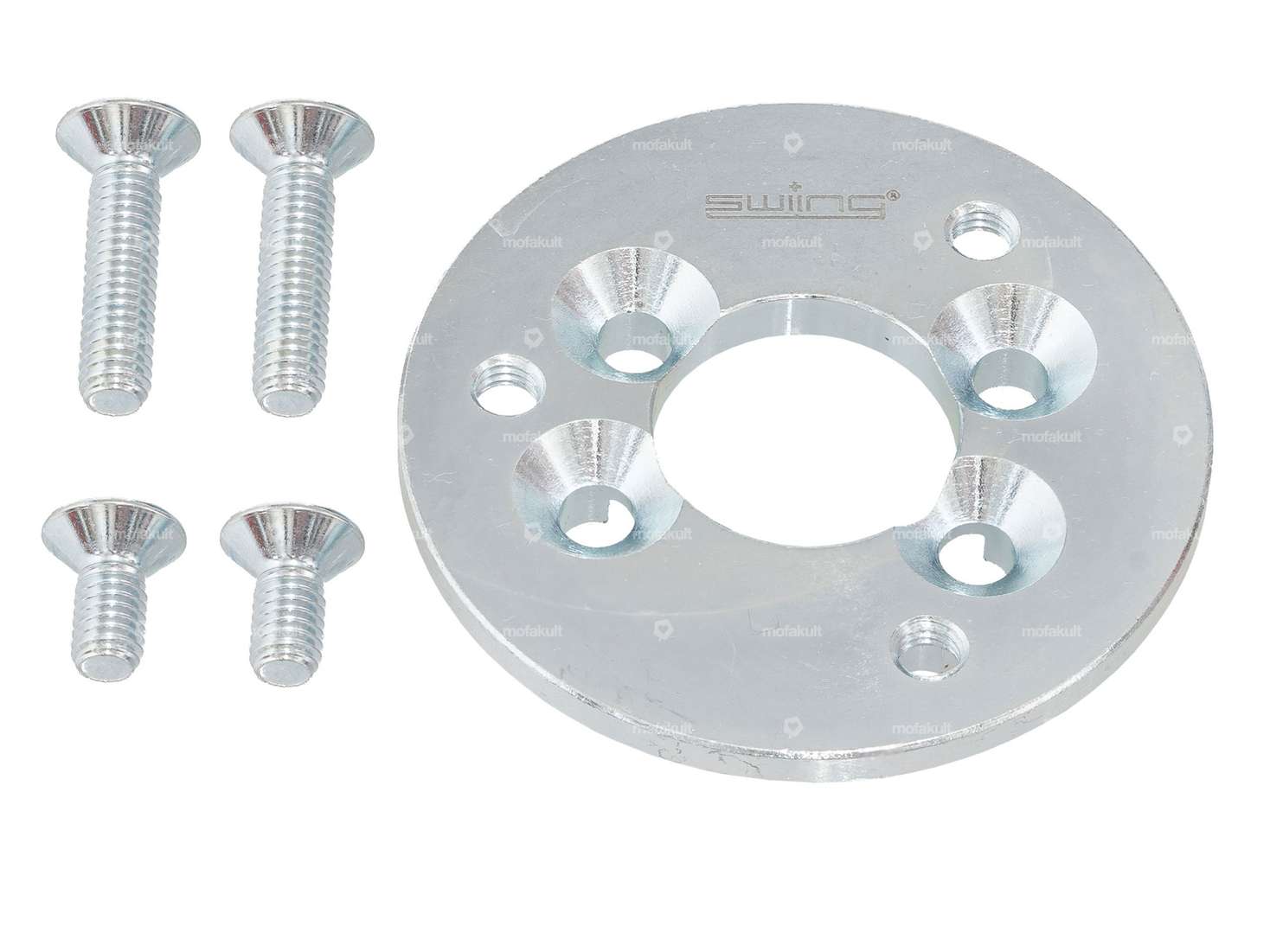

The included M6x25 countersunk screws are compatible with PVL and Selettra ignitions. When using an MVT ignition, the included M6x14 countersunk screws must be used.
Using the adapter plate offers the following advantages
:- Can be used as a weight washer (additional weight)-
swiing® fan wheels for fan-cooled engines can
be mounted on the adapter plate- Additional weights can be mounted on the adapter plate
Inner diameter: 24.5 mm
Outer diameter: 65 mm
Plate thickness: 4 mm
Weight of the plate without screws: 100 grams
Weight of the plate with screws: 110 grams
Material: galvanized steel
The additional weight ensures smooth, even operation of your motor when stationary and improves its “start-up performance.” Depending on the setting, the additional weight can even increase torque.
A sophisticated product from the swiing® quality brand, designed to meet the highest standards.
| Thickness | 9 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø inside | 24.5 mm |
| Ø outside | 65 mm |
| Ø bolt circle | 50 mm |
| Weight | 110 g |
| Ø mounting hole | 6 mm |
| Number of fixing points | 4 pcs |
| Area of application | Performance, Racing, High End, Tuning |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
| Zündapp Belmondo |
