First 38 mm reproduction cylinder kit with slightly improved timing and optimized transfer ports to match the manual transmission Cilo 502 mopeds.

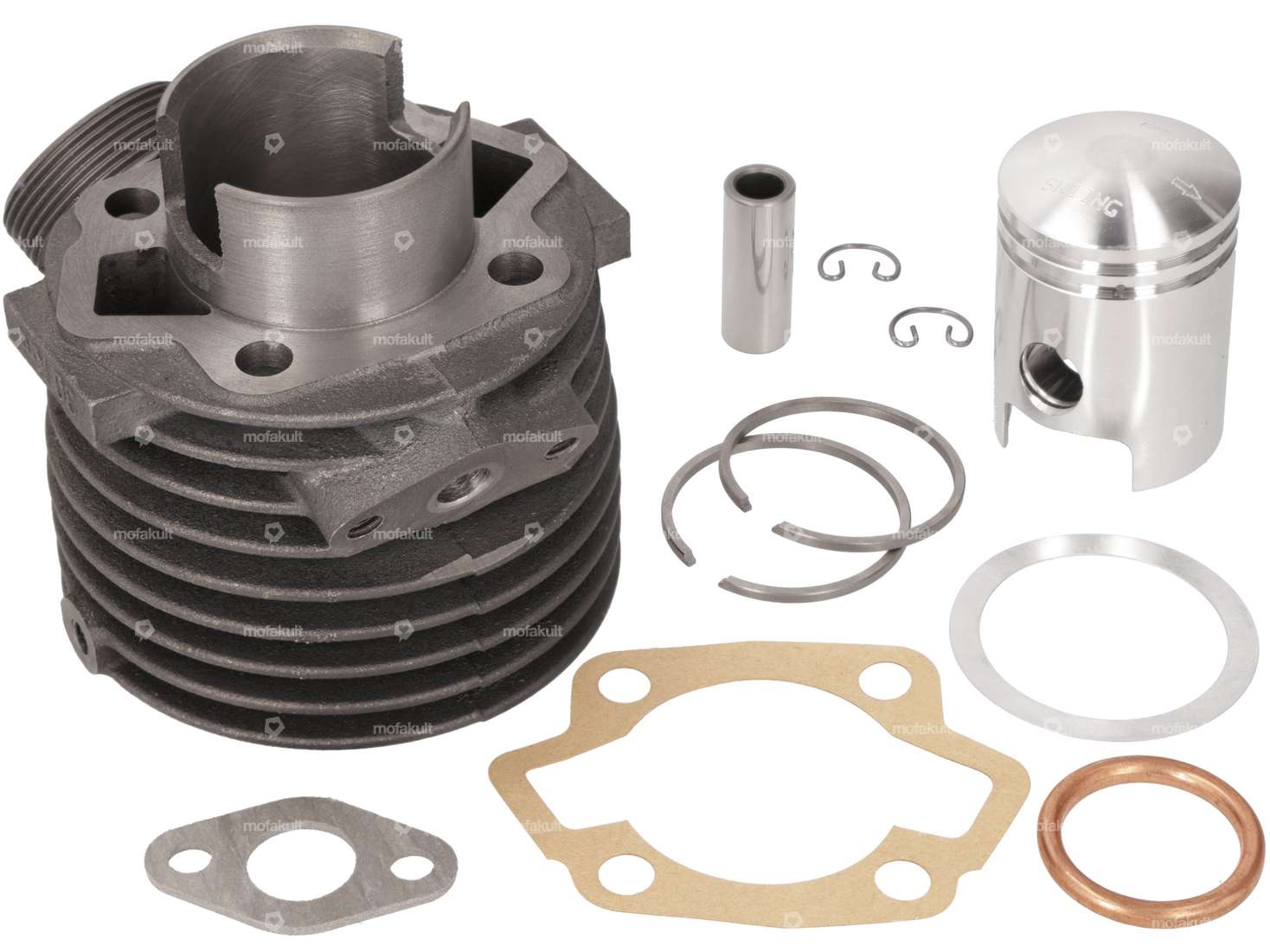

The set includes cylinder, piston kit and gasket set. The matching stud bolts are listed under accessories.
The cylinder is manufactured by the quality brand swiing – swiss ingenious.
The Meteor piston manufactured for swiing is characterized by its high-quality and precise workmanship.

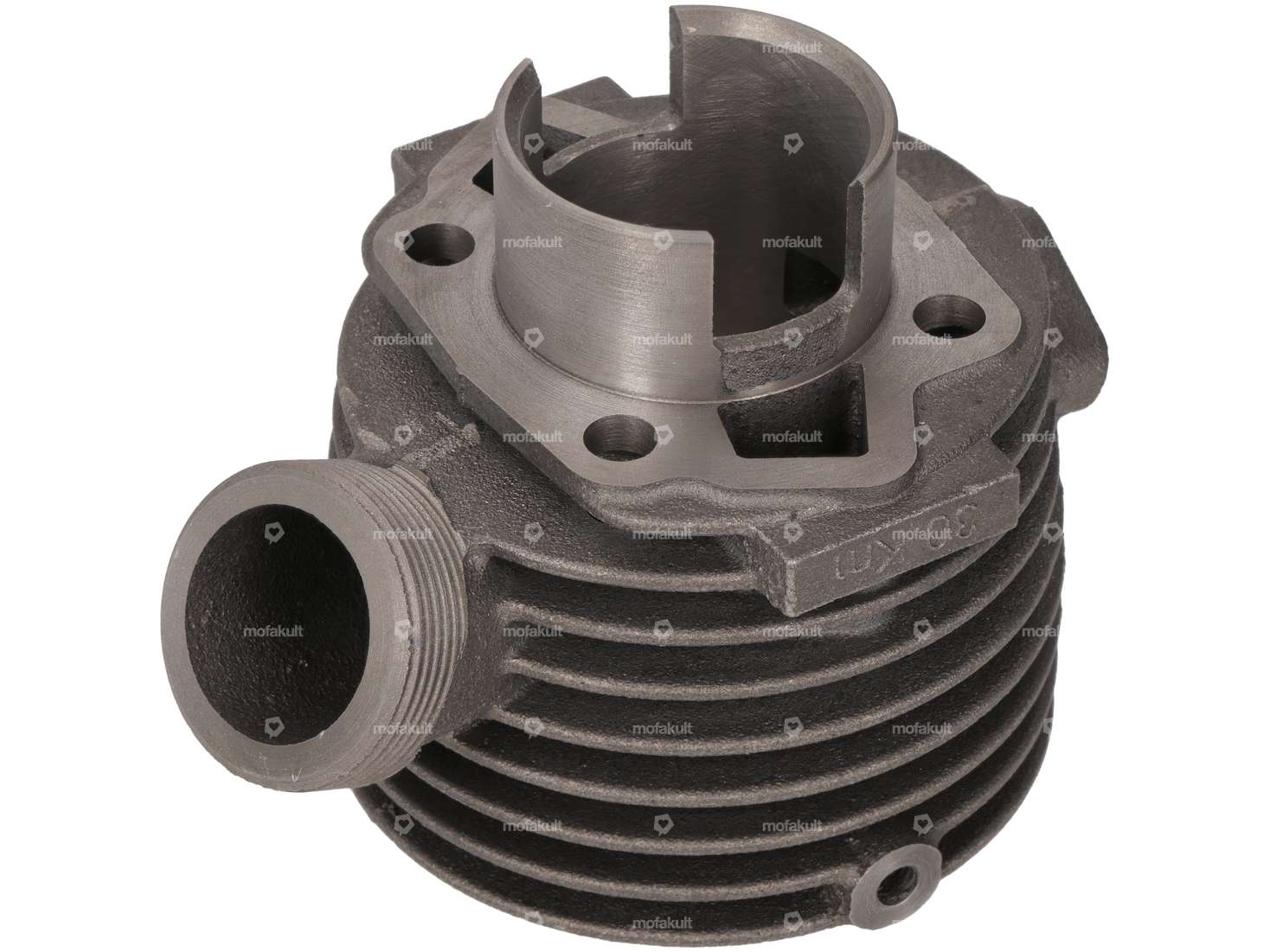

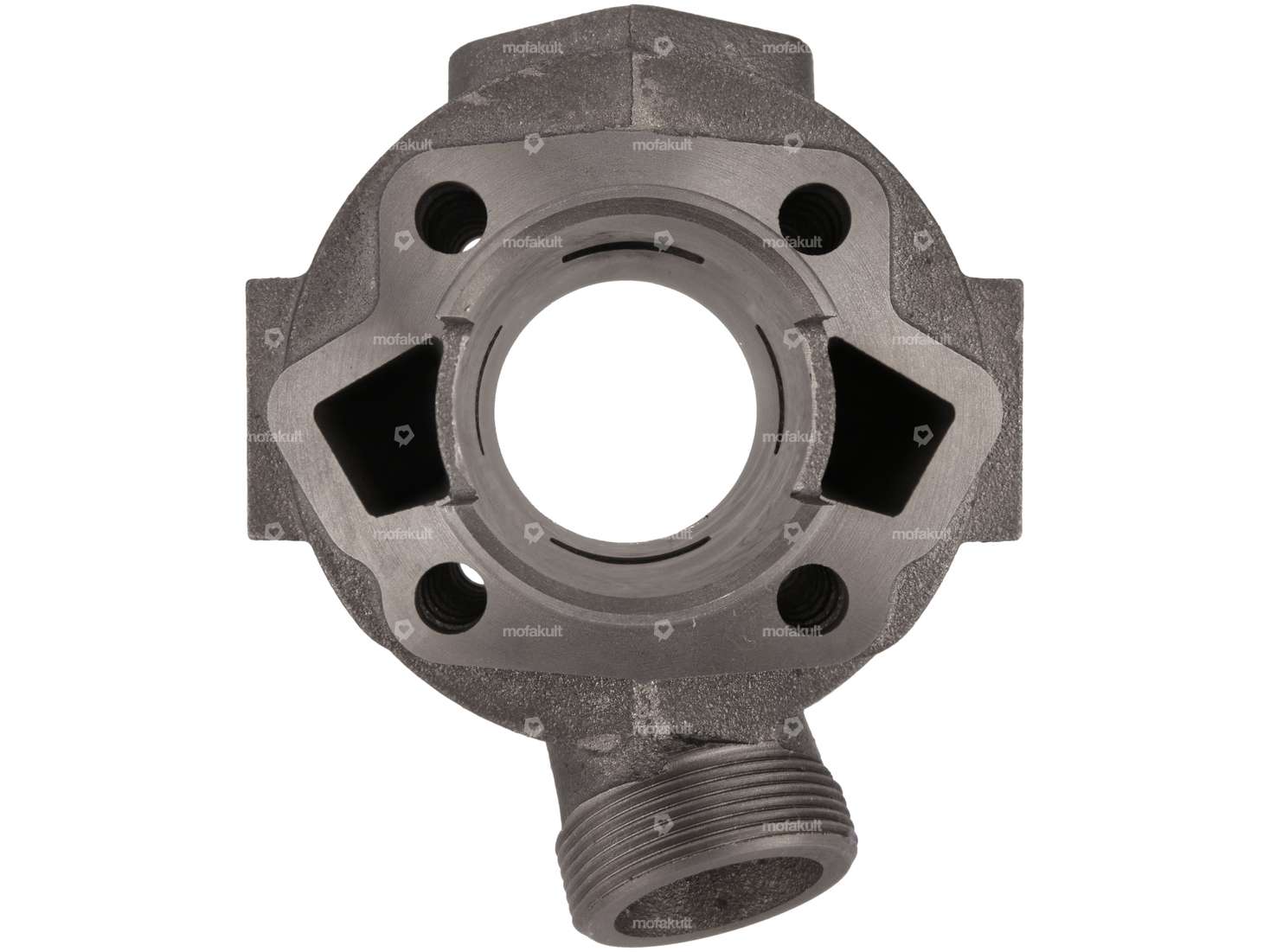

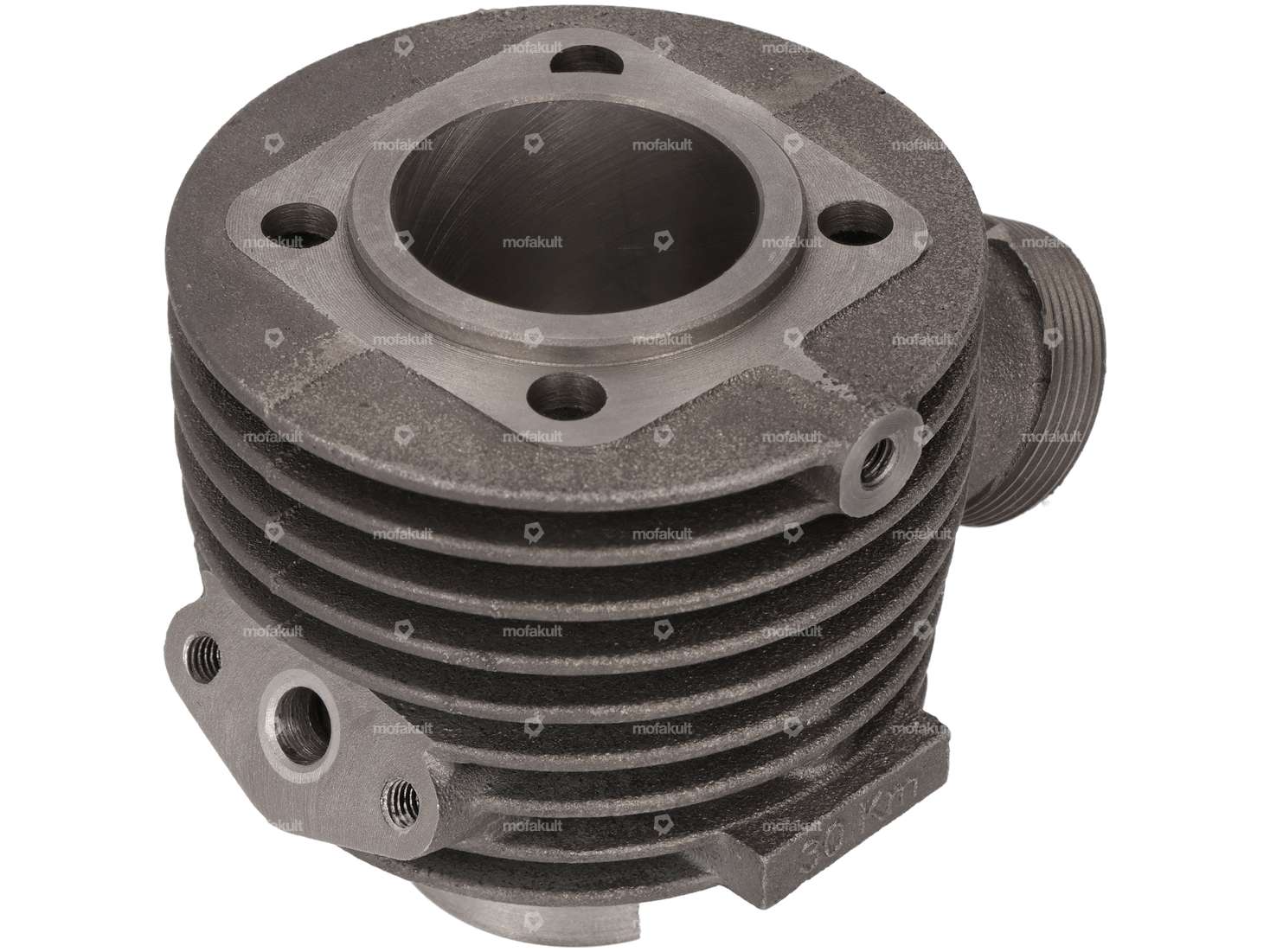

- Grey cast iron reproduction cylinder with 38 mm bore
- sealed inlet (as original)
- moulded "30 Km" lettering (as original)
You can find suitable add-on parts in the accessories section.
Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 32 mm · Ø outlet inside: 28 mm · Area of application: Standard, Tuning
Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Nominal diameter: 38 mm · Hole spacing inlet: 32 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Standard
Manufacturer: swiing® revival parts · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 78 g
| Nominal diameter | 38 mm |
| Manufacturer | swiing |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Number of fixing points | 4 pcs |
| Camouflaged | Yes |
| Area of application | Standard |
| Cilo | 502 / 502t |
