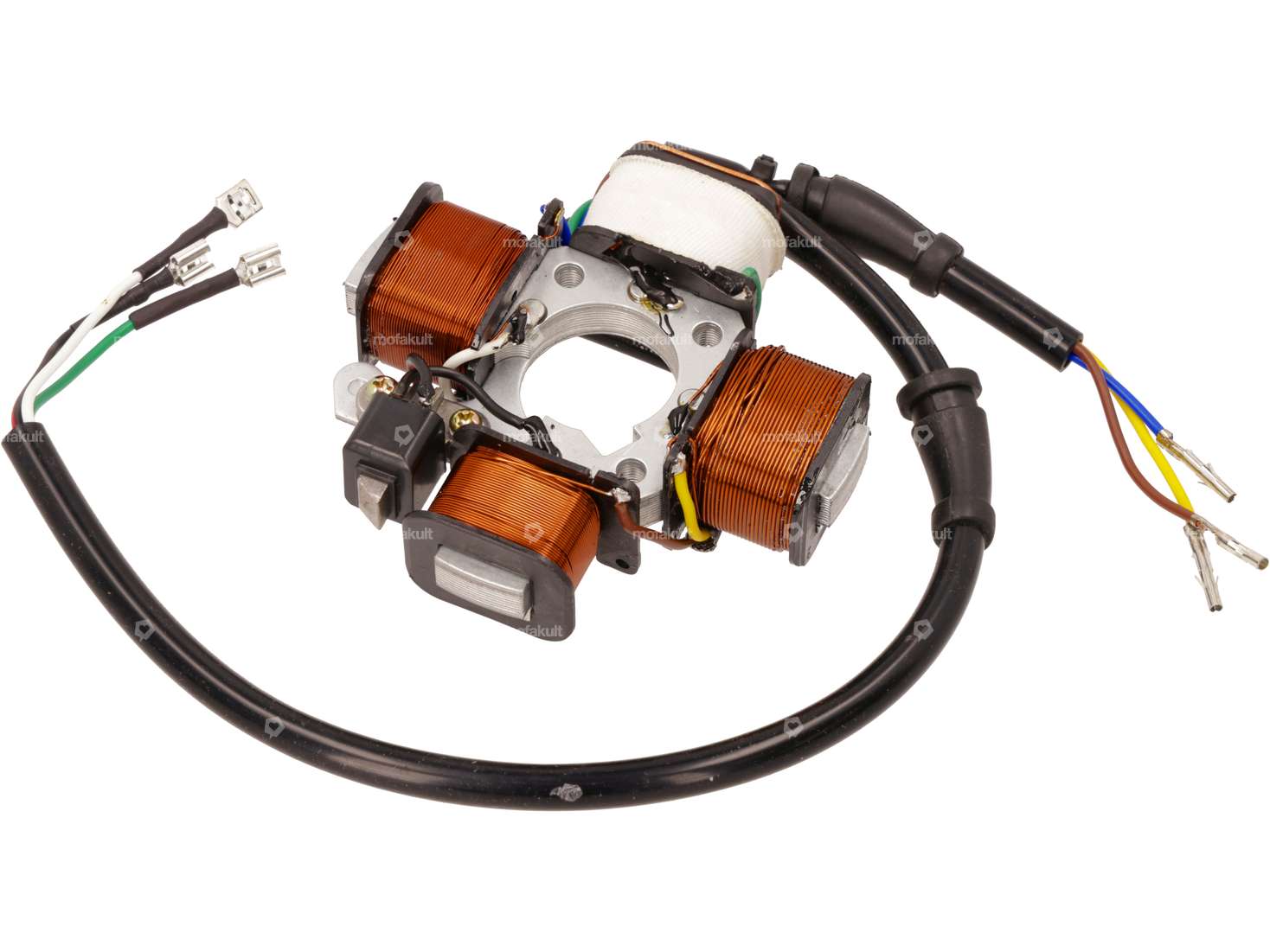

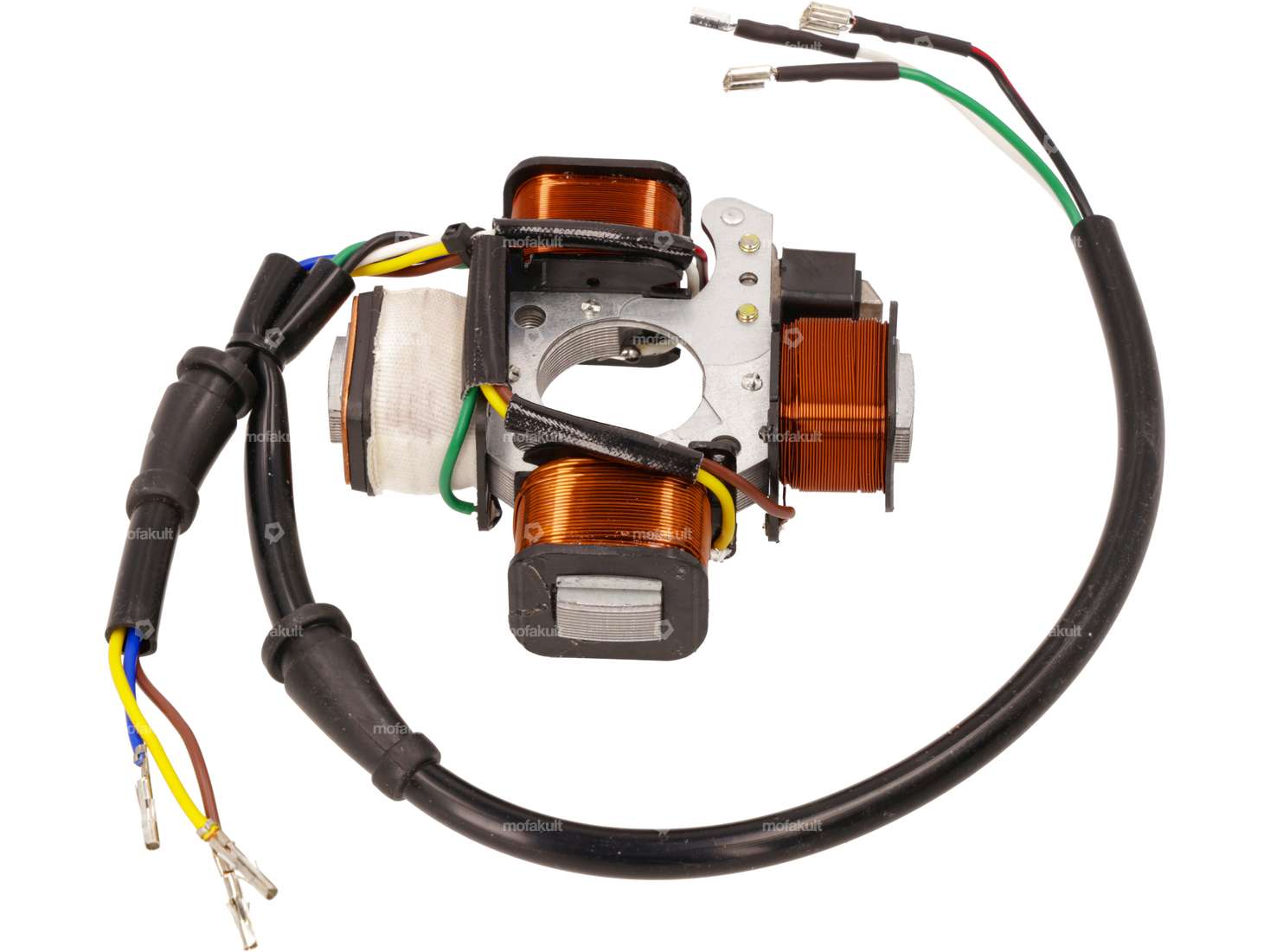

Stator for the electronic ignition on your Piaggio Ciao, Si, Bravo and Boxer mopeds
The armature plate will not knock anyone off their saddle in terms of quality, but has been tested by us and works as it should.
Technical data:
- Voltage: 12 volts
- Power: 90 watts
- Yellow output: light
- Brown output: brake light (if present)
- Blue output: indicators (if present)
Advantages of the CDI ignition:possibility to connect several consumers
Note: This ignition only fits on housings that are designed for electronic ignition. In addition to some original Piaggio housings, this also includes the Polini Speed Engine and the Malossi racing housing.
You need 12V bulbs for ELO ignitions and must also install a voltage regulator to prevent the bulbs from burning out.
You can find a voltage regulator, the matching flywheel and other parts for your electric ignition in the accessories section.
Original Piaggio spare part number: 219965
Good-quality reproduction product from the Asian market.
Details
| Manufacturer | Quenching |
| Number of cables | 6 pcs |
| Ø inside | 29.5 mm |
| Ø outside | 105 mm |
| Tension | 12 V |
| Performance | 90 W |
| Number of fixing points | 3 pcs |
| Cable length | 100 mm |
| Hole spacing | 34.5 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
