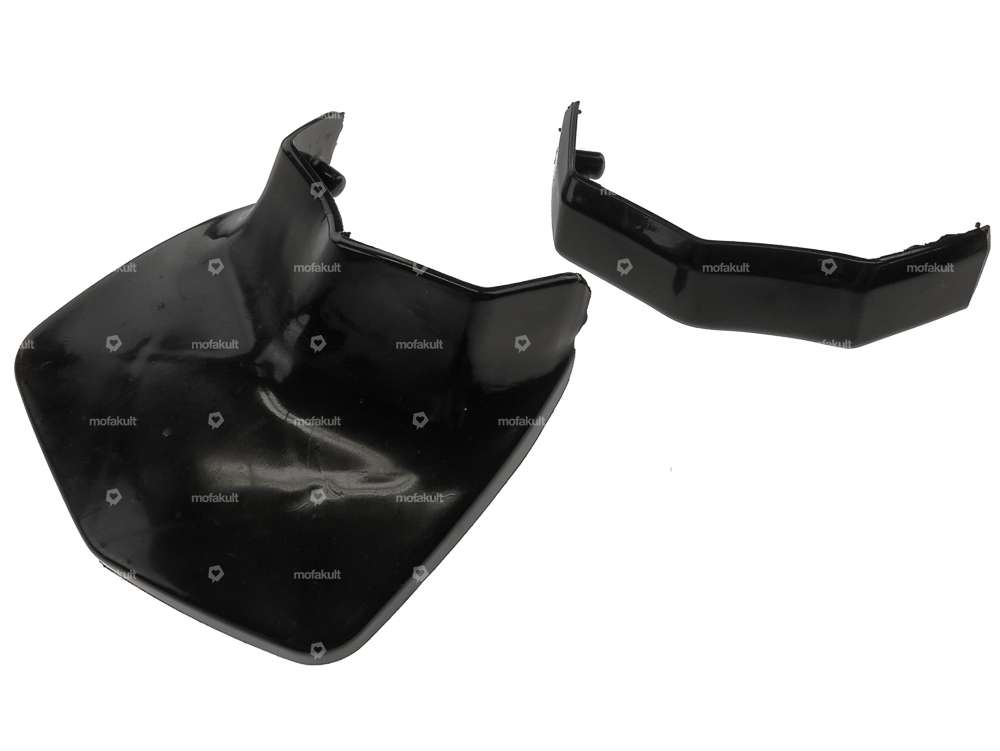

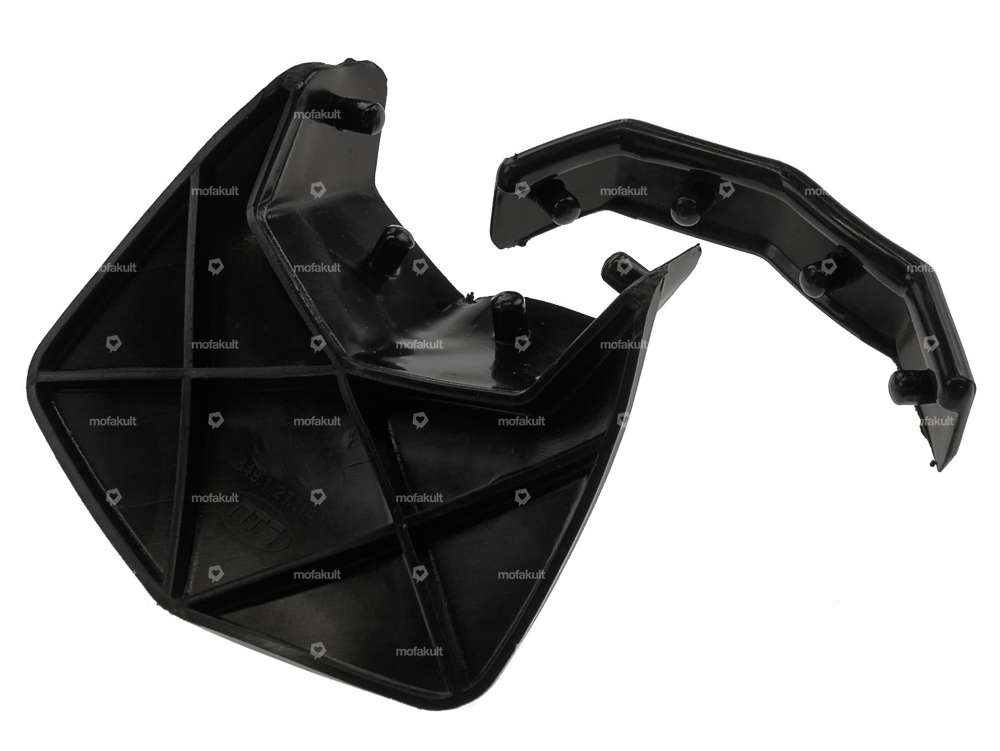

Mudflap for front mudguard suitable for Puch Maxi S and N mopeds / mopeds.
Distance between center mounting studs: 30 mm
Distance between side mounting studs and center studs: 25 mm
Ø studs: 5.7 mm
Total length of large rubber flaps: 100 mm
Total width of large rubber flaps: 100 mm
Note: The two rubber strips only fit on the original square mudguard with a width of 75 mm and not on the 80 mm wide round or square chrome steel mudguards.
| Material | Rubber |
| Color | black |
| Total length | 18 mm, 100 mm |
| Width | 100 mm |
| Puch |
