Description

Spare parts catalog for the Puch X30 models ST, L and LA (Velux).

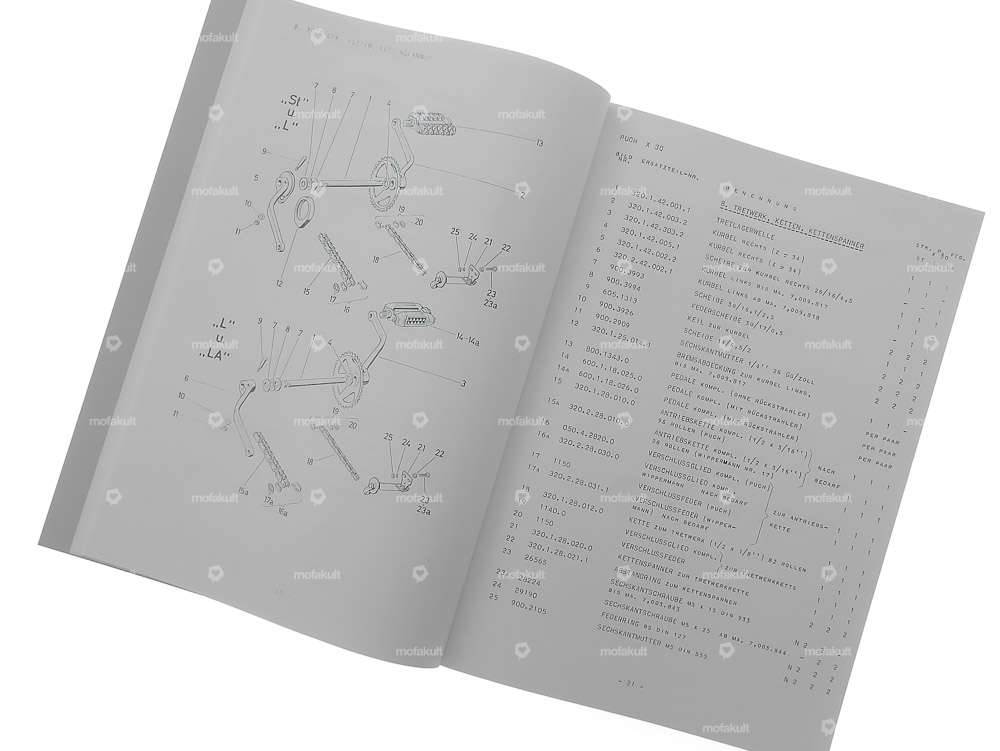

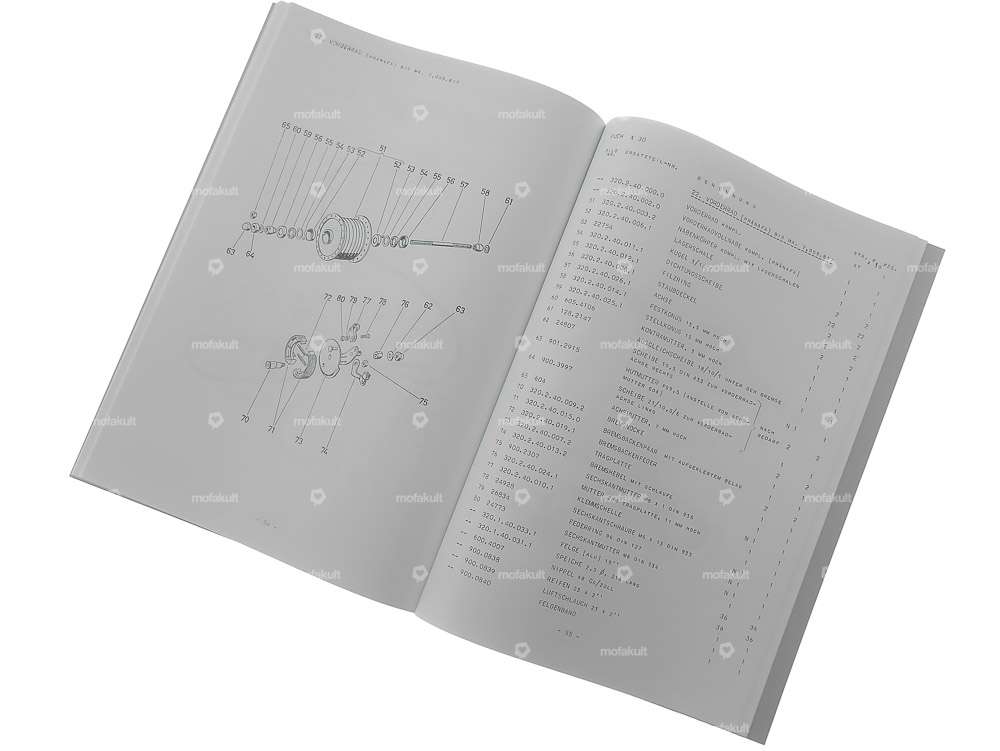

The complete moped was recorded in exploded drawings. Each individual component is provided with part number, spare part number and assembly location.

Super Swiss catalog from 1964 with 70 interesting pages.

Details

Number of pages	70 pcs
Language	German
Material	Paper

Suitable for the following models

Puch

Z50 (X30 Velux)
