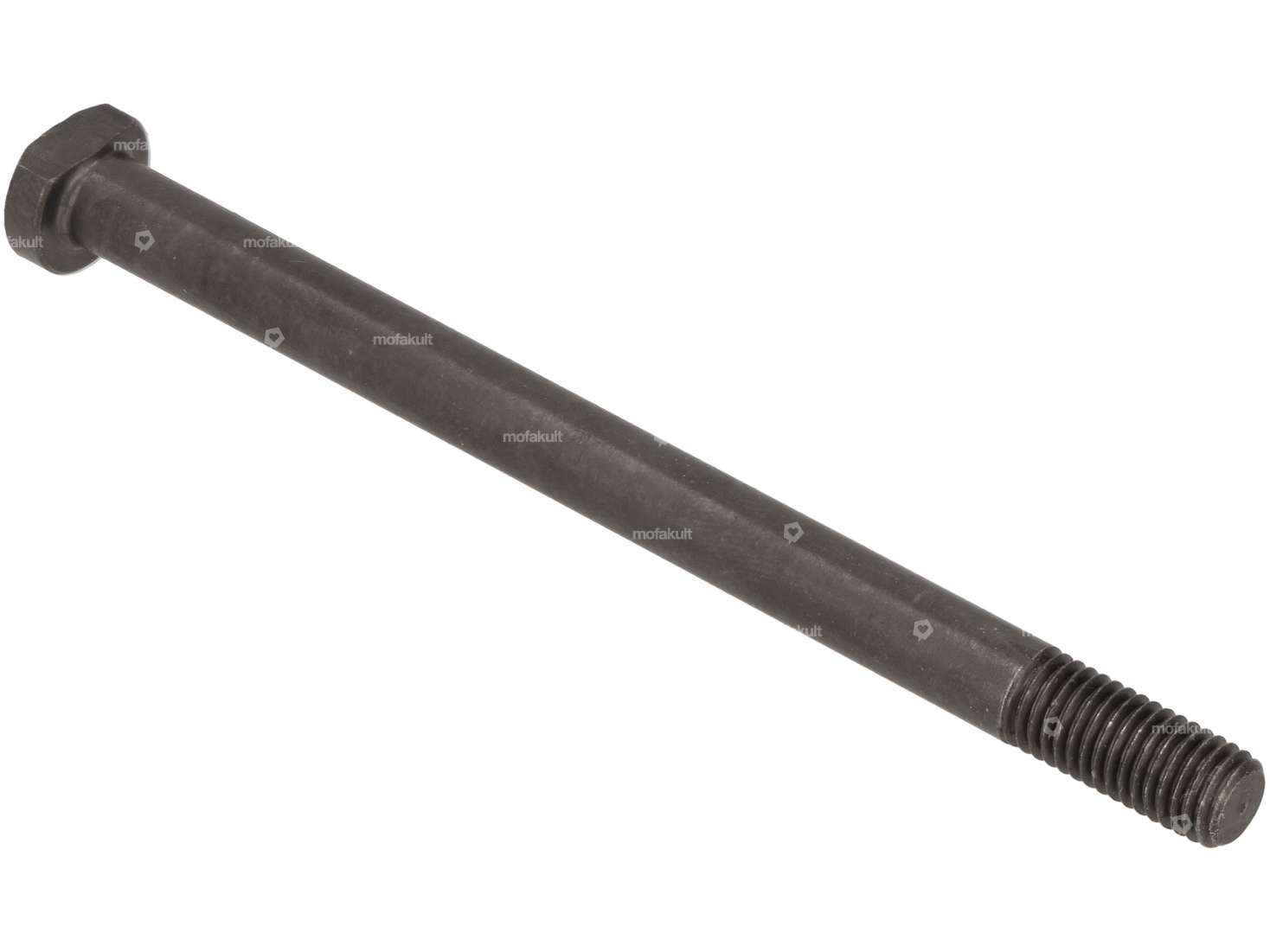

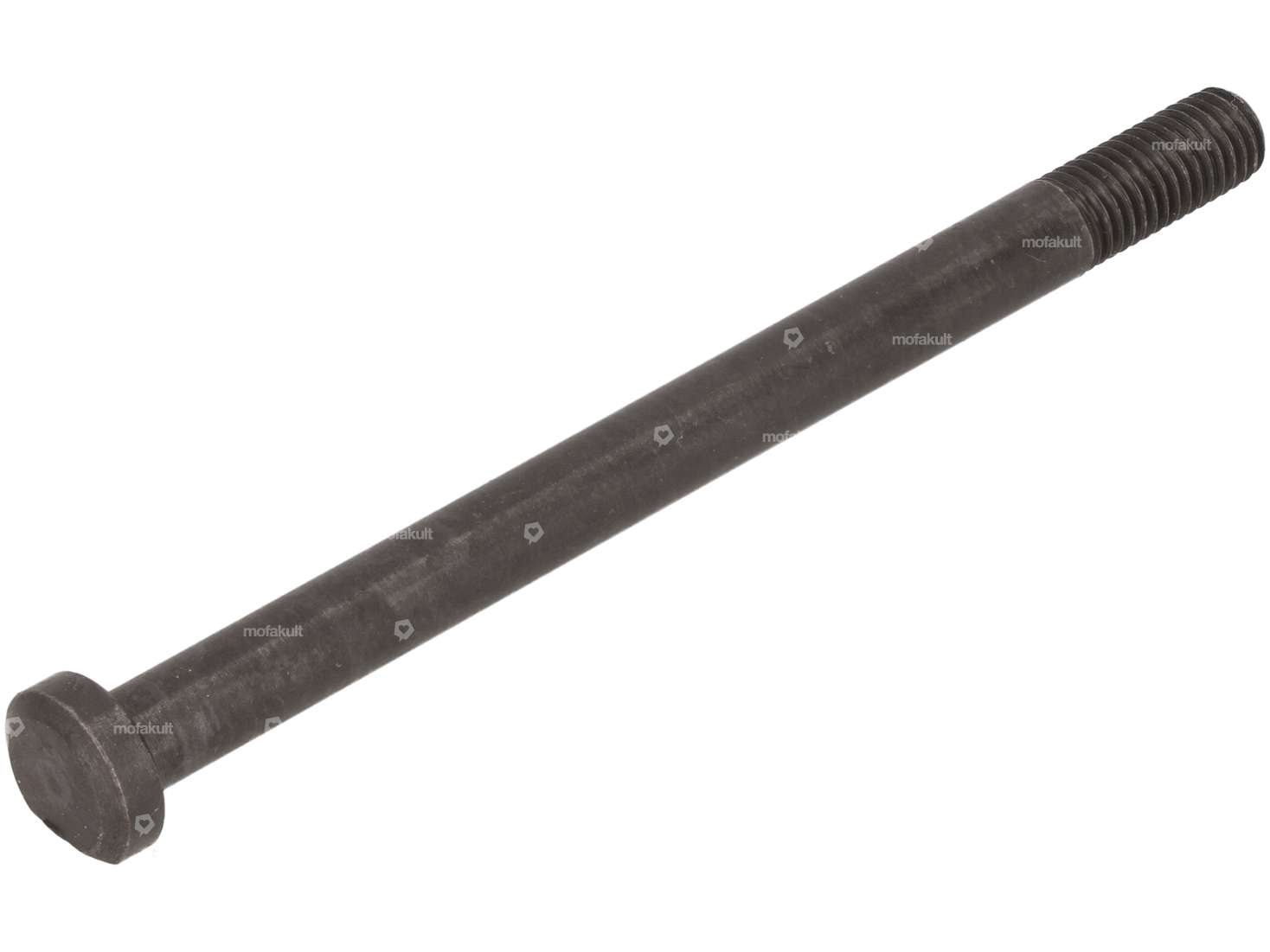

Screw M7 x 95 mm for the engine housing, suitable for your Vespa Largeframe scooter. You can find a list of the exact models below in the drop-down menu under «suitable for the following models».
This housing bolt or tie rod is used for the classic fastening of the two engine housings of your scooter. In contrast to stud bolts, the housing bolt is not screwed into the engine housing, but is guided through the through-hole of both housing parts and then bolted on one side. The opposite side has a head without a key attachment and is fitted with an anti-rotation lock. This allows the engine housing to be properly tensioned, as is the case with many classic Vespa engines.
| Material | Steel |
| Total length | 99 mm |
| Manufacturer | RMS |
| Surface | burnished |
| Ø shaft | 6.9 mm |
| Nominal diameter (thread) | 7 mm |
| Ø External head | 12 mm |
| Thread type | M7x1 (standard thread) |
| Thread length | 15.5 mm |
| Shank | Yes |
| Shank length | 78 mm |
| Piaggio OEM number | 239150, 014565 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , Cosa 125 · VNR1T · I 1988 - 1992 II 1992 - 1998 , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 150 · VLR1T · I 1988 - 1991 II 1992 - 1995 , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
