For: ILO / JLO

20628

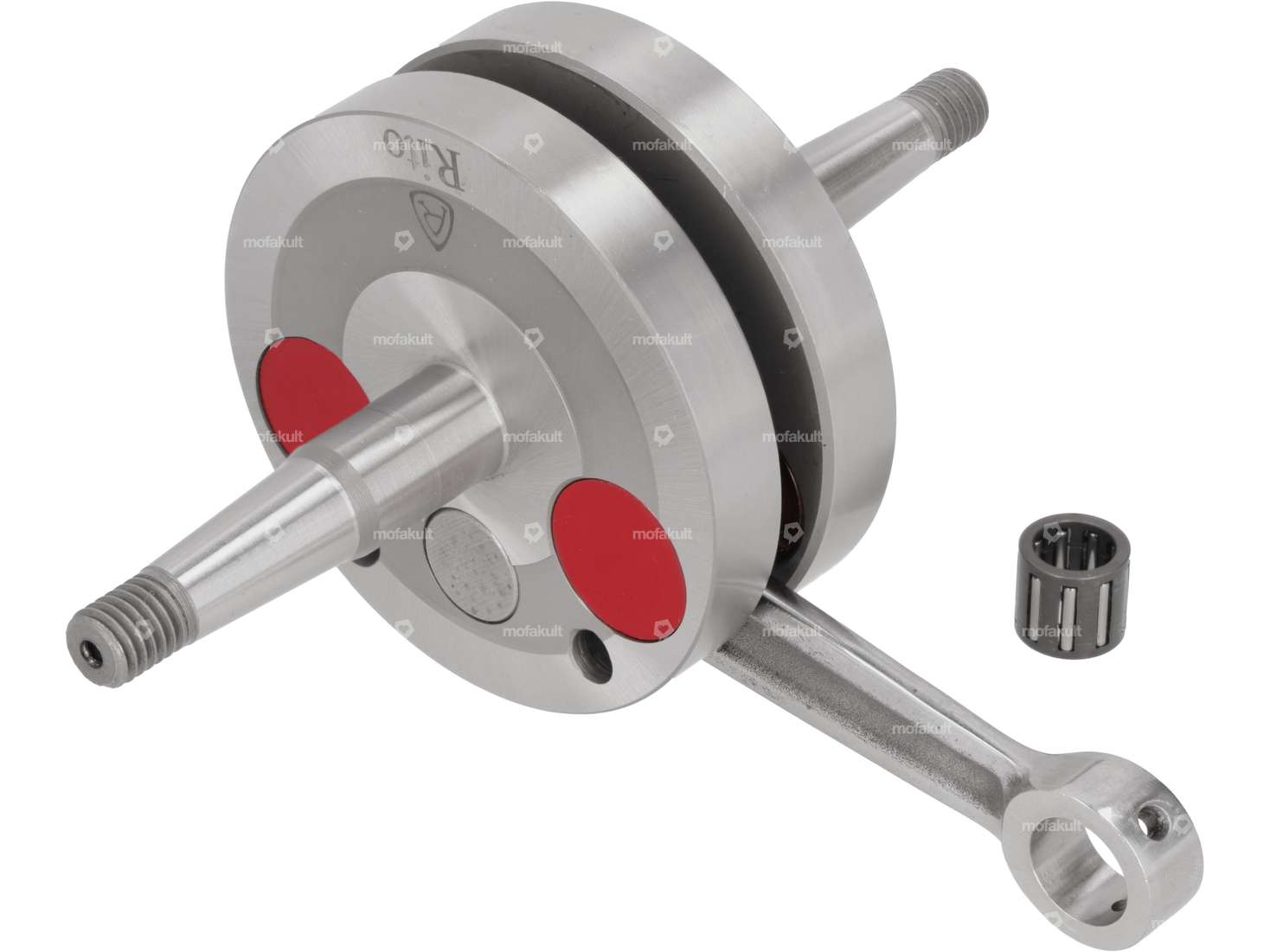

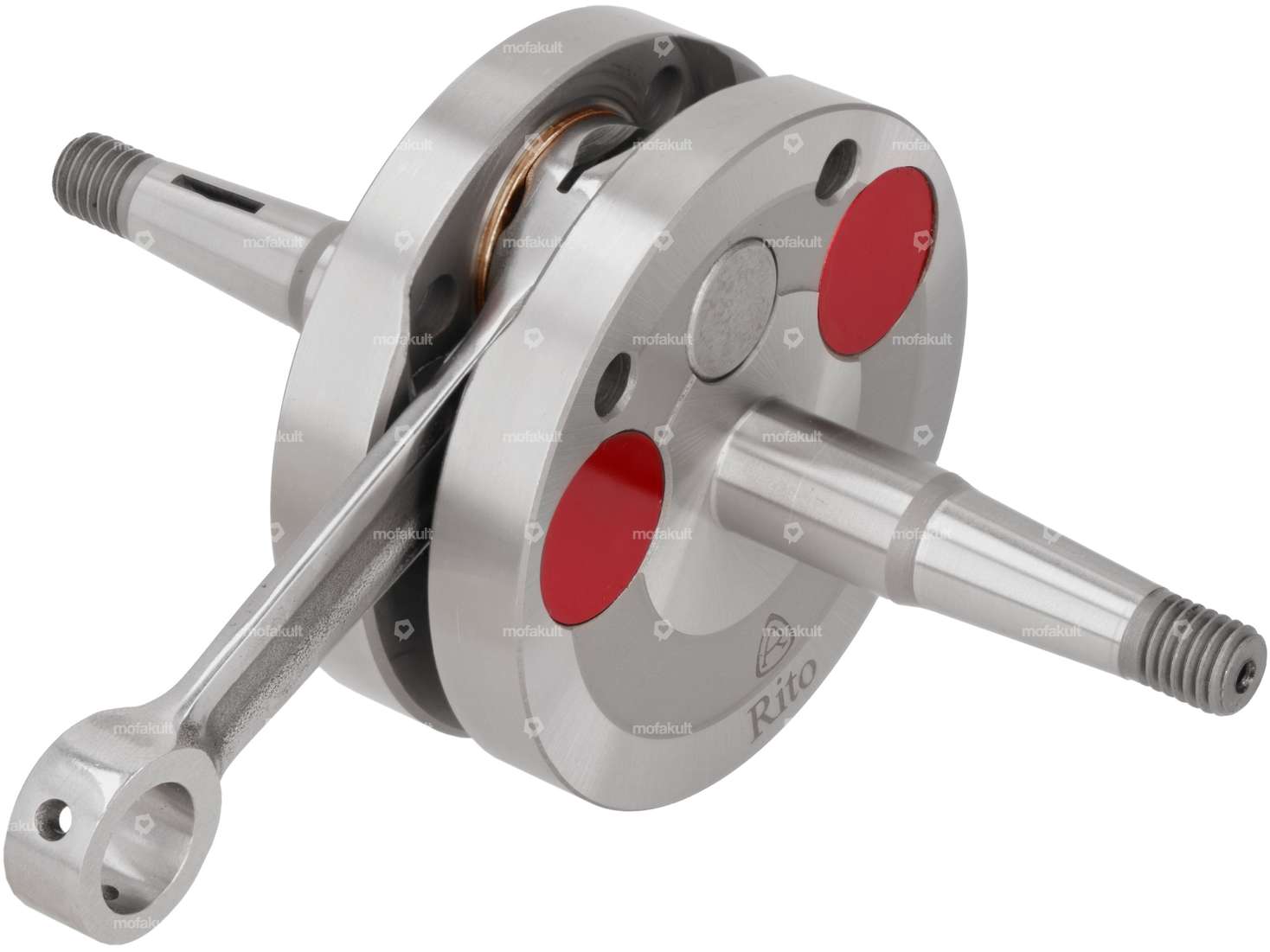

Rito crankshaft | ILO

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 246.70

Incl. 25% VAT.

Description

Crankshaft from the Portuguese quality manufacturer "Rito" suitable for ILO / JLO G50 / V50 mopeds.

Total length of clutch-side cheek pin: 61.5 mm
Length of end-side cheek pin: 61.5 mm
Width of cheeks (from bearing support to bearing support): 33.8 mm

Für 10 mm piston pin.

The needle bearing is included in the scope of delivery.

Quality product from the Portuguese manufacturer Rito.

ManufacturerRito
Cheek typeFull cheeks
Area of applicationStandard
Total length of crankpin on clutch side61.5 mm
Total length crankpin ignition side61.5 mm
Ø piston pin (B)10 mm
Wide crank webs33.8 mm
ILO / JLO
