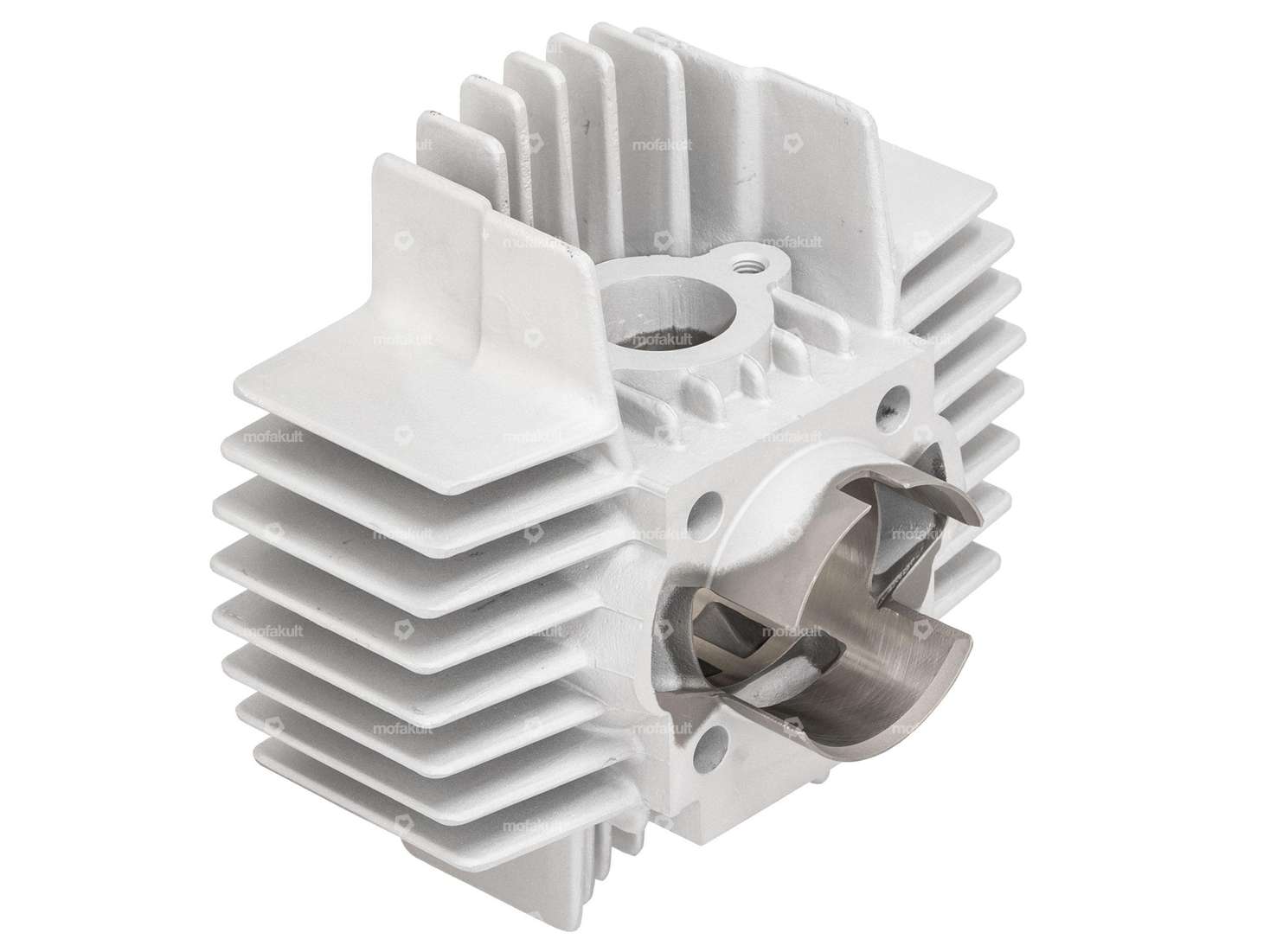

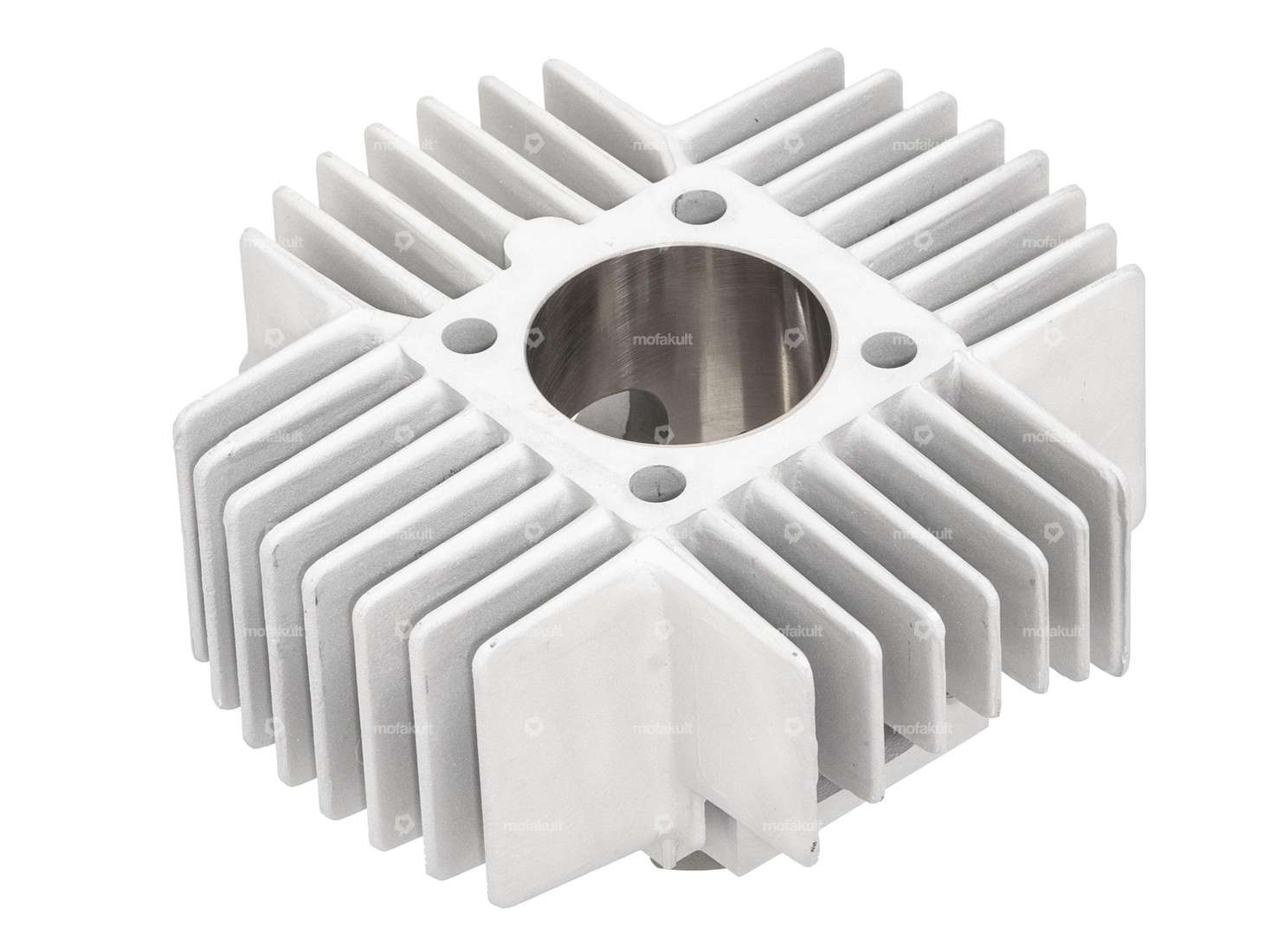

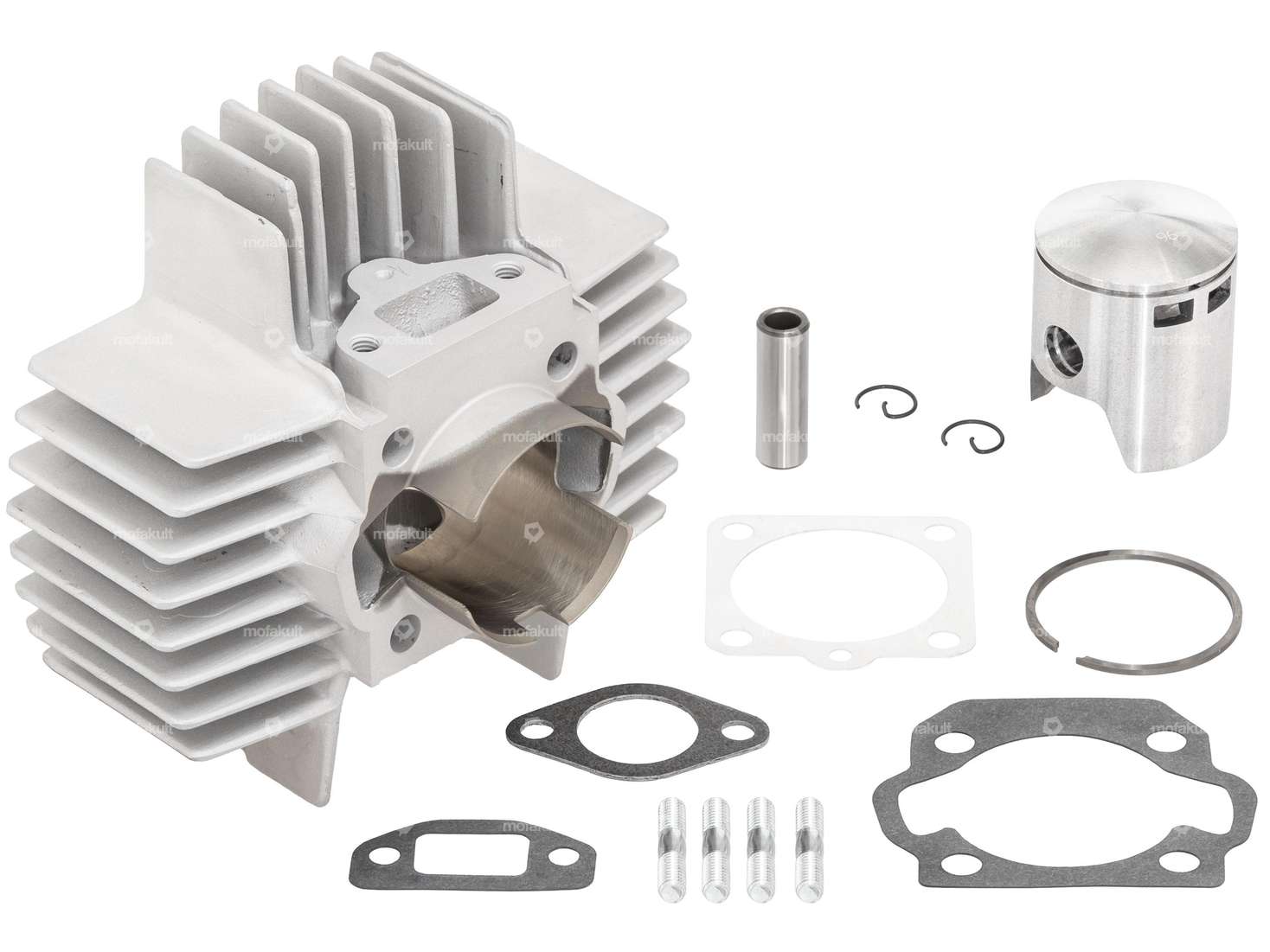

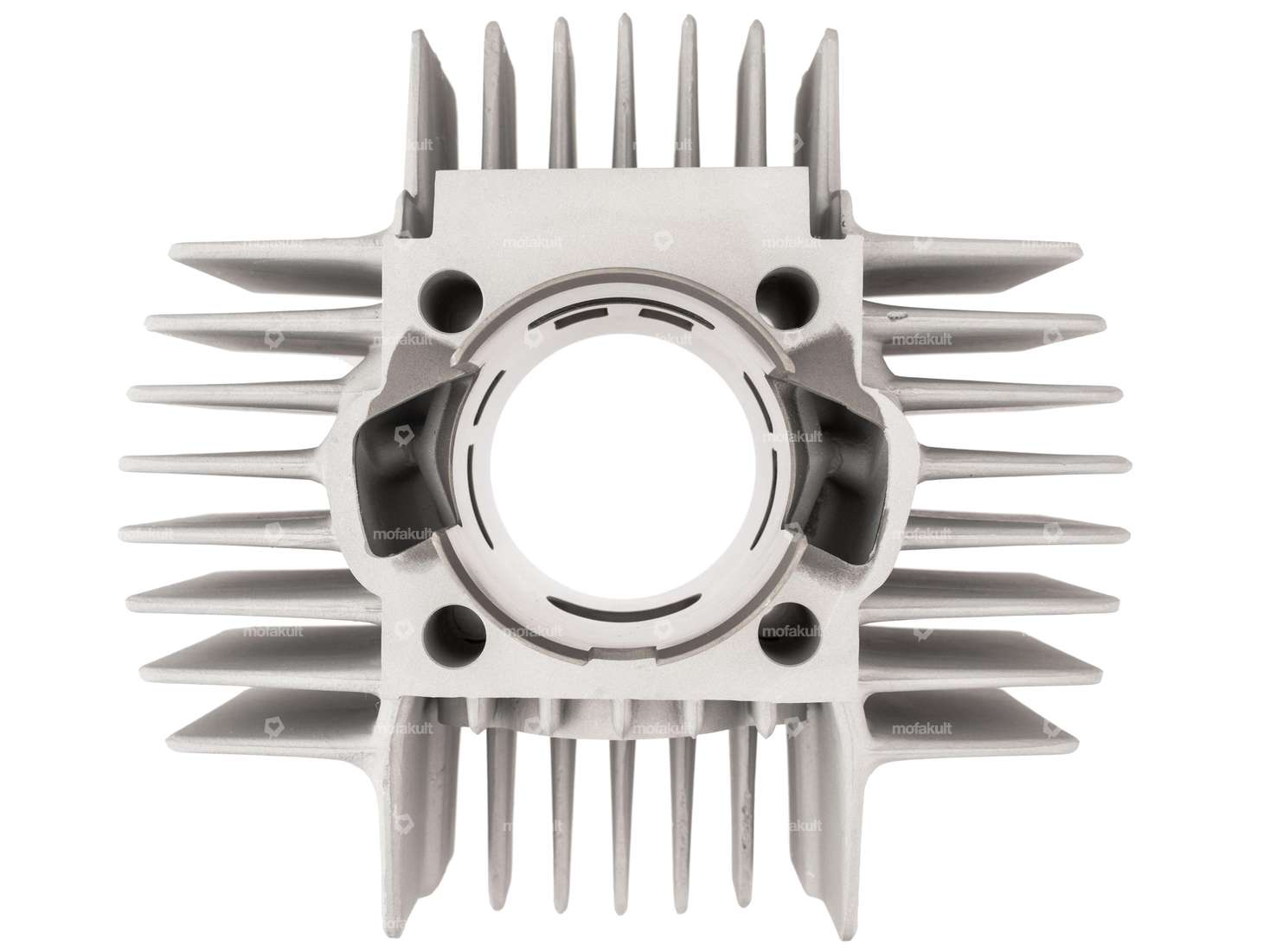

Power1 45 mm cylinder kit tuning | Puch

GPO 45 mm cylinder head tuning new version | Puch (AT)

Material: Aluminum · Total length: 135 mm · Height: 55 mm · Number of fixing points: 4 pcs · Manufacturer: GPO · Ø cylinder: 45 mm · Width: 140 mm · Area of application: Tuning · Decompressor: No

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO piston 45 mm 6-channel tuning | Puch

Nominal diameter: 45 mm · Material: Aluminum · Manufacturer: GPO · Ø outside piston (A): 44.97 mm · Compression height (C): 21.6 mm · Curvature (D): 5 mm · Total piston height (E): 53.8 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 97 g

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Ø outside: 15 mm · Width: 14.2 mm · Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

GPO gasket set cylinder 45 mm Puch

Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Material: Sealing carton · Ø cylinder: 45 mm · Number of components: 4 pcs · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

GPO 45 mm cylinder head tuning new version | Puch (AT)

Material: Aluminum · Total length: 135 mm · Height: 55 mm · Number of fixing points: 4 pcs · Manufacturer: GPO · Ø cylinder: 45 mm · Width: 140 mm · Area of application: Tuning · Decompressor: No

GPO 45 mm cylinder kit 70 ccm | Puch

Nominal diameter: 45 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 24.6 mm · Inlet window: 21.8 x 14.6 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning

swiing® revival engine revision set (new model) | Puch E50

Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Tuning

Dell'Orto 19 mm PHBG CS carburetor hand choke

Nominal diameter: 19 mm · Material: Aluminum · Color: black · Total length: 82 mm · Height: 124 mm · Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: PHBG CS · Width: 70 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Camouflaged: No · Size of secondary nozzle: 45

OMG fuel filter metal 6 mm (removable)

Material: Glass · Material: Metal · Color: gray · Color: transparent · Color: white · Total length: 40 mm · Total length: 63 mm · Ø inside: 3.45 mm · Manufacturer: OMG · Ø outside: 22 mm · Filter type: Plastic net · demountable: Yes · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Thread type: MF12x1 (fine pitch thread) · Spare tube shape: curved · Reserve level: 70 mm

Seat tube Ø 30 mm | Puch Maxi

Material: Steel · Color: Chrome · Total length: 245 mm · Ø outside: 30 mm · Ø Saddle tube holder: 22 mm · Surface: chrome-plated · Clamping diameter: 22 mm · Length of holder: 45 mm

Petrol hose Ø 5/8 x 300 blue

Material: Plastic · Color: blue · Total length: 300 mm · Ø inside: 5 mm · Ø outside: 8 mm

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Ø outside: 145 mm · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Recording type: Interlocking · Number of teeth: 94 pcs · Ø axle: 17 mm

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 968 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
