Polini crankshaft "Racing" 57 mm | Vespa PX200, P200, Rally 200, Cosa 200

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 306.30

Incl. 25% VAT.

Description

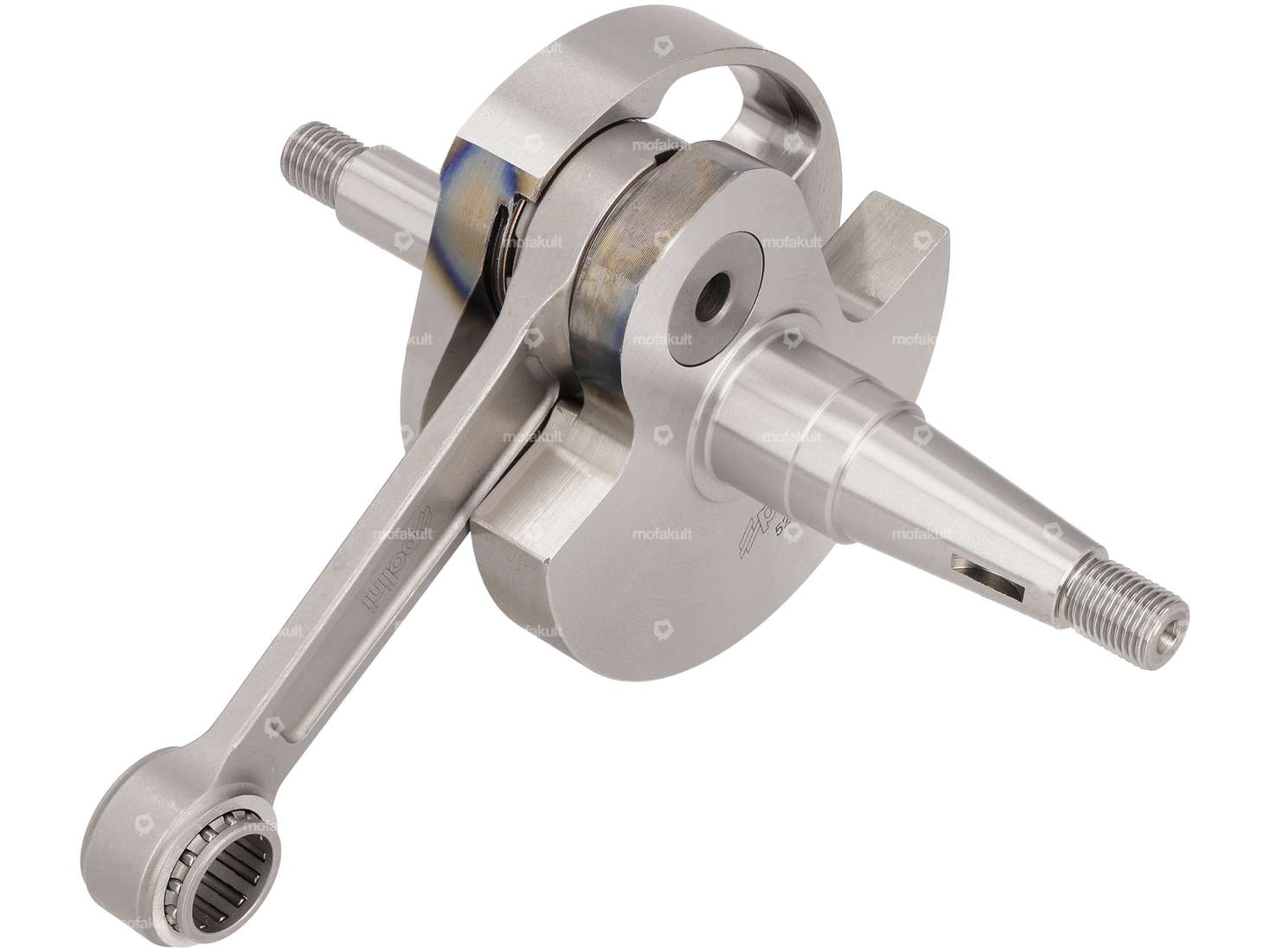

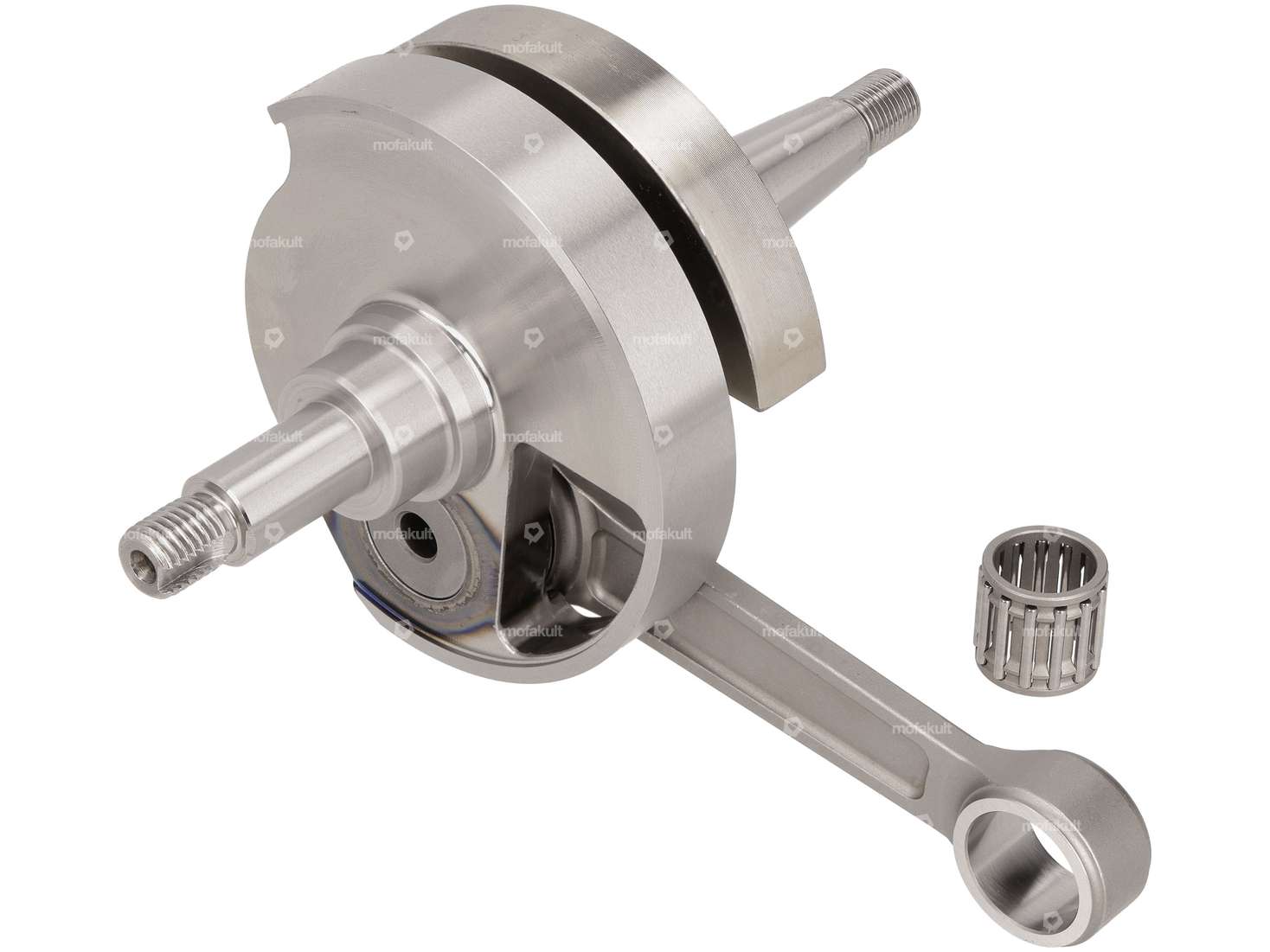

The Polini crankshaft «Racing» with 57 mm stroke is a racing crankshaft for the rotary valve engine, suitable for your Vespa PX 200, P 200, Rally 200 and Cosa 200.

The finely balanced tuning crankshaft impresses with a stable connecting rod and a flow-optimized steering cheek. The extended intake control angle means that the timing cross-section at the rotary valve can be increased - ideal if you want to tune your large-frame engine cleanly for bandwidth and speed. With 110 mm connecting rods, it is ideal as a robust basis for new builds or if you want to give your engine a stable upgrade. The timing is 138° / 5° after TDC.

ManufacturerPolini
MaterialSteel
Area of applicationTuning
Cheek typestandard
Crankshaft stroke57 mm
Connecting rod length center-center110 mm
Total length of crankpin on clutch side58.8 mm
Total length crankpin ignition side77.7 mm
Ø crank webs97.9 mm
Ø piston pin (B)16 mm
Ø Connecting rod eye20 mm
Ø Bearing seat (clutch side)25 mm
Ø Bearing seat (ignition side)25 mm
Thread typeMF12x1.5 (fine pitch thread), MF12x1.25 (fine pitch thread)
Thread length14.5 mm, 15.5 mm
Dimension needle bearing16x20x20
Wide crank webs39.1 mm
Control time according to O.T138 °, 5 °
Suzuki

Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998
