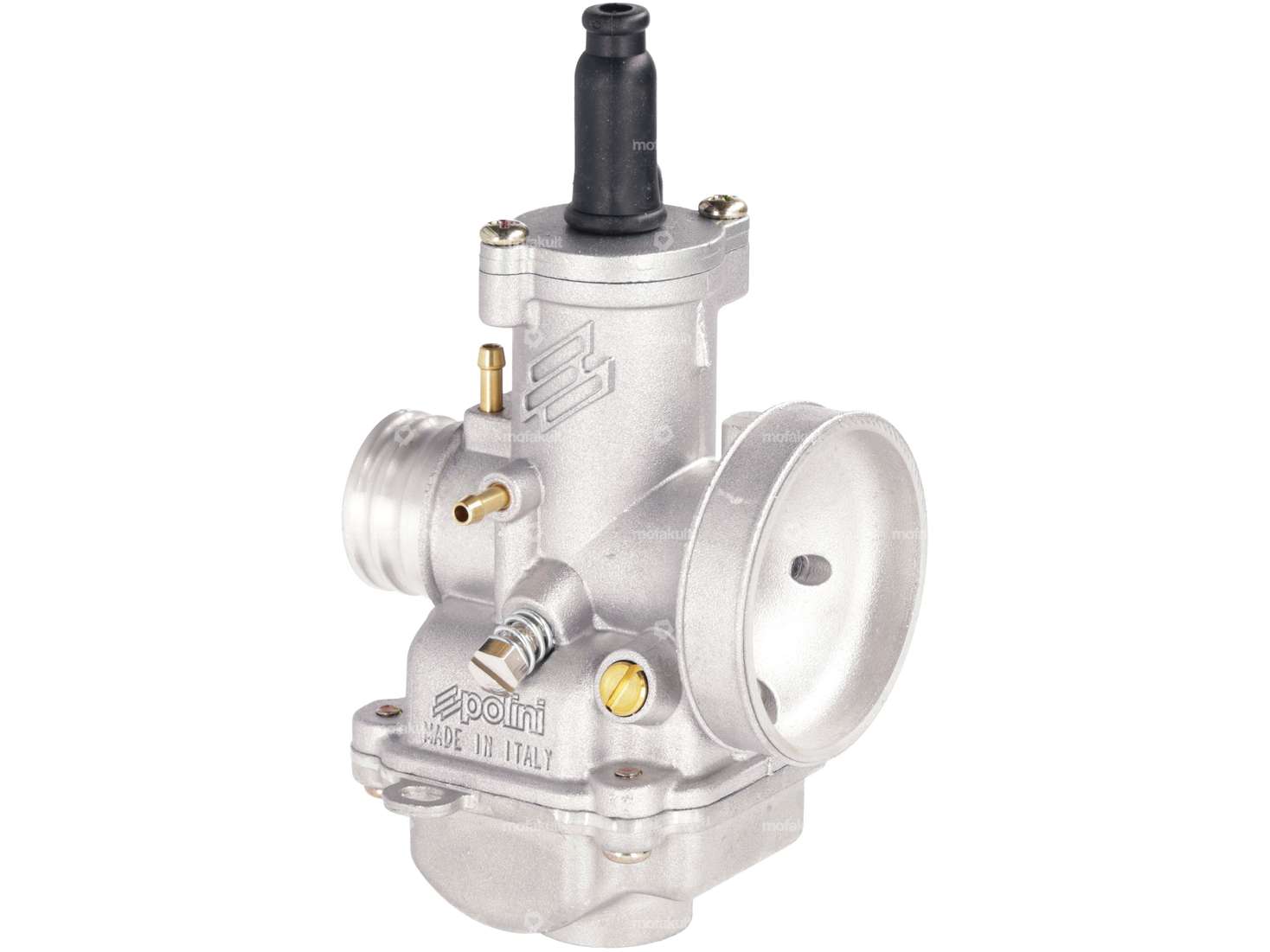

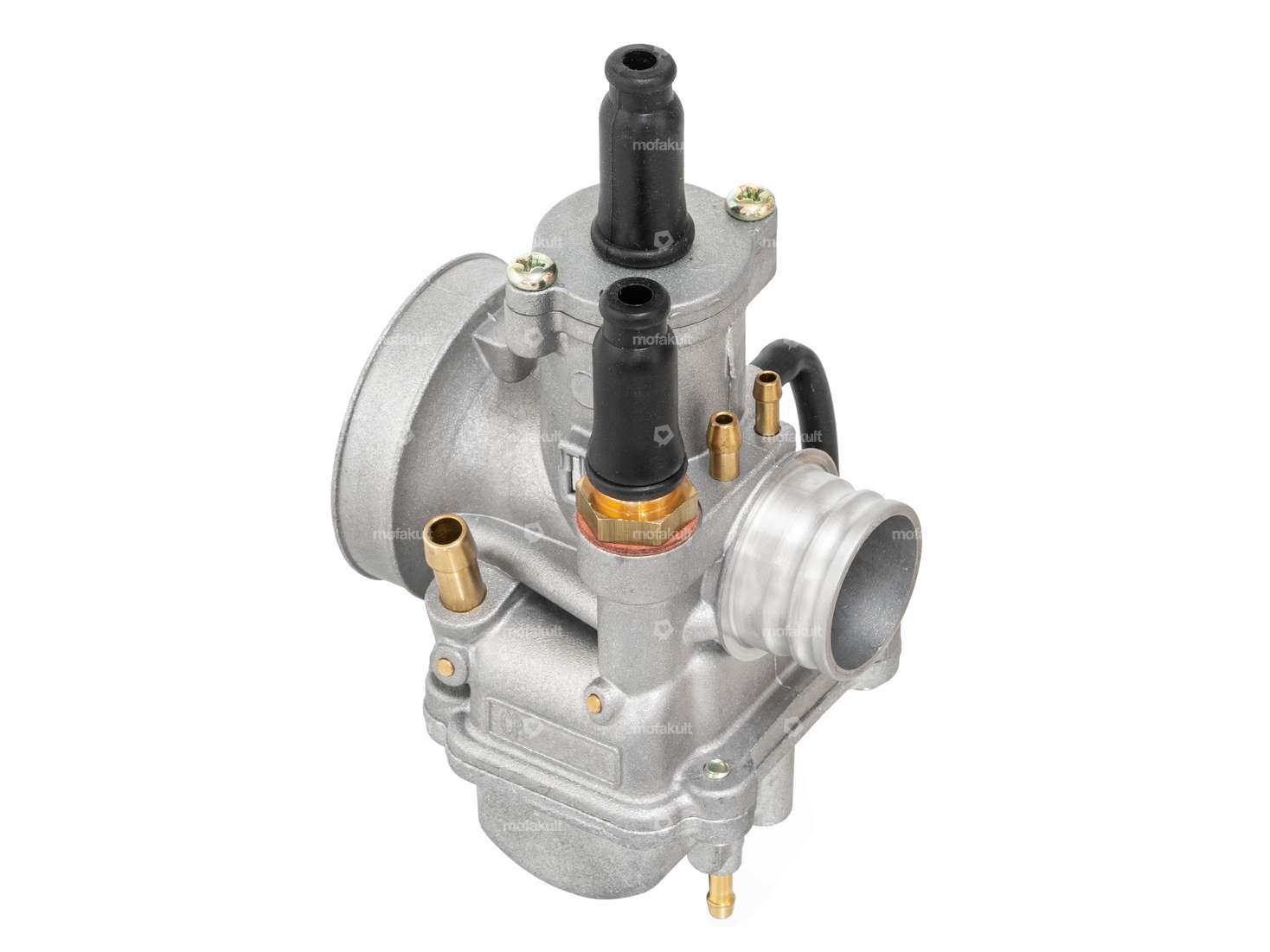

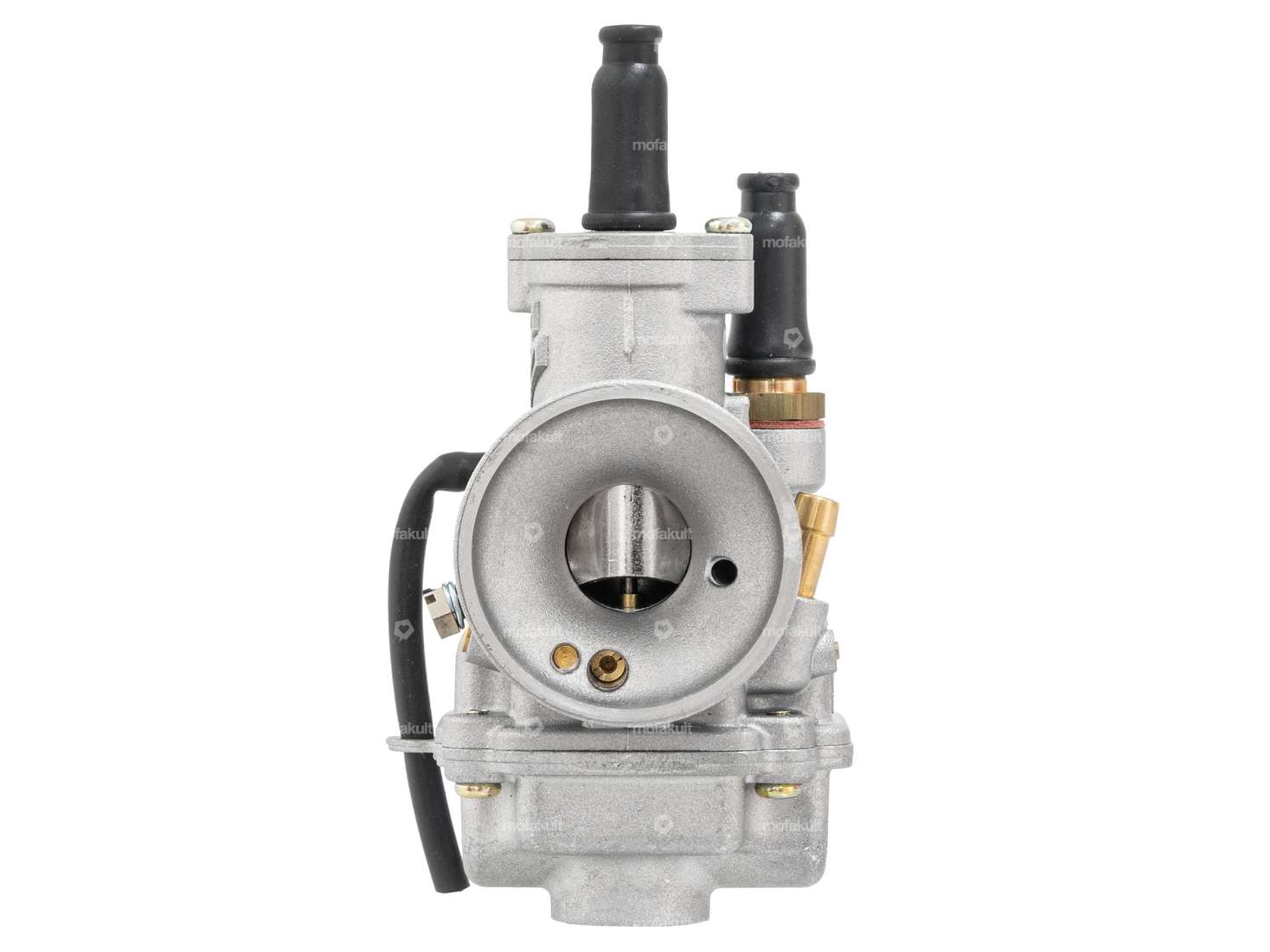

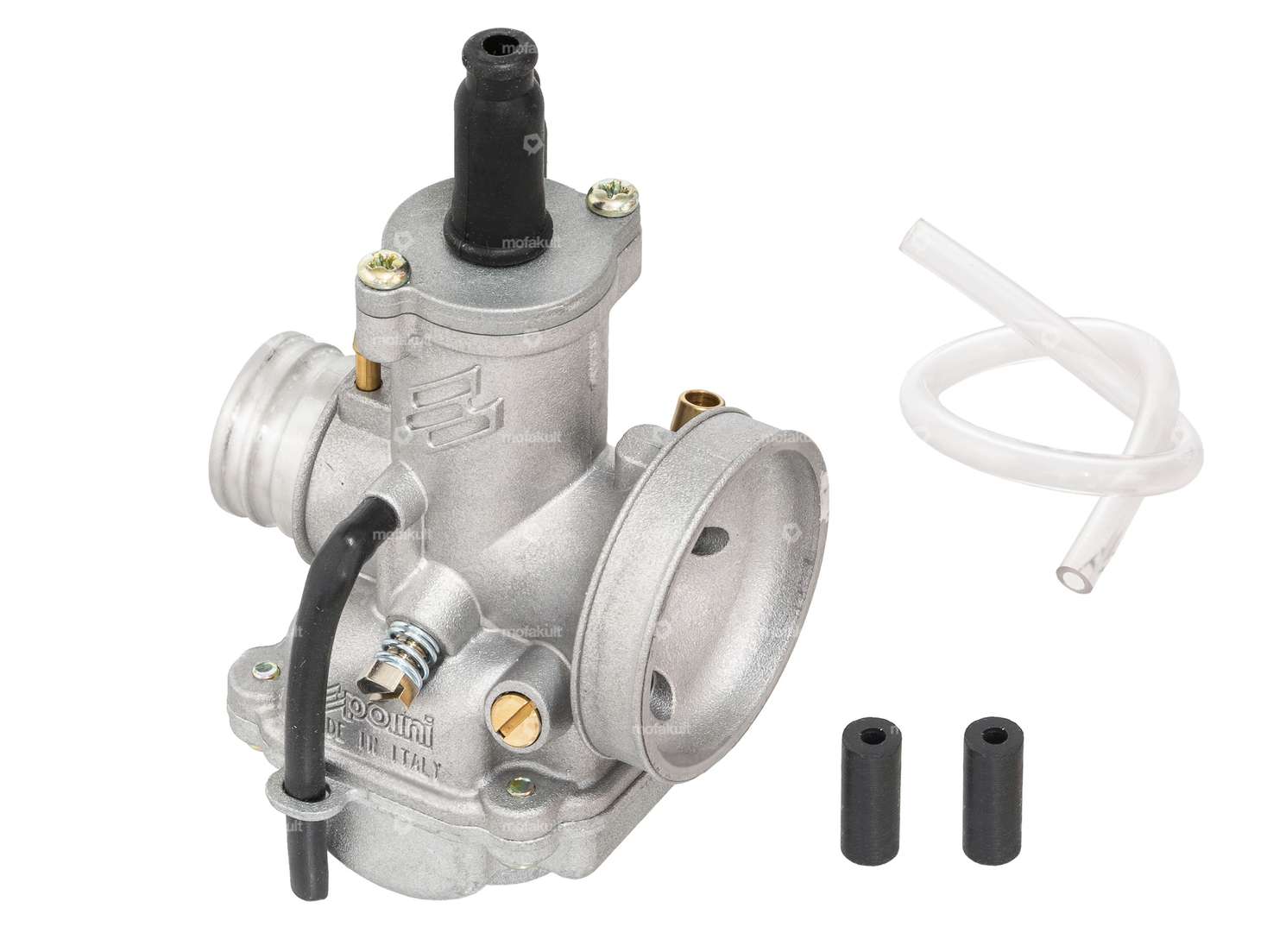

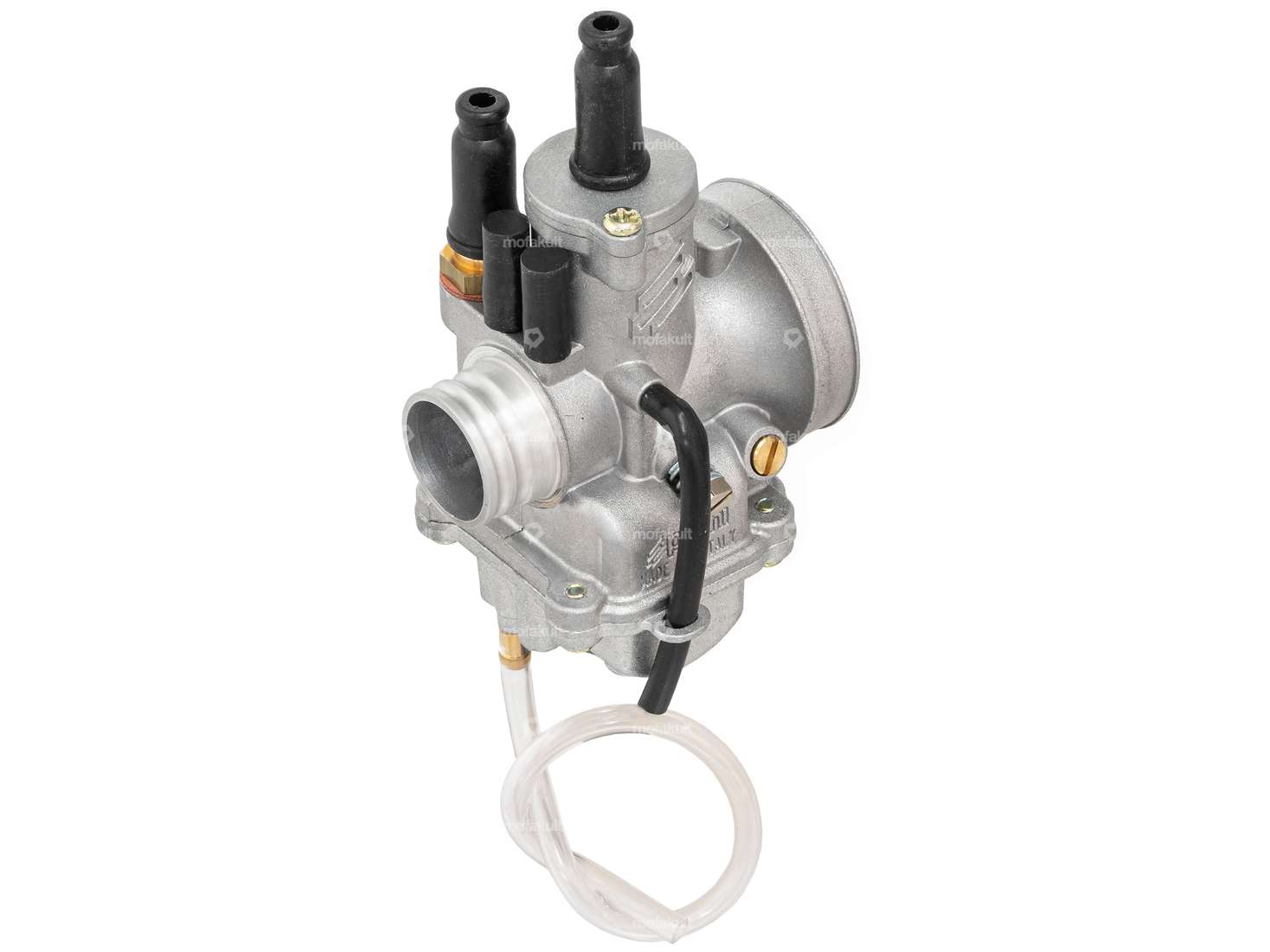

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify carburetor tuning and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
A rubber sleeve (item no. 15414) is used to attach the carburetor to the intake manifold.
Connection diameter of intake manifold: 25 mm
Connection diameter of air filter: 46 mm
Main diameter: 80
Side diameter: 38
Quality product from the Italian manufacturer Polini.
| Nominal diameter | 17.5 mm |
| Manufacturer | Polini |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Carburetor type | CP |
| Choke control | Cable choke |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 80 |
| Mounting type | Plug connection |
| Ø Air filter connection | 46 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Size of secondary nozzle | 38 |
Ratings
Moped fans also bought
Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR6 car valve · Wheel size: 17 "
EUR 18.20
Airsal intake manifold 46 / 47 mm cylinder | Puch
Ø inside: 19 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 75 mm · Mounting type: Screws · Height flange center hole: 65 mm · Ø External connection: 24 mm · Total length: 60 mm
EUR 48.80
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
EUR 48.80
Polini jet set (60 - 78) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74 · Nozzle size: 76 · Nozzle size: 78
EUR 48.80
Polini auxiliary jet set 32 - 40 | CP carburetor
Material: Brass · Manufacturer: Polini · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 5 pcs · Nozzle type: Secondary nozzle · Drive: Slot · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40
EUR 30.50
Polini CP 15 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 15 mm · Area of application: Tuning · Ø Air filter connection: 46 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Size of secondary nozzle: 38 · Mounting type: Plug connection
EUR 165.10

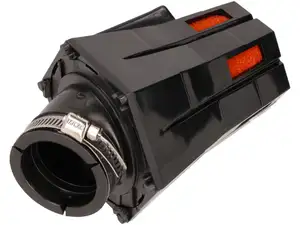

Tun'R air filter foam with splash cap Evo 45° (Ø 28 / 35 mm)
