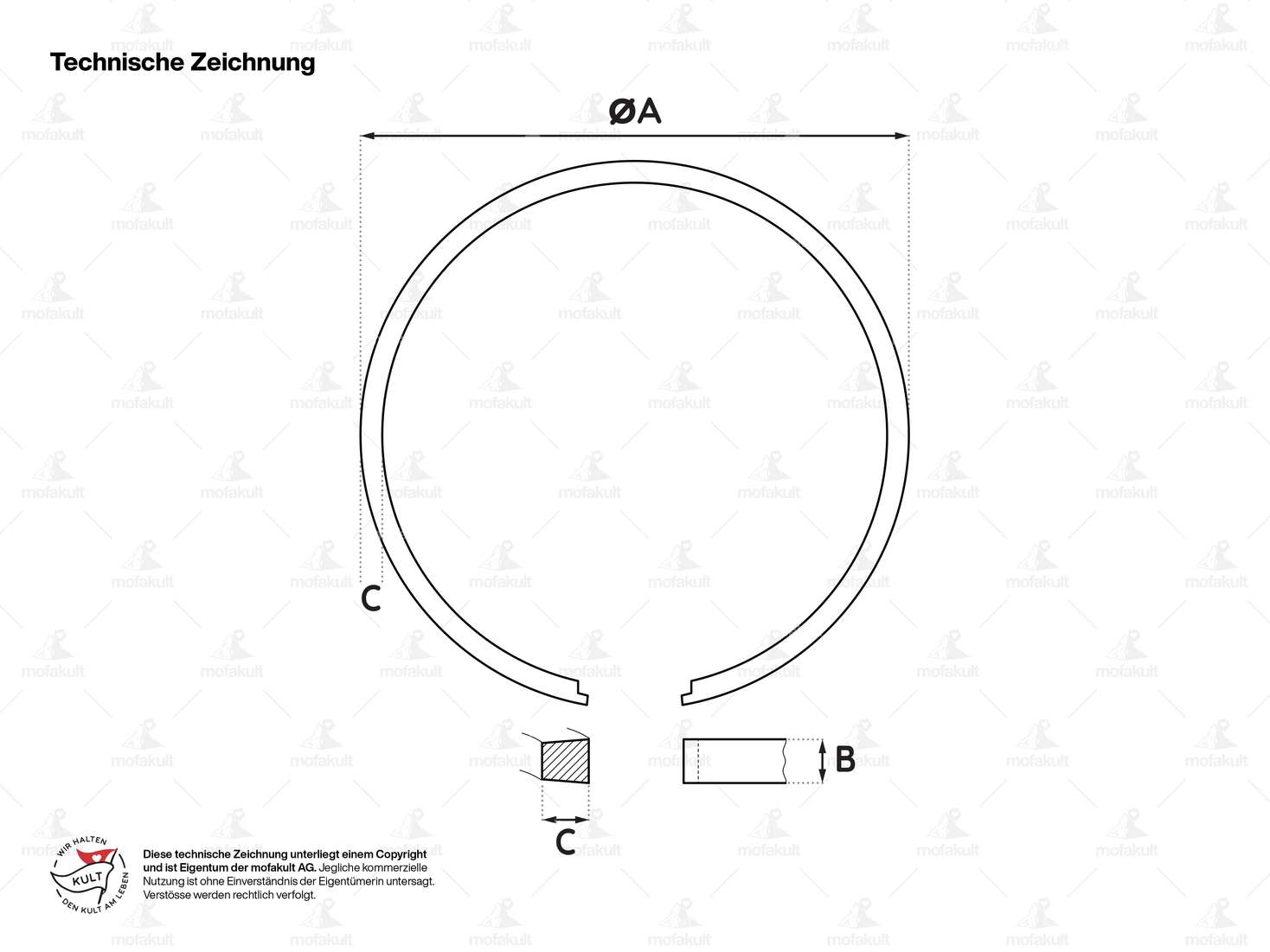

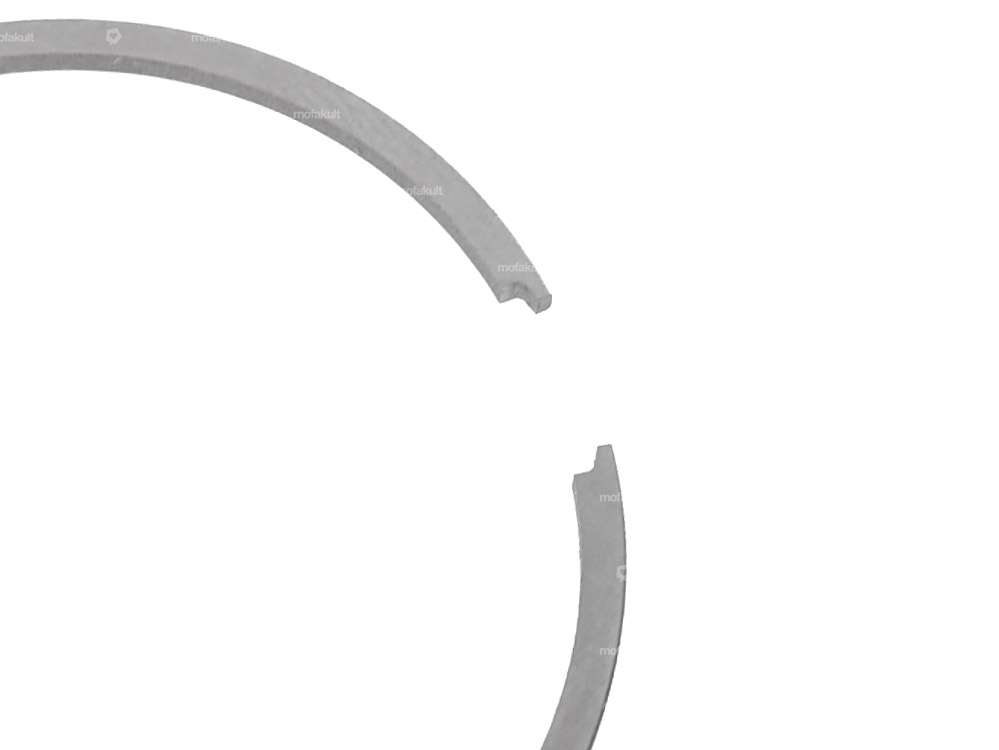

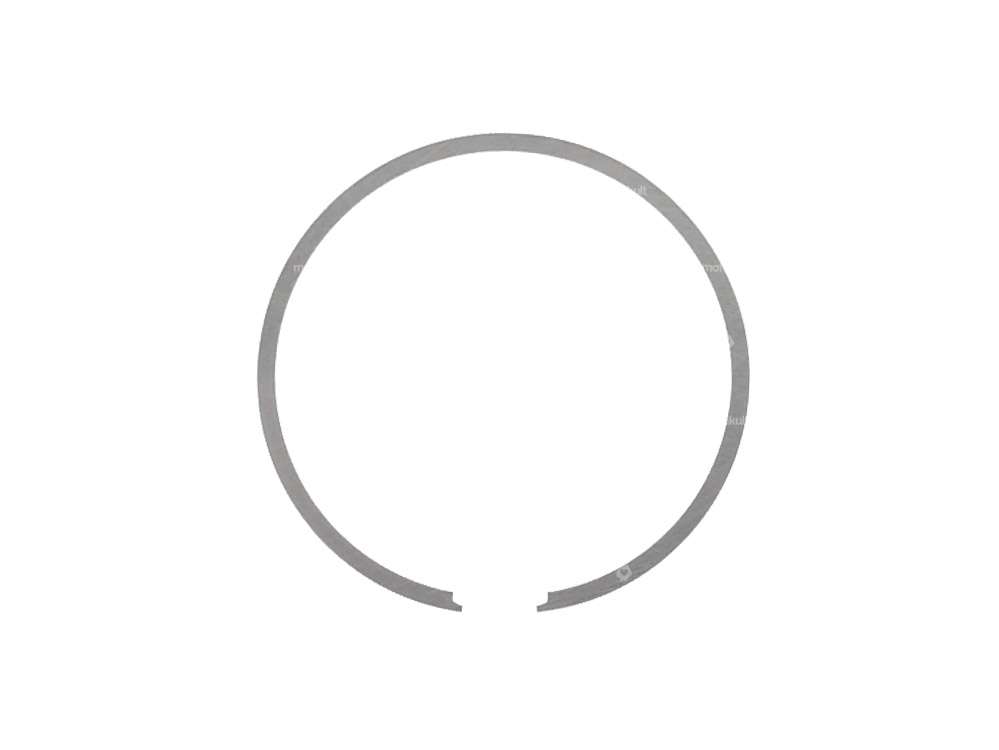

Piston ring original 40 x 1.42 mm (IS) | Beta 521 & 512 (A8112)

Meteor piston 40 mm "G" (A8103) | Beta 521 & 512

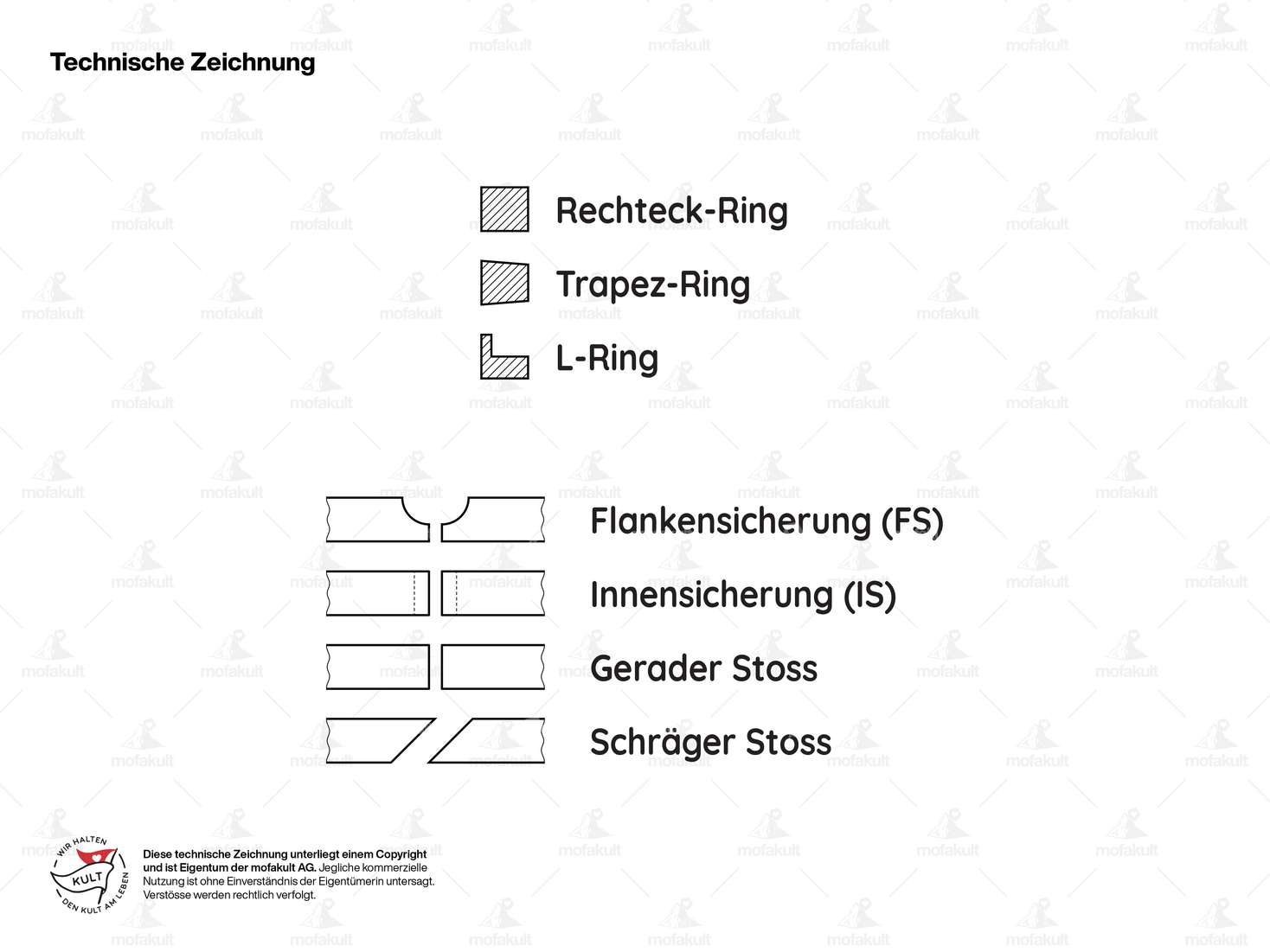

Manufacturer: Meteor · Ø outside piston (A): 39.95 mm · Compression height (C): 27.9 mm · Curvature (D): 4.15 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 83 g

Meteor piston 40 mm "V" (A8105) | Beta 521 & 512

Manufacturer: Meteor · Ø outside piston (A): 39.93 mm · Compression height (C): 27.9 mm · Curvature (D): 4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 83 g

Meteor piston 40 mm "N" (A8104) | Beta 521 & 512

Manufacturer: Meteor · Ø outside piston (A): 39.94 mm · Compression height (C): 28 mm · Curvature (D): 4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm · Ø piston pin (B): 12 mm · Weight piston kit: 83 g

40 mm cylinder kit original engine | Beta 521 & 512

Manufacturer: Pony · Material: Gray cast iron · Displacement: 50 ccm · Crankshaft stroke: 39 mm · Number of fixing points: 4 pcs · Nominal diameter: 40 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Area of application: Original

swiing® revival gasket set cylinder original engine | Beta 521, 512

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Material: Sheet metal (steel) · Ø cylinder: 40 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 40 mm · Number of components: 3 pcs · Hole pattern [mm]: 48 x 48 mm · Decompressor: Yes · Area of application: Original

Meteor piston rings 40 x 1.5 mm (IS) (pair) | Pony Beta 521

Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Motorex engine oil Automatic 450 ml | Pony / Cilo Beta 521

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Oil type: ATF Dexron 3 (DEXIII) · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -36 - 200 °C

swiing® revival needle roller bearing 12/15/14.2 original

Bearing type: Needle sleeve · Manufacturer: swiing® revival parts · Bearing cage: Sheet steel cage · Ø outside: 15 mm · Ø inside: 12 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001

Cylinder base gasket, engine Beta 521 & 512 (A8097)

Manufacturer: Pony · Place of use: Cylinder base · Thickness: 0.5 mm

swiing® revival stud bolt M6x116, galvanized (10.9 strength class)

Diameter: 5.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Thread length: 15 mm · Thread length: 23 mm · Total length: 116 mm

Engine clutch cover gasket | Beta 521, 512 (A8023)

Manufacturer: Pony · Material: Sealing paper · Number of fixing points: 7 pcs · Number of components: 1 pcs

NGK B6ES spark plug long thread

Manufacturer: NGK · Candle designation: B6ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Area of application: Original · Area of application: Standard

swiing® revival gasket set cylinder original engine | Beta 521, 512

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Material: Sheet metal (steel) · Ø cylinder: 40 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 40 mm · Number of components: 3 pcs · Hole pattern [mm]: 48 x 48 mm · Decompressor: Yes · Area of application: Original

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 21.6 mm · Hole spacing outlet: 38 mm · Number of components: 10 pcs · Hole pattern [mm]: 48 x 48 · Decompressor: Yes · Hole spacing inlet: 35 mm · Area of application: Standard

swiing® revival bearing & shaft seal set | Pony Beta 521

Manufacturer: swiing® revival parts · Number of components: 9 pcs · Area of application: Standard
