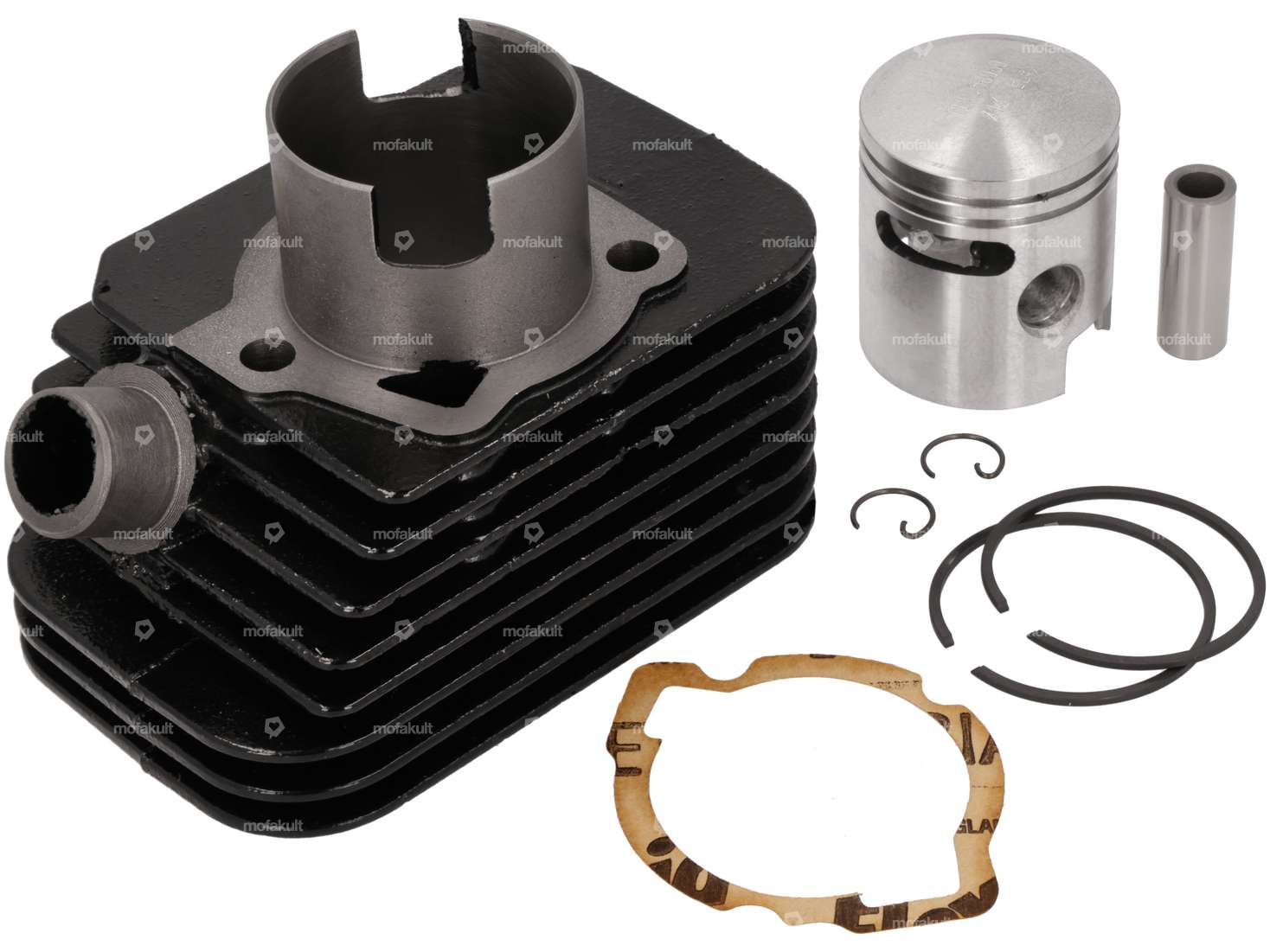

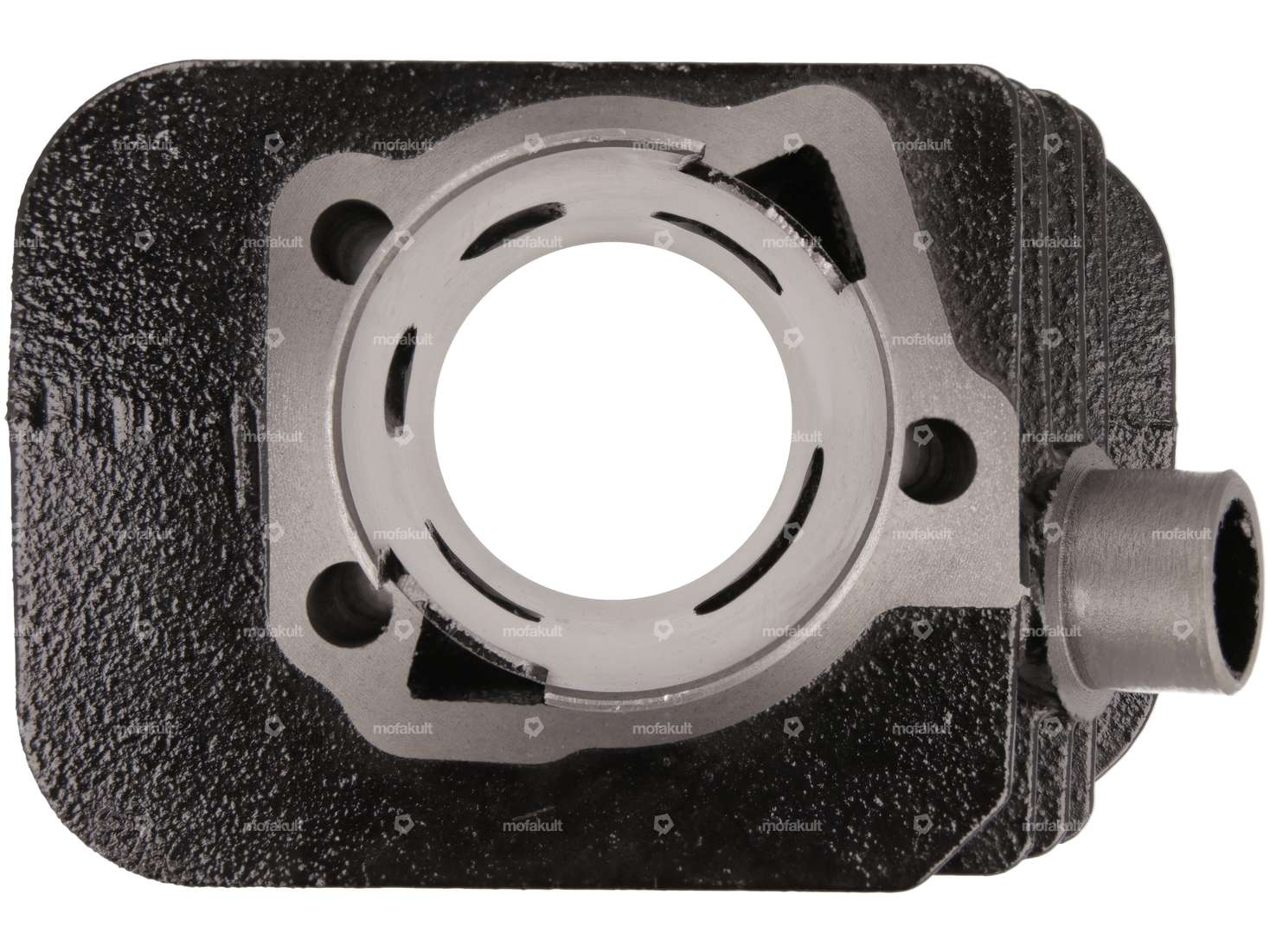

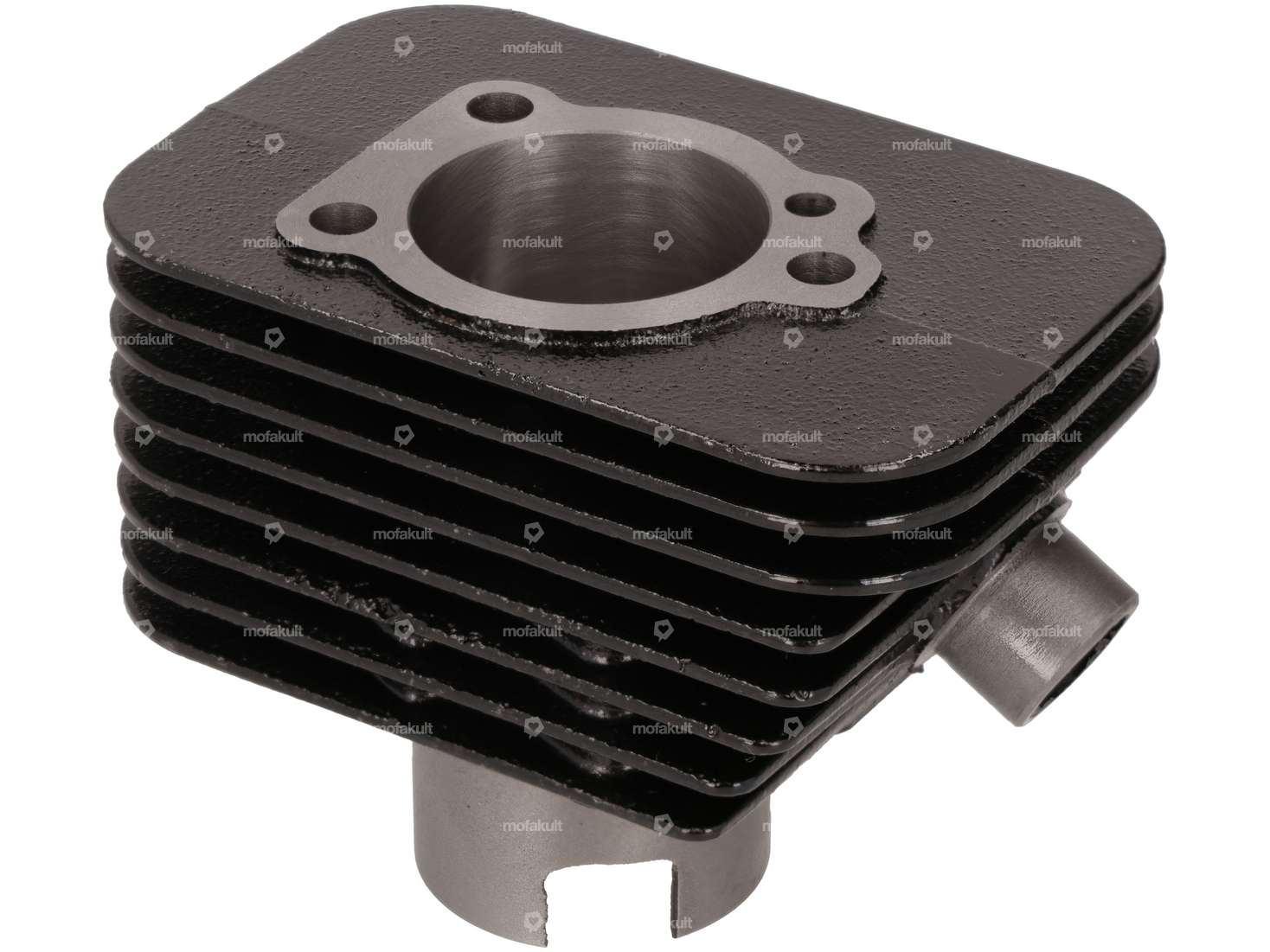

43 mm tuning cast cylinder with 63 cc and 12 mm KoBo suitable for your Piaggio moped / moped.
With the exception of the cylinder head, all parts required for assembly are included in the scope of delivery.
Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still have residue from the manufacturing process. Therefore, the cylinder should be cleaned with compressed air or brake cleaner before installation.
Before installation, check the piston ring joint using a blade gauge. This should be between 0.15 - 0.4 mm to prevent the piston from jamming. Please observe the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
| Nominal diameter | 43 mm |
| Manufacturer | Olympia |
| Material | Gray cast iron |
| Surface | varnished |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 22.3 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Camouflaged | No |
| Area of application | Tuning |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
DR 43 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: DR Racing Parts · Camouflaged: No · Surface: varnished · Displacement: 65 ccm · Material: Gray cast iron · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Ø outlet inside: 18 mm · Hole pattern [mm]: 55 x 34 · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Area of application: Tuning · Outlet type: clamped · Decompressor: Yes
EUR 175.20
Olympia cylinder head for 41 - 43 mm cylinder | Piaggio Ciao
Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Total length: 120 mm · Height: 60 mm · Candle thread: short · Width: 78 mm · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning
EUR 31.80
Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo
Nominal diameter: 43 mm · Manufacturer: Malossi · Camouflaged: No · Surface: sandblasted · Displacement: 63 ccm · Material: Gray cast iron · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.3 mm · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Area of application: Tuning · Decompressor: Yes
EUR 177.60
Polini 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: Polini · Area of application: Tuning · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 226.60
Athena 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Camouflaged: No · Surface: sandblasted · Displacement: 63 ccm · Material: Aluminum · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Area of application: Tuning · Outlet type: clamped · Decompressor: Yes
EUR 214.40

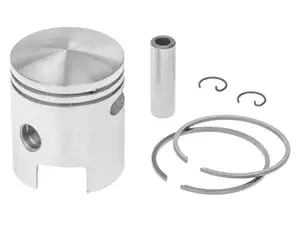

Olympia 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
