Galvanized locking washer with one tab for securing screws and nuts.
Take the following measurements from Figure 2:
- d1: 8.4 mm
- d2: 22 mm
- h: 20 mm
- b: 8 mm
- s: 0.75 mm
A high-quality product from the Normio brand for select industrial components with high standards for precision, durability, and manufacturing quality.
| Manufacturer | Normio |
| Material | Steel |
| Surface | galvanized (blue) |
| Thread size | M8 |
| Width | 8 mm |
| Nominal diameter (thread) | 8 mm |
| Number of lobes | 1 pcs |
| Ø inside | 8.4 mm |
| Ø outside | 22 mm |
| Total length | 20 mm |
| Thickness | 0.75 mm |
Explore categories from Screws & fastener sets
Moped fans also bought
Hot
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm
EUR 12.10
Inner cable Ø 1.2 mm x 200 cm with barrel nipple Ø 6 mm
Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Brass · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Nipple shape: Barrel (transverse) · Cable length: 2000 mm · Nipple length: 5.5 mm
EUR 4.20

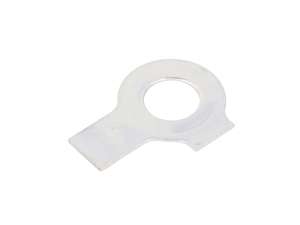

Normio Locking Plate M8, 2 Tabs
