Forged Wössner high-performance piston for the 47 mm Gilardoni italkit Puch cylinder kit when operated with a housing-membrane inlet (GME).
Attention, the piston cannot be used for conventional Gilardoni italkit cylinders which are operated with cylinder diaphragm inlet (ZME).
GME forged piston developed by MBR with a 1 mm rectangular piston ring with internal locking (IS), which is very often used in the Mofacross / Mofacup scene.
Optimal material structure, flow-optimized shape and large lubrication pockets above the piston pin characterize this high-quality racing piston.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the images.
The molybdenum coating in combination with oil provides technologically advanced wear protection with outstanding sliding properties.
Recommended piston size (coating corresponds to +0.01 mm to +0.02 mm):
Gilardoni italkit Cylinder A (47.00 mm): 46.94 mm piston (in exceptional cases, e.g. when using ASP®).e.g. when using ASPEN: 46.93 mm piston)
Gilardoni italkit cylinder B (47.01 mm): 46.95 mm piston
Gilardoni italkit cylinder C (47.02 mm): 46.96 mm piston
Gilardoni italkit cylinder D (47.03 mm): 46.97 mm piston
Piston ring, piston pin and piston pin retainers are included in the scope of delivery.
Matching add-on parts such as cylinder kits, needle bearings, stroke plates, carburettors, air filters etc. can be found under accessories.
| Manufacturer | Wössner, MBR |
| Surface | molybdenum-coated |
| Ø outside piston (A) | 46.95 mm |
| Compression height (C) | 21.5 mm |
| Curvature (D) | 2.63 mm |
| Total piston height (E) | 48.15 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 47 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Piston weight | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
HOMOET exhaust P8 | Puch (slanted exhaust)
Ø outside: 88 mm · Color: black · Manufacturer: HOMOET · Total length: 915 mm · Material: Steel · Surface: varnished · Mounting type: Welded lug · Ø Silencer: 50 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Ø Internal connection: 25 mm · Flame tube attachment: Flange
EUR 353.90
swiing® ingenious intake manifold Gilardoni italkit Inox
Ø inside: 21 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Ø External connection: 24 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 35 · Total length: 80 mm · Number of fixing points: 4 pcs · Total height: 55 mm · Height flange center hole: 42.5 mm · Area of application: Tuning
EUR 82.90
Not in stock

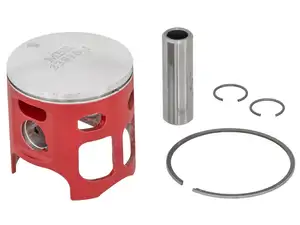

MBR piston 46.95 mm Gilardoni italkit | Puch
Manufacturer: MBR · Manufacturer: Wössner · Surface: molybdenum-coated · Ø outside piston (A): 46.95 mm · Compression height (C): 22 mm · Curvature (D): 2.65 mm · Total piston height (E): 48.15 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 47 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Ø piston pin (B): 12 mm · Piston weight: 94 g
EUR 145.20
Moped fans also bought
Airsal 46 mm cylinder kit straight exhaust | Puch
Nominal diameter: 46 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning
EUR 244.00
Fortune / Merrick 2.00-2.50 x 16/17" inner tube
Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 "
EUR 12.10
Not in stock
Airsal gasket set 44 - 45 mm
Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Area of application: Tuning · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing inlet: 38 mm
EUR 12.10
NGK CR6 Racing ignition cable & plug High End red
Manufacturer: NGK · Material: Rubber · Cable length: 1000 mm · Cable available: Yes · Color: red · Suppressed: Yes · Resistance: 5000 Ω · Component group Carburetor: Ignition cable · Component group Carburetor: Spark plug connector · Ø cable: 7 mm
EUR 48.70
swiing® revival stud bolt set M6 x 106 mm | Puch
Manufacturer: swiing® revival parts · Material: Steel · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Surface: galvanized (blue) · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Drive: External hexagon · Width across flats SW: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 9.05
Continental 2.00 - 2.50 x 16" tube
Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Valve type: TR6 car valve · Wheel size [inch]: 16 "
EUR 17.70

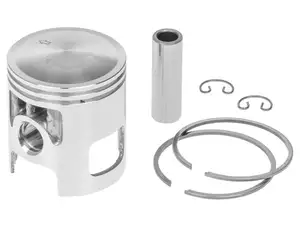

Athena piston AJH 45 mm #A | Puch
