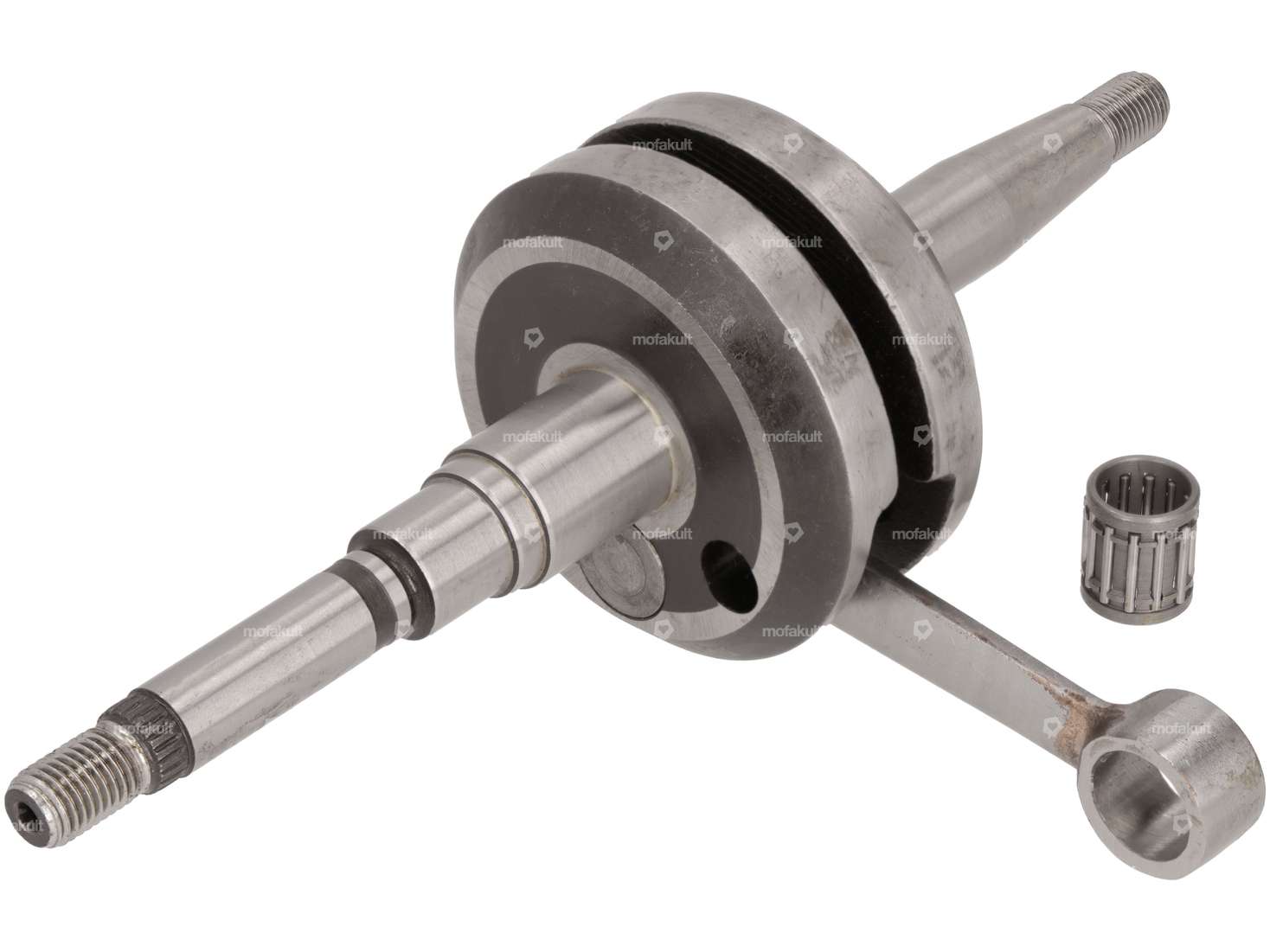

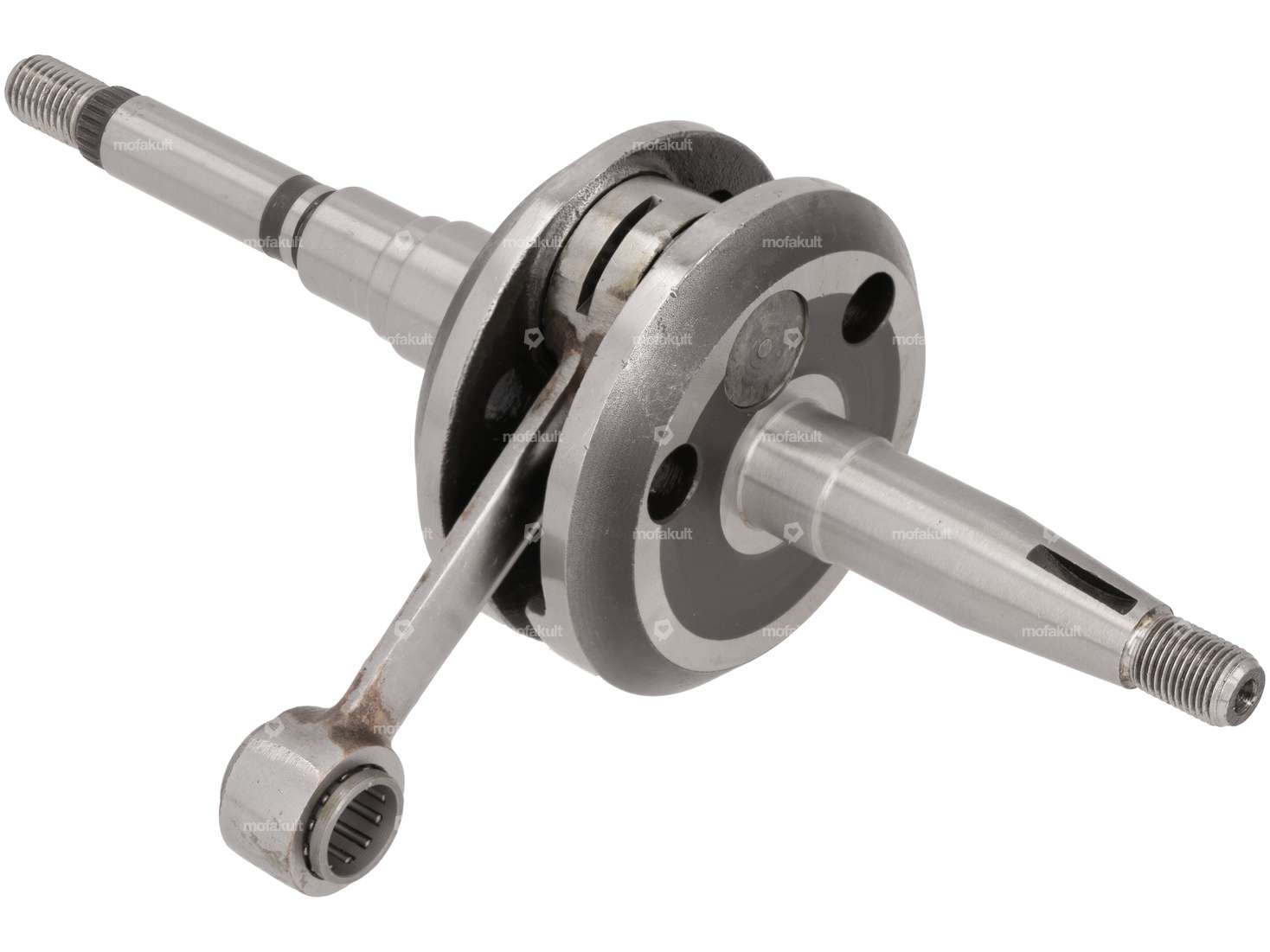

Racing crankshaft for Peugeot 103 SPX mopeds / mopeds
.In addition to additional balancing holes, the connecting rod has been polished and the cheeks reinforced compared to the standard shaft. The workmanship is okay, but the sword connecting rod could be polished a little better.
The needle bearing is included in the scope of delivery.
Quality product from the Italian manufacturer Mazzucchelli.
| Dimension needle bearing | 12 / 15 x 12.5 mm (axe 12) |
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 39 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 76 mm |
| Total length of crankpin on clutch side | 100 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 72 mm |
| Thread type | MF10x1 (fine pitch thread), MF10x1.25 (fine pitch thread) |
| Ø crank webs | 69 mm |
| Ø Connecting rod eye | 16 mm |
| Weight | 964 g |
| Ø Bearing seat (clutch side) | 20 mm |
| Thread length | 12 mm, 14 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Area of application | Tuning, Racing |
| Wide crank webs | 37 mm |
| Length 1st paragraph | 22 mm |
| Length 2nd paragraph | 5 mm |
| Length 3rd paragraph | 14 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 17.8 mm |
| Ø 3rd step (on the clutch side) | 15.5 mm |
| Length of shoulder (ignition side) | 12.5 mm |
| Peugeot |
Accessories & related products

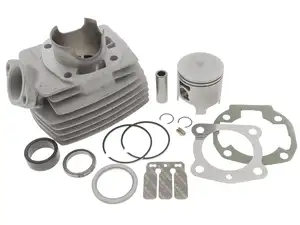

Malossi 45.5 mm cylinder kit aluminum | Peugeot 103 SP, SPX
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: Union nut · Outlet type: slanted · Area of application: Tuning · Camouflaged: No
EUR 306.30

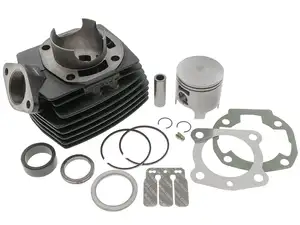

Malossi 45.5 mm cylinder kit cast iron | Peugeot 103 SP, SPX
