Main stand 24 cm black | Tomos A3, A35

Jamarcol Fuego exhaust 28 mm black | Tomos

Manufacturer: Jamarcol · Material: Steel · Surface: varnished · Color: black · Ø Silencer: 50 mm · Total length: 770 mm · Ø Internal connection: 25 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Ø outside: 70 mm · Flame tube attachment: Flange · Mounting type: Welded lug · Number of fixing points: 1 pcs

Airsal 44 mm cylinder kit tuning 10 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Ø piston pin (B): 10 mm · Nominal diameter: 44 mm · Displacement: 65 ccm · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Inlet window: 29.5 x 37.5 · Hole spacing outlet: 42 mm · Thread inlet: M5x0.8 (standard thread) · Decompressor: No · Number of fixing points: 4 pcs · Outlet type: slanted · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No

Side stand left long black | Tomos

Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Color: black · Length pivot point - floor: 230 mm · Total length: 310 mm · Mounting type: Bride · Number of fixing points: 4 pcs

Side stand left chrome | Tomos

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Length pivot point - floor: 205 mm · Number of fixing points: 4 pcs · Total length: 285 mm · Mounting type: Bride

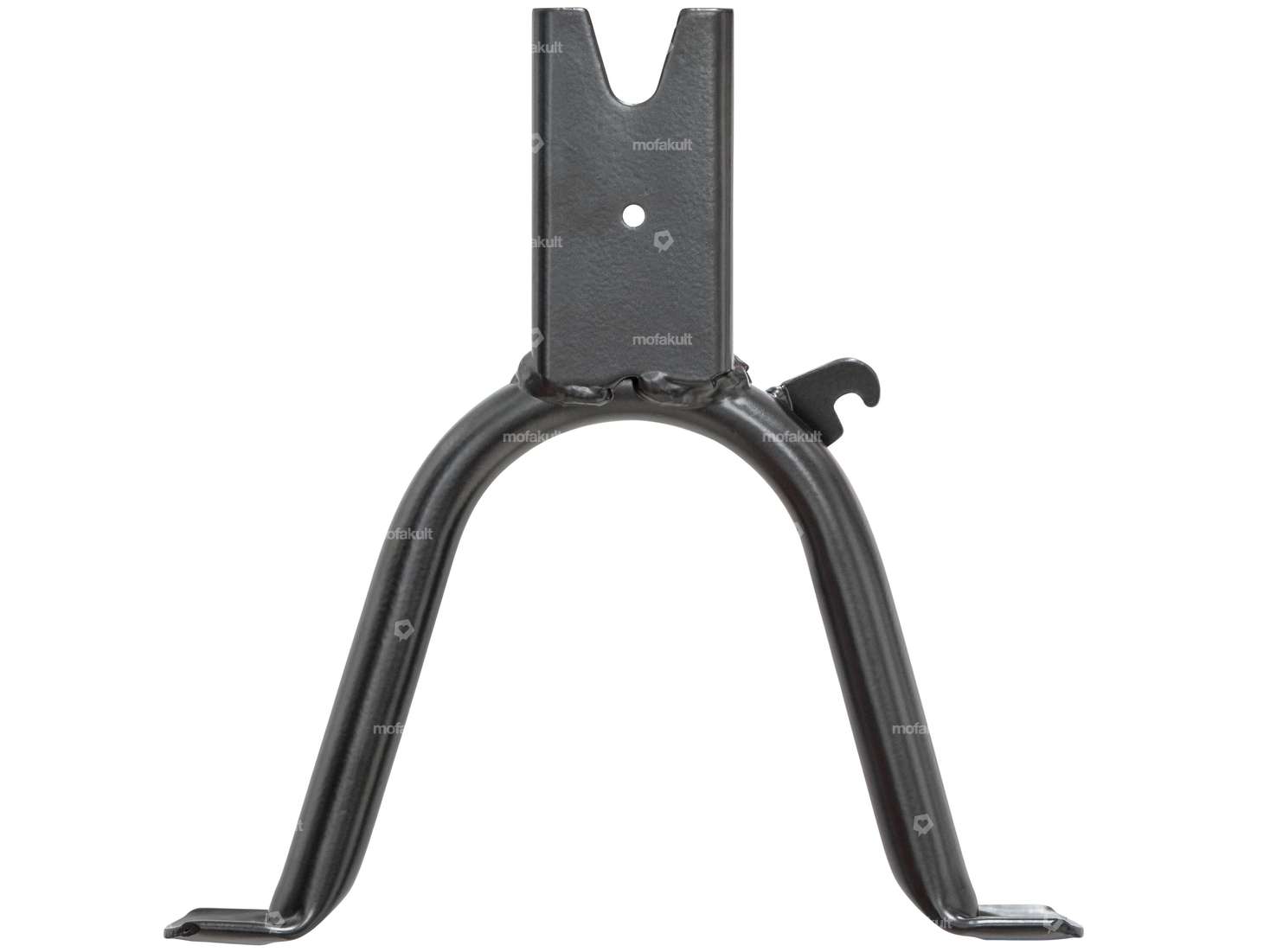

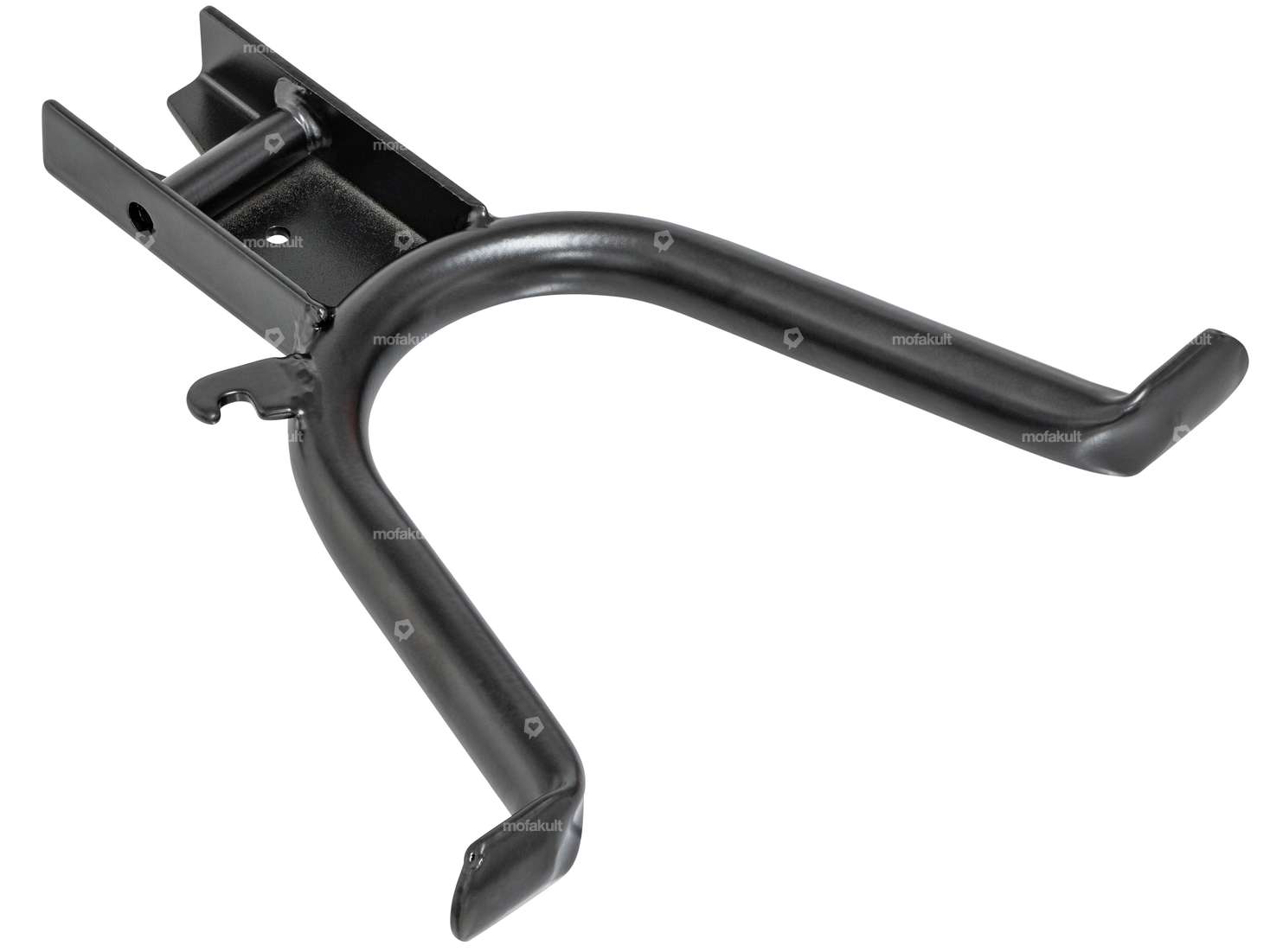

Main stand 24 cm black | Tomos A3 / A35

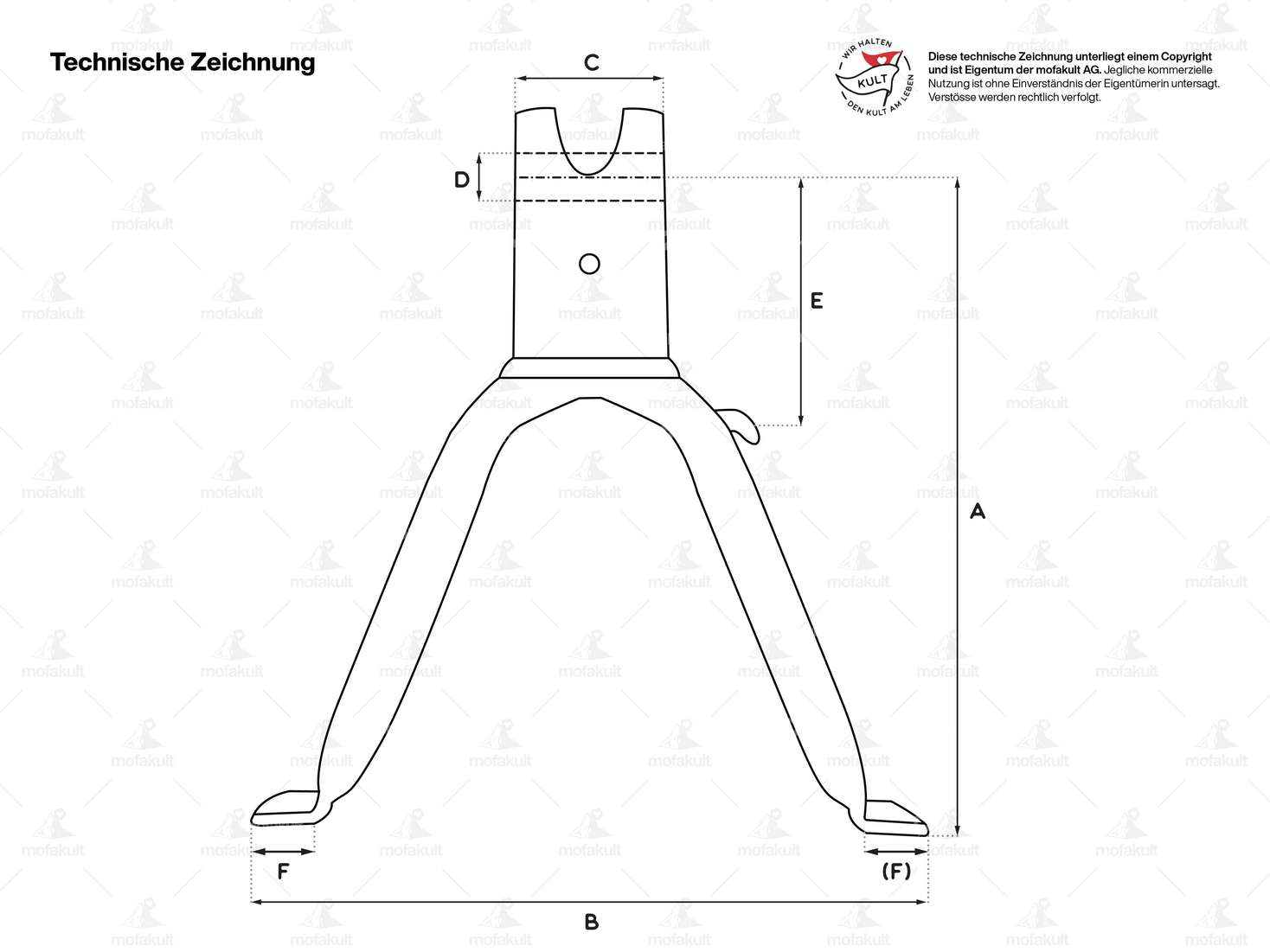

Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Color: black-matt · Stand base - center mount (A): 205 mm · Total width of stand base (B): 220 mm · Wide receptacle (C): 52 mm · Ø Receptacle (D): 7.8 mm · Spring nipple distance - center pivot axis (E): 7.5 mm · Wide upright foot (F): 25 mm · Total height: 240 mm · Tomos OEM number: 237153S91

Side stand left chrome | Tomos Quadro, Flexer, Classic

Manufacturer: Made in Portugal · Color: Chrome · Material: Steel · Color: black · Surface: chrome-plated · Surface: varnished · Length pivot point - floor: 220 mm · Total length: 310 mm · Mounting type: Bride · Number of fixing points: 4 pcs

Side stand left chrome | Tomos A3/A35

Total length: 315 mm · Color: Chrome · Color: black · Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Surface: varnished · Length pivot point - floor: 225 mm · Mounting type: Bride · Number of fixing points: 4 pcs

Side stand left short black | Tomos

Manufacturer: Made in Portugal · Material: Steel · Color: black · Surface: varnished · Length pivot point - floor: 200 mm · Total length: 280 mm · Mounting type: Bride · Number of fixing points: 4 pcs

Main stand spring | Tomos

Spring design: Tension spring · Length spring hook: 17.4 mm · Ø wire: 2.5 mm · Manufacturer: Tomos · Material: Spring steel · Surface: galvanized (blue) · Area of application: Original · Area of application: Standard · Ø inside: 9.8 mm · Ø outside: 14.5 mm · Total length: 86.6 mm · Tomos OEM number: 200609

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Color: gray · Ø bore: 4 mm · Ø Pin: 3.94 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø mounting hole: 6.7 mm · Ø inside: 22 mm · Thickness: 2 mm · Hole spacing: 38 - 42.5 mm · Number of fixing points: 2 pcs

Rear light | Tomos A3, A35

Material: Plastic · Test mark: none · Bulb holder: BA15s · Width: 115 mm · Number of fixing points: 2 pcs · Color: black · Color: red · Brake light: Yes · Battery operated: No · Reflectors: Yes · Mounting type: Nuts & bolts · Height: 70 mm

DMP front fender black (new model) | Tomos A35, Classic

Material: Steel · Surface: varnished · Folding the ends: folded · Total length over ends: 490 mm · Mounting type: Nuts & bolts · Scope: 610 mm · Wide mudguard profile: 90 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 150 mm · Color: black

Spring holder main stand | Tomos

Manufacturer: Tomos · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of fixing points: 2 pcs · Tomos OEM number: 209143

GPO gasket outlet metal ring 18 - 22 mm | Tomos

Manufacturer: GPO · Ø inside: 22.15 mm · Place of use: Outlet · Ø mounting hole: 6 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 43 mm · Thickness: 2 mm · Tomos OEM number: 227149

Main stand spring | Tomos

Spring design: Tension spring · Length spring hook: 17.4 mm · Ø wire: 2.5 mm · Manufacturer: Tomos · Material: Spring steel · Surface: galvanized (blue) · Area of application: Original · Area of application: Standard · Ø inside: 9.8 mm · Ø outside: 14.5 mm · Total length: 86.6 mm · Tomos OEM number: 200609

Screw set main stand Inox | Tomos

Material: Chrome steel (known as Nirosta®) · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Number of components: 4 pcs

swiing® revival bulb rear light 12V - 10W (BA15s, G18) 1-filament

Manufacturer: swiing® revival parts · Test mark: E1 · Bulb holder: BA15s · Tension: 12 V · Performance: 10 W · Color: white · Ø base: 15 mm · Total length: 36 mm · Ø Lamp head: 17 mm · LED: No
