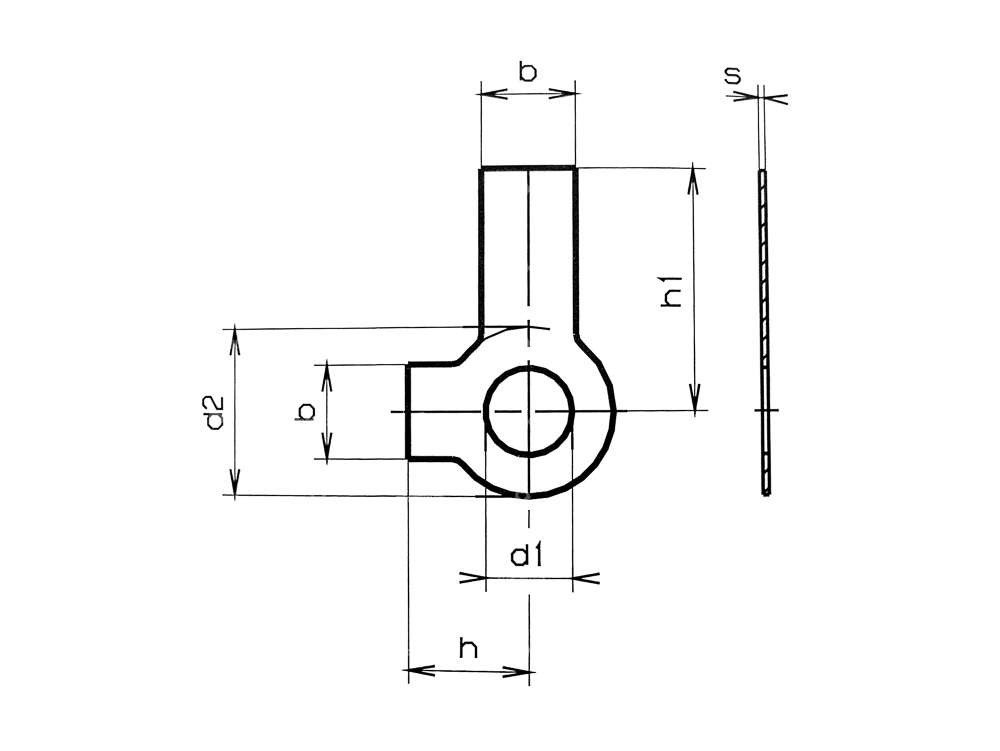

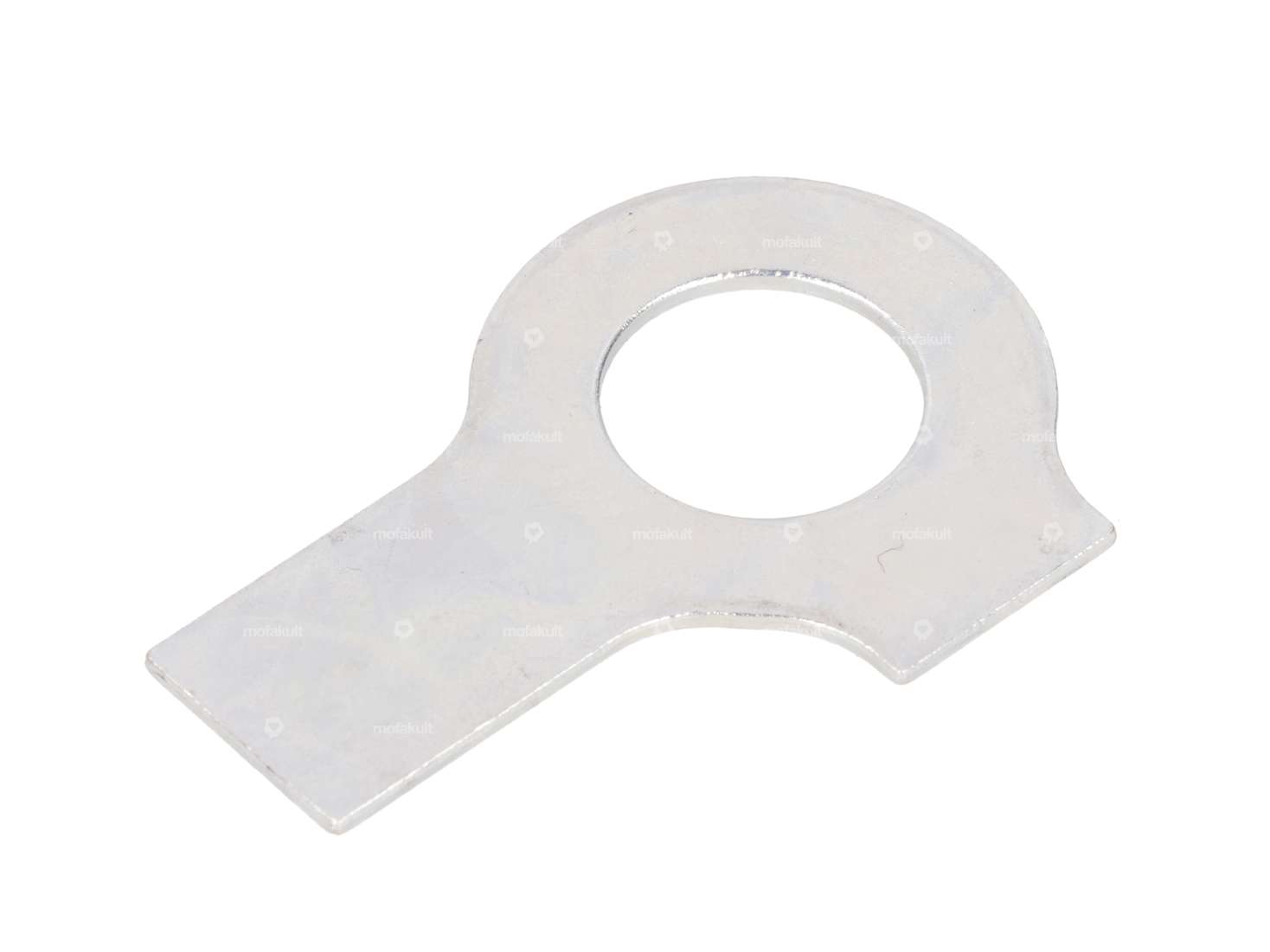

M12 locking plate 2 tabs

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Clamping bridges aluminum | Puch

Material: Aluminum · Color: silver · Total length: 48.9 mm · Height: 24.6 mm · Number of fixing points: 2 pcs · Ø mounting hole: 8 mm · Surface: raw · Width: 21.5 mm · Clamping diameter: 22 mm · Hole spacing: 30 mm

Screw clamp 30 - 45 mm W2 Inox / galvanized

Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Ø inside: 30 - 45 mm · Manufacturer: Made in Europe · Surface: galvanized (blue) · Width: 9 mm

EBR clamping bridge chrome

Material: Steel · Color: Chrome · Total length: 61 mm · Height: 17 mm · Number of fixing points: 4 pcs · Manufacturer: EWC · Surface: chrome-plated · Width: 49 mm · Clamping diameter: 22 mm · Hole spacing: 33 mm · Hole spacing: 45 mm

Meteor piston 38 mm #C | Sachs 503 AB/AC

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 75 g · Pony OEM number: A5685C · Sachs OEM no.: 0286 382 306

Retaining plate with screw for lamp ring

Drive: Knurled screw

swiing® revival locking plate | Puch X30 ZA50

Material: Steel · Ø inside: 16.5 mm · Manufacturer: swiing® revival parts · Number of lobes: 3 pcs · Thickness: 0.9 mm

swiing® revival sprocket mounting M12x1 (nut & spring washer) | Sachs / Hercules

Material: Steel · Height: 5 mm · Manufacturer: swiing® revival parts · Surface: burnished · Surface: galvanized (blue) · Nut type: Hexagon nut 0.5D · Drive: External hexagon · Thread type: MF12x1 (fine pitch thread) · Strength class: 8 · Pony OEM number: A1720 · Pony OEM number: A4249 · Sachs OEM no.: 0242 124 000 · Sachs OEM no.: 0244 189 110

M10 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M10 · Ø outside: 21 mm · Thickness: 0.75 mm · Number of lobes: 2 pcs · Width: 10 mm · Ø inside: 10.5 mm · Total length: 13 mm · Length 2: 22 mm · Width 2: 10 mm

swiing® revival silent blocks Alu Racing | Sachs 503 / 504 / 505 / 535

Ø inside: 8.3 mm · Manufacturer: swiing® revival parts · Ø outside: 21.95 mm · Total length: 13 mm · Surface: anodized · Material: Aluminum · Nominal diameter inside: 8.5 mm · Ø Bundle: 26 mm · Alternative version of the Pony OEM number: A4286 · Alternative version of the Sachs OEM number: 0251 121 000
