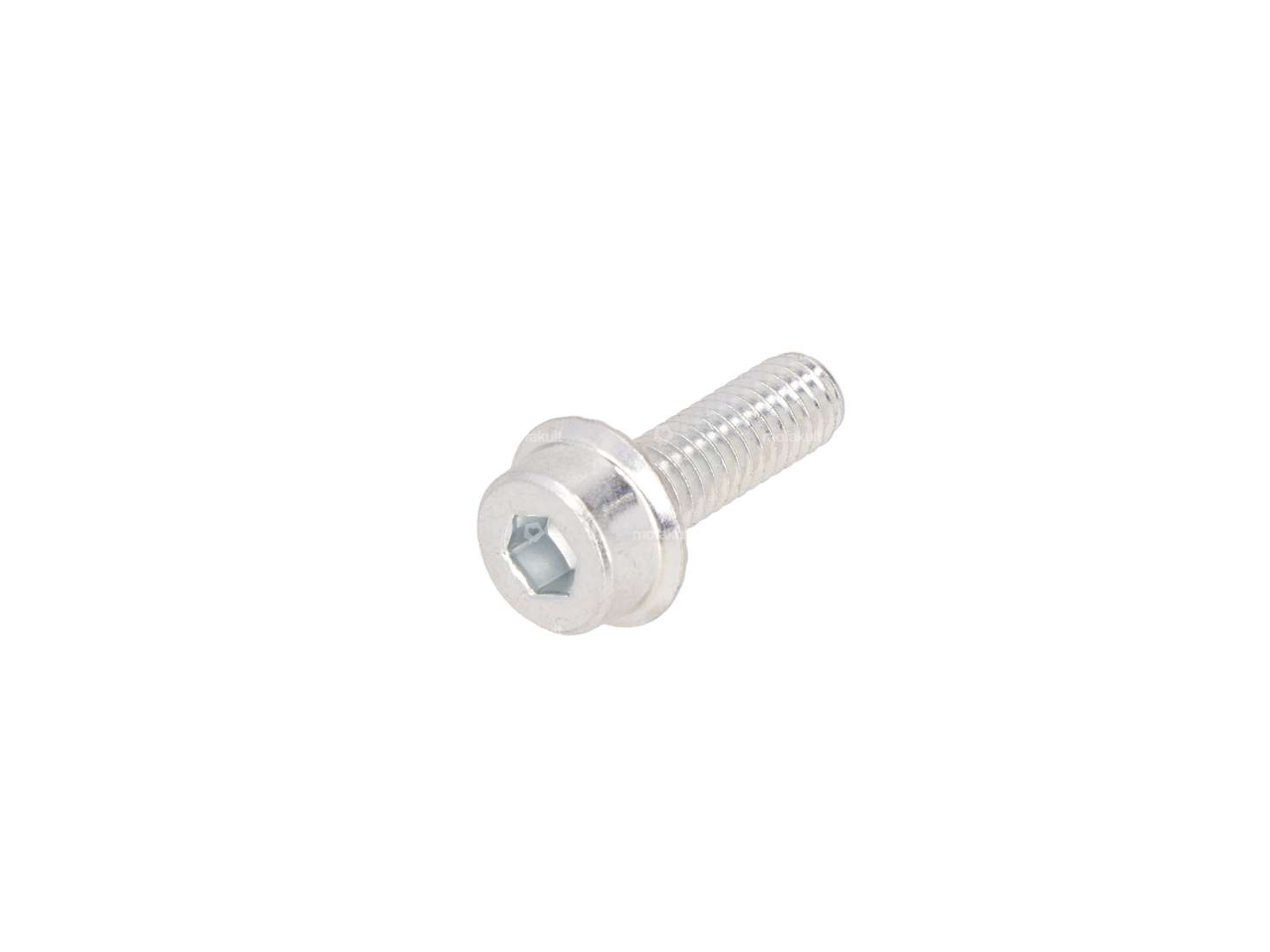

Locking screw M4x12 hexagon socket rib galvanized

Normio Locking Screw M4x16 Hex Socket, Ribbed, Zinc-Plated

Manufacturer: Normio · Total length: 20.1 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 4 mm · Drive: Hexagon socket · Screw head: Cylinder head · Width across flats: 3 mm · Ø External head: 6.7 mm · Ø External head: 8.4 mm · Thread length: 16 mm · Shank: No · Thread type: M4x0.7 (standard thread)

swiing® revival oil filler plug with sealing ring | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Number of components: 2 pcs · Thread type: M10x1.5 (standard thread) · Drive: Slot · Surface: galvanized (blue) · Total length: 14.6 mm · Screw head: Lens head · Nominal diameter (thread): 10 mm · Ø External head: 14 mm · Thread length: 6 mm · Puch OEM number: 364.1.10.660.1

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

M8 sealing ring Fiber

Material: Fiber · Thickness: 1 mm · Surface: raw · Ø inside: 8.3 mm · Place of use: Carburetor · Place of use: Motor housing · Ø outside: 13.7 mm · Area of application: Standard · Puch OEM number: 26482

swiing® revival Screw Set, Engine, Galvanized, Small | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch OEM number: 900.1216 · Puch OEM number: 901.1308

Rito crankshaft full cheeks with mounted bearings | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 (axe 12) · Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Thread length: 10 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Area of application: High End · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm

Normio M8x12 Hex Head Slotted Screw, Galvanized

Manufacturer: Normio · Material: Steel · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Drive: Slot · Surface: galvanized (blue) · Total length: 17 mm · Screw head: Hexagon · Shank: No · Width across flats: 13 mm · Strength class: 8.8 · Thread length: 12 mm

Gearbox oil service set | Puch E50

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch
