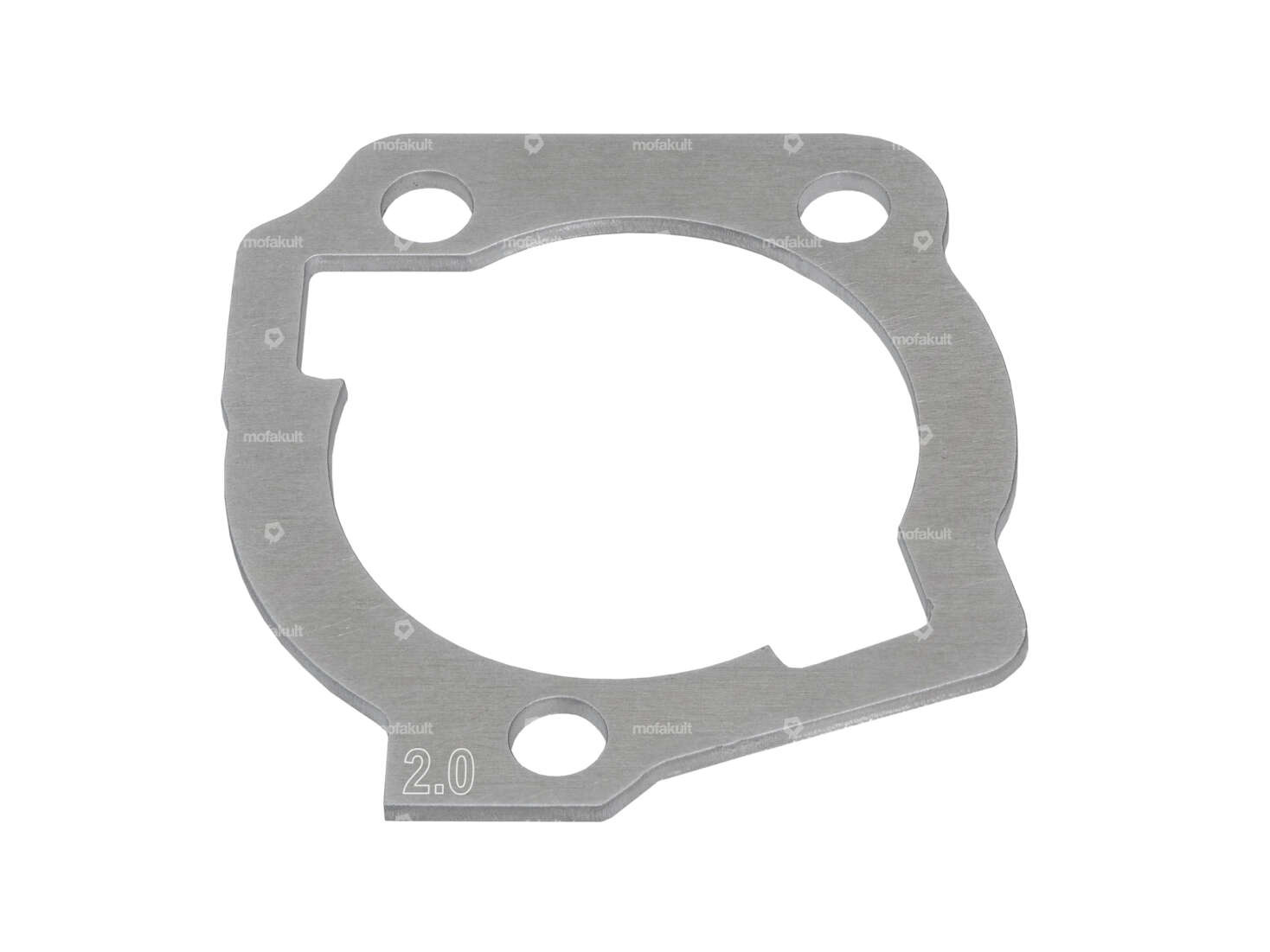

Aluminum stroke plate for your Piaggio Ciao, Si, Bravo, Boxer, Boss, Grillo and Gilera moped / moped.
The spacer is mounted under the cylinder base. The "lifting" of the cylinder increases the intake and exhaust timing. Accordingly, the same distance of the spacer should be turned down at the top of the cylinder
so that the original crushing edge dimension and compression are maintained.
Material thickness: 2 mm
Material: aluminum
We recommend using Dirko silicone sealant for sealing. You can find this in the accessories
.
| Material | Aluminum |
| Thickness | 2 mm |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
