Membran-System

Polini 2-folding diaphragm insert

Manufacturer: Polini · Area of application: Tuning · Number of flaps: 2 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Thickness: 2 mm · Ø mounting hole: 5.3 mm

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Mounting type: Cable ties · Total height: 40 mm · Total length: 105 mm · Area of application: Tuning

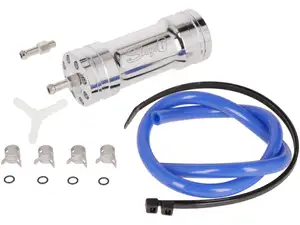

Stage6 lung aluminum

Manufacturer: Stage6 · Material: Aluminum · Camouflaged: No · Surface: chrome-plated · Color: Chrome · Area of application: Tuning · Ø inside: 4 mm · Mounting type: Cable ties · Total length: 105 mm · Total length: 125 mm · Ø External connection: 6 mm · Total height: 40 mm

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Width: 100 mm · Total length: 100 mm

Malossi reed valve carbon 0.3 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Width: 100 mm · Total length: 100 mm

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbonite · Thick membrane platelets: 0.4 mm · Width: 100 mm · Total length: 100 mm

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Width: 100 mm · Total length: 100 mm

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Manufacturer: Malossi · Material: Plastic · Surface: raw · Area of application: Tuning · Number of flaps: 1 pcs · Thickness: 3 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Width: 43 mm · Width: 47 mm · Ø mounting hole: 5.4 mm · Total length: 50 mm · Hole pattern [mm]: 32 / 36 x 39 · Number of fixing points: 4 pcs · Mounting type: Screws · Camouflaged: No

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Number of flaps: 8 pcs · Hole spacing: 52 mm

Diaphragm seal | Minarelli, Aprilia, Suzuki

Place of use: Admission · Area of application: Racing · Area of application: Tuning · Thickness: 0.5 mm · Material: Sealing paper · Ø screw holder: 6.3 mm

Polini 4-flap diaphragm insert

Manufacturer: Polini · Material: Plastic · Material: Sheet metal (steel) · Surface: raw · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Width: 47.9 mm · Total length: 72.9 mm · Hole pattern [mm]: 35 x 60 · Number of fixing points: 4 pcs · Mounting type: Stud bolts & nuts · Camouflaged: No

Polini diaphragm plate carbon 0.3 / 0.35 mm

Manufacturer: Polini · Area of application: Racing · Area of application: Tuning · Number of flaps: 4 pcs · Material: Carbon · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Ø mounting hole: 3 mm · Width: 36 mm · Total length: 38 mm · Hole spacing: 17 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Camouflaged: No

Stage6 reed valve V-Force 3 by Moto Tassinari | Minarelli

Manufacturer: Stage6 · Area of application: Racing · Area of application: Tuning · Number of flaps: 8 pcs · Membrane material: Carbon · Material: Plastic · Thick membrane platelets: 0.3 mm · Ø mounting hole: 6.5 mm · Width: 68 mm · Total length: 76 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Polini Lunge plastic black

Manufacturer: Polini · Material: Plastic · Area of application: Tuning · Color: black · Total length: 126 mm · Thread type: MF10x1 (fine pitch thread) · Total height: 45 mm · Mounting type: Cable ties

Malossi reed valve block MHR TEAM VL16

Manufacturer: Malossi · Area of application: Racing · Number of flaps: 2 pcs · Membrane material: Carbon · Material: Plastic · Thick membrane platelets: 0.35 mm · Ø mounting hole: 6.6 mm · Width: 48.3 mm · Total length: 66.2 mm · Hole spacing: 53 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Camouflaged: No

Malossi MHR diaphragm intake system PHGB

Manufacturer: Malossi · Material: Aluminum · Material: FPM / FKM (known as VITON®) · Area of application: Tuning · Number of flaps: 2 pcs · Ø inside: 24.5 mm · Membrane material: Carbonite · Ø mounting hole: 6.5 mm · Hole pattern [mm]: 60 x 35 / 61 x 40 · Number of fixing points: 4 pcs · Mounting type: Screws · Camouflaged: No
