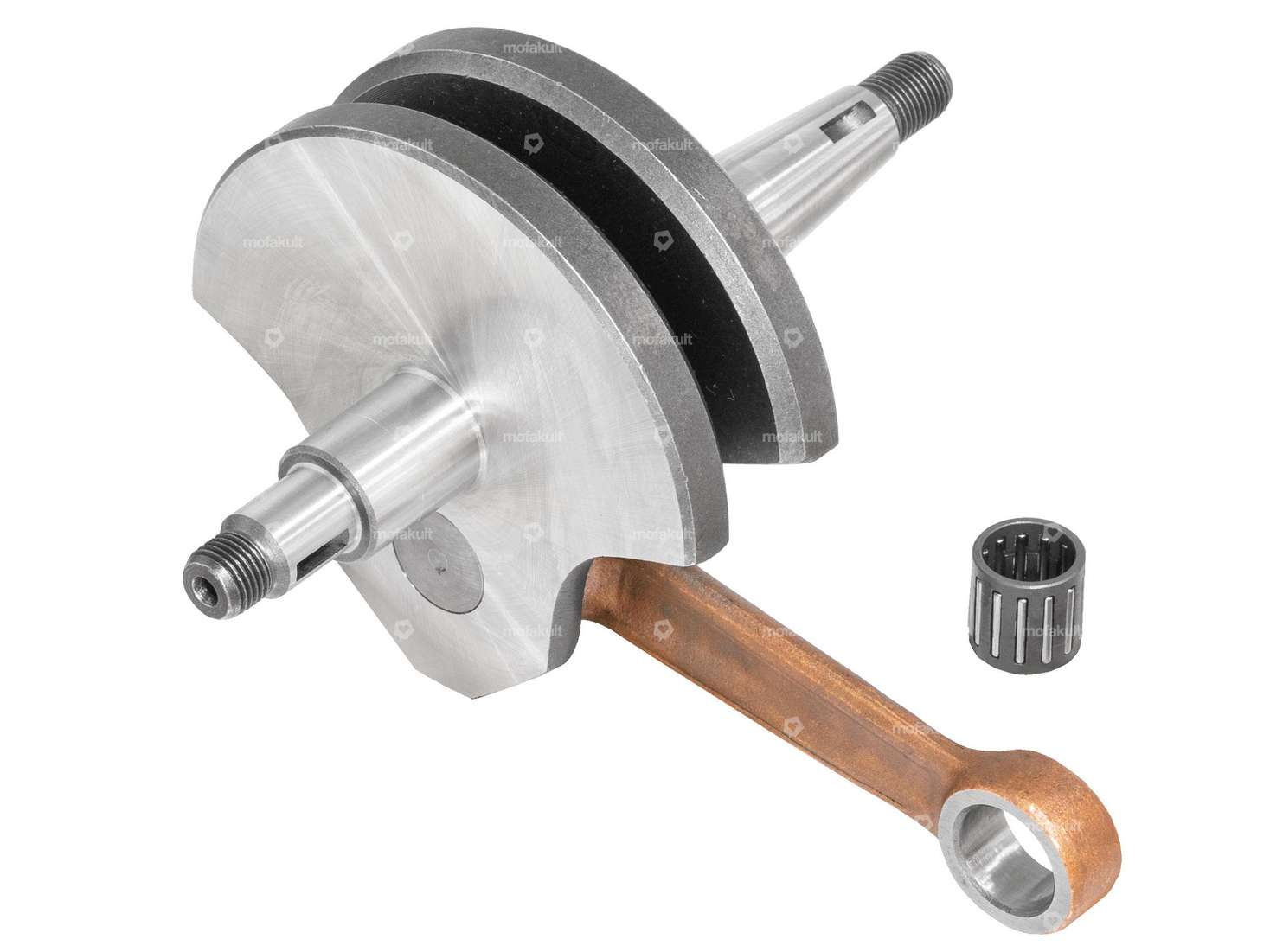

Crankshaft suitable for mopeds, mopeds and small motorcycles with Sachs three-speed and four-speed engines.
The shaft for the 3 & 4-speed engine comes with a matching needle sleeve.
Dimension:
- Total length of the cheek pin on the end: 70.6 mm
- Ø cheek pin on the end: 17 mm
- Total length of cheek pin on the coupling side: 43 mm
- Ø 1st shoulder (cheek pin on the coupling side): 17 mm
- Ø 2nd shoulder (clutch-side cheek journal: 12 mm
- Thread on both sides: M10x1 mm
- for 12 mm connecting rod bolts
Difference to the Sachs 50/2 crankshaft: the diameter of the cheek journals is larger (L17 bearings must be used).
Branded product of the Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Manufacturer | Jasil |
| Area of application | Standard |
| Cheek type | standard |
| Thread type | MF10x1 (fine pitch thread) |
| Number of gears | 3 pcs, 4 pcs |
| Total length crankpin ignition side | 70.6 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
