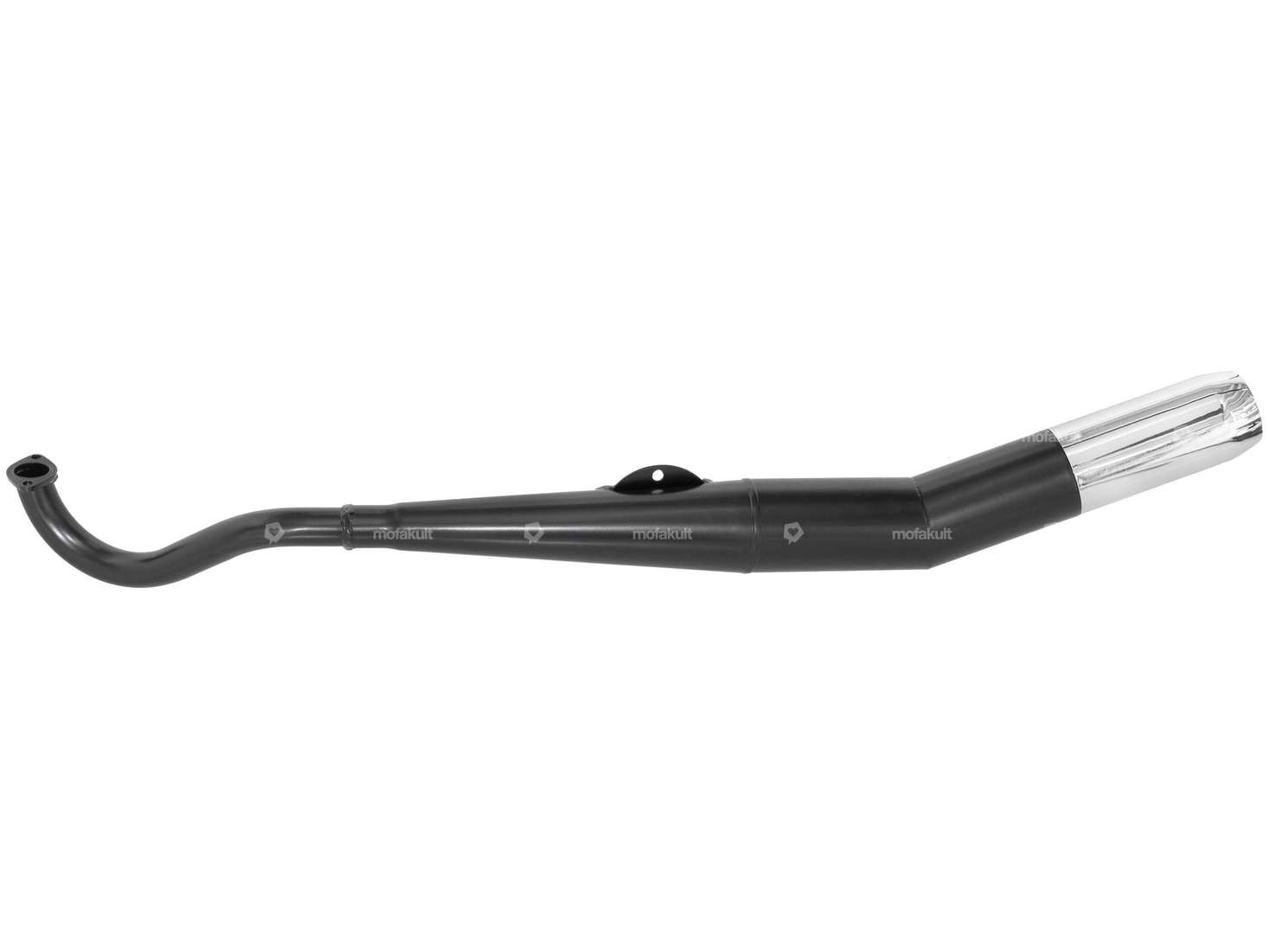

HOMOET Exhaust RS black / chrome | Puch

Large outlet seal with metal ring

Thickness: 2.1 mm · Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

Insulating wool exhaust 25 x 40 cm

Thickness: 10 mm · Material: Ceramics · Color: white · Width: 400 mm · Height: 220 mm

Large outlet seal

Material: Sealing carton · Ø outside: 39.7 mm · Ø inside: 25.5 mm · Thickness: 1.8 mm · Ø screw holder: 7.1 mm · Place of use: Outlet · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Brass nut M6 3D

Drive: External hexagon · Width across flats SW: 10 mm · Thread type: M6x1 (standard thread) · Material: Brass · Surface: blank · Nut type: Neck nut · Ø outside: 9 mm · Height: 25 mm · Area of application: Standard · Thread depth: 25 mm · Shank length: 20 mm

M6 brass exhaust nut

Material: Brass · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Drive: External hexagon

Insulating wool (balls)

Manufacturer: Made in Portugal · Material: Fabric insert · Color: beige · Ø inside: 39 mm · Ø outside: 45.5 mm · Total length: 26 mm · Surface: raw

LIQUI MOLY Exhaust assembly paste (150g)

Manufacturer: LIQUI MOLY · Area of application: Chemistry · Color: gray · Contents [g]: 150 g · Temperature resistance (min.): 0 - 700 °C

swiing® ingenious gasket outlet 28 mm graphite

Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Reinforced: No · Ø inside: 27.4 mm · Thickness: 3 mm · Ø outlet inside: 28 mm · Ø screw holder: 6.6 mm · Place of use: Exhaust · Hole spacing outlet: 42.5 mm · Area of application: Tuning

swiing® ingenious M6 special nut exhaust flange (hexagon socket) strength 10

Manufacturer: swiing® ingenious parts · Material: Steel · Ø outside: 10 mm · Thread type: M6x1 (standard thread) · Surface: galvanized (blue) · Thread length: 17 mm · Total length: 25 mm

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Length spring hook: 50 mm · Leg length: 45 mm · Ø wire: 2.4 mm · Material: Spring steel · Ø outside: 30 mm · Ø inside: 25.5 mm · Surface: galvanized (blue) · Total length: 125 mm · Area of application: Original · Area of application: Standard

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Color: blue · Number of components: 3 pcs · Ø outside: 8.3 mm · Ø inside: 4.8 mm · Surface: coated · Total length: 28 mm · Area of application: Tuning

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

GPO tail light ULO | Puch Maxi N, S old version

Depth: 80 mm · Manufacturer: GPO · Test mark: none · Bulb holder: BA15s · Material: Plastic · Tension: 6 V · Mounting type: Nuts & bolts · Color: black · Color: red · Width: 60 mm · Ø Receptacle: 4 mm · Height: 110 mm · Brake light: No · Battery operated: No · Reflectors: Yes · Number of fixing points: 2 pcs

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm · Cranking (offset): 23 mm · Number of fixing points: 2 pcs

Exhaust cigar 28 mm chrome | Puch Maxi S, N / X30 NS, NL

Manufacturer: Made in Portugal · Material: Steel · Color: Chrome · Ø outside: 70 mm · Surface: chrome-plated · Ø Internal connection: 28 mm · Total length: 920 mm · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Flame tube attachment: Flange · Number of fixing points: 1 pcs

Exhaust clamp 28 mm with rubber

Manufacturer: Quenching · Material: Rubber · Material: Steel · Color: black · Surface: galvanized (blue) · Color: silver · Mounting type: Nuts & bolts · Total length: 40 mm · Ø inside: 26.5 - 28 mm

GPO side bars chrome | Puch Maxi N

Manufacturer: GPO · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 360 mm · Mounting type: Screws · Ø mounting hole: 8.1 mm · Width: 140 mm · Height: 60 mm · Hole spacing: 342 mm · Number of fixing points: 2 pcs

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Color: blue · Total length: 1280 mm · Width: 23 mm · Wheel size [inch]: 17 "

Chain tensioner 70 mm Simplex | Puch Maxi N, X30 Velux

Manufacturer: Made in Italy · Material: Steel · Color: black · Color: silver · Surface: galvanized (blue) · Number of teeth: 10 pcs · Ø outside sprocket: 36 mm · Total length: 140 mm · Ø mounting hole: 5 mm · Number of fixing points: 2 pcs
