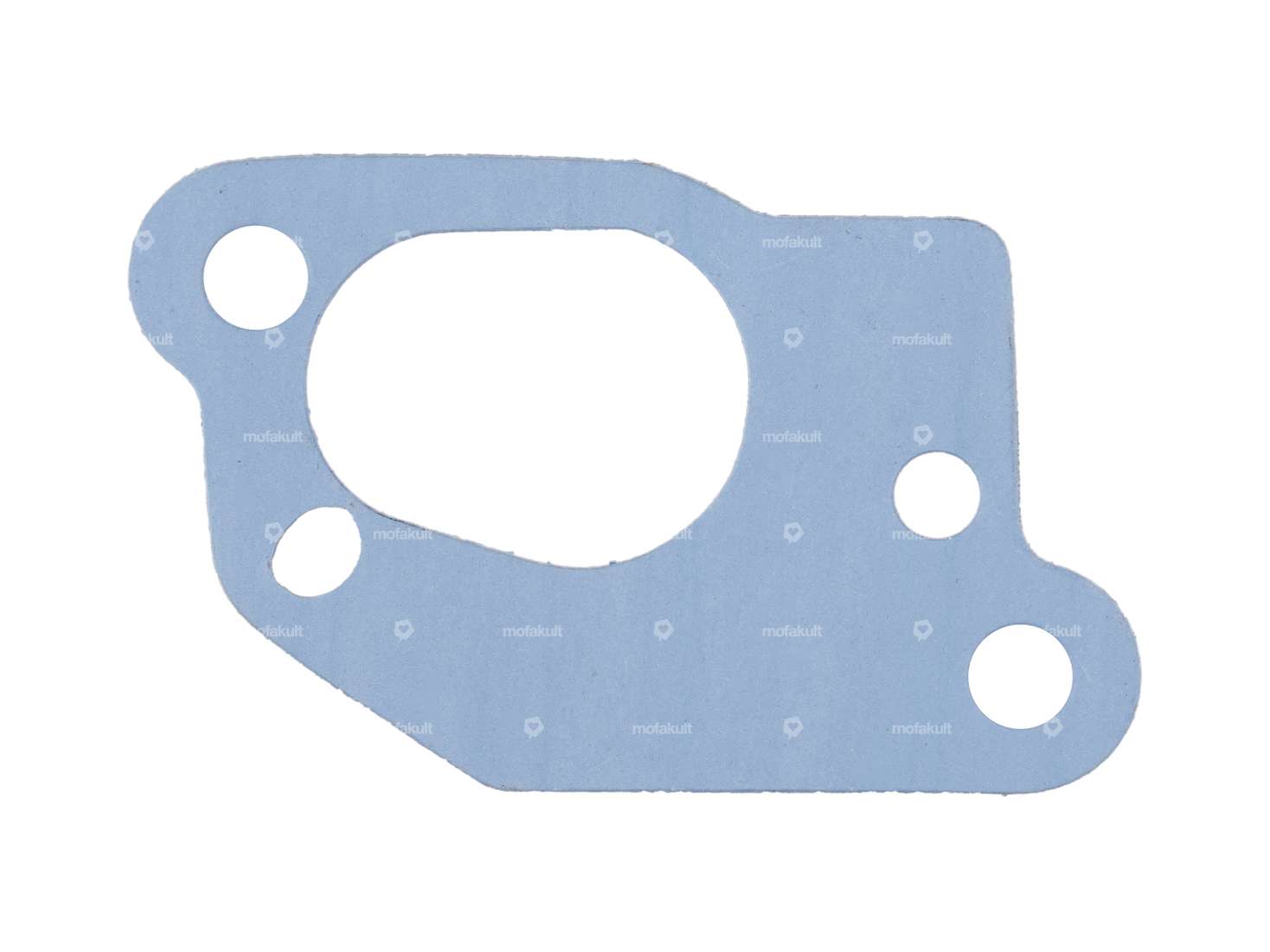

Gasket between carburetor sump and engine housing suitable for your Vespa Largeframe scooter without separate lubrication. You can find a list of the exact models below in the drop-down menu under «suitable for the following models».
This flat gasket is necessary to cleanly seal the area between the carburetor sump and the engine housing. If the carburetor sump is dismantled, the gasket should be replaced during reassembly.
| Width | 44 mm |
| Thickness | 0.5 mm |
| Material | Aramid (colloquially known as Kevlar) |
| Color | blue |
| Total length | 71 mm |
| Number of components | 1 pcs |
| Number of fixing points | 2 pcs |
| Piaggio OEM number | 131079, 120245 |
| Vespa | Vespa PX, T5, Cosa - PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , T5 125 · VNX5T · 1985 - 1993 , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
Accessories & related products
Dell'Orto SI 20.20D carburetor without separate lubrication | Vespa Largeframe
Width: 78 mm · Height: 81 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Area of application: Standard · Component group Carburetor: Carburetor complete · Nominal diameter: 20 mm · Carburetor type: SI · Ø fuel hose connection: 8.3 mm · Total length: 125 mm · Nozzle size: 102 · Ø Inside entrance: 19.7 mm · Mounting type: Screws · Ø Output inside: 19.7 mm · Air filter connection thread: M5x0.8 (standard thread) · Mixed oil connection: No · Vacuum connection: No · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle block: BE3 · Piaggio OEM number: 113549 · Piaggio OEM number: 183096
EUR 134.70
Dell'Orto SI 24.24E carburetor without separate lubrication | Vespa PX200, Rally 200
Width: 78 mm · Height: 81 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Area of application: Standard · Area of application: Tuning · Component group Carburetor: Carburetor complete · Nominal diameter: 24 mm · Carburetor type: SI · Ø fuel hose connection: 8.3 mm · Total length: 125 mm · Nozzle size: 118 · Ø Inside entrance: 23.8 mm · Mounting type: Screws · Ø Output inside: 23.8 mm · Air filter connection thread: M5x0.8 (standard thread) · Mixed oil connection: No · Vacuum connection: No · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle block: BE3 · Piaggio OEM number: E.5474 · Piaggio OEM number: E5474 · Piaggio OEM number: 131038 · Piaggio OEM number: 132371
EUR 140.80
Dell'Orto gasket set SI carburetor | Vespa Largeframe
Manufacturer: Dell'Orto · Material: Metal · Camouflaged: No · Material: Rubber · Material: Sealing paper · Component group Carburetor: Sealing, revising · Carburetor type: SI · Piaggio OEM number: E.5924 · Piaggio OEM number: E5924 · Piaggio OEM number: 82932 · Piaggio OEM number: 85467 · Piaggio OEM number: 150131 · Piaggio OEM number: 154754 · Piaggio OEM number: 242278
EUR 14.60
Gasket carburetor sump / carburetor without separate lubrication | Vespa Largeframe
Width: 41.5 mm · Thickness: 0.5 mm · Material: Aramid (colloquially known as Kevlar) · Color: blue · Number of components: 1 pcs · Total length: 77 mm · Number of fixing points: 2 pcs · Piaggio OEM number: 113293
EUR 3.55
