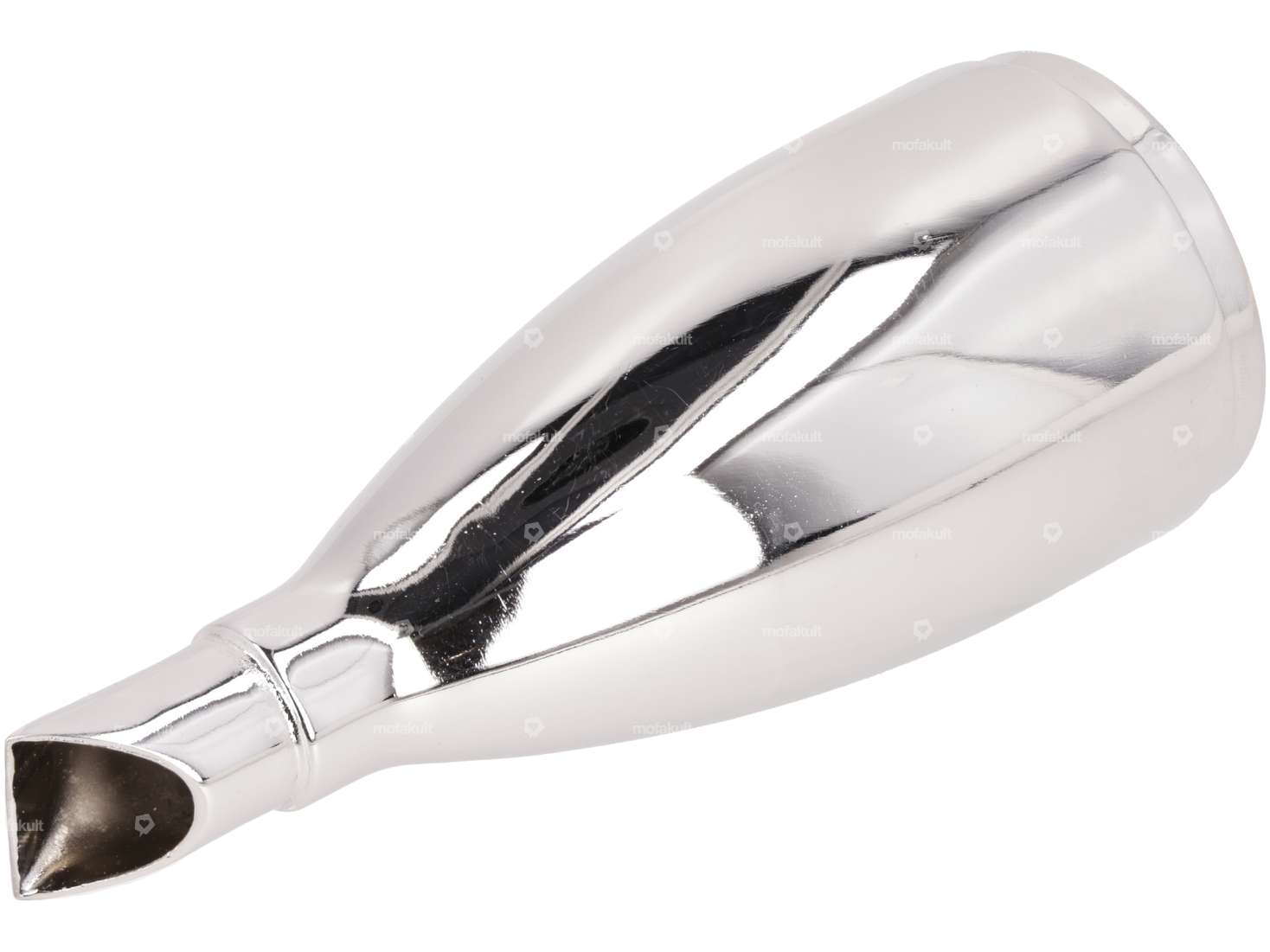

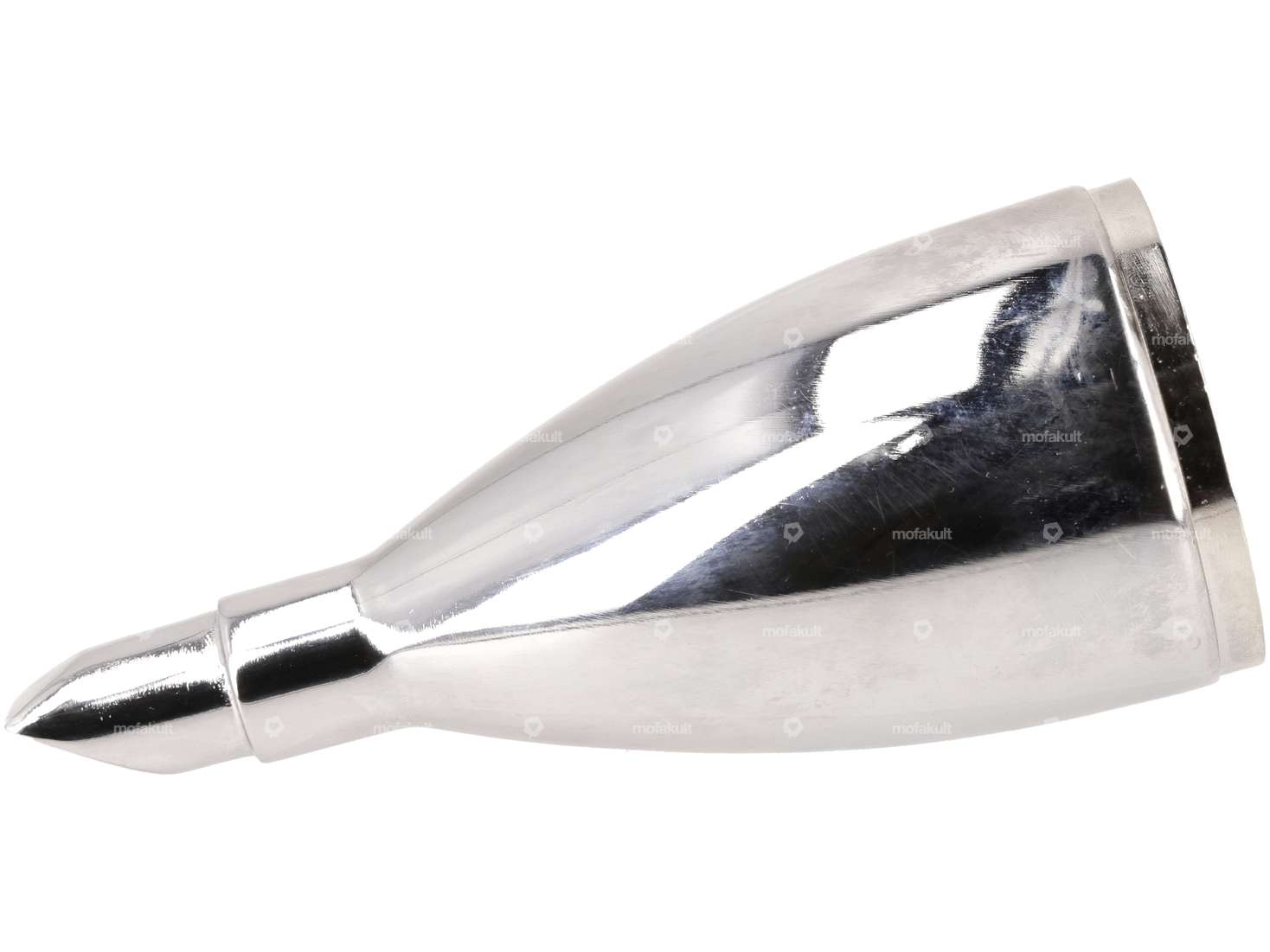

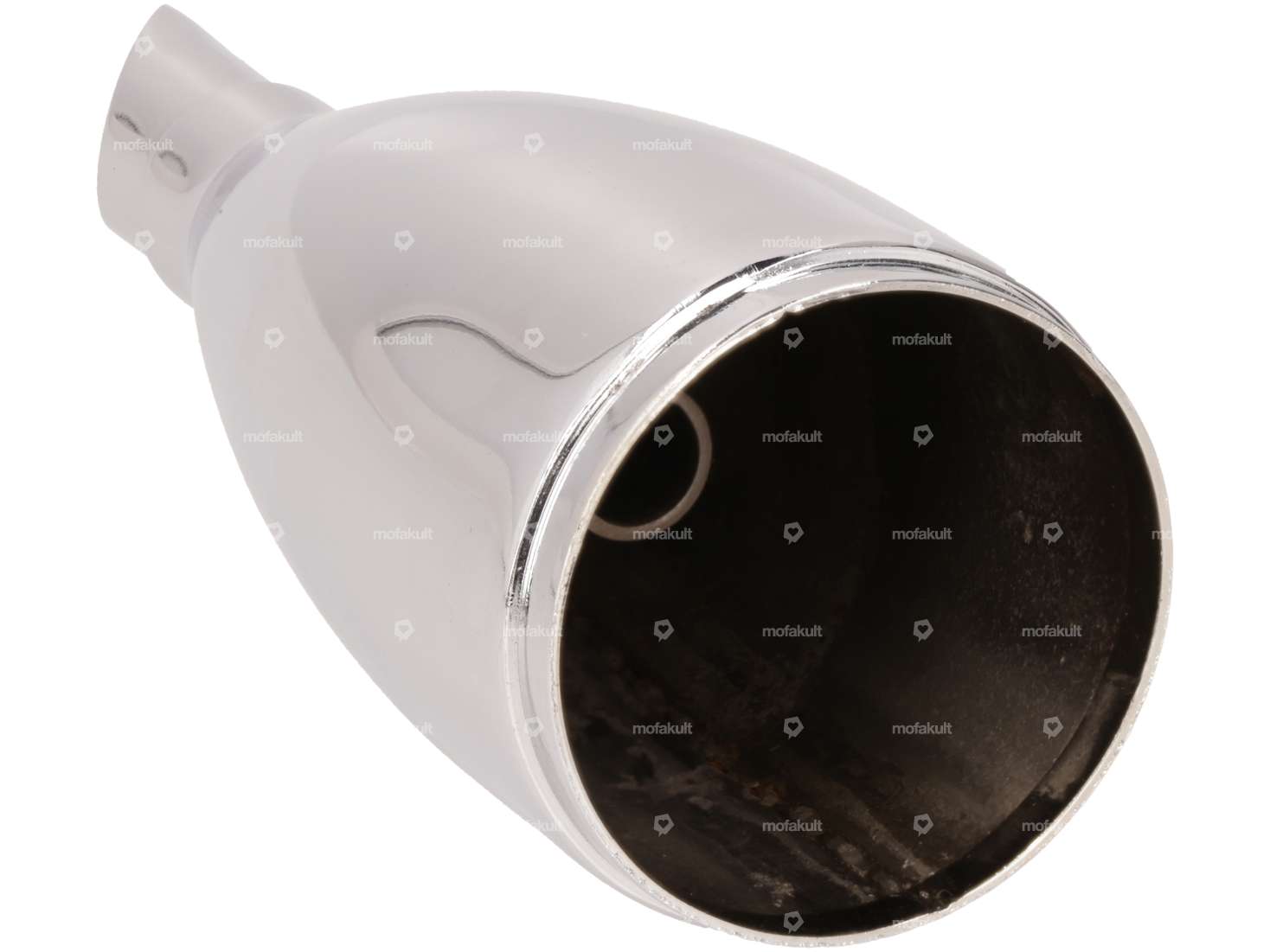

Exhaust tailpipe flute 65 mm lateral chrome

Cigar muffler Ø 28 / 65 mm (end piece closed) chrome

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Ø outside: 65 mm · Color: Chrome · Total length: 650 mm · Mounting type: Screwed clamp · Exhaust type: Cigar · Ø Internal connection: 28 mm

Nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Drive: External hexagon · Height: 5.3 mm · Width across flats: 11 mm · Area of application: Standard · Strength class: 8

End piece exhaust cigar 65 mm chrome

Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 65 mm · Total length: 150 mm · Ø External connection: 62.5 mm

Exhaust cigar Ø 28 / 65 mm chrome

Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 65 mm · Mounting type: Screwed clamp · Exhaust type: Cigar · Ø Internal connection: 28 mm · Total length: 650 mm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Manufacturer: swiing® revival parts · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Material: Spring steel · Surface: galvanized (blue) · Ø outside: 14 mm · Ø inside: 9 mm · Total length: 122 mm

Lamp grille round black

Material: Steel · Surface: varnished · Ø outside: 130 mm · Color: black · Width: 138 mm · Total length: 70 mm · Mounting type: Screws · Wide intake: 128 mm · Grille length to attachment: 60 mm · Number of fixing points: 2 pcs

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Place of use: Crankshaft · Manufacturer: Sachs · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Material: NBR · Ø outside: 33 mm · Width: 7 mm · Ø inside: 17 mm

NSK 6201 ball bearing 12/32/10

Manufacturer: NSK · Stock number: 6201 · Inner ring width: 10 mm · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Ø outside: 32 mm · Bearing type: Shoulder bearing · Width: 10 mm · Ø inside: 12 mm · Area of application: Standard

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Place of use: Pinion shaft · Manufacturer: Sachs · Temperature resistance (min.): -30 - 100 °C · Material: NBR · Ø outside: 31.5 mm · Width: 3.5 mm · Ø inside: 14.96 mm · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

32 mm copper ring 30.6/37.8 flame tube | Sachs

Material: Copper · Ø outside: 37.8 mm · Ø inside: 30.6 mm

swiing® revival exhaust nut M40x1.5 for 32 mm pipe, galvanized | Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 46 mm · Nut type: Union nut · Ø inside: 33.5 mm · Thread type: MF40x1.5 (fine pitch thread) · Nominal diameter (thread): 40 mm · Height: 19 mm

LIQUI MOLY Exhaust assembly paste 150 g

Manufacturer: LIQUI MOLY · Temperature resistance (min.): 0 - 700 °C · Color: gray · Contents: 150 g · Area of application: Chemistry

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Manufacturer: Sachs · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Material: NBR · Ø outside: 30 mm · Width: 7 mm · Ø inside: 15 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

swiing® revival 80° carburetor pipe bend M6x0.75

Manufacturer: BING · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Adjusting screws, float, etc. · Surface: nickel-plated · Ø outside: 6 mm · Thread type: MF6x0.75 (fine pitch thread) · Total length: 41.5 mm · Total length: 50 mm · Height: 35 mm · Internal thread: MF5x0.75 (fine pitch thread) · Angle: 80 ° · Width across flats nut: 7 mm · Width across flats nut: 8 mm
