Description

Set for engine overhaul of switched 2-speed type 247 Zündapp engines.

These engines were also installed in Zündapp Belmondo mopeds, Zündapp Bergsteiger mopeds and Alpa Spezial 3000 small engines.

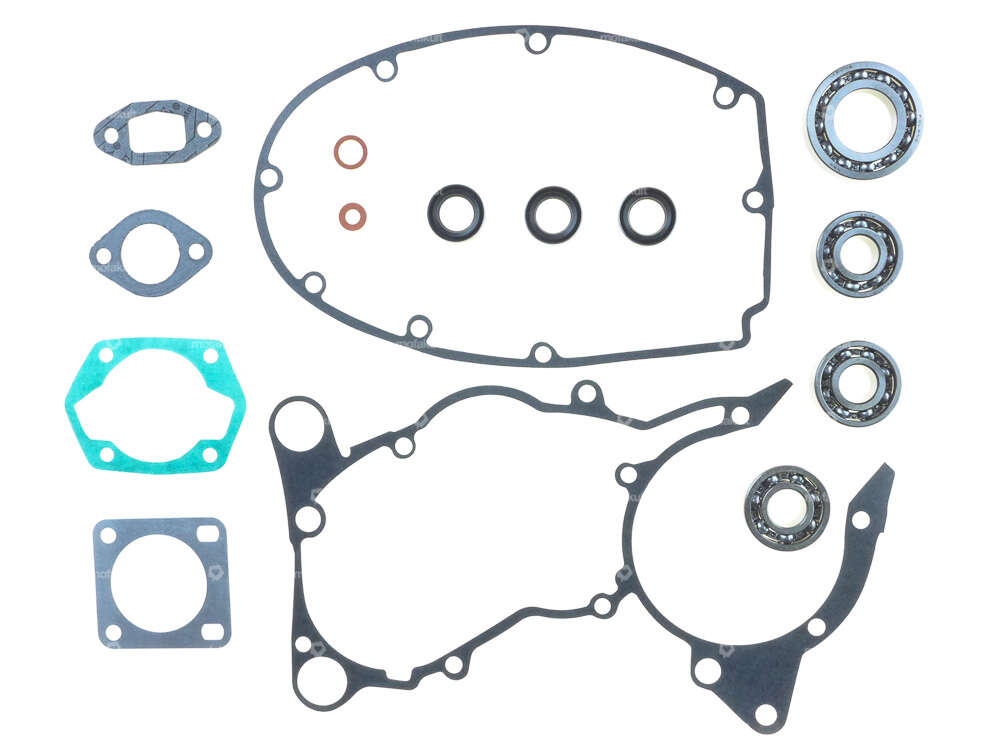

Set consists of the following components:

3 pcs. 6202 deep groove ball bearing
1 pc. 16005 deep groove ball bearing
3 pcs. oil seal 15/24/7 B DUO NBR
complete seal set

All material is quality material!

When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.

Parts included in the set

For: Zündapp Belmondo · Zündapp

swiing® revival bearing & shaft seal set engine | Zündapp 247

18851

Manufacturer: swiing® revival parts, NTN, NSK · Number of components: 7 pcs · Area of application: Standard

For: Zündapp

Gasket set engine | Zündapp Belmondo, Bergsteiger

18427

Number of components: 8 pcs · Area of application: Standard

Details

Manufacturer	NTN, NSK
Number of components	15 pcs
Area of application	Standard

Suitable for the following models

Zündapp

Belmondo (Typ 247-71)

Mofa 25 (M 25) / Moped M 50 Bergsteiger (Typ 247-434)
